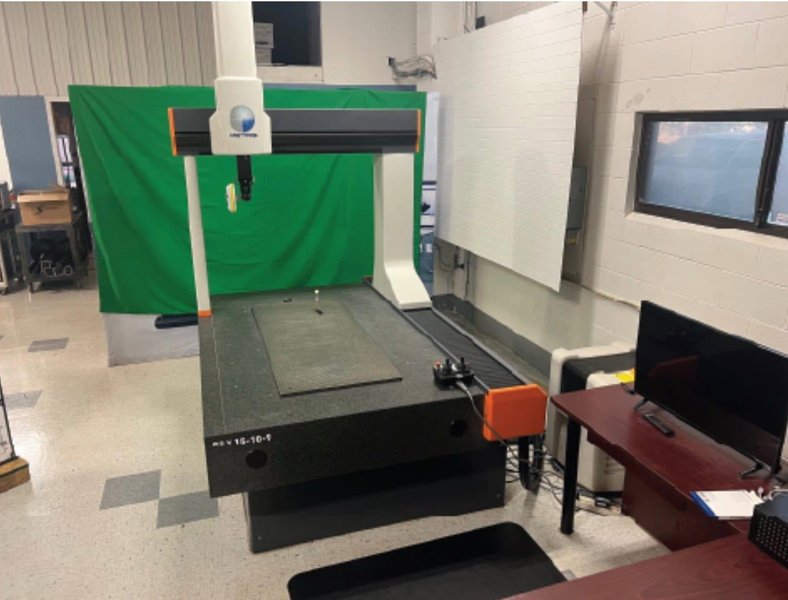

Coord3 Metris LK Bridge CMM, 2008 – Hera 15.10.9

Accuracy from 2.4μm+L/333 Velocity from 52 m/min Acceleration from 9360 m/min2 Size: 1500 x 1000 x 900 (59″ x 39.4″ x 35.5″)

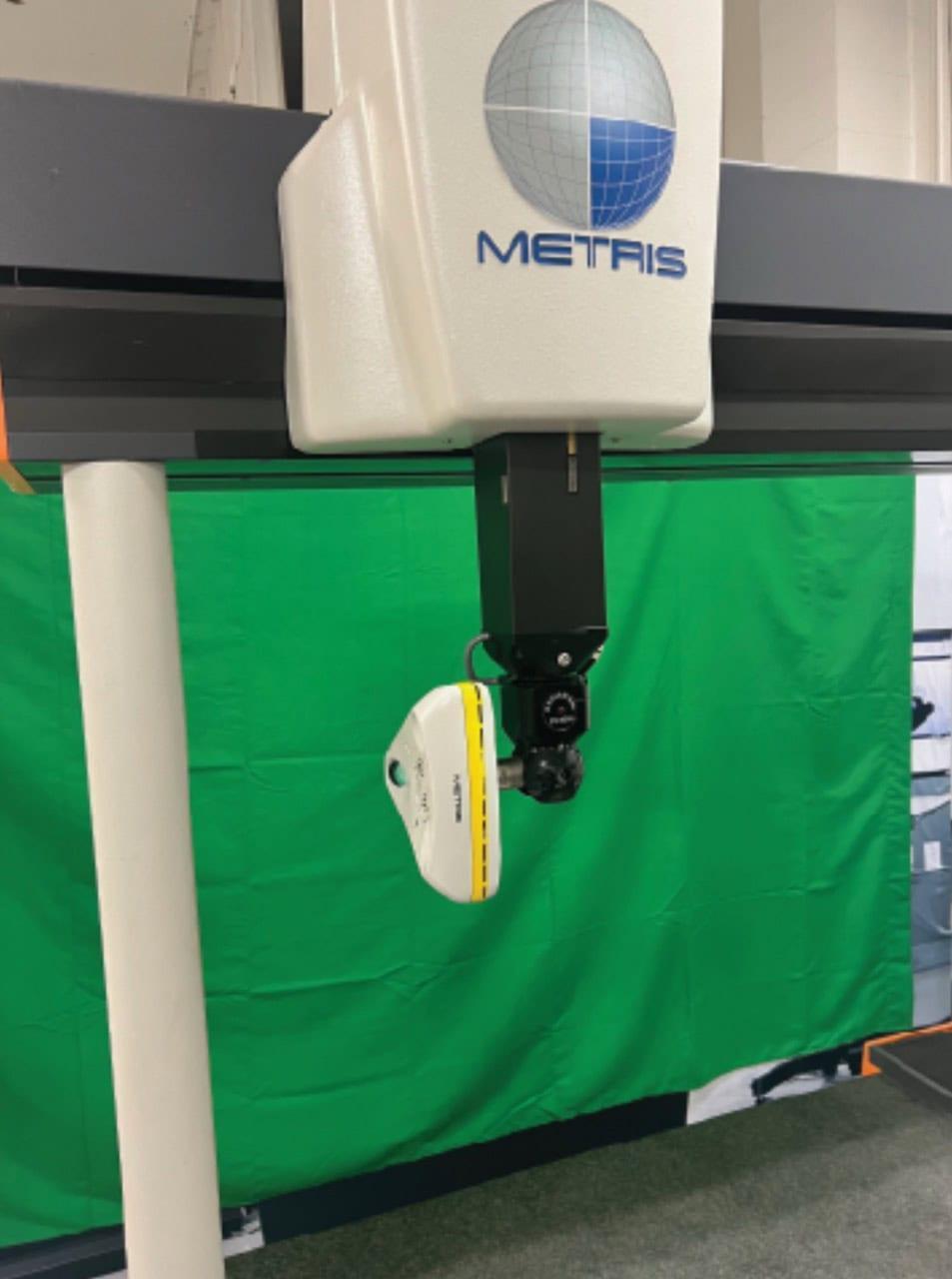

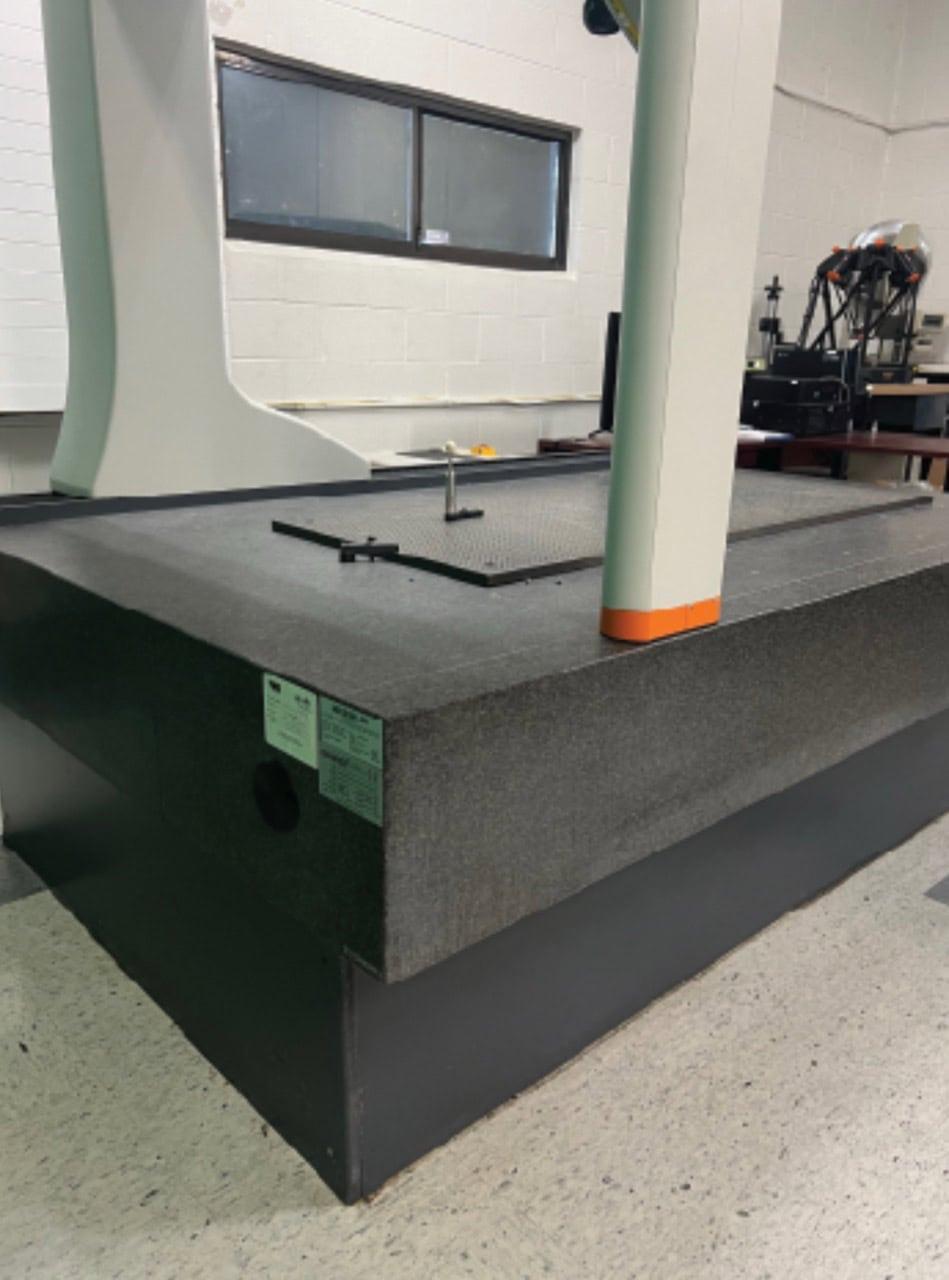

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,C3 Coordinate Measuring Machine. Reliable and Innovative Metrology Solutions. C3 V BRIDGE CMM With super-light aluminium as a key structural component, and air bearings on all axes, the C3 V is a high specification cost effective metrology solution. Due to its size, high capacity table and comprehensive selection of options, the C3 V is suitable for a wide range of small to medium size applications. Key features Measuring Range 1500 x 1000 x 900 (59″ x 39.4″ x 35.5″) Renishaw PH10 / TP20 probe system Optional Software – CMM Manager or PolyWorks New CNC Controller 0.5μm resolution scales Fully protected guideways (limited sizes)) Passive anti-vibration mounts Aluminium Y and Z guidewaysGranite table and X guideway Air bearings on all axis NIKON 3D laser scanner not included, but available for an up charge.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key benefits High acceleration for low cycle times Excellent accuracy and repeatability Flexible multi sensor platform Small footprint High capacity (loads) table Suitable for a shop floor environment

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
