DMTC CGK5112JD CNC VTL, 2020 – Fanuc Control, Low Hours

Manual Chuck Diameter: 39.37″ Max swing diameter of workpiece: 47.24″ Max Machining Diameter: 47.24″ Max Machining Height:39.37″ Max Workpiece Weight: 11023.11 lbs. Worktable Speed Step: Stepless Table speed range: 400 r/min. Beam Travel: 31.5″ Max torque of worktable: 30000 N Feeding series: Stepless Feeding range: 78.4″/min Rest fast moving speed: 196.85″/min X axis Feeding Moter Torque: 12Nm Z axis Feeding Moter Torque: 22 Nm Tool Rest Horizontal Travel: 25.59″ Tool Rest Vertical Travel: 31.49″ Max cutting force: 2800 N Main motor: 30 HP Machine Size(L×W×G): 122.04″x 106.29″x 110.23″ Machine Weight(about): 24300 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

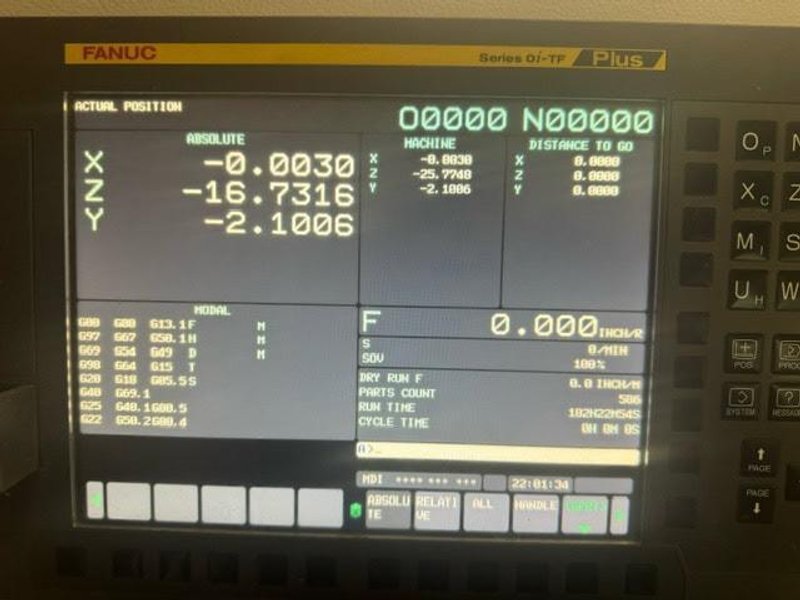

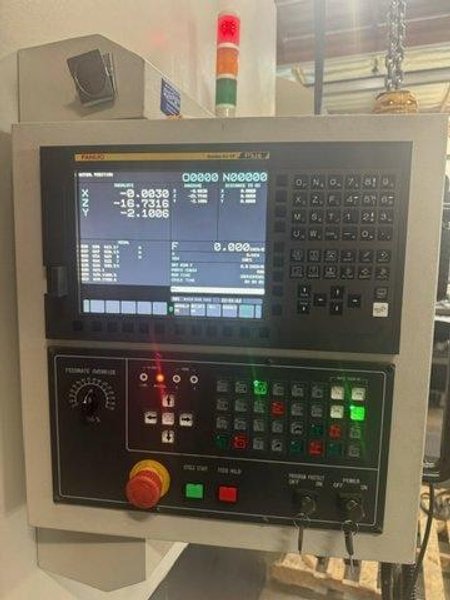

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,FANUC Oi-TF Plus Control Chuck 4 jaw 1000mm Manual Chuck ATC 8 Station with 2 tool holders

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
