50 Ton Advantage Chiller System Model TIP-30A-SP, 2012

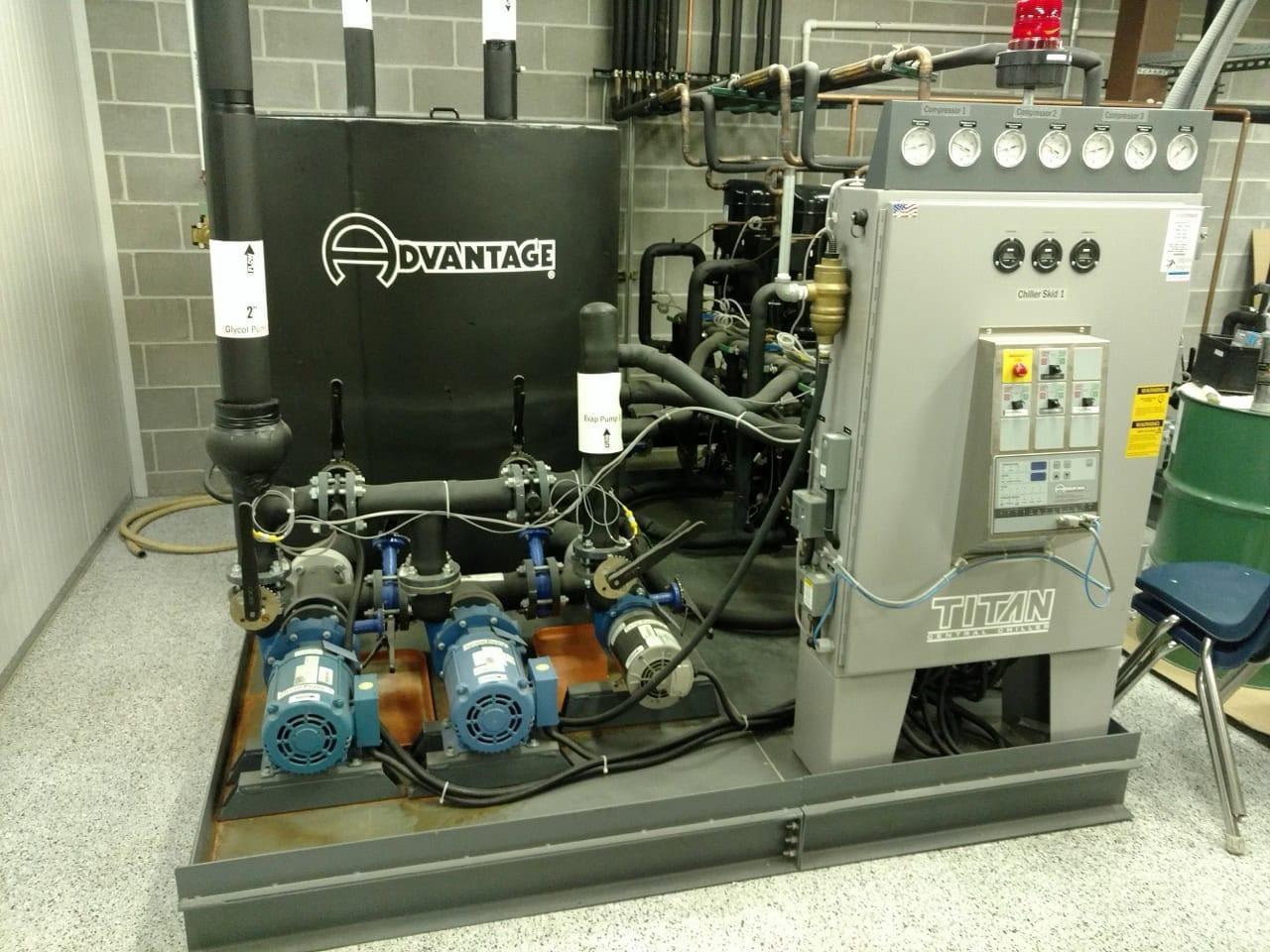

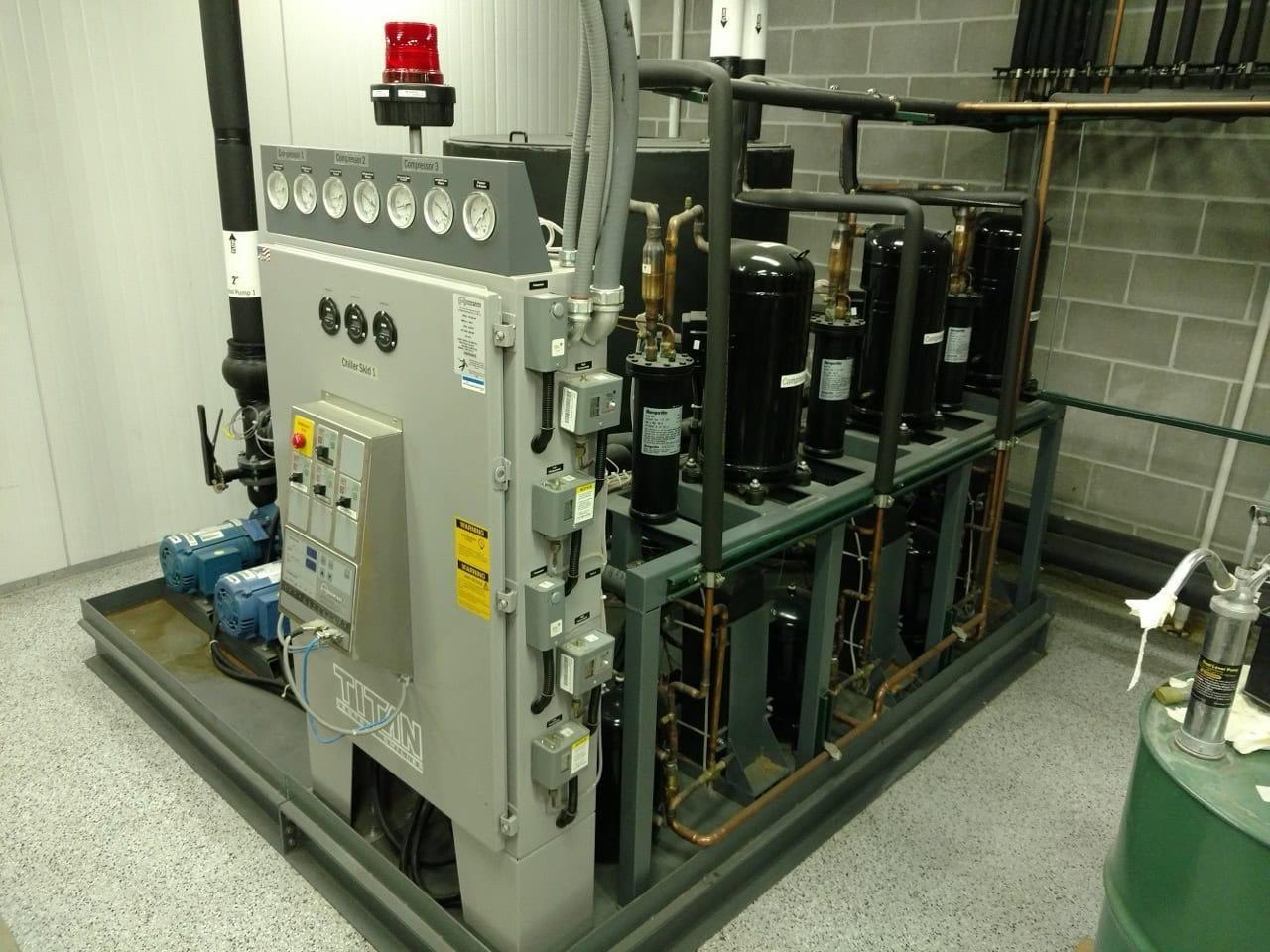

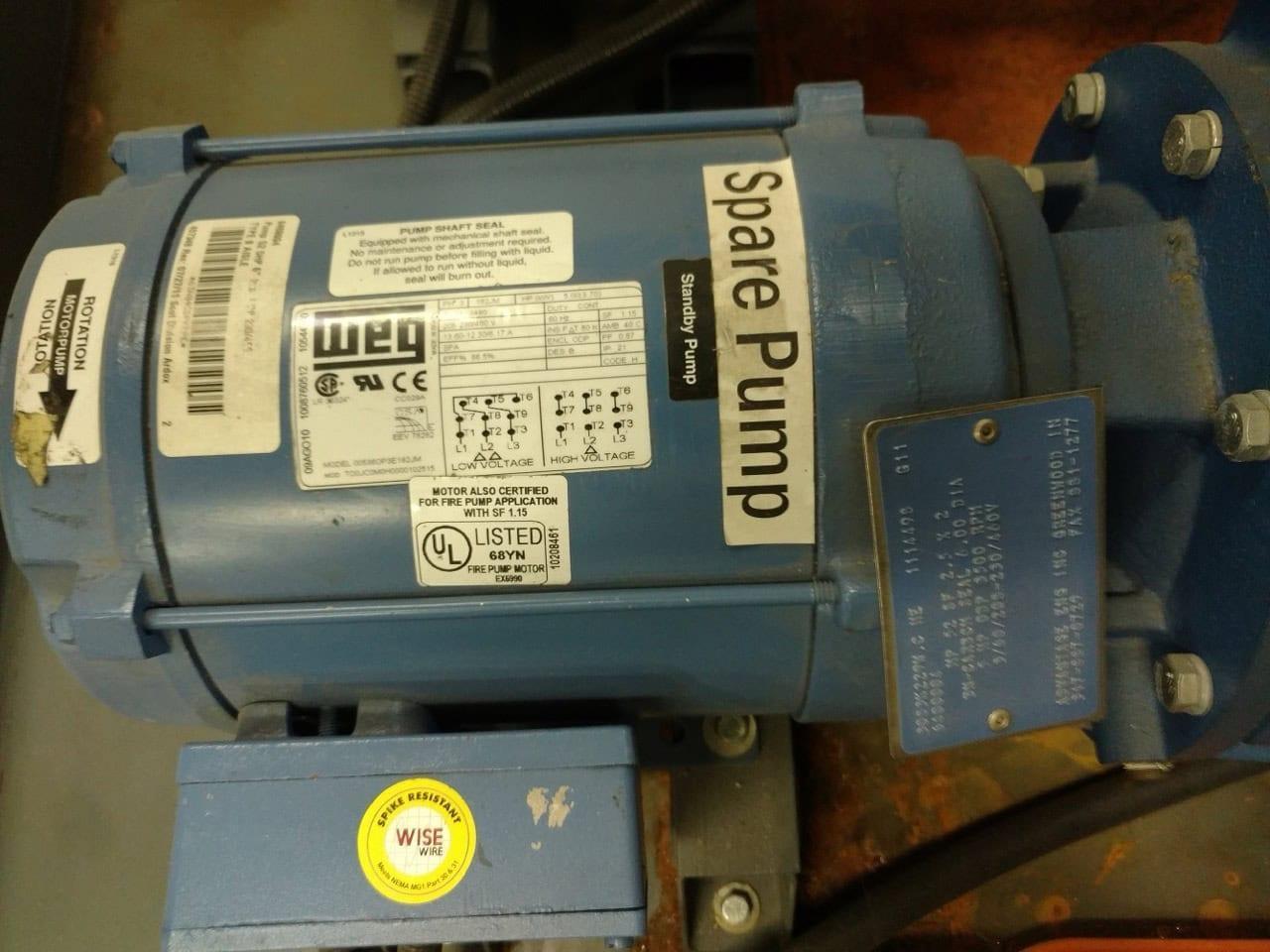

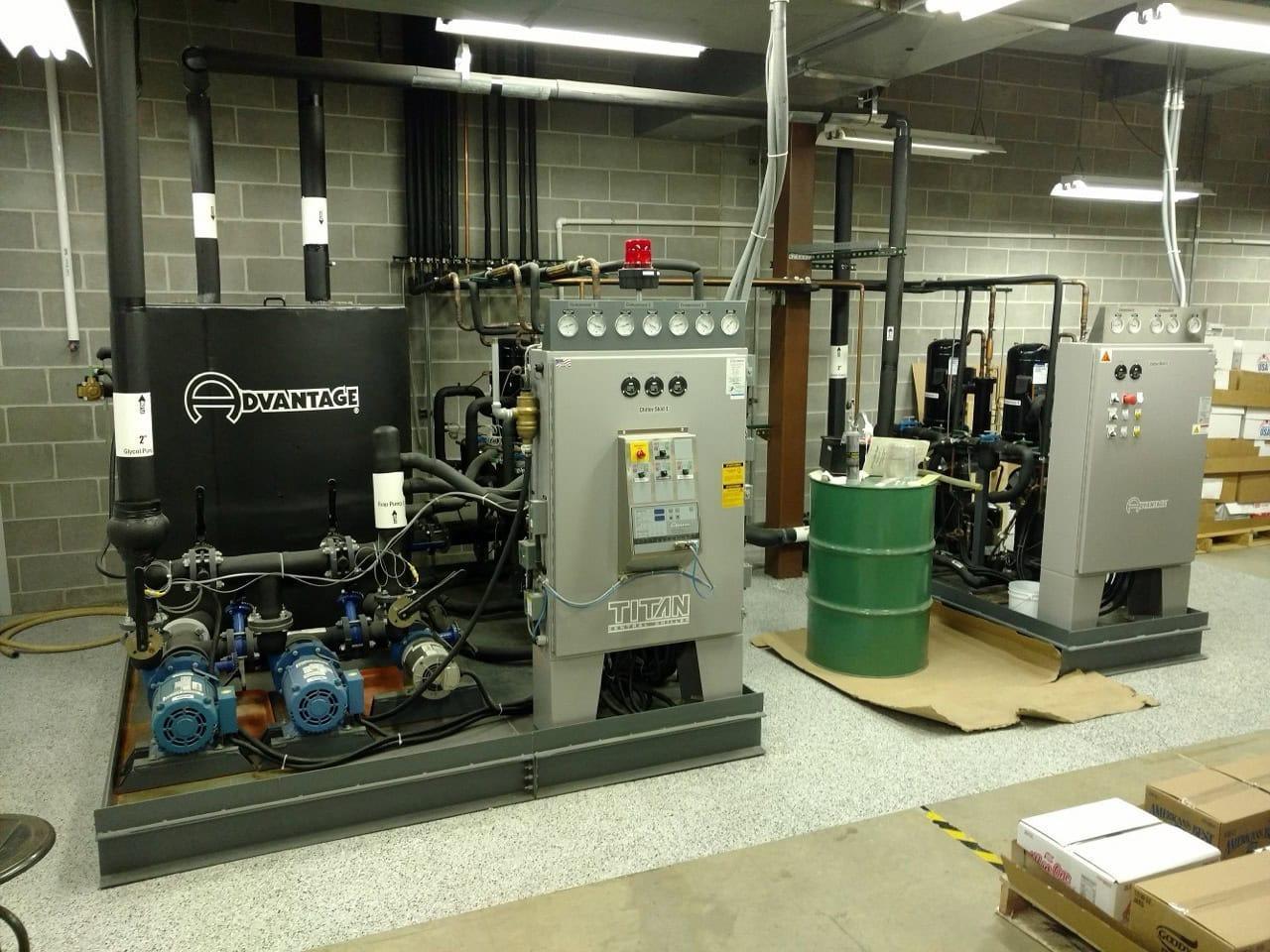

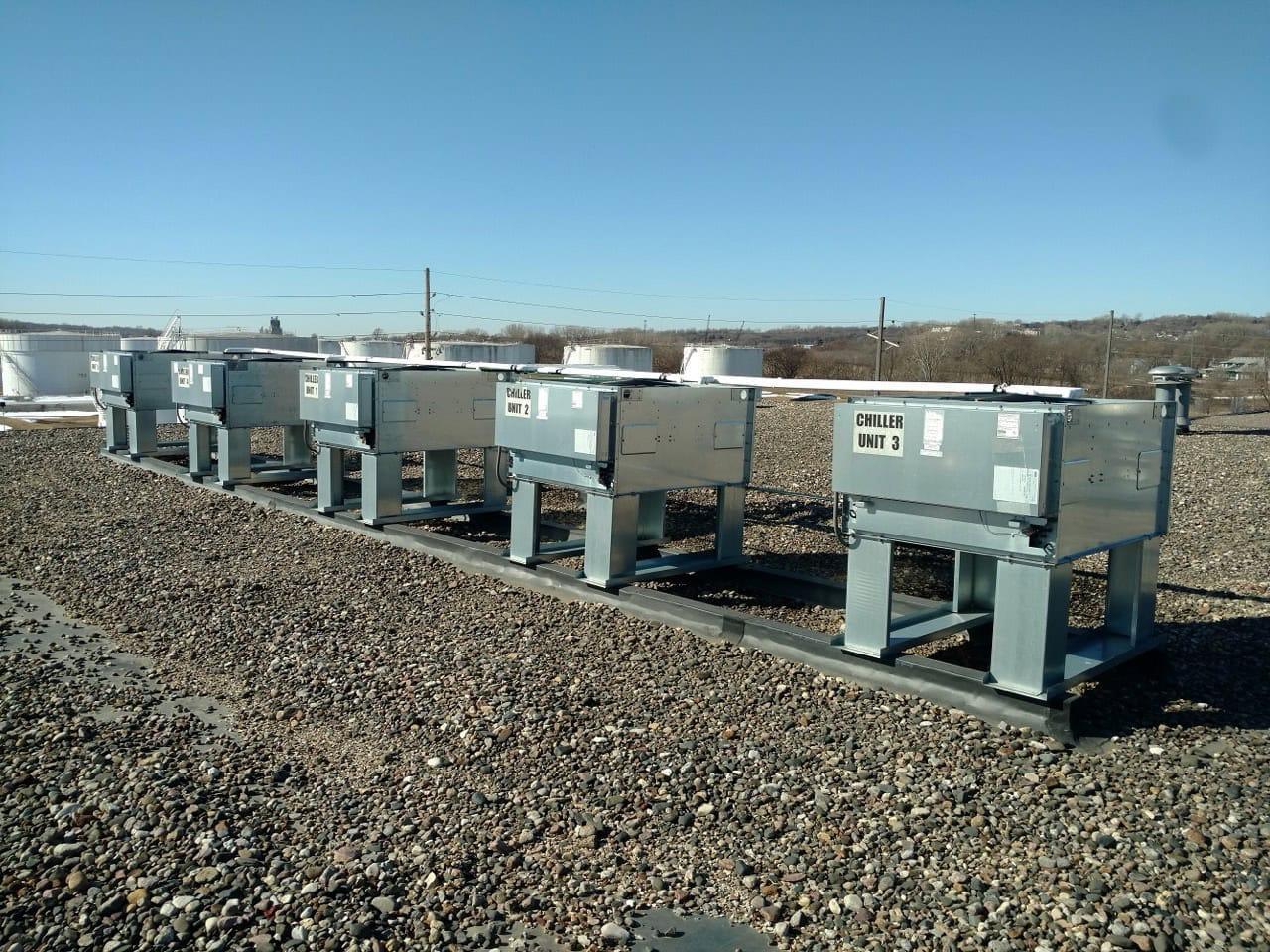

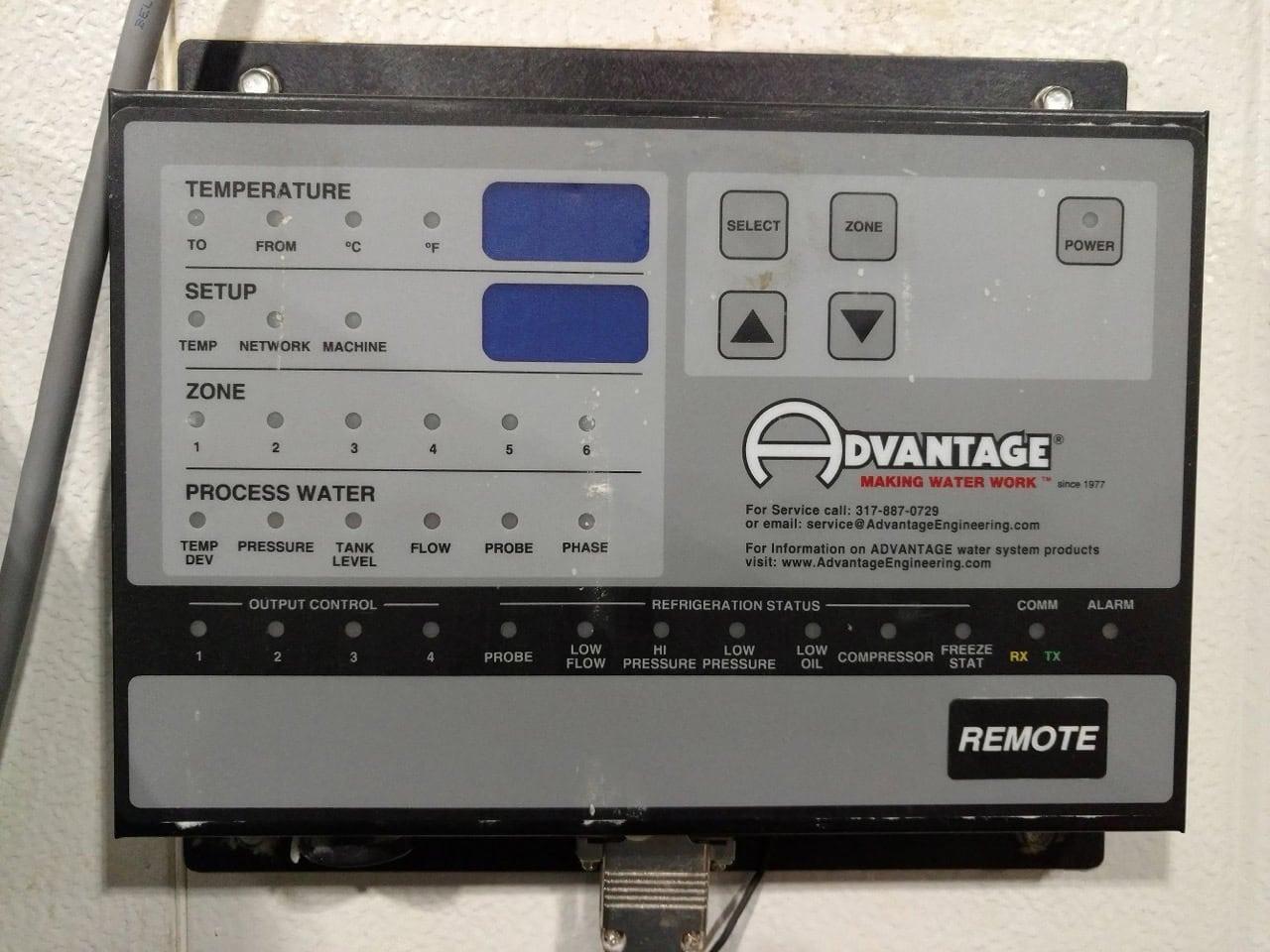

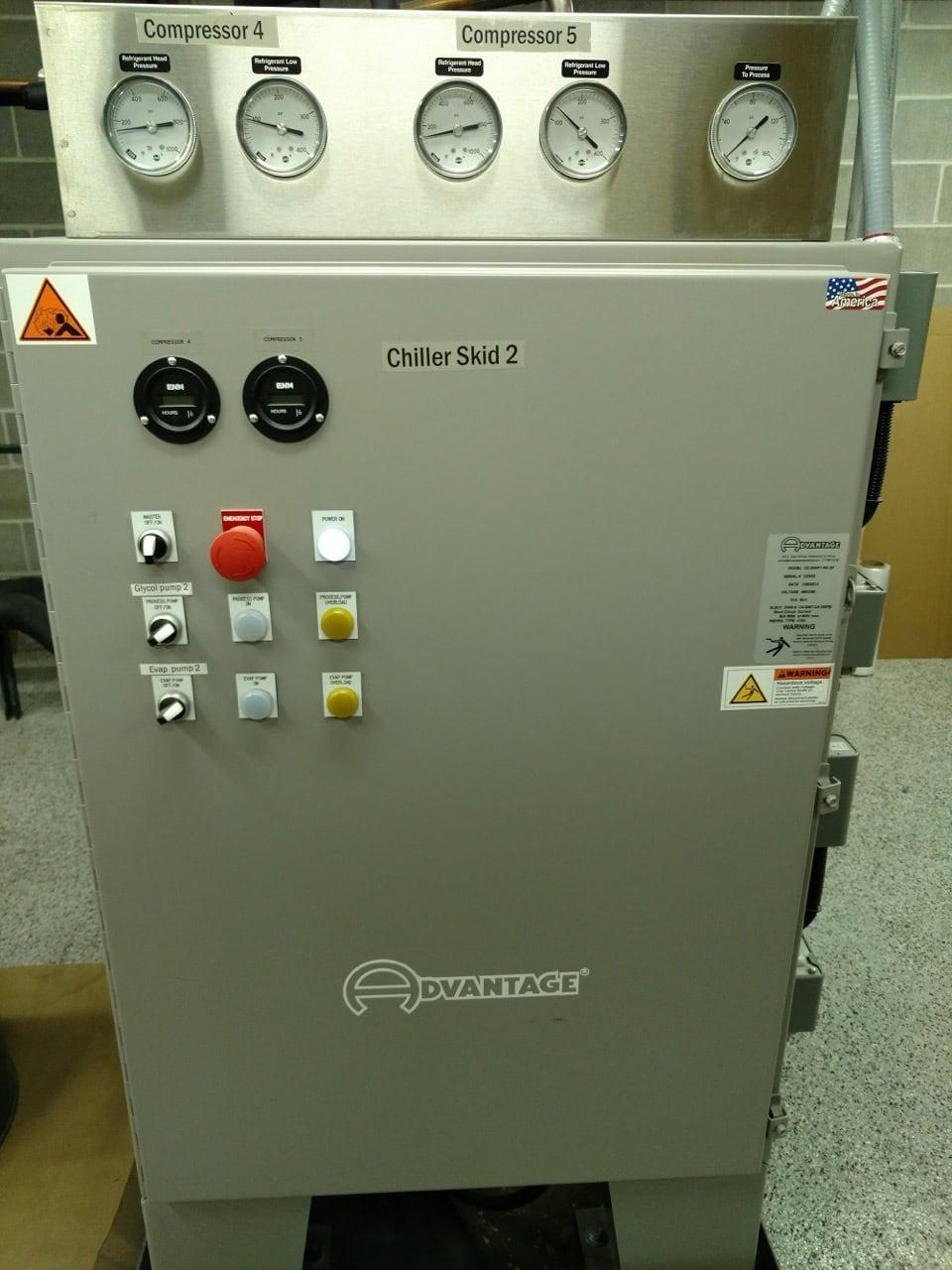

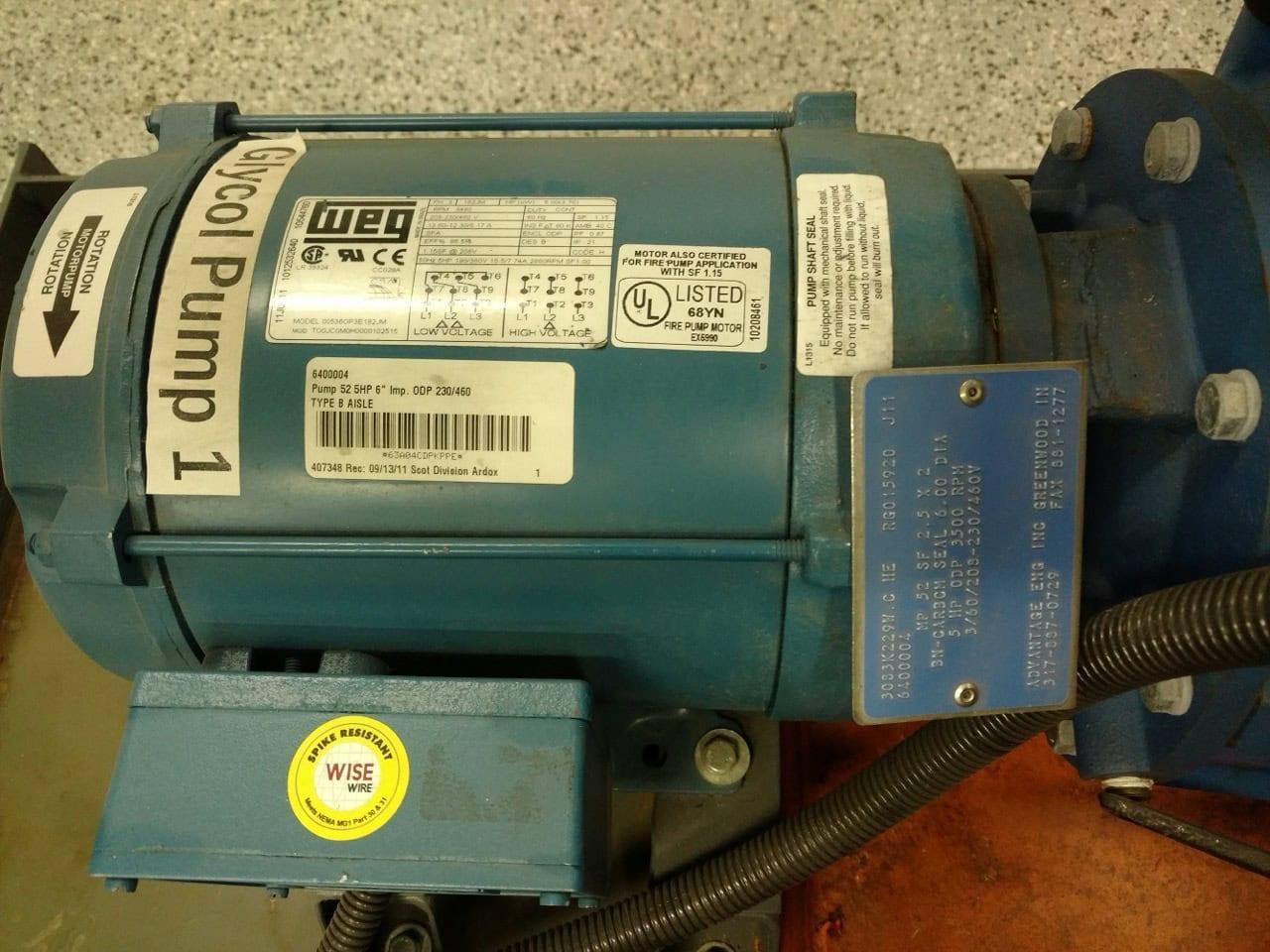

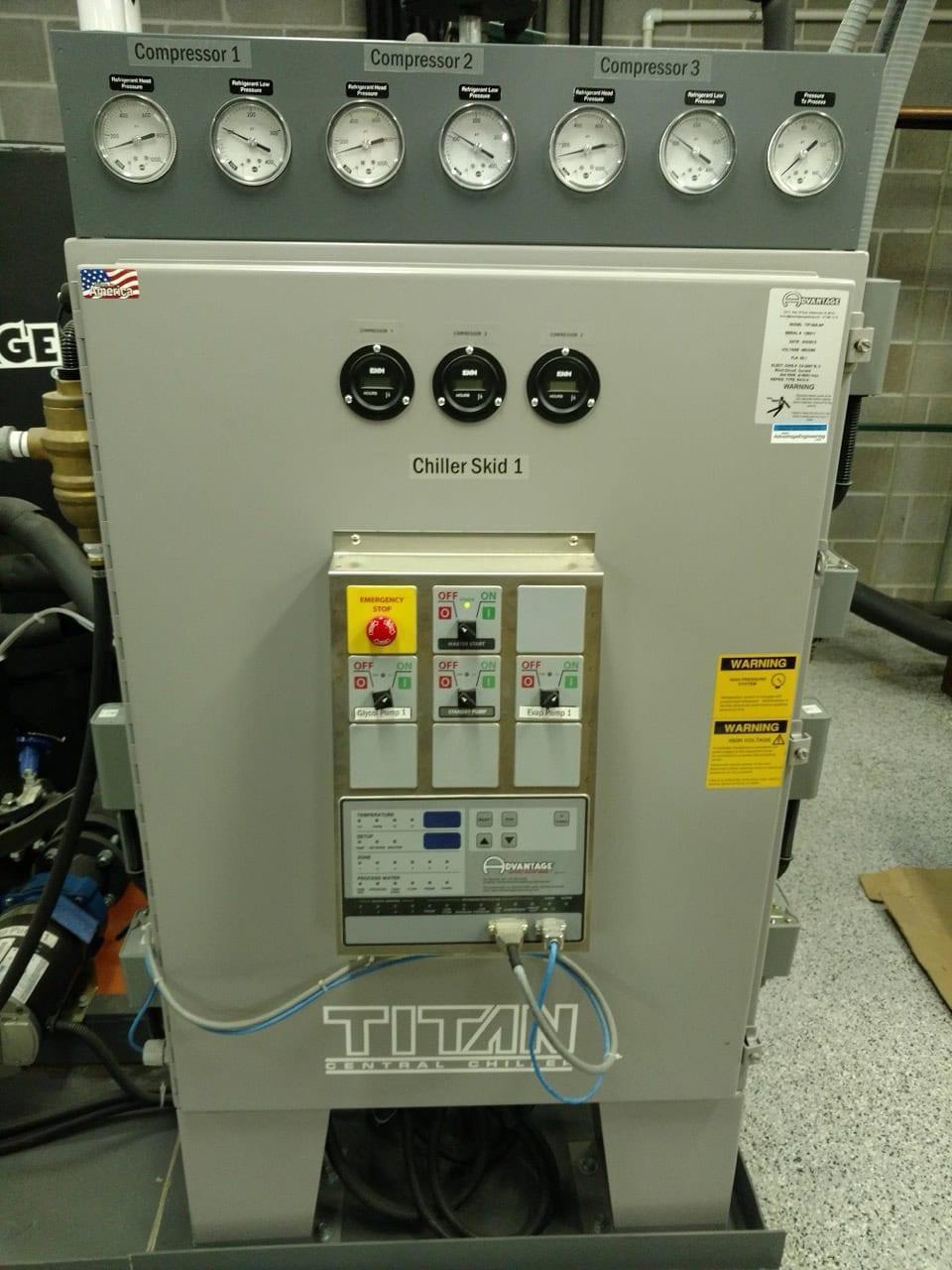

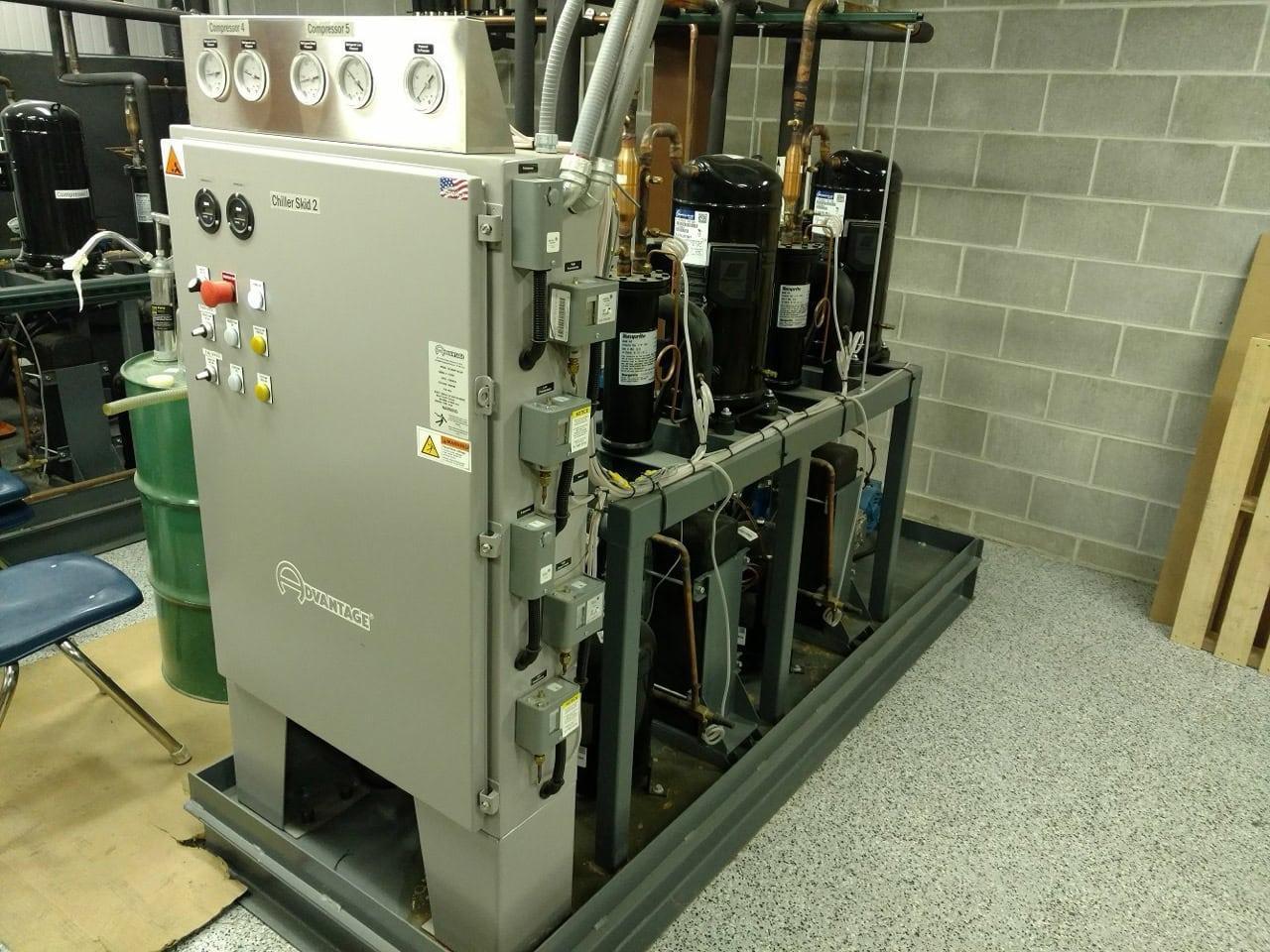

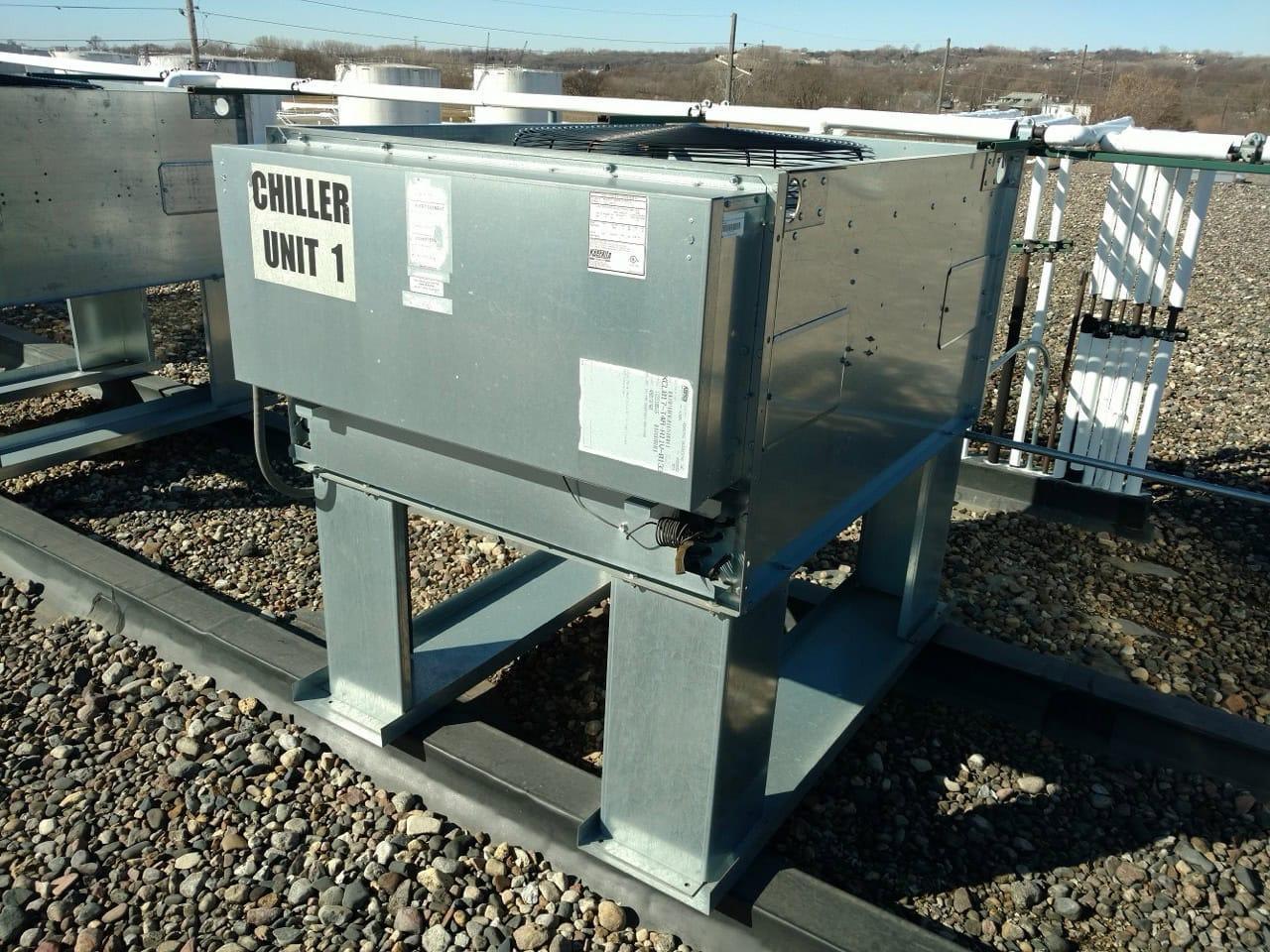

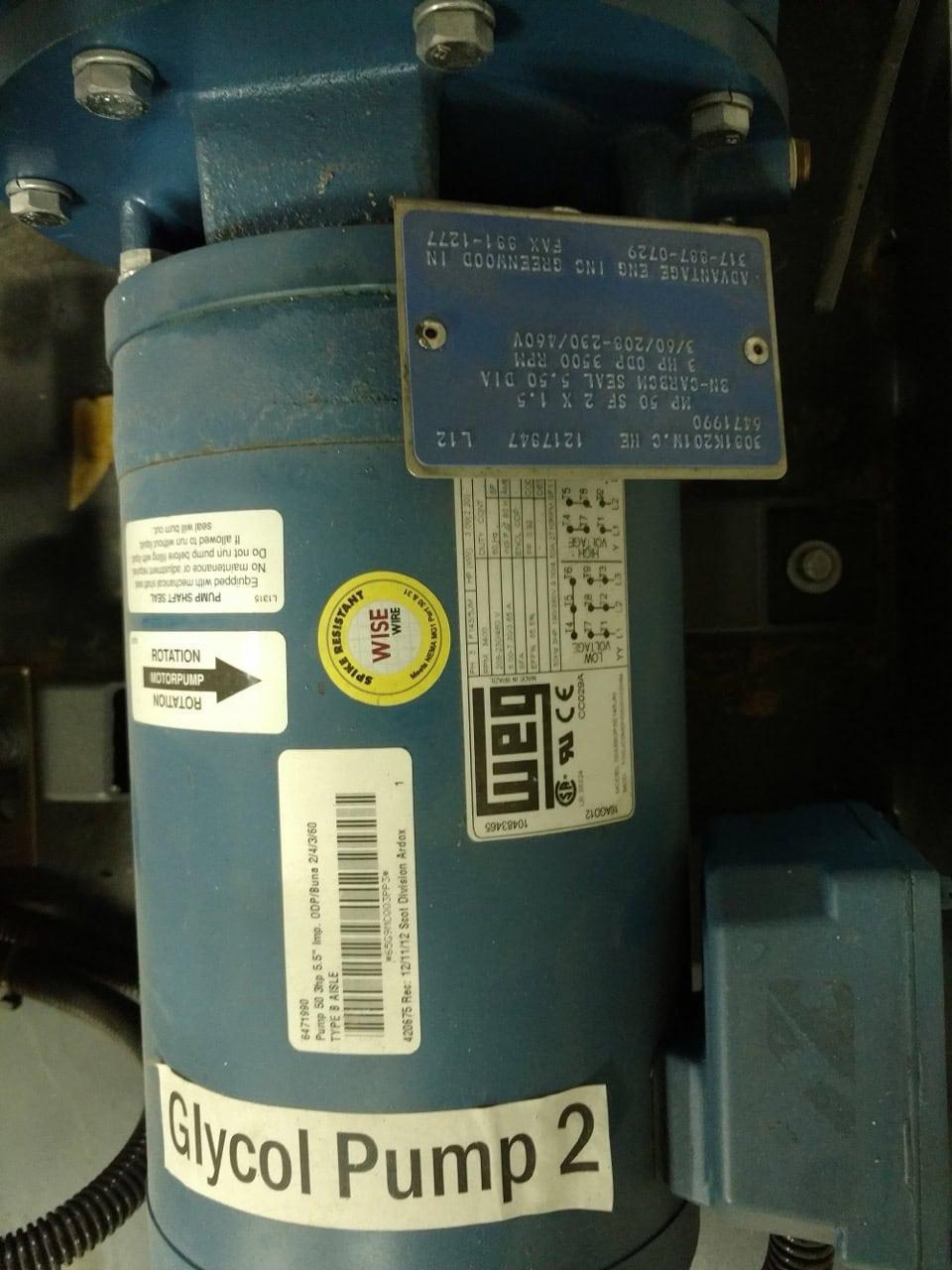

Titan Central Chiller – 50 Ton Split 2 Skids #1 – Model TIP-30A-SP and #2 – Model CC-20APT-RC-2P 460V, 3ph, 60hz – Remote control Remote control with approx. 150’ cable contains stop/start operation, displays temperatures, set point adjustments, zone indication process water indication and alarms. 5 Compressor/evaporators are combined on 2 separate skids 5 roof top air cooled condensing units. Keeprite Refrigeration Model KCL017-T4A-A11V-0133 Refrigerant type R410A 1 common media reservoir – Water make-up connection to chiller reservoir #1 Large skid: 3 Copeland scroll digital compressors 5hp circulator media pump to process 3hp media evaporator circulation pump 5hp pump for spare (backup for process or evaporator pumps) #2 Small skid: 3hp circulator pump to process 2 Copeland scroll digital compressors 2hp media evaporator circulation pump 10hp Copeland compressors – Model ZPD120KCE-TFD-425 Unit was in service for a period of 4 years for a special process and only one shift with partial use. All Manuals and documentation, Installation, Operation and Maintenance Circuit drawings for liquid flow and electrical schematics Consult factory for operations below 20°F

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Unit taken out of service and sealed by a proven refrigeration contractor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Low hours! Compressor Hours #1 – 631, #2 – 3169, #3 – 743, #4 – 644, #5 – 225

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
