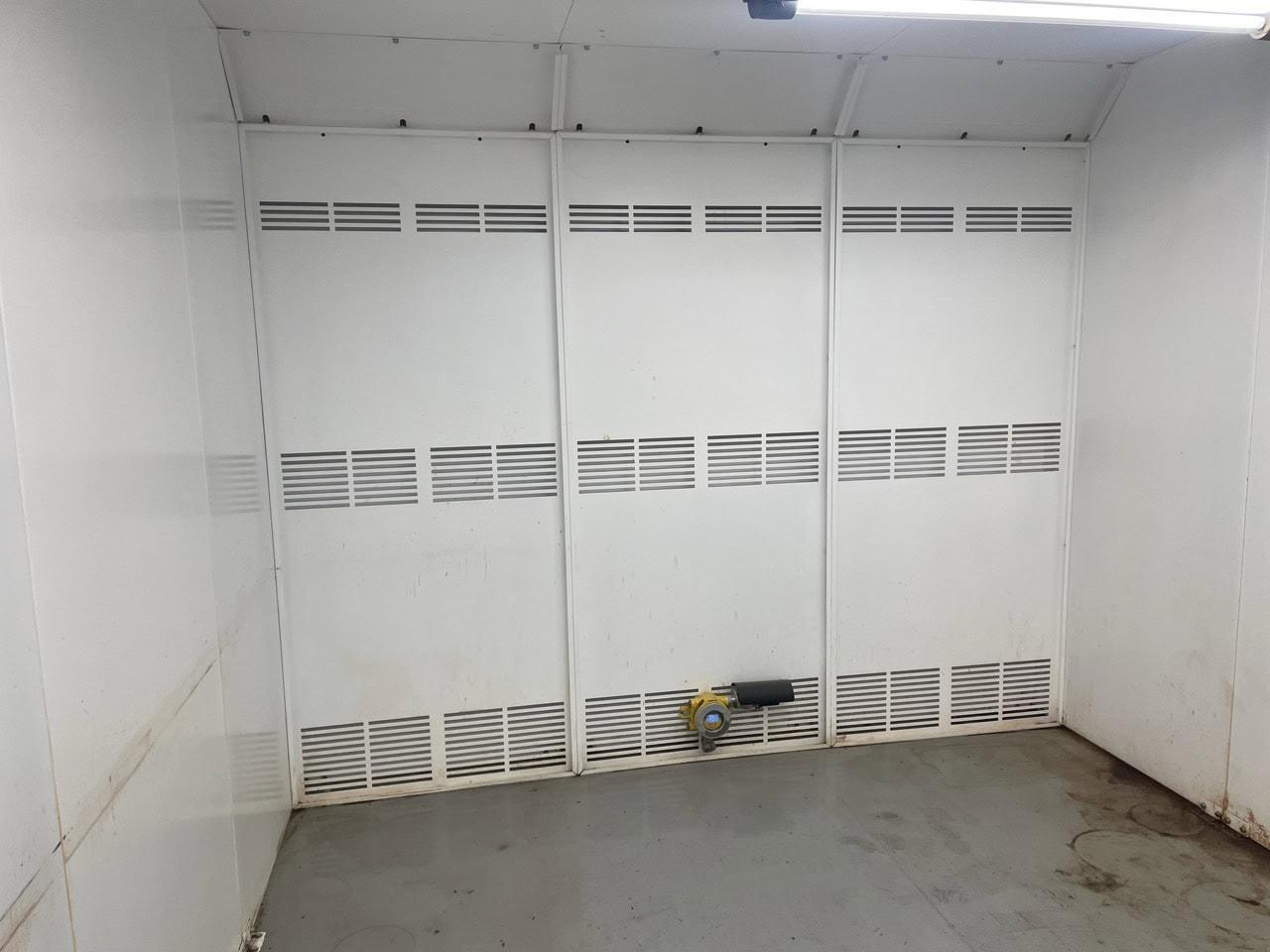

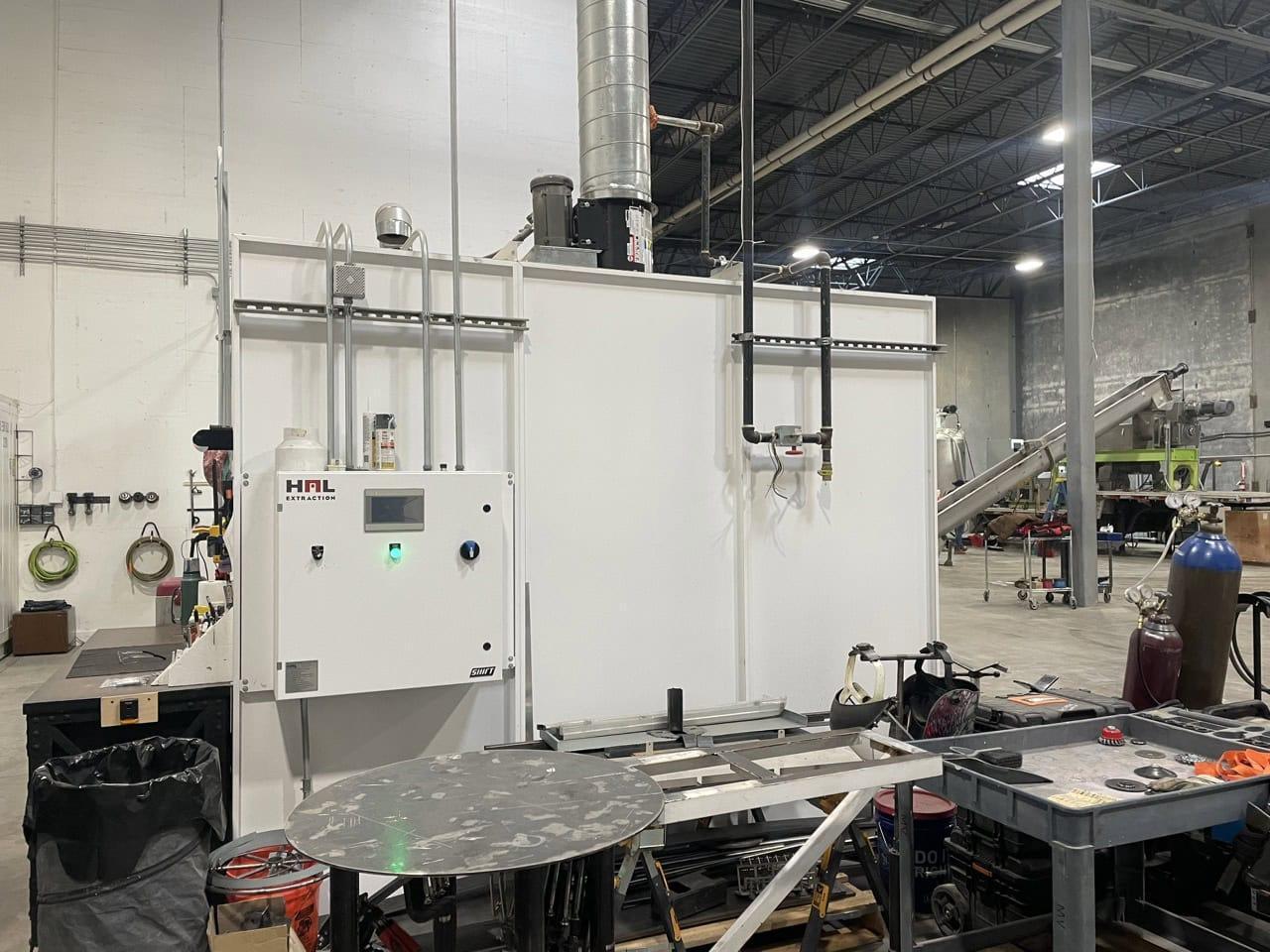

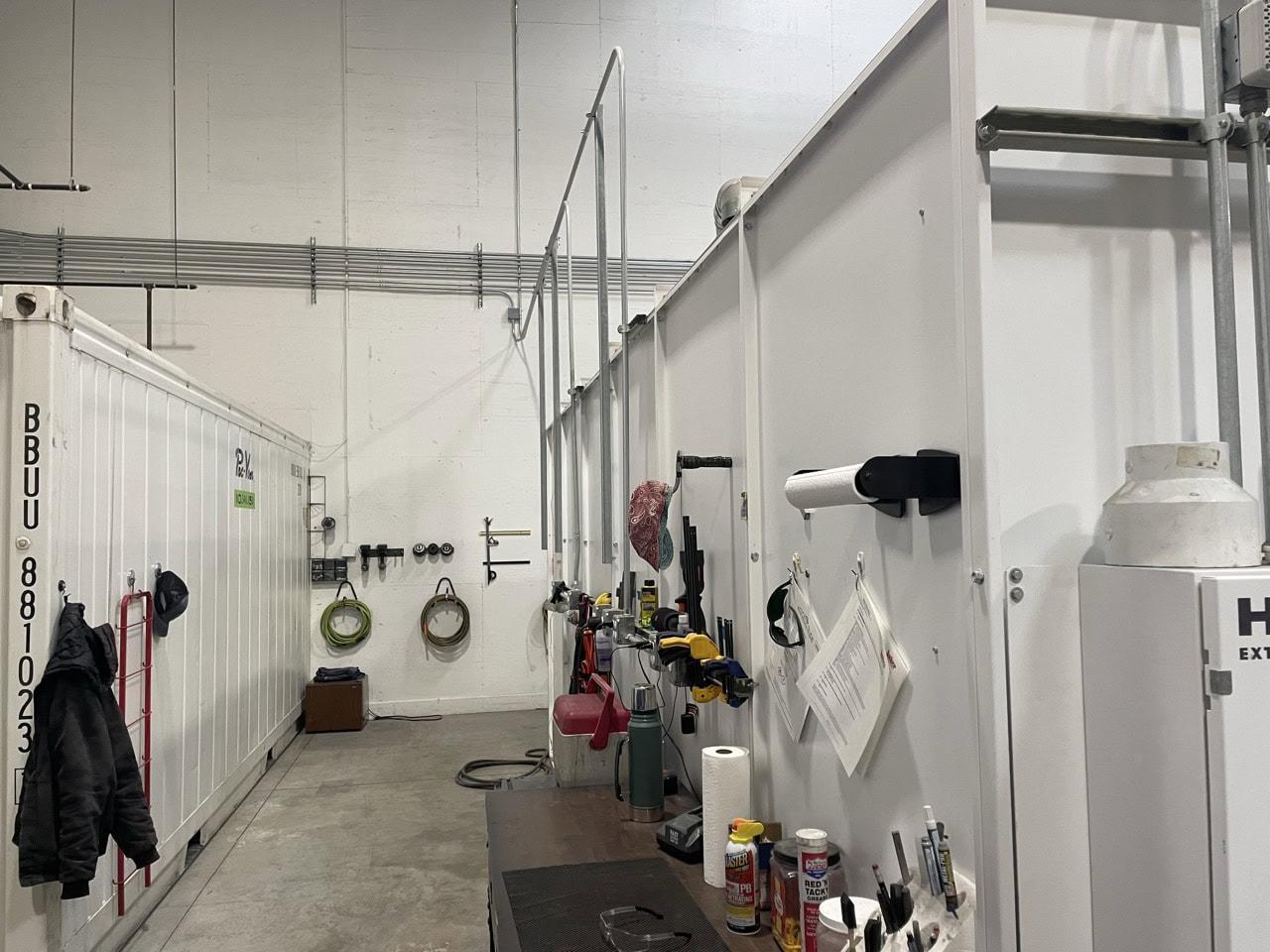

Hal Model 180U Extraction Booth, 2019 – Class 1 Div 1

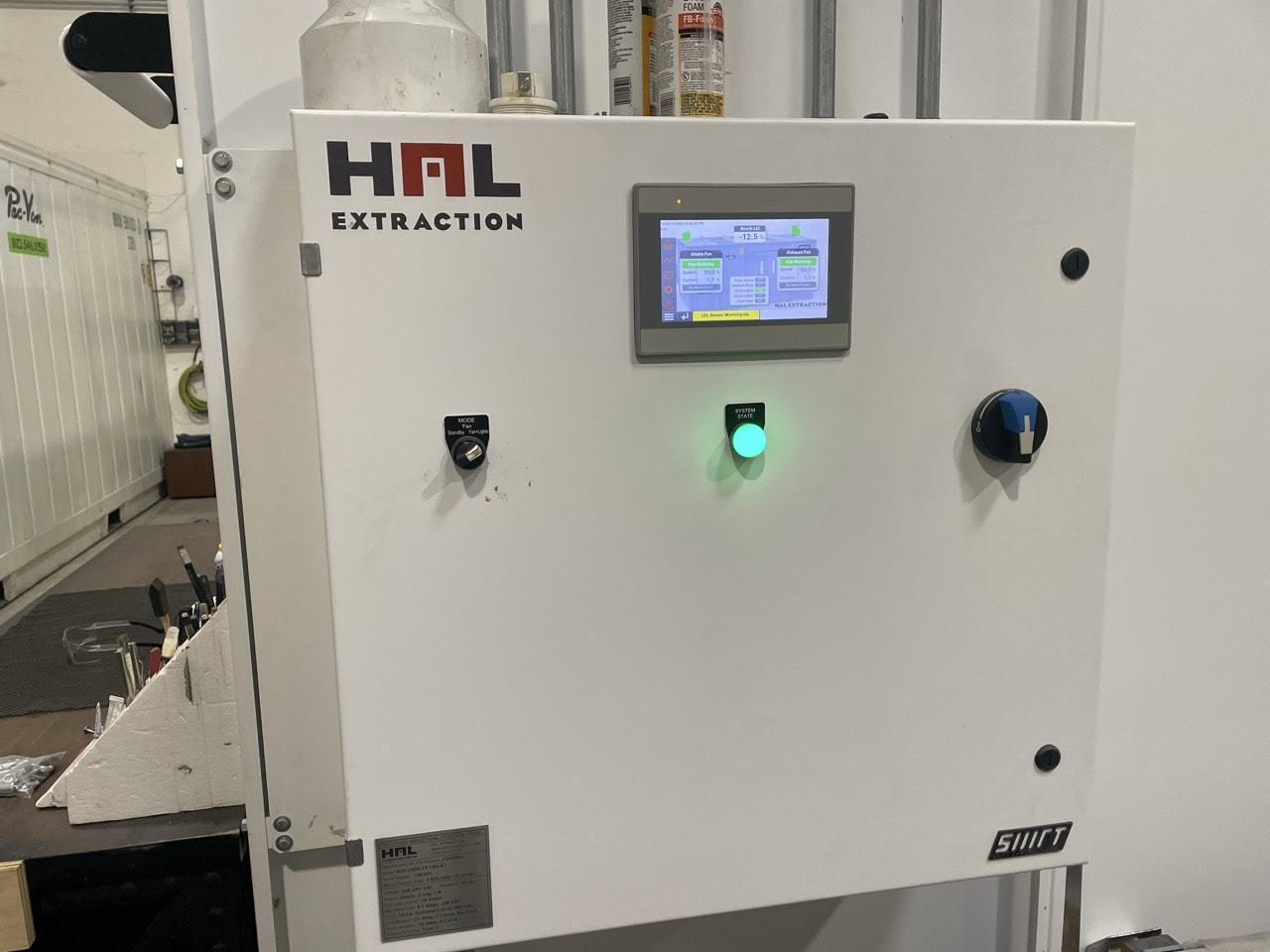

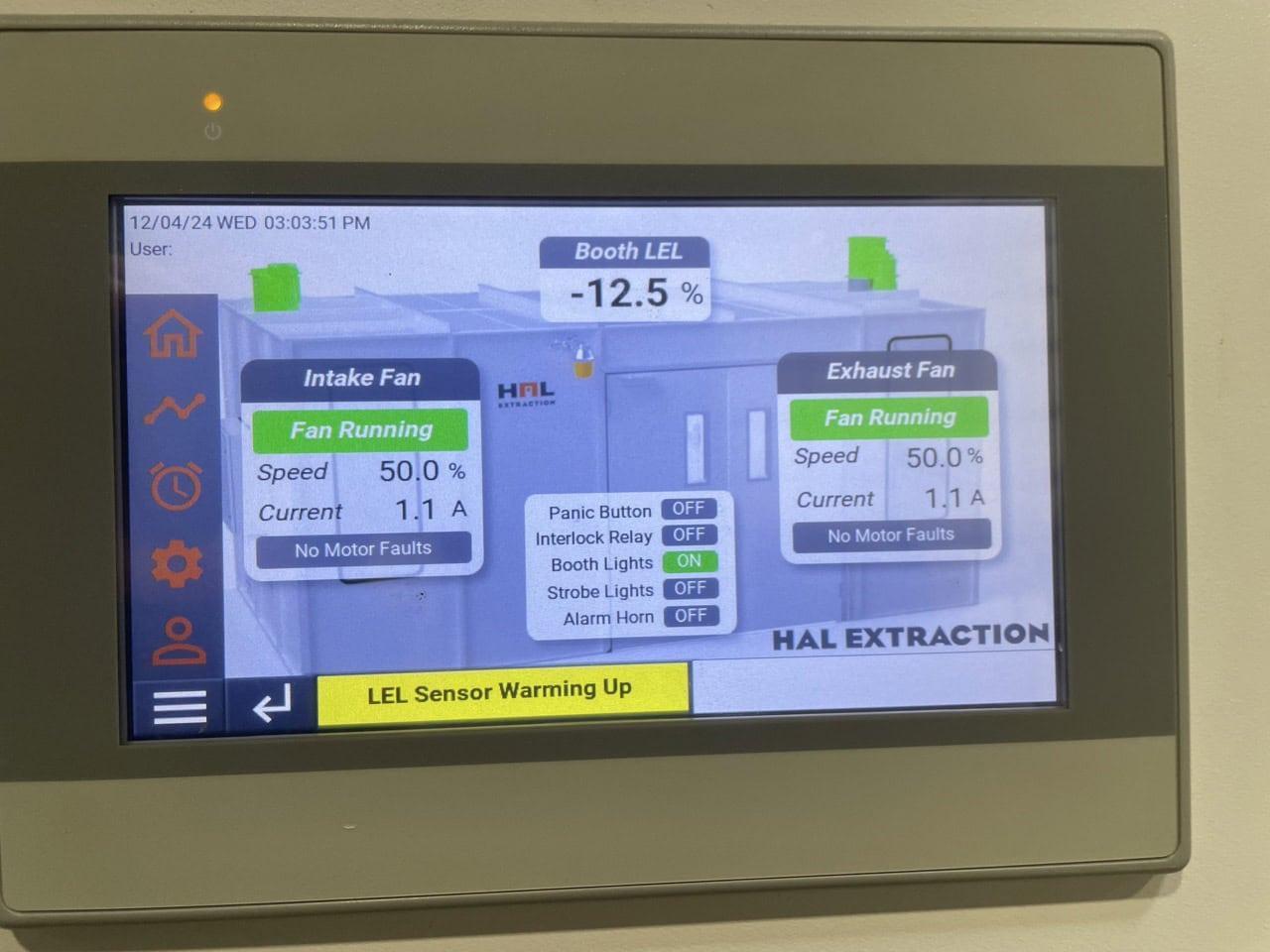

INTERIOR SF 180 FT2 EXTERIOR DIMENSIONS 10’0″ W x 20’3” L x 8’5” H INTERIOR DIMENSIONS 9’9” W x 18’9” L x 8’2” HMAX HEIGHT W/ FAN 9’8” H VENTILATION HARDWARE 12” Explosion-proof fan package. MIN. AIR FLOW RATES Min. base air flow rate: 500 CFM, Min. Purge air flow rate: 1500 CFM 2 speeds ELECTRICAL SUPPLY One 20-amp 208V circuit, single phase. Control Panel FLA = 14.9 AMPS. Booth as Configured = 5.3 AMPS. LIGHT FIXTURES UL Listed 2-tube Class I, Division 1 explosion proof GAS SENSOR UL Listed Infrared, Class I, Division 1 explosion-proof, butane, propane, ethanol, isopropyl alcohol, carbon dioxide SENSOR SET POINTS Base air flow rate up to 10% of Lower Explosive Limit, high flow rate at over 10% of LEL

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,**MORE INFORMATION UPON REQUEST**
