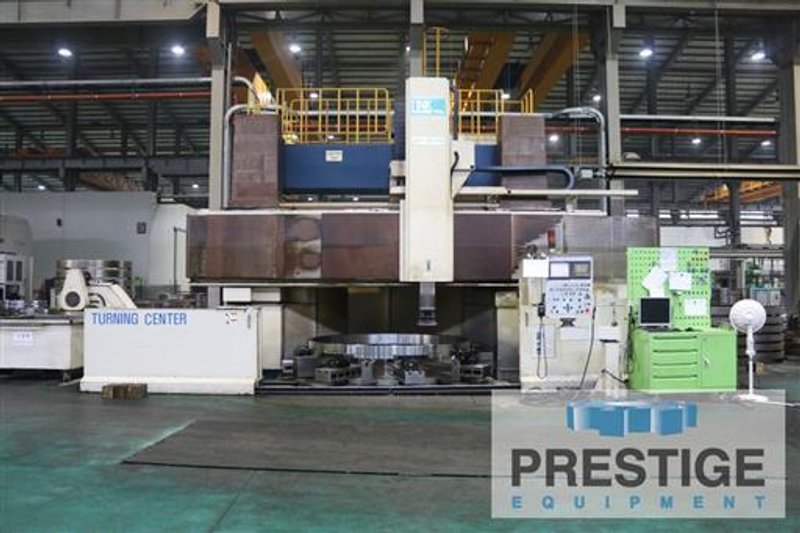

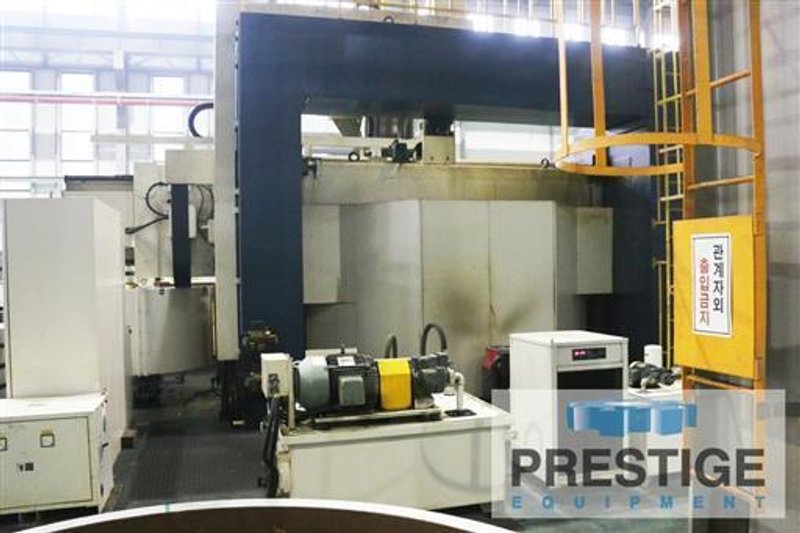

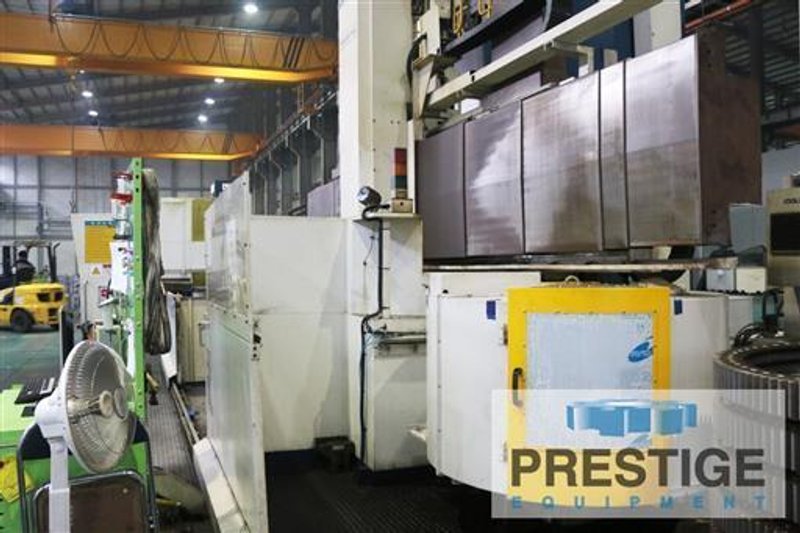

HNK NT-25/35 98"/137" CNC Vertical Boring Mill w/Fanuc 18-iB

Brand

HNK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

SPECIFICATIONS:
Table Diameter 98.42"
Maximum Swing 137.79"
Maximum Turning Height 78.74"
Cross Rail Adjustment 4-Steps 9.84" Each
Ram Cross Section 9.45" x 9.45"
Table Speeds to 120 RPM
Table Load Capacity 26,820 Lbs
Vertical Ram Travel, Z-Axis 47.24"
Rapid Feed Rate 393.7 IPM
Cutting Feed Rate 118.11 IPM
Main Motor, AC 60 HP/ 75 HP

Equipped With:
Fanuc 18i-TB CNC Controls
78.74" Face Plate Chuck W/4-Jaws
12-Station Automatic Tool Changer
Heidenhain Linear Scales X & Z Axes
Coolant System with Chiller Unit
Chip Conveyor
Splash Guard
75 HP Main Motor
