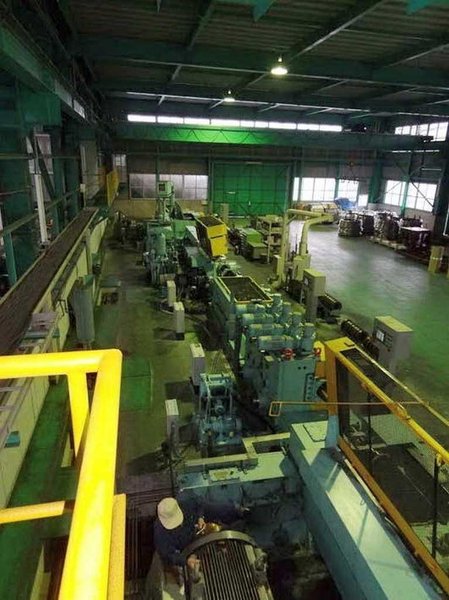

Drawing Machine, Schumag STOCK# 3945
Brand
Category
Type
Model
Not specified
Stock #
3945
Year
Not specified
Condition
Good
Location
Ohio
|
Manufacturing Year: 2006
Aluminum Bar: 22mm - 60mm
Line Speed: 10~40m/min
Cutting Length: 2000~5000mm
-Drawing Machine:
Line max. speed: 40m/min
Motor rated speed: 750rpm(40m/min/ 727.625rpm)
Gear ratio: (1/29.105)/(25/40)=1/18.2
-Shear:
Car max. speed: 60m/min
Motor rated speed: 3000rpm(40m/min/ 1131.8rpm)
Gear ratio: 1/28.295
Gear traverse PLG: 1rev./35mm/1024p(29.2609p/1mm)
-Outlet table traverse roll:
Motor rated speed: 3000rpm
Roll diameter: 131.25mm
Gear ratio: 1/7.71
Line speed: 183.27m/min/3000rpm(40m/min /654.77rpm)
-End straightener traverse roll:
Motor rated speed: 1800rpm
Roll diameter: 198.85mm
Gear ratio: 1/26.921
Line speed: 41.75m/min/1800rpm(40m/min /1724.55rpm)
-Shear inlet traverse roll:
Motor rated speed: 3000rpm
Roll diameter: 131.25mm
Gear ratio: 1/7.71
Line speed: 183.27m/min/ 3000rpm(40m/min /654.77rpm)
-Shear outlet traverse roll:
Motor rated speed: 3000rpm
Roll diameter: 131.25mm
Gear ratio: 1/7.71
Line speed: 183.27m/min/ 3000rpm(40m/min /654.77rpm)
-Main motor:
Drawing+Roller straighter+Shearing cutter: 550 kW
Polishing: 150 kW
Pusher pointer: 150 kW
Total electric consumption: approx.. 1100kW
-Two Heads type Coil Stand
-Horizontal type Pre-Straightener
-Vertical type Pre-Straightener
-Horizontal type Pre-Straightener (left 4 roll, right 5 roll)
-Vertical type Pre-Straightener (top 3 roll, bottom 4 roll)
-Horizontal type Pre-Straightener (left 5 roll, right 4 roll)
-Vertical type Pre-Straightener (top 4 roll, bottom 5 roll)
-Push Pointer : power 800ton, stroke 400mm
-Drawing Machine Body
Motor, 356.25 kW, Inverter
N1: 0-1455 rpm
N2: 50 rpm
-Horizontal type Straightener (left 3 roll, right 4 roll)
-Vertical type Straightener (top 4 roll, bottom 3 roll)
-Send-off Pinch Roll
-Hydraulic type Shearing Cutting Machine
-Intermediate Pipe Receiver Table
-8 Nozzle type Polishing Machine (motor 150 kW)
-Pinch Roll for Distribution and Carry-out
-Carry-out Table
-Product Pool
-Reduction Gear
-Motors/Pipes
-Operation Panel(touch panel type)
This equipment was set to production of Alunimium products
This machine was comissioned in 2007 and stopped production in 2017. |
