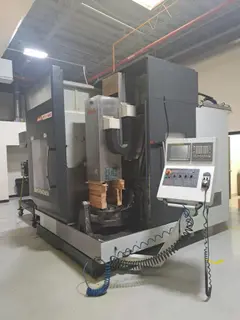

2016 Awea Yama Seiki FCV-620 5-Axis CNC Vertical Machining Center For Sale
Brand
Category
Model
FCV-620
Stock #
15031
Year
2016
Condition
Used
Location
Not specified
| CNC Control | yes |
| Type Of CNC Control | Fanuc 0i-MF |
| # Axis | 5 |
| Table Size | 25.59" |
| Max Table Load | 661 pounds |
| X-Axis Travel | 25 inches |
| Y-Axis Travel | 21.06 inches |
| Z-Axis Travel | 18.11 inches |
| B Axis Rotary | -50° to +110° |
| C Axis Rotation | 360° |
| Rapid Traverse Rate (X/Y/Z) | 1417 ipm |
| Spindle Taper | 40 Taper Big Plus |
| Spindle Speed | 15,000 rpm |
| Main Motor | 20 hp |
| ATC Capacity | 60 |
| Machine Dimensions | 123" x 99" x 116" |
| Machine Weight | 19000 pounds |
|
- Fanuc 0i-MF CNC Control
- Chip Conveyor - Coolant Tank - Robot Interface
- Probing
- Prepped For 1000 psi
- Scales on B & C-axis
- 60 Station ATC Tool Changer
- 40 Taper Big Plus Spindle
- 200 Blocks Look Ahead w/Data Server
- Automatic Right Side Doors
- Hydraulic Porting Thru Table |
|
