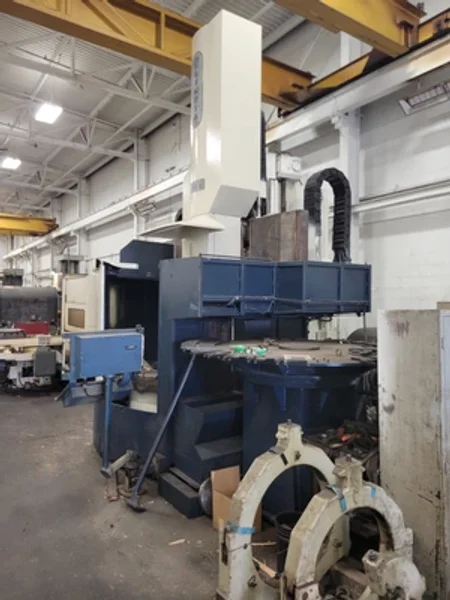

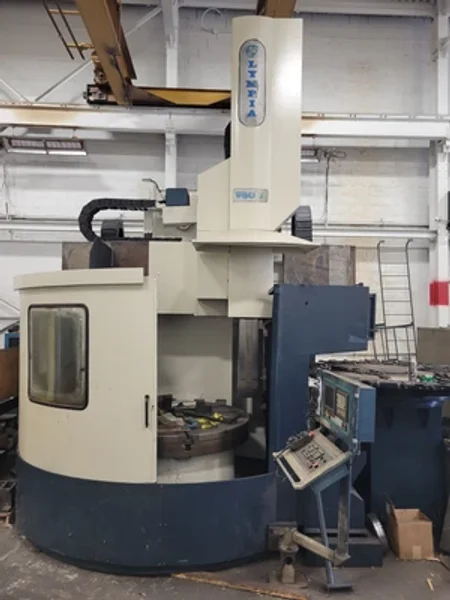

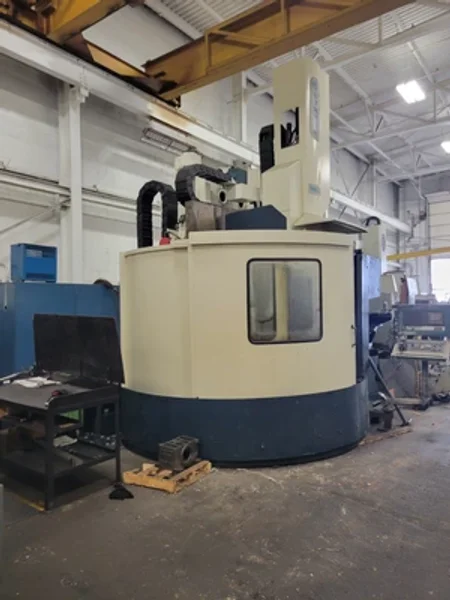

Olympia V60L CNC VTL,

Control mfg. Fanuc

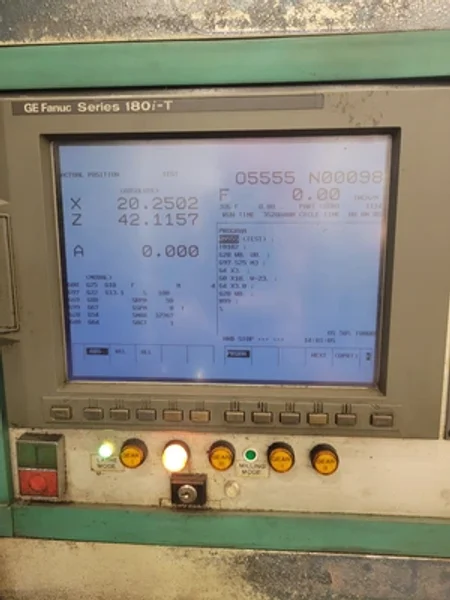

Control model 180i-T

Table diameter............................ 66"
Maximum Swing............................. 70"
Standard Turning Diameter................. 68"
Chuck Diameter............................ 66"
Maximum under rail........................ 70"
Table drive power.......................... 5
"X" axis travel........................... 60
No. Of Tools.............................. 32


Max. Table speed.......................... 350 RPM
Weight.................................... 58,000 lbs.
Live milling RPM.......................... 2,500
Live spindle taper........................ Cat 50
Cross rail travel......................... 40"
Vertical Ram Travel....................... 40"
Machine, column and rail.................. 180" x 114" x 140 high, 42,000
Elevating mechanism and ATC............... 105" x 101" x 108" High, 6,000

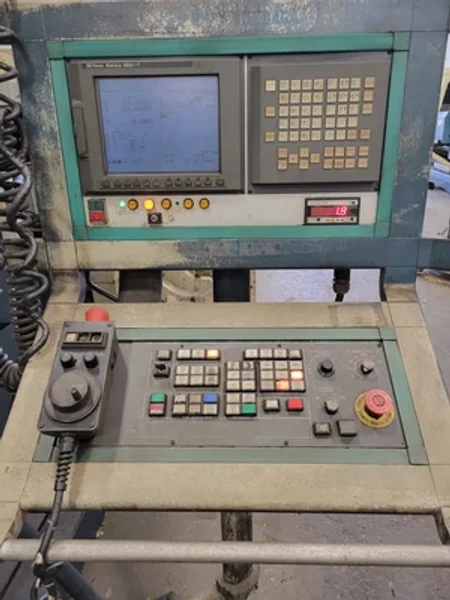

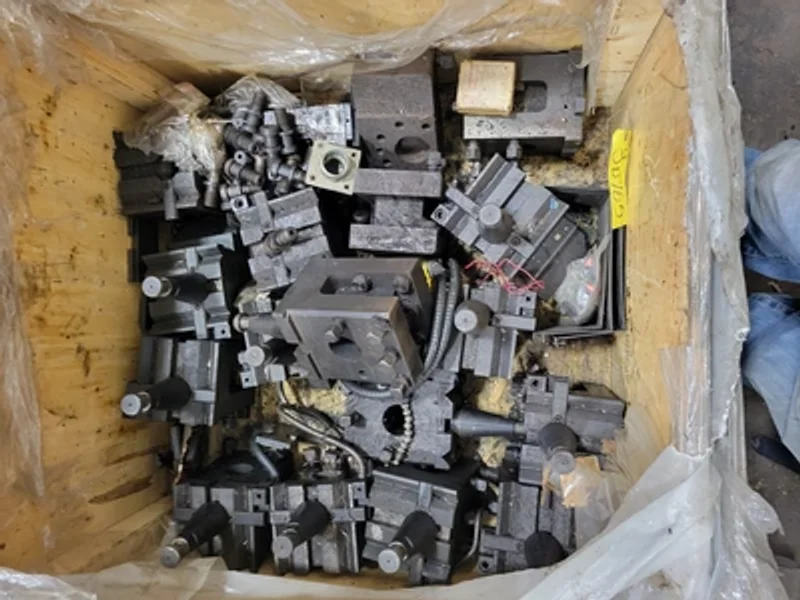

Control panel, transformer & tooling...... 6,000 #

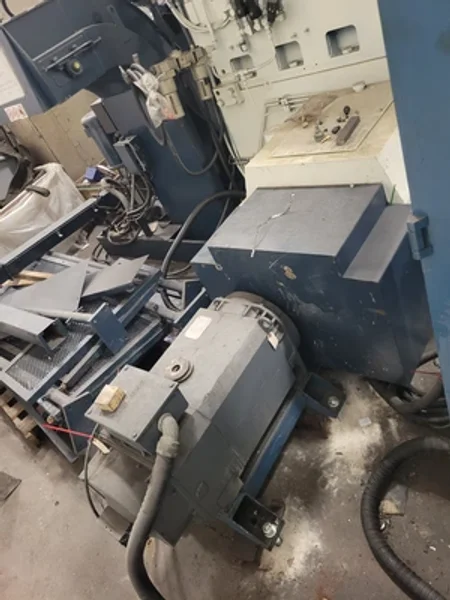

Main drive motor.......................... 41"x 18"x 28" 1,100#
Hydraulic unit............................ 40"x 40"x 40" 600#
Chip conveyor w/ coolant tank............. 149"x 52"x 80" 1,560#
leveling pads pallet...................... 24"x 24"x 12" 800#
electrical cabinet........................ 71"x 21"x 79"H 1,200#
Table drive power......................... 50 HP
