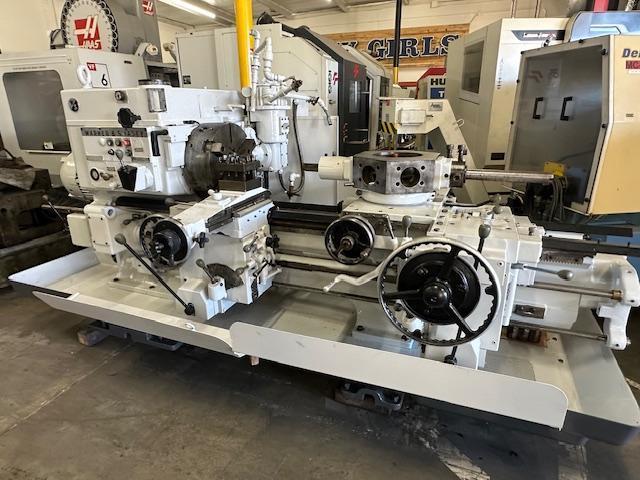

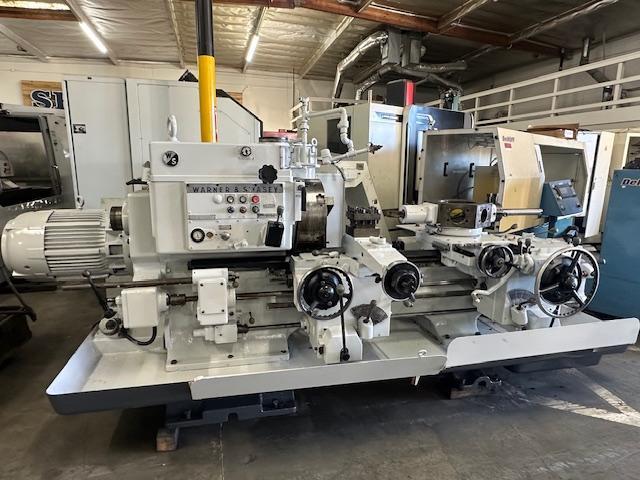

Warner & Swasey 2A

Square Head Saddle Type Turret Lathe

w/ 3-3/4” Hole

Manufacturer:

Warner & Swasey

Model:

2A

Serial No.:

M3470

Swing Over Bed Ways:

20-1/2"

Swing Over Cross Slide Carriage:

16"

Center Distance:

43"

Spindle Hole:

3-3/4"

Spindle Nose:

A - 11

Spindle Speeds:

32 To 1117 RPM

Chuck Size:

18" 3-Jaw

Feeds Cross:

.0025 To .082 I.P.R.

Feeds Long:

.005 To .167 I.P.R.

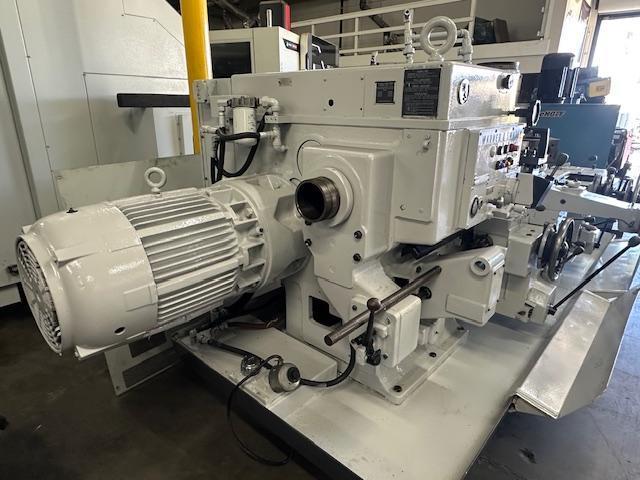

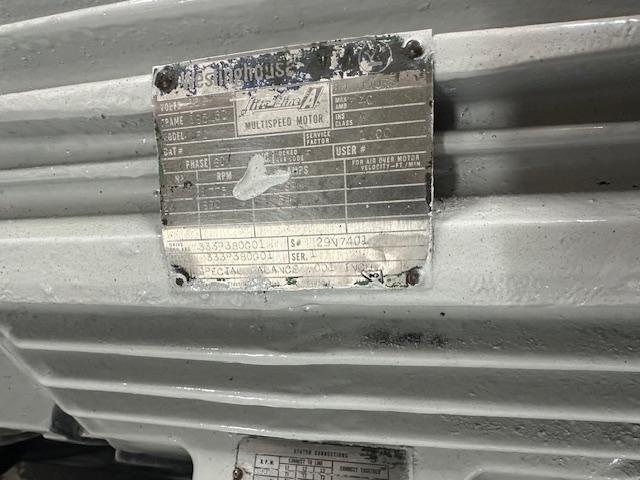

Main Motor:

20/40 HP - 440 Volts

Manufactured Date:

N/A

Weight:

12,500 Lbs.

Floor Space / Dimensions:

144”L x 83”W x 64”H

Coolant:

Yes

Tool Post 4 Way On Front Carriages:

Yes

Rapid Traverse Front & Rear Carriages:

Yes

Fixed Rear Turret:

Yes

Seller Note:

Unit is USED and in VERY GOOD CONDITION. Unit has been powered and tested recently at the facility. Unit is being sold AS-IS, WHERE-IS, AS-SHOWN. Pictures are of the actual unit being purchased. If the buyer has any questions, please feel free to ask. Buyer is always welcome to inspect the unit before purchasing at our location.
