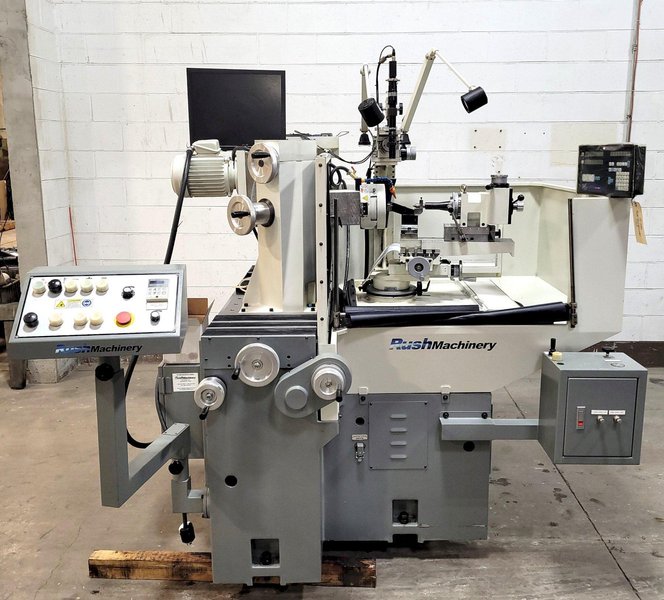

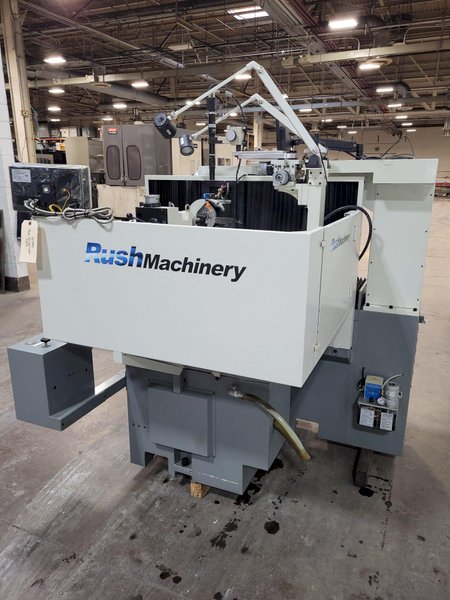

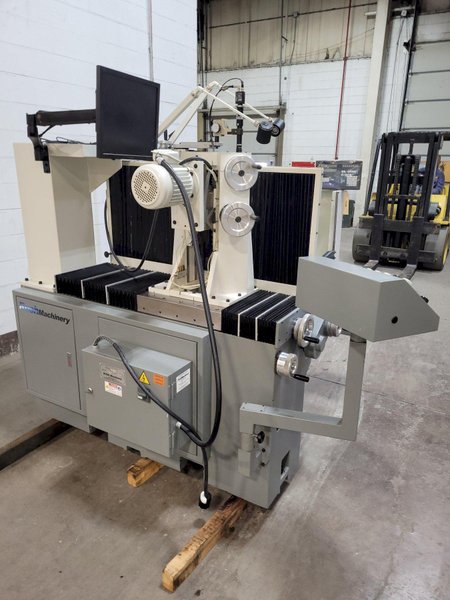

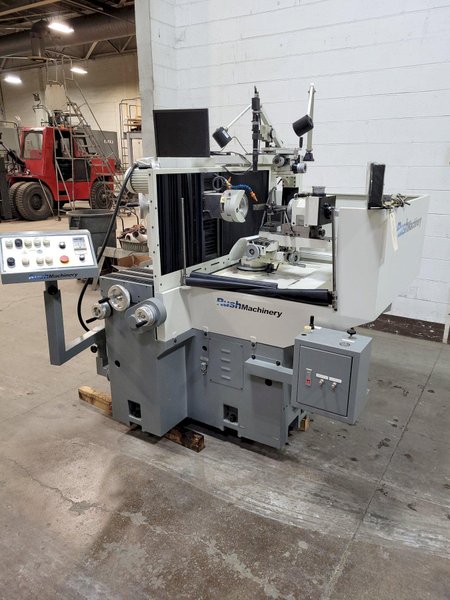

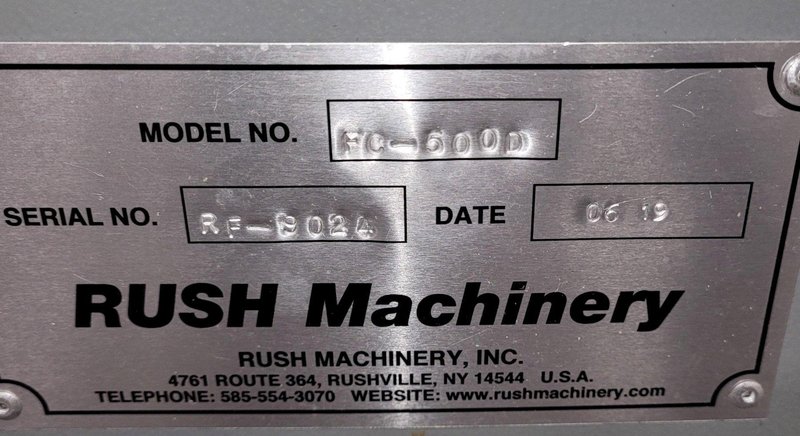

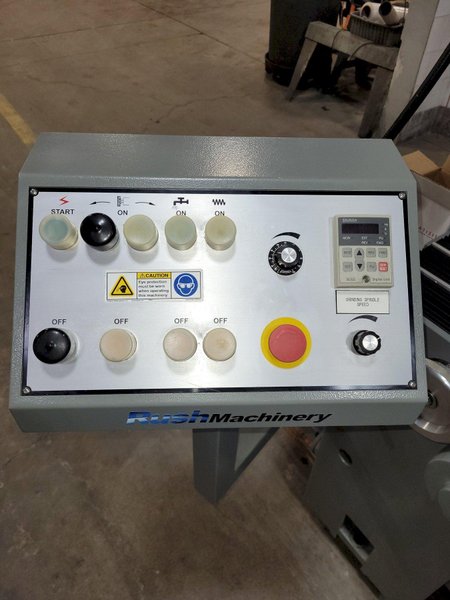

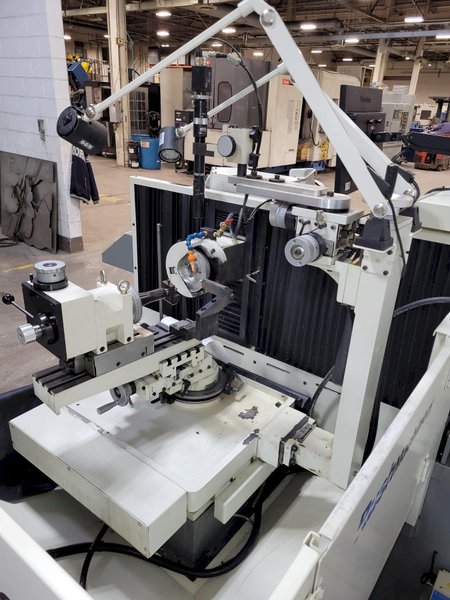

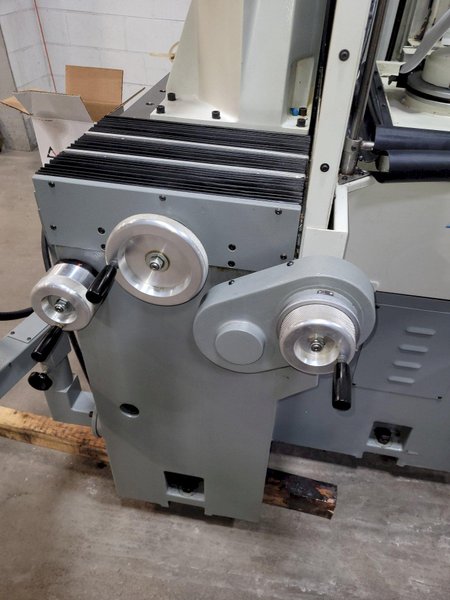

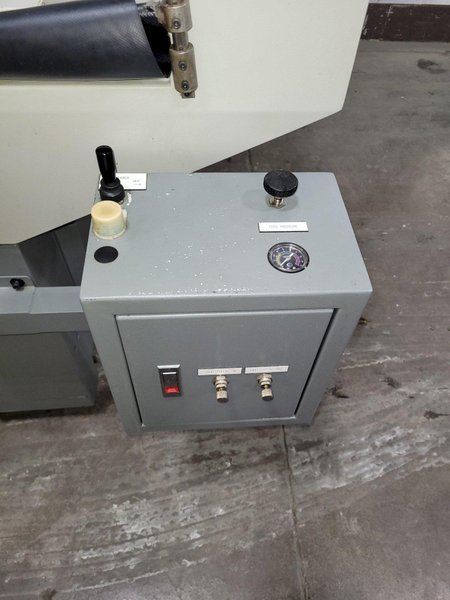

Tip Grinding Radii | 0 to 8mm (.0315”) |
Round Tool Shank Diameters | 3mm (0.118”) to 26mm (1.02”) |
Speed (RPM) | 0 to 3600 |
Power | 3HP |
Height Adjustment | 130mm (5.12”) |
Oscillation Frequency (Strokes/Minute) | 0 to 50 |
Oscillation Stroke | 0-60mm (2.362”) |
Oscillation Stroke Range | 0-420mm (16.535”) |
Inclination Angle | -3° to 25° |
Grinding Wheel Size | 150 x 40 x 40mm (6 x 1.5 x 1.5”) |
Cross Table Clamping Surface | 210mm (8.27in.) x 160mm (6.30in.); with 4 “T” slots |
Cross Table Slides | Travel up to 95mm (3.74in.) each |
Controlled Infeed Travel | 130mm (5.118”) |
Rapid Travel | Up to 70mm (3.15in.) |
Cross Table Swiveling Angle | 200° |
Cross Table Hand Wheel Division | 0.01mm (0.00039”) (1µ) |
Grinding Force Pressure Regulator | 0 to 450N (101 lbs.) |
Infeed (Switchable) | 0.001mm (0.00005”) |
Swivel Angle | 0.05 degrees (3 minutes) Increments |

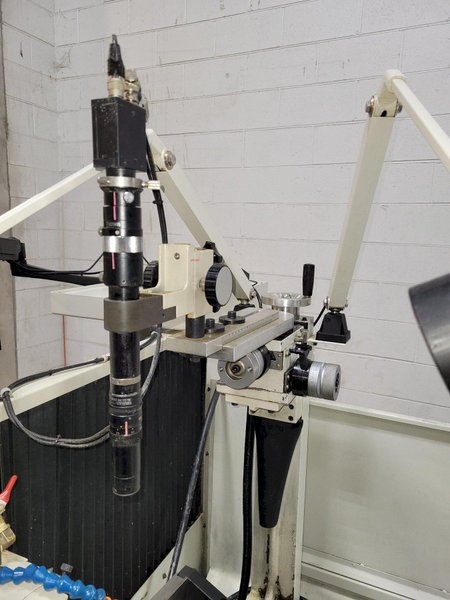

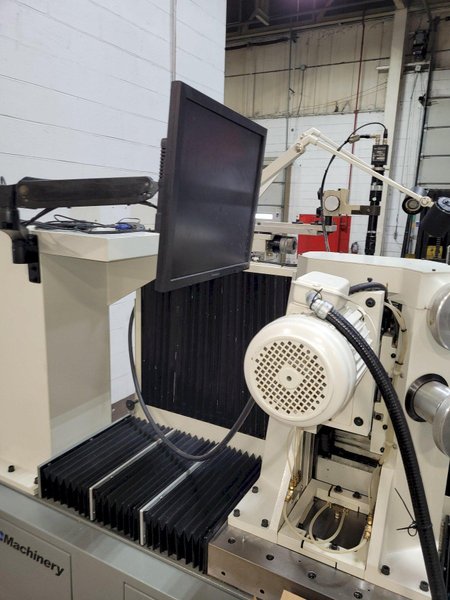

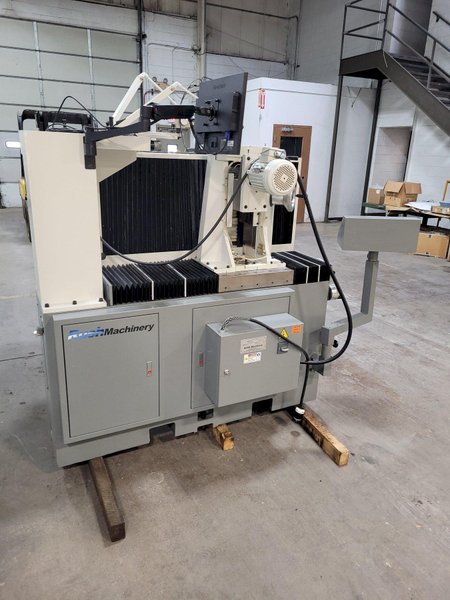

Video Optical Measuring System With Zoom | 0.75-4.5x |
Machine Dimensions | 1830 x 2190 x 1920mm (72” x 86.2” x 75.6”) |
Weight | 2160kg (4762 lbs.) |
EQUIPPED WITH:

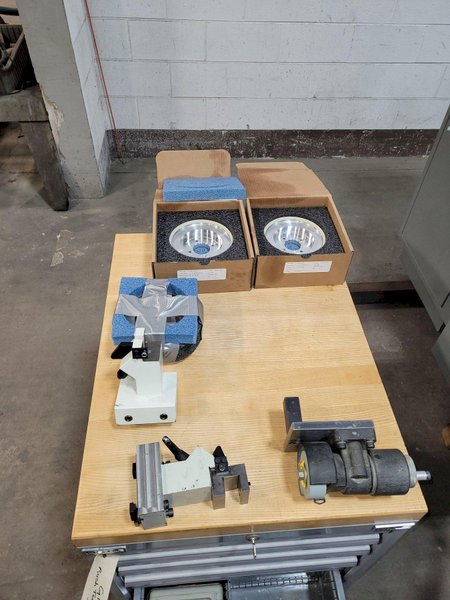

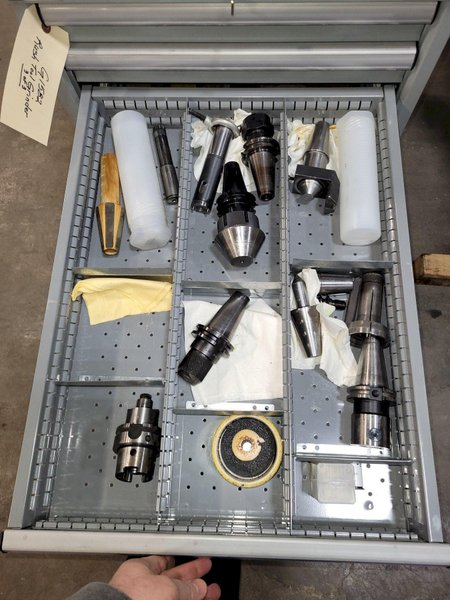

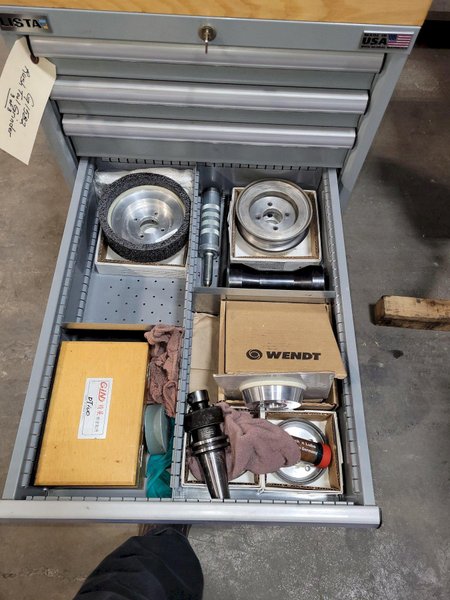

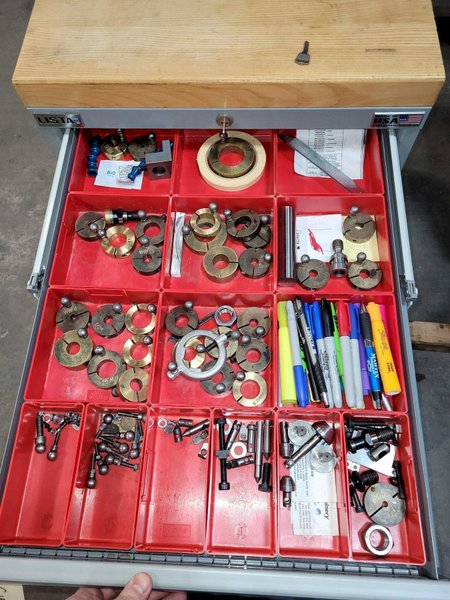

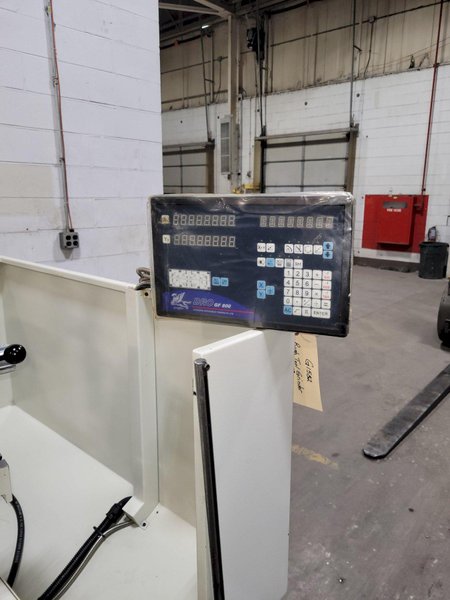

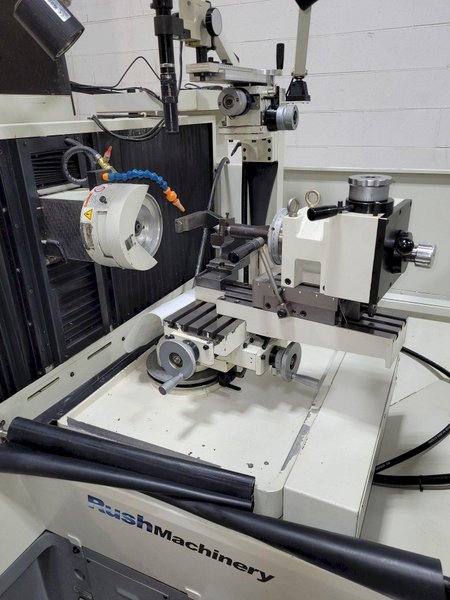

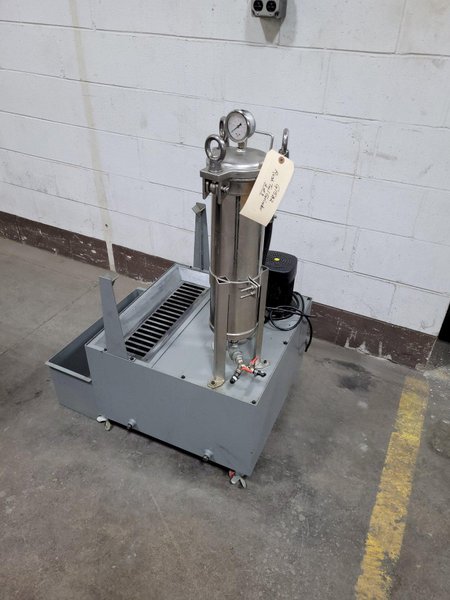

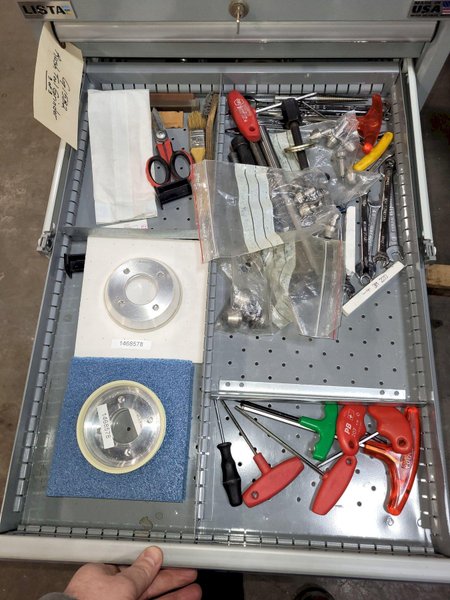

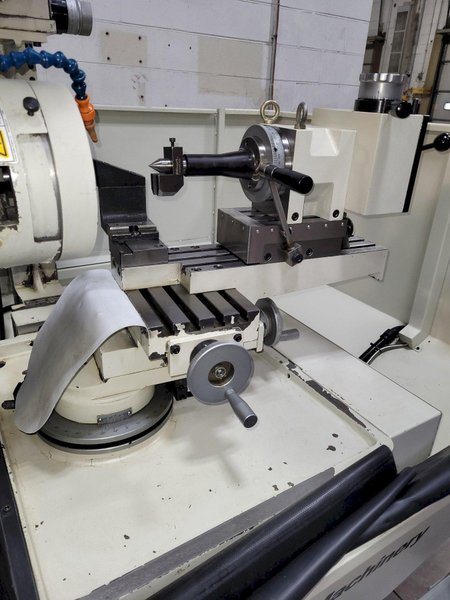

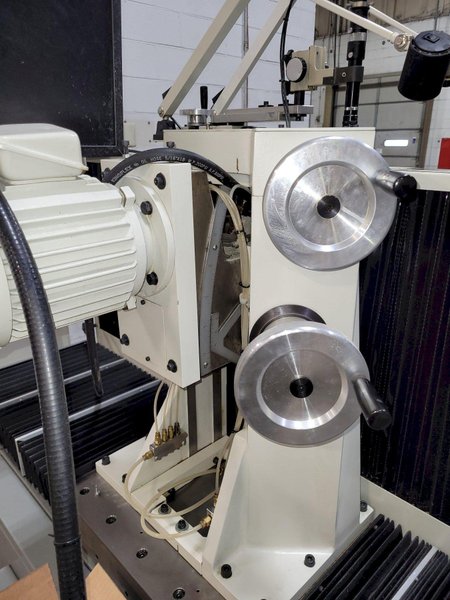

Video Optical Inspection System with Zoom Magnification. Video Camera Moves with Work Table for Easy Set-Up. Adjustable Oscillation Position and Frequency. 240° Cross Table Pilot. Variable Grinding Force. 2-axis Plus Angle DRO. Round Tool Grinding Attachment with Removable Tool Center. Universal Quick Clamping Fixture for Conical Relief Complete with Square Work Piece Holders. Large Assessment of Tooling and Accessories Including Diamond Wheels, HSK and Cat40 Tool Holders. Collets. Wrenches. Leveling Pads. Lubrication System, Halogen Work Lights, Coolant with Paper Filtration. For Manufacturing and Regrind of PCD, CVD, PCBN, Carbide and HSS Tools. Capable of Angles, Radii on Inserts, Boring Tools, Milling Cutters, Grooving Tools, and Special Tools. |
