NEW GMC MODEL DB-60A HYDRAULIC ROTARY DRAW BENDER

Name: New GMC DB-60A For Sale 19499
Brand: GMC
SKU: 19499

Brand

GMC

California

NEW GMC MODEL DB-60A HYDRAULIC ROTARY DRAW BENDER

STANDARD FEATURES

Taiwan Machine
ISO 9001 certified
NC-control for bending angle adjustment

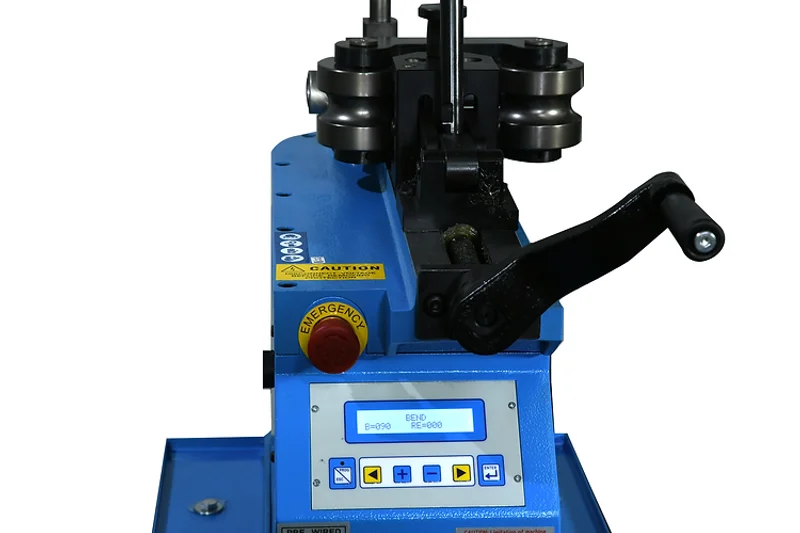

LED degree indicator with automatic stop programming, to get as true reading of bending degree.
Up to 50 jobs memory; each job program contains 9 steps
Counter roller holder comes standard with quick adjustment
This easy to use hydraulic tube draw bender has an incredible capacity of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe
1-1/2 HP motor, 220VAC, Single Phase
Quick tooling changes

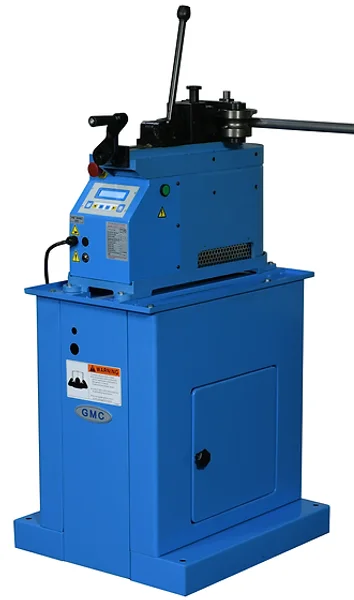

With deluxe stand
One year warranty for parts

Specifications	GMC DB-60A
Capacity: Minimum CLR Minimum OD Solid Rod, mild steel Round Tube, mild steel (wall thickness) Round Pipe, mild steel, schedule 40 Round Tube, SS steel (wall thickness) Round Pipe, SS steel, schedule 40 Aluminum round Tube (wall thickness)	½” ¼” 1” 2” (.125”) 1-1/2” 1-1/2”(.125”) 1-1/4” 2” (3/16”)
Maximum centerline Radius	6-1/2” CRL
LED programming	50 job memory
Main motor	1.5HP, 220V,1phase
Weight	327 LBS
Machine dimensions, LxWxH	27” x 9” x 51”
