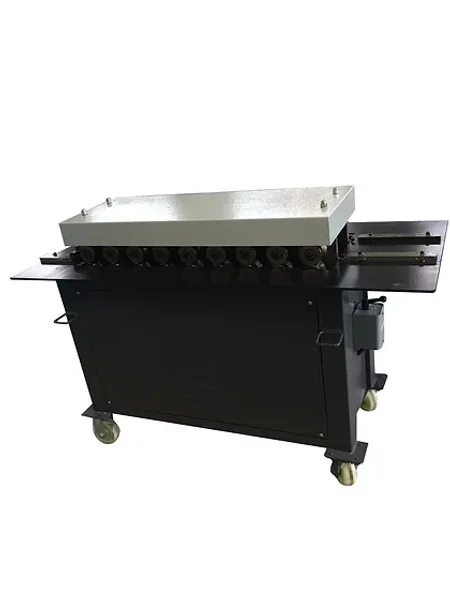

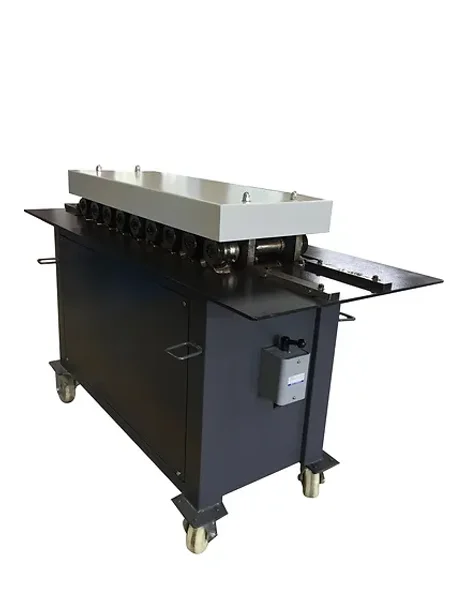

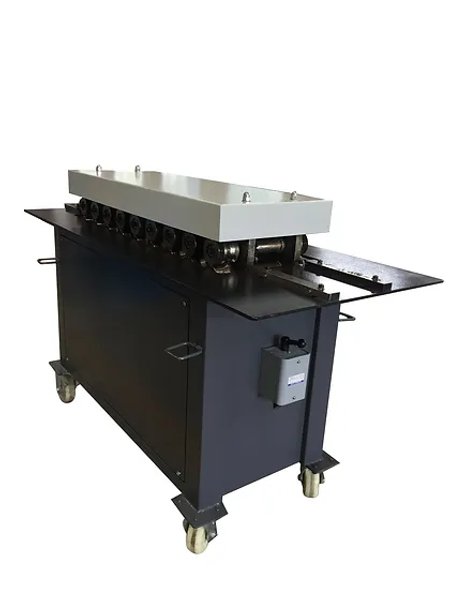

NEW GMC MODEL PL-18HEM HEMMING FORMING MACHINE

Brand
GMC
Category
Roll Formers & Rolling Mills
Type
Roll Formers
Model
PL-18HEM
Stock #
19494
Year
Not specified
Condition
New

Location

California
REQUEST FINANCING
NEW GMC MODEL PL-18HEM HEMMING FORMING MACHINE

STANDARD FEATURES
  • ISO 9001 certified
  • 4HP Heavy Duty AC main motor, 220V, 3 phase
  • Heavy welded all steel construction for maximum rigidity
  • One side forms Flattened Hem and Open Hem
  • One side forms Teardrop Hem and Rope Hem
  • One year warranty for parts


INCLUDES
  • One set of 9 pairs rolls form Flattened Hem and Open Hem
  • One set of 9 pairs rolls form Teardrop Hem and Rope Hem

OPTIONS
  • Set of rolls for Pittsburgh lock & Double Seam, 2 in 1……………….. $995.00
  • Drive Cleat Roll # DCR-18HEM ………………………………. $995.00


SPECIFICATIONS

Specifications

GMC PL-18HEM

Capacity: Galvanized sheet

Flattened Hem

Open Hem

Teardrop Hem

Rope Hem

Pittsburgh lock , 5/16” width

Double seam

Drive Cleat





          24 Ga. to 18Ga.

          24 Ga. to 18Ga.

          24 Ga. to 18Ga.

          24 Ga. to 18Ga.

          24 Ga. to 18Ga.

          24 Ga. to 18Ga.

          24 Ga. to 18Ga.

Station numbers

9 stations with 9 pairs of rolls on each side

Feeding speed

          21 FPM

Main motor

Amperage draw

    4 HP, 220V, 3PHASE

      15Amp

weight, approx

              685 LBS

Machine dimensions, LxWxH

Machine shipping dimensions, LWH

        60”x25”x40”

      62” x 27” x43”
