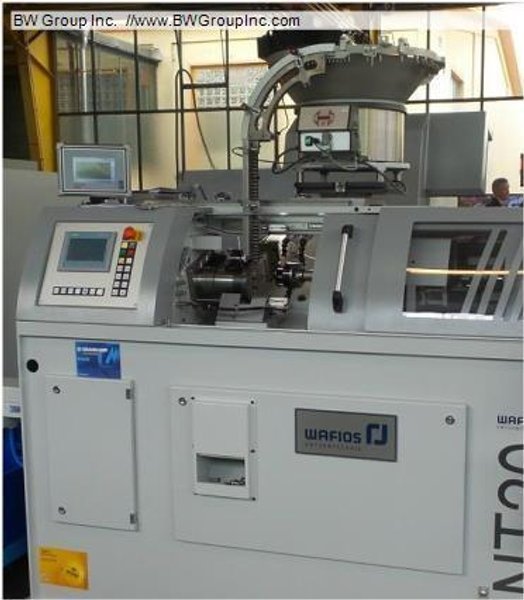

Wafios Umformtechnik - Nutap UNT12 (1/2") High Precision High Speed One Spindle Automatic Nut Tapper
Brand
Category
Type
Model
UNT12 (1/2")
Stock #
Not specified
Year
Not specified
Condition
New
Location
Not specified
|
Specifications:

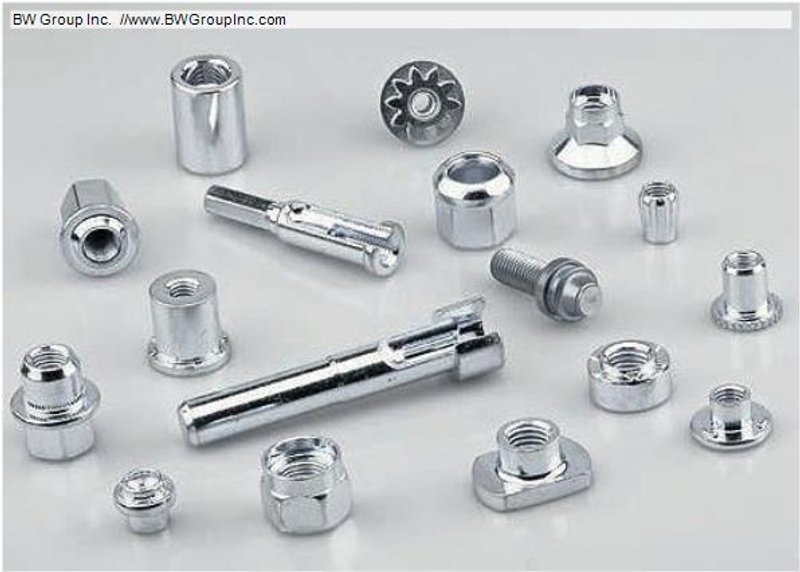

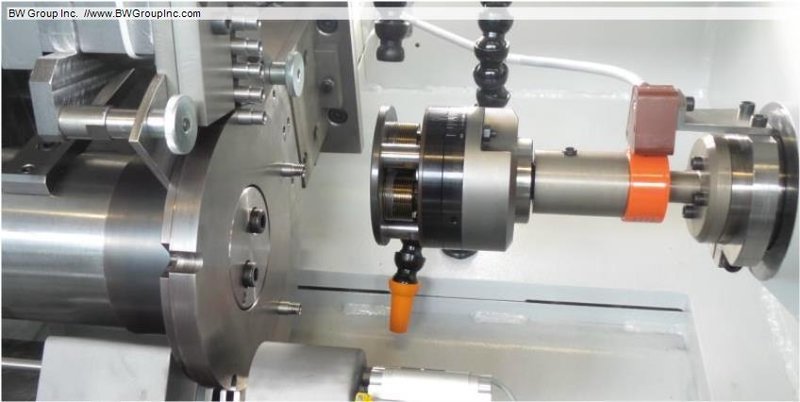

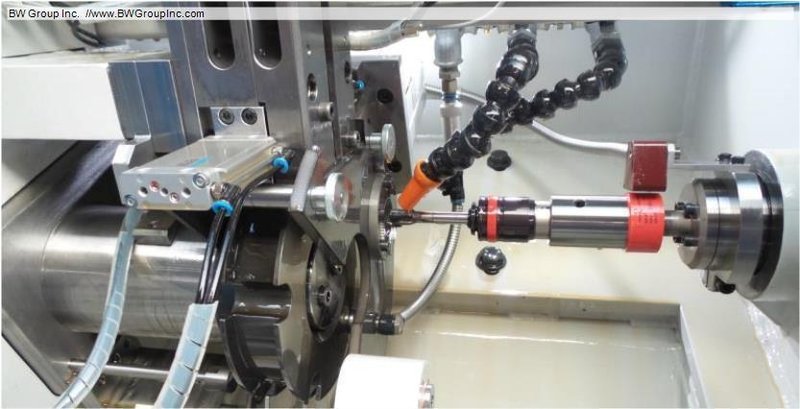

Size Range: M3 - M12 (1/8" - 1/2") Max. Outside Dia: 35mm Max. Length of Parts: 150mm Max. Machining Depth: 70mm Max. spindle traverse: 140mm Power of spindle motor: 6.9 kW Output (standard hex nut): 60ppm Features: * Tapping, Boring & Counter-boring of Special Nuts * Specially Suited to Thread Blind Borings & Extremely Long Parts * PLC Control & Process Tap Monitoring * Full Electronically Control of Indexing Plate, Feeding and Tapping * Cutting Feed via Clearance-Free Re-circulating Ball Spindle * Adjustable Magazines * Spindle & Roller Bearings with Lifetime Lubrication * Automatic Transport of Chips |
