NEW STERLING TWIST DRILL GRINDER
Brand
Category
Type
Model
Not specified
Stock #
19486
Year
2025
Condition
Not specified
Location
Wisconsin
|

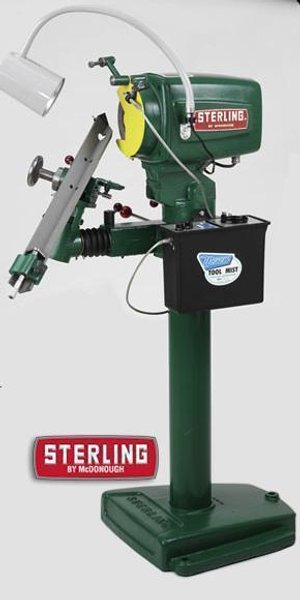

NEW STERLING TWIST DRILL GRINDER
SPECIFICATIONS: Capacity: Sharpens 1/8" to 2-1/2" diameter drills. 1/8" to 3" calibration available. Versatility: Sharpens 2, 3, or 4 flute drills with variable included angles of 90º, 100º, 110º, 118º, 130º, and 140º. Precision: For accurately centered and free cutting drills in seconds. Simplicity: NO chucks, NO collets, and NO wrenches to bother with when sharpening different diameter drills. The same drill holding unit handles all drills from 1/8" to 2-1/2" in diameter. Unmatched Capacity: The STERLING Drill Grinder is the only grinder capable of sharpening drills from 1/8" to 2-1/2" in diameter. It will accommodate any standard catalog drill within this size range without the hassle of using chucks, collets or wrenches. Extra Versatility: The STERLING Drill Grinder will sharpen 2, 3, and 4-flute drills with 90º to 140º included angles. EQUIPPED WITH: * Flexible work light permanently mounted * Diamond wheel dresser with mounted diamond * 45º, 50º, 55º, 59º, 65º, and 70º drill stops * 6" straight cup wheel, 70 grit, aluminum oxide (46 and 60 grit also available) * Micrometer Head for accurate control of drill infeed * 3/4 H.P., 3450 RPM, 115-volt, single phase, 60 cycle, NEMA C flange mount, totally enclosed fan-cooled, ball bearing motor. OPTIONAL FEATURES: * Mist Coolant System improves grinding accuracy and finish * Silicon Carbide (60 and 120 grit) Grinding Wheels * 3" drill diameter calibration * 220/440-volt 3-phase motor and tropicalized motors (1-phase standard). |
