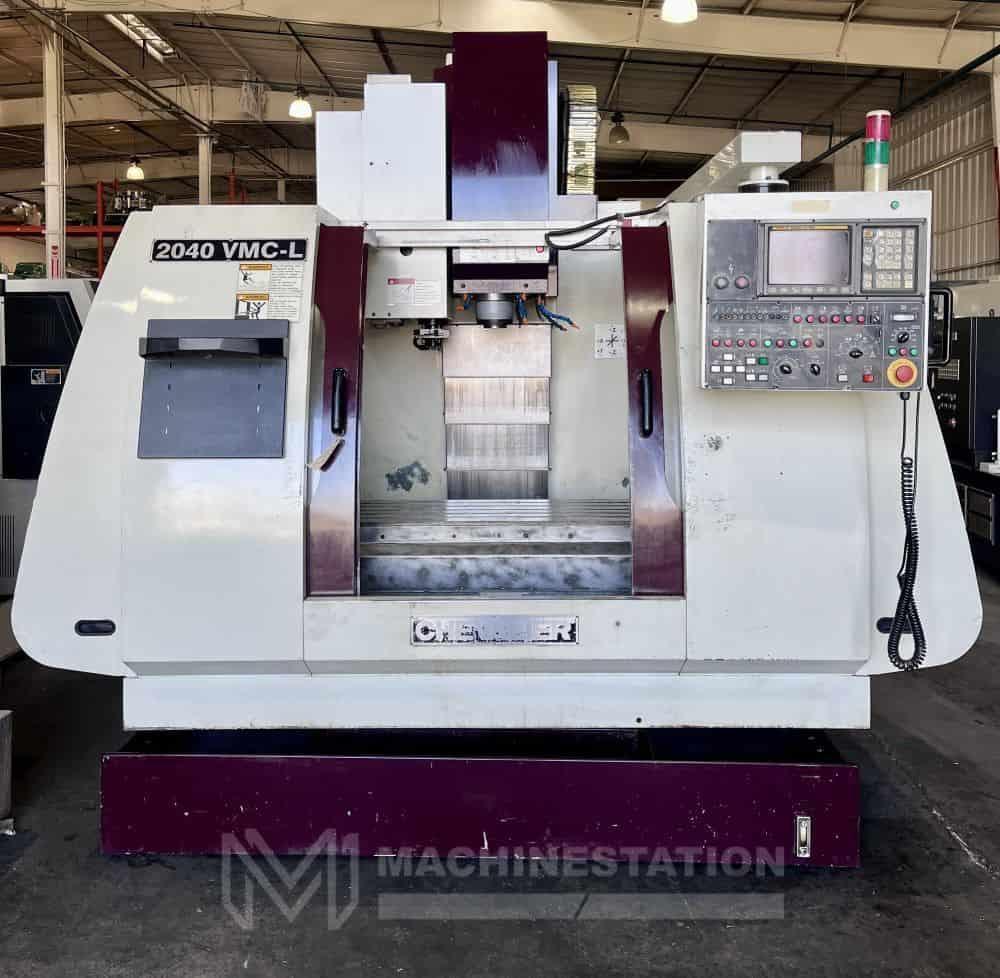

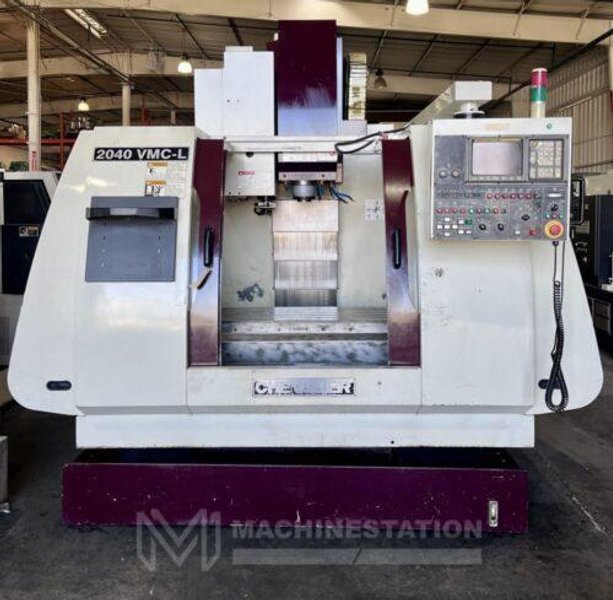

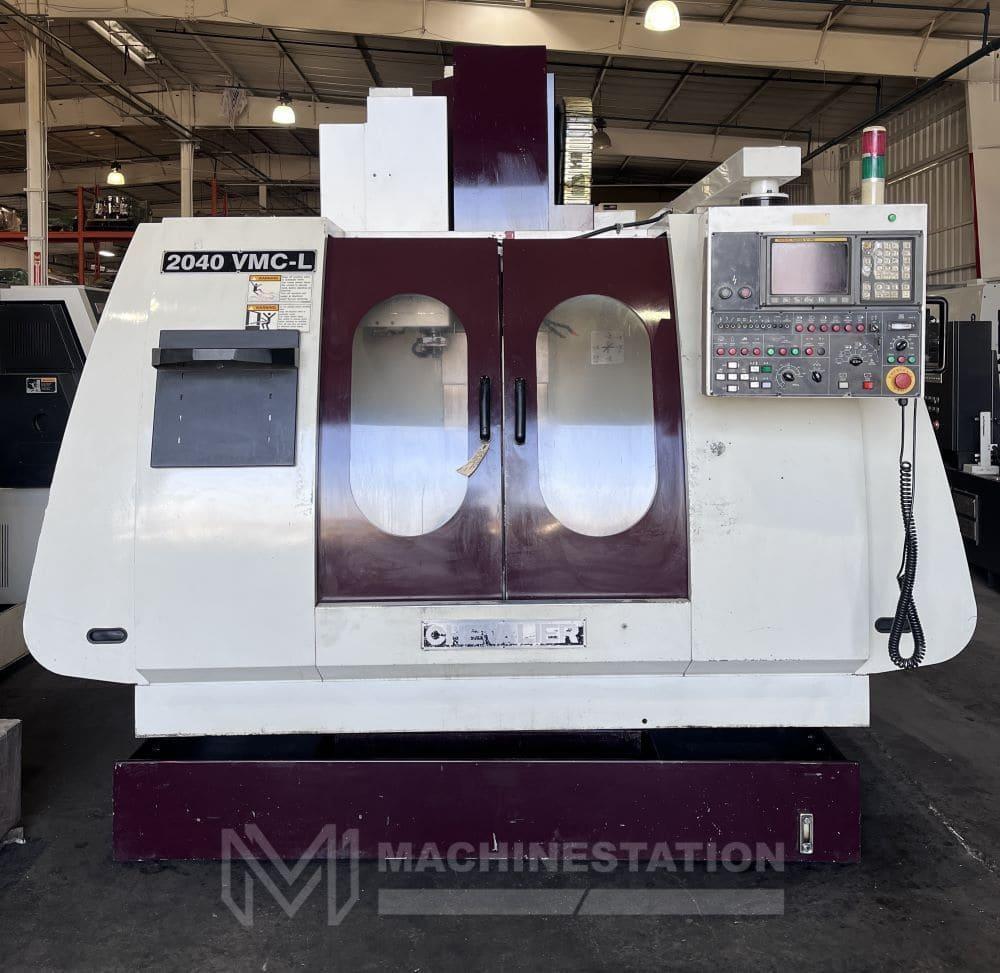

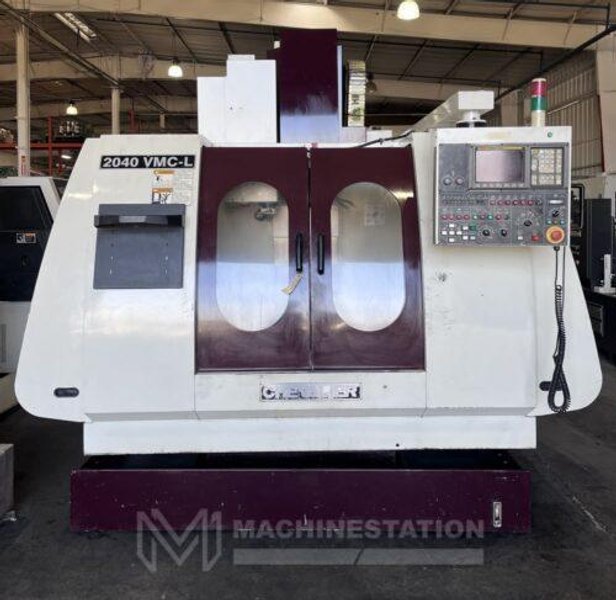

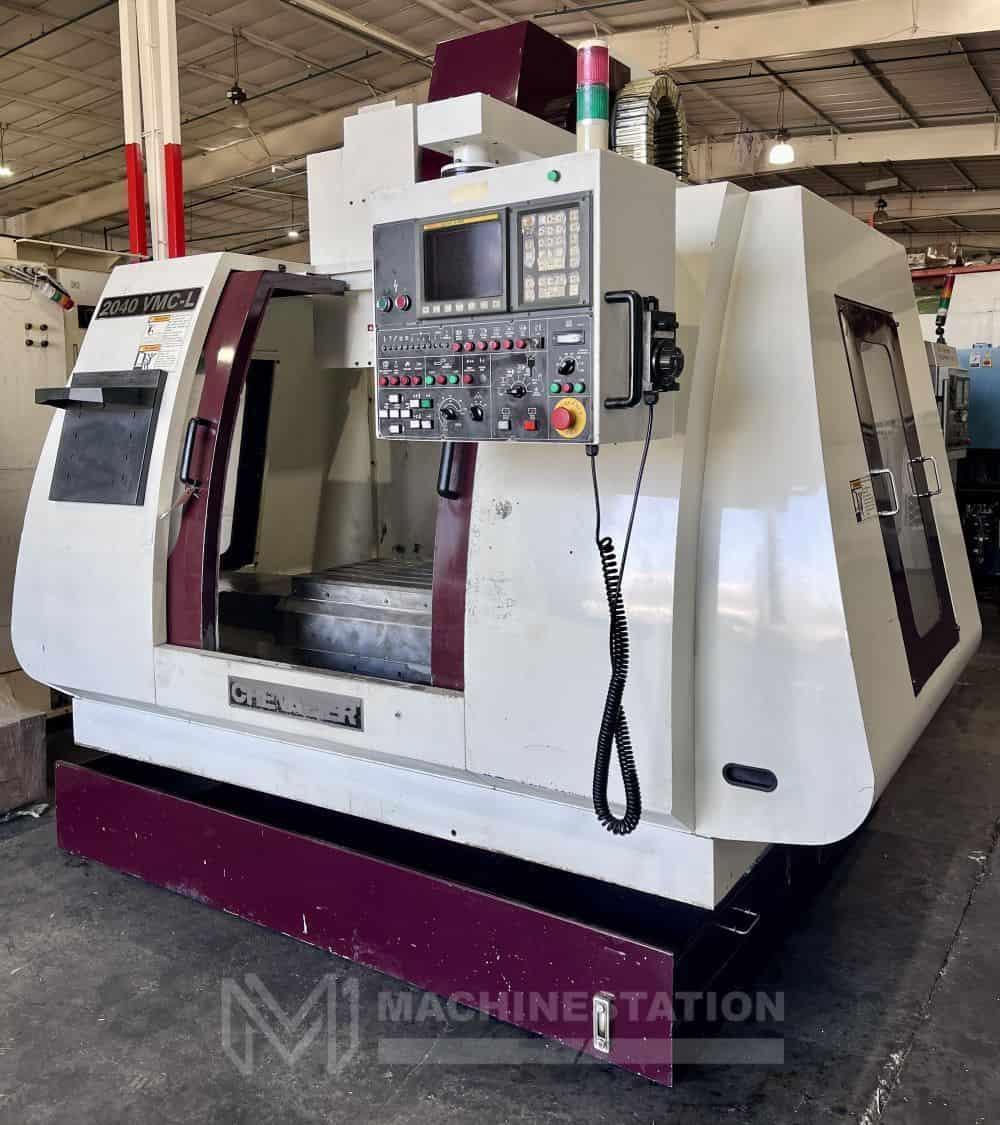

Chevalier 2040 VMC-L CNC Vertical Machining Center

Chevalier 2040 VMC-L CNC Vertical Machining Center

Name: Used CHEVALIER Chevalier 2040 VMC-L For Sale 112655
Brand: CHEVALIER
SKU: 112655
Availability: PreOrder

Brand

CHEVALIER

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

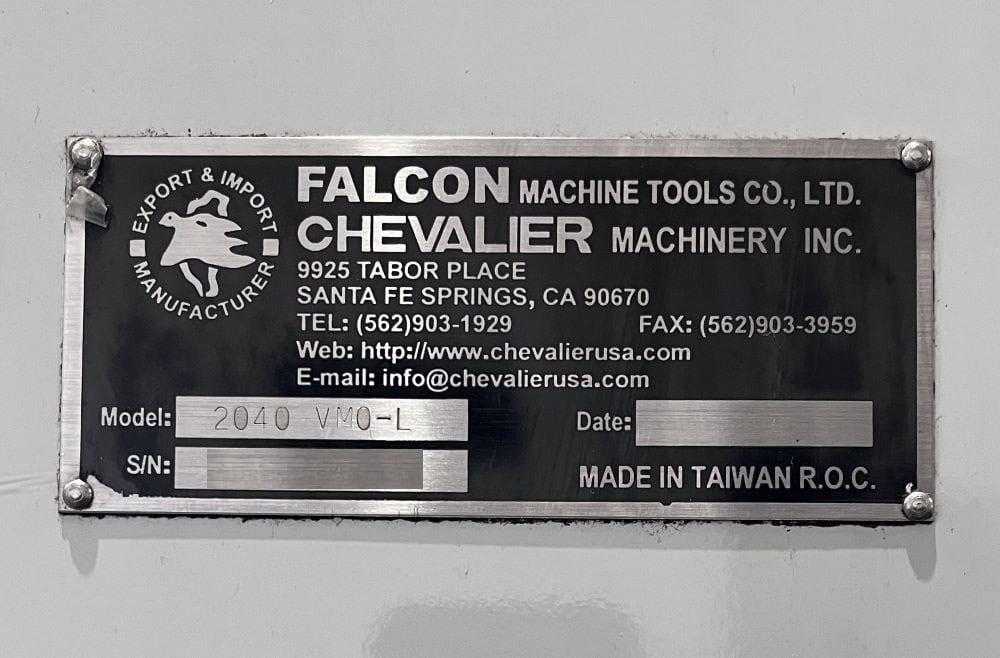

Make:	Chevalier
Model:	2040 VMC-L
Year:	2000
Condition:	Used – Good

Key Features of the Chevalier 2040 VMC-L:

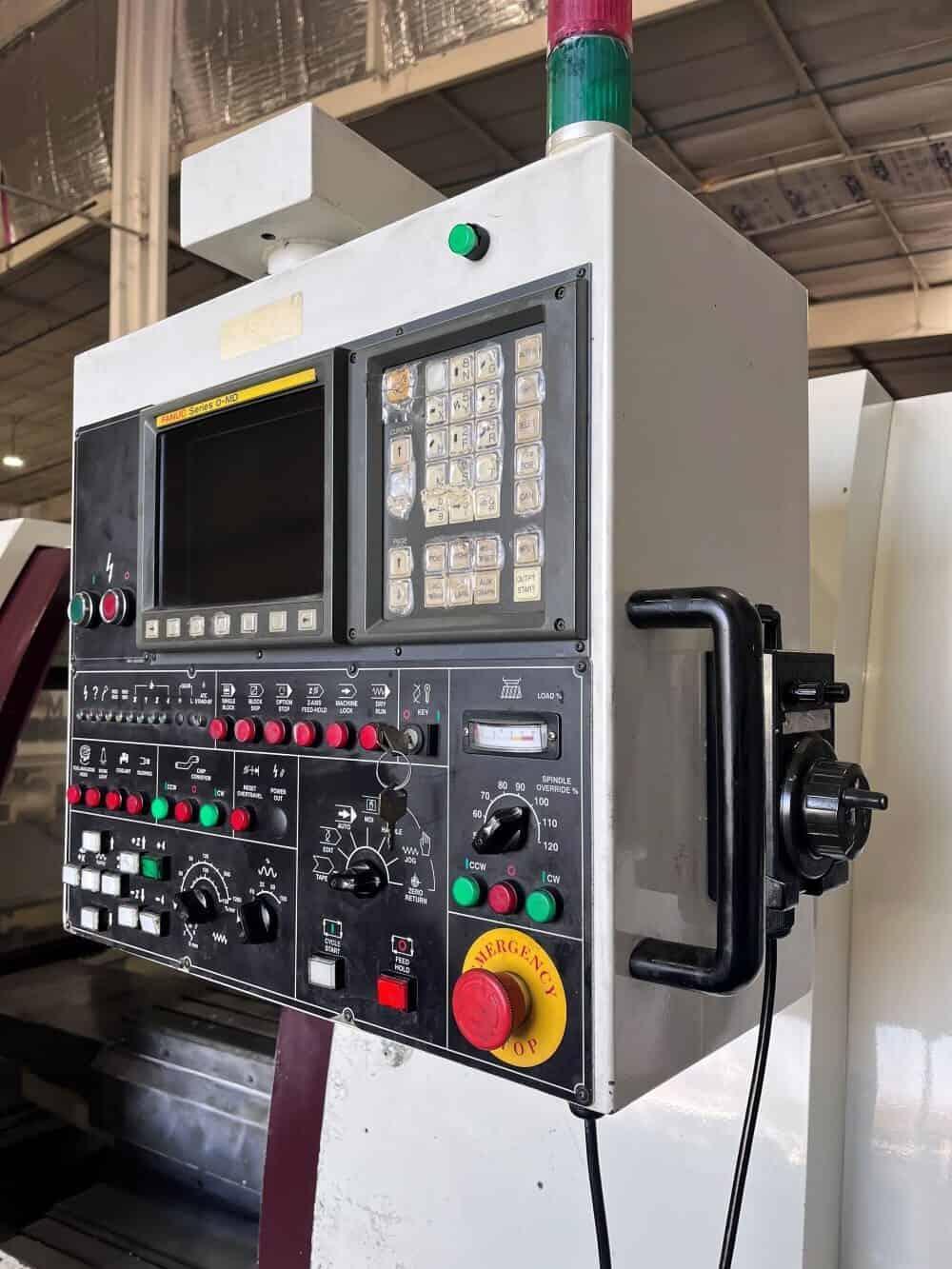

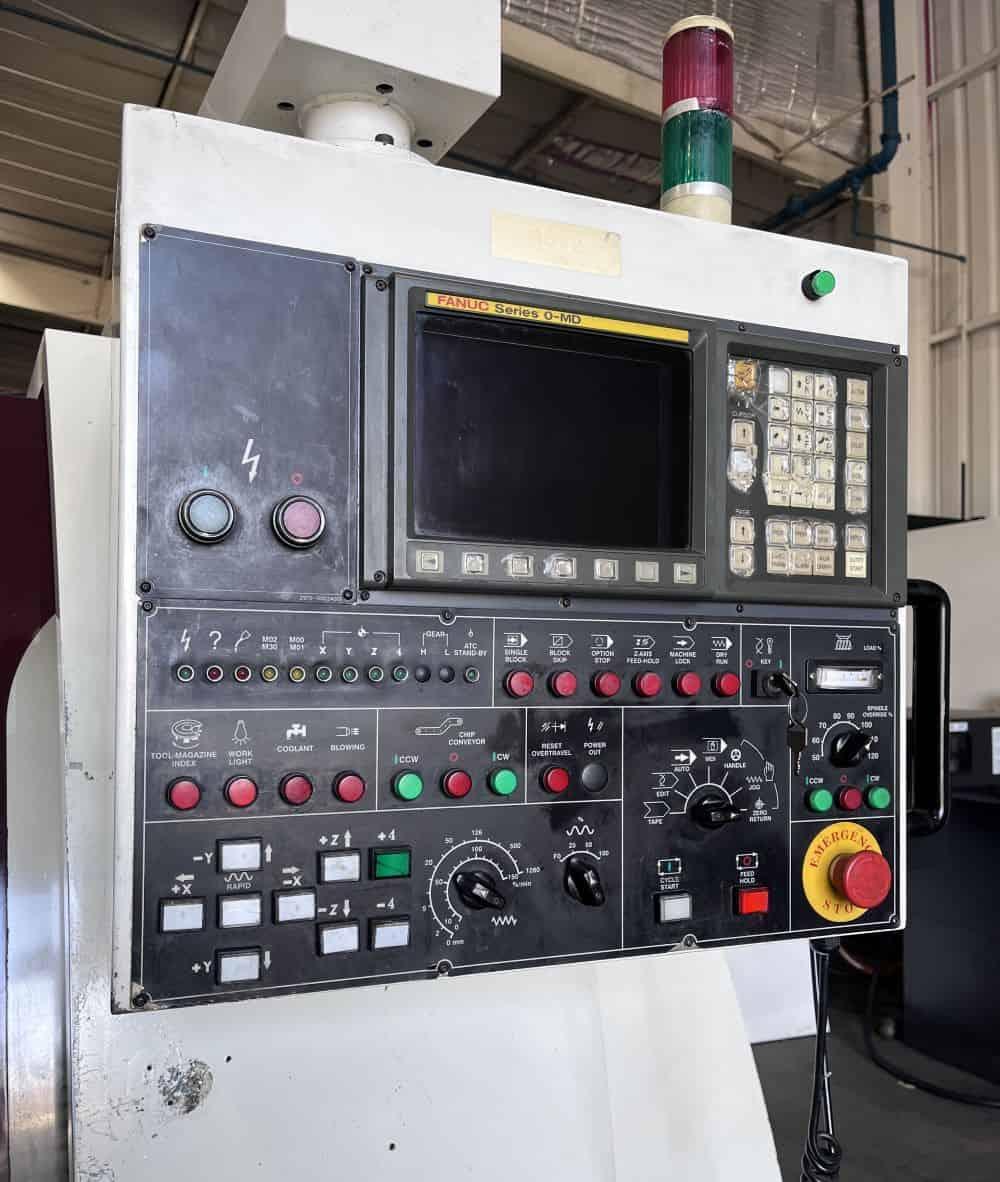

Fanuc OM-D CNC Control
8,000 RPM High-Speed Spindle
24 Station Automatic Tool Changer
15 HP High Torque Spindle
MPG Handwheel Control
Rigid Tapping
Spindle Orientation
Coolant System
Automatic Lubrication System

Travel:

X-Axis: 40.2″
Y-Axis: 20.1″
Z-Axis: 20.1″
Rapid Traverse Rates: 944 Inch Per Minute
Cutting Feedrates: 393 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.1″ – 25.2″

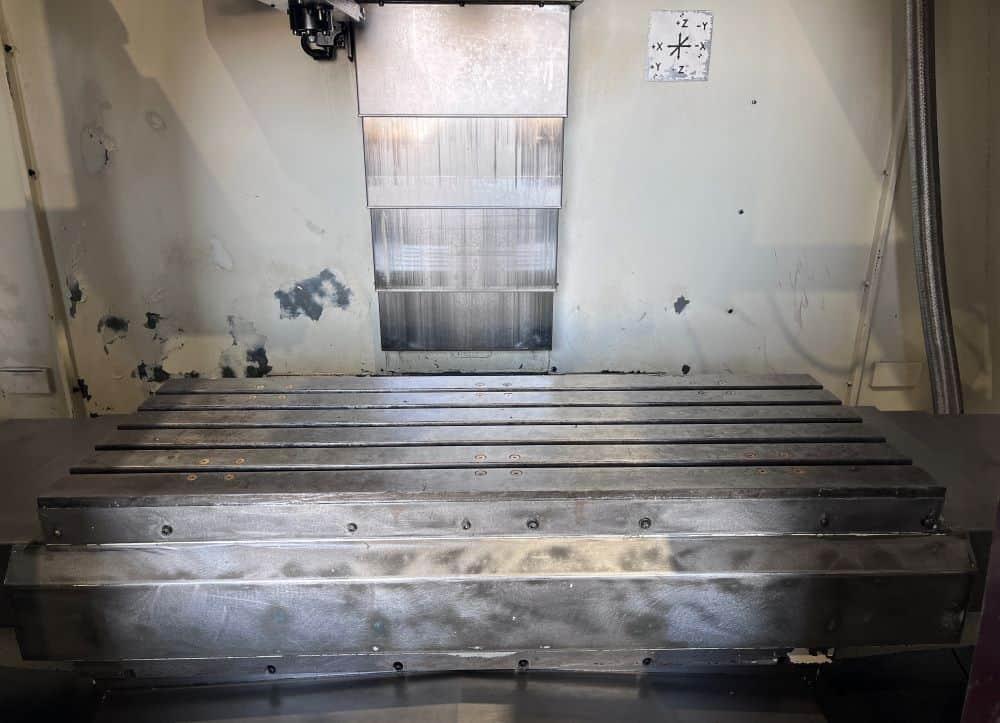

Table:

Length: 40.2″
Width: 20.1″
Number of Std T-Slots: 5
Max Weight on Table: 1102 lbs

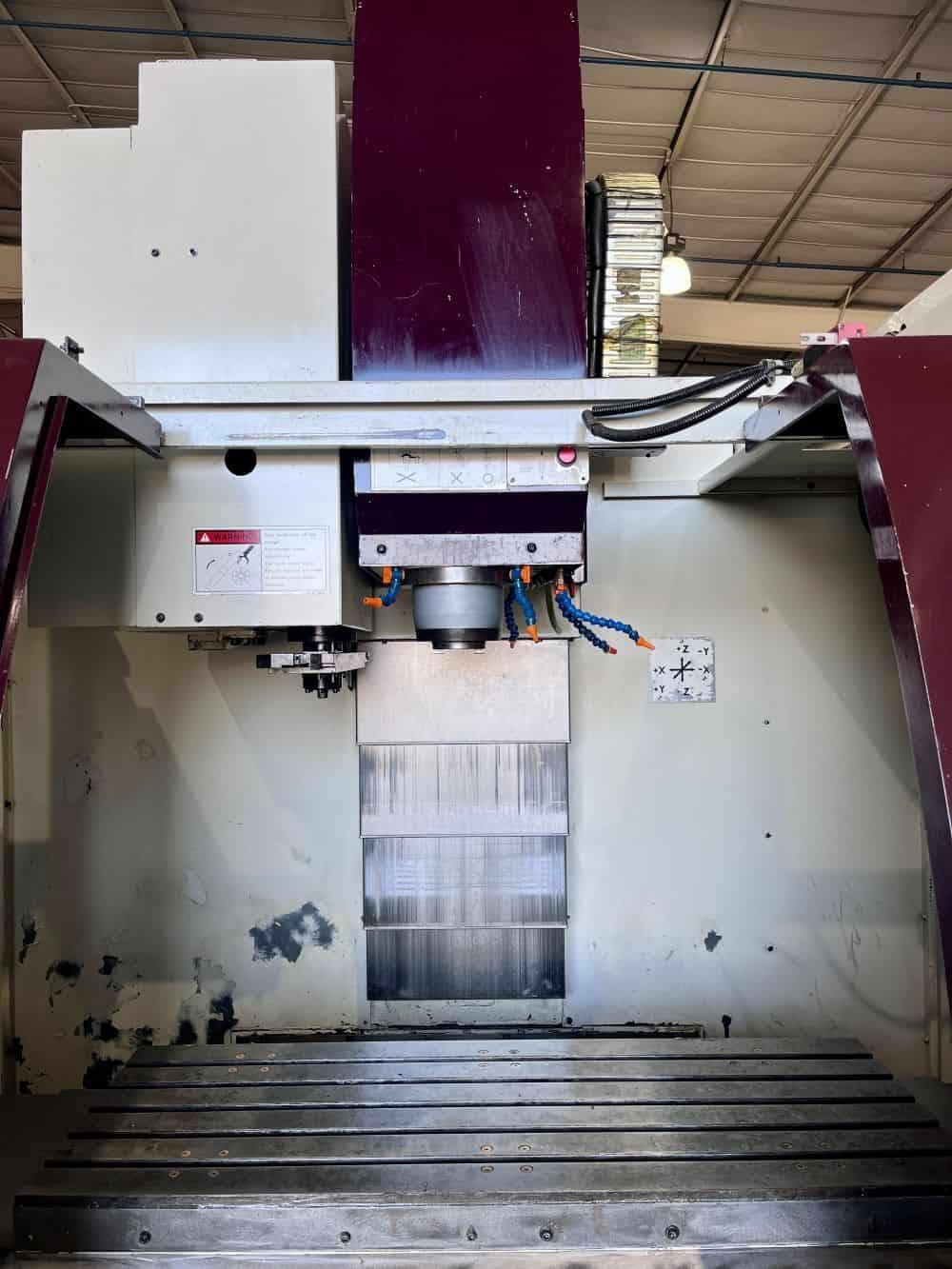

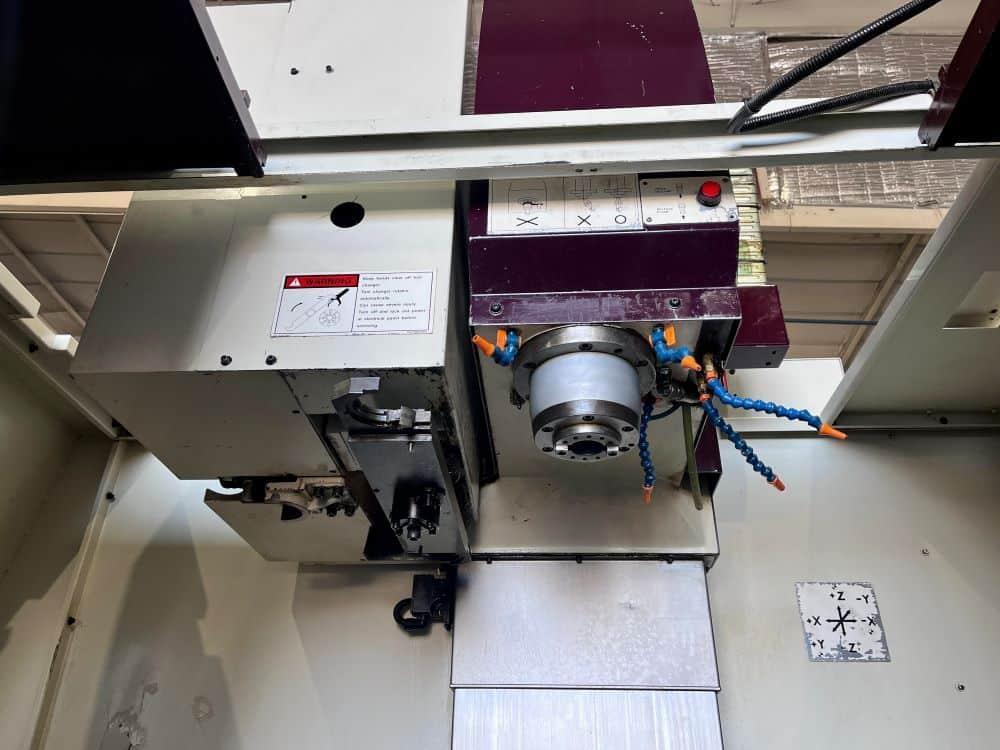

Spindle:

Taper Size: 40
Speed Range: 8,000 RPM
Spindle Power: 15 HP

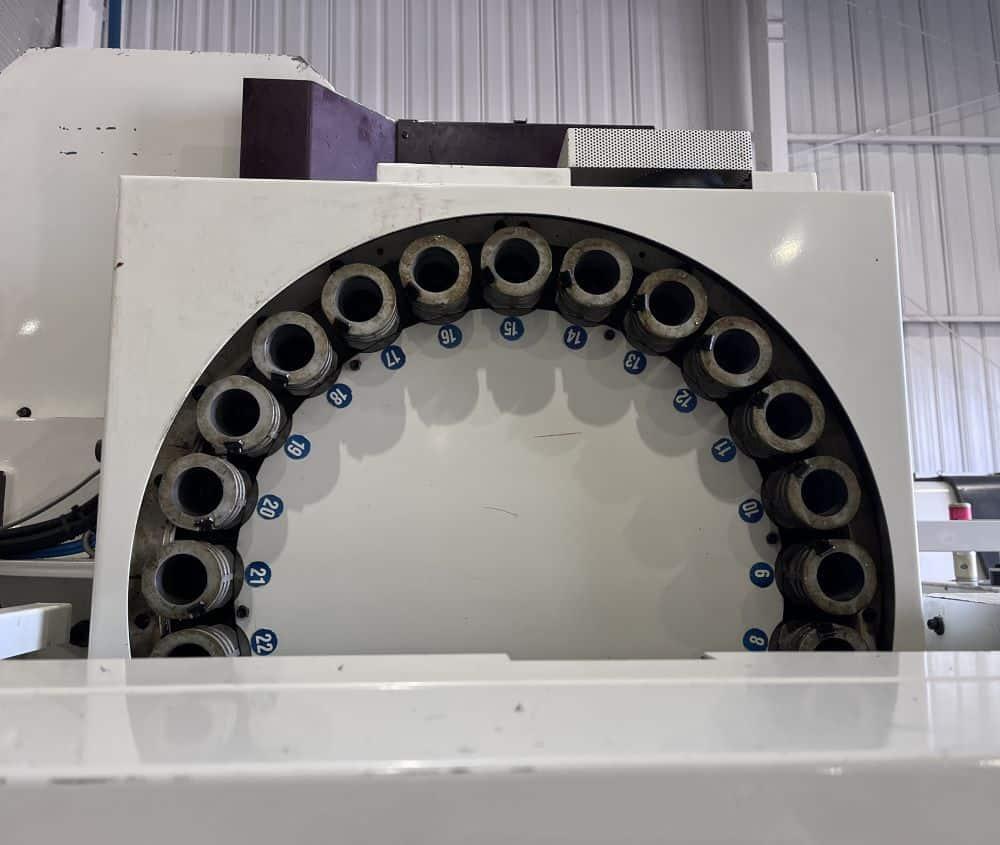

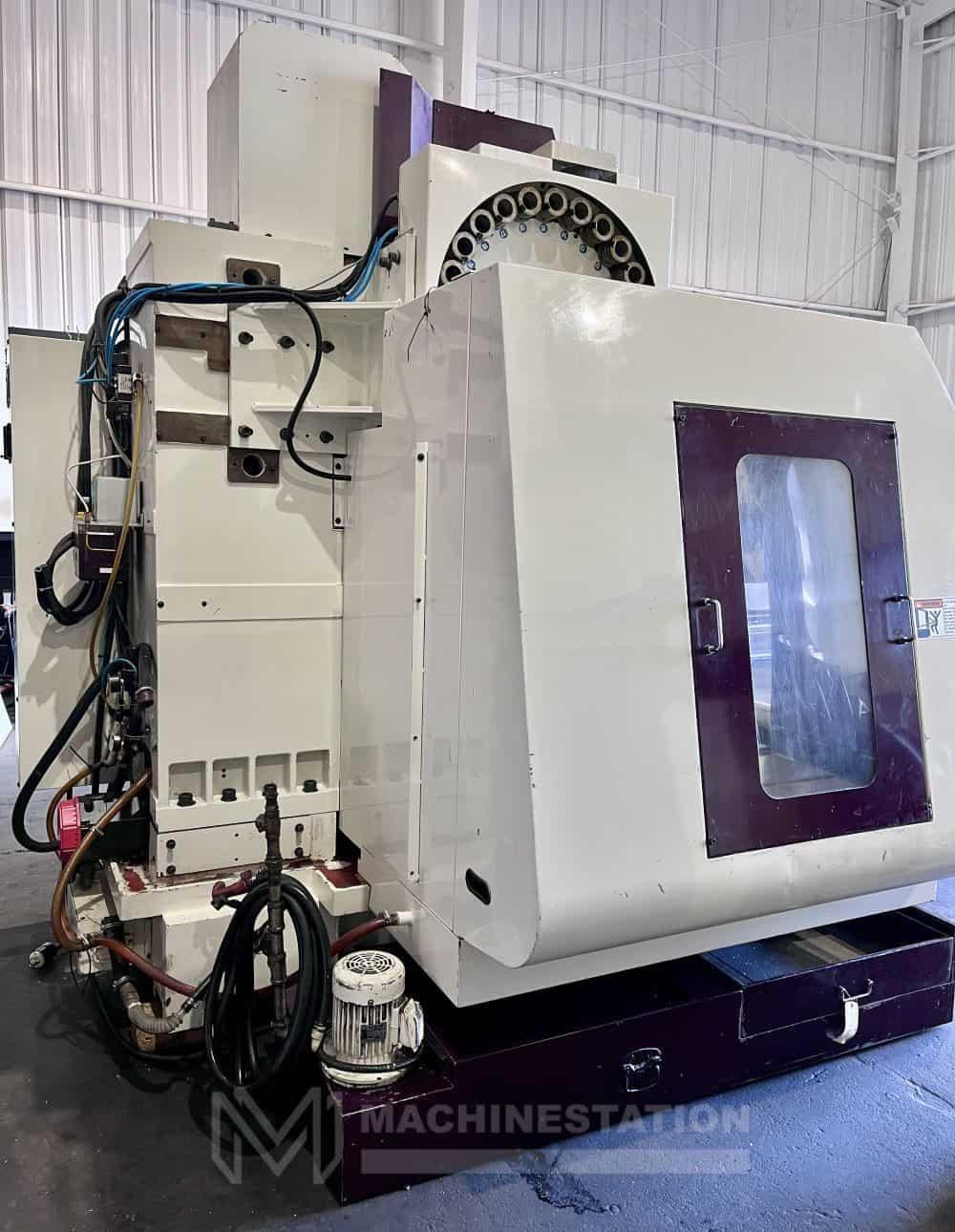

Automatic Tool Changer:

Capacity: 24 Tools
Max Tool Weight: 15.4 lbs
Max Tool Dia: 3.1″
Max Tool Length: 11.8″
Tool Changing Time: 3 Seconds

General:

Air Required: 100 psi 4 scfm
Power: 220v / 3-Phase
Overall Dimensions: 107″ x 91″ x 95″ High Approx.
Weight: 11,023 lbs Approx.
