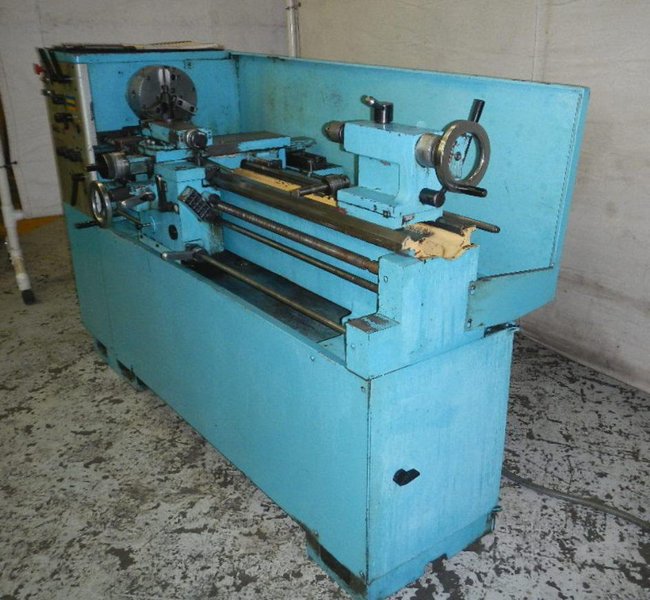

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

13” X 40” DOALL-ROMI ENGINE LATHE, MODEL 1340

Brand

DOALL ROMI

Category

Lathes & Turning Machines

Type

Lathes, Engine

Model

1340

Stock #

4865

Year

1986

Condition

Used

Location

New Jersey

REQUEST FINANCING

Specifications
Files & Videos

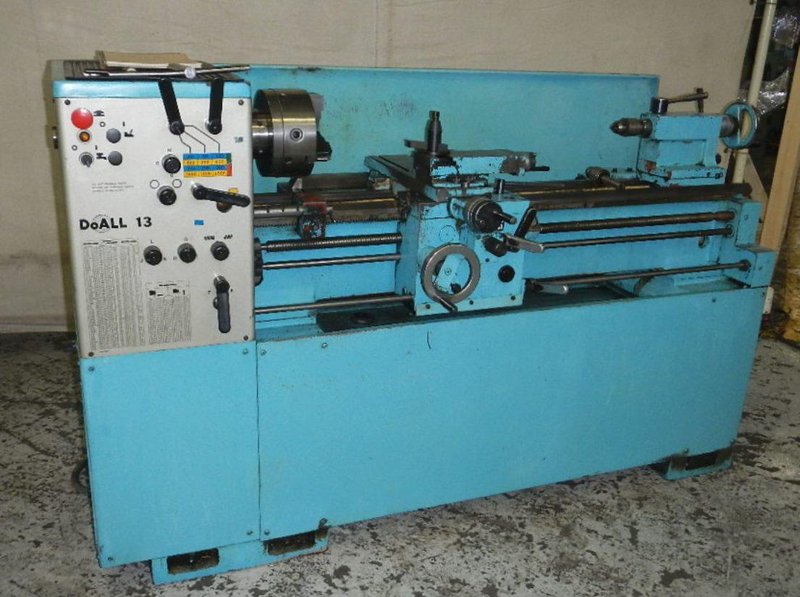

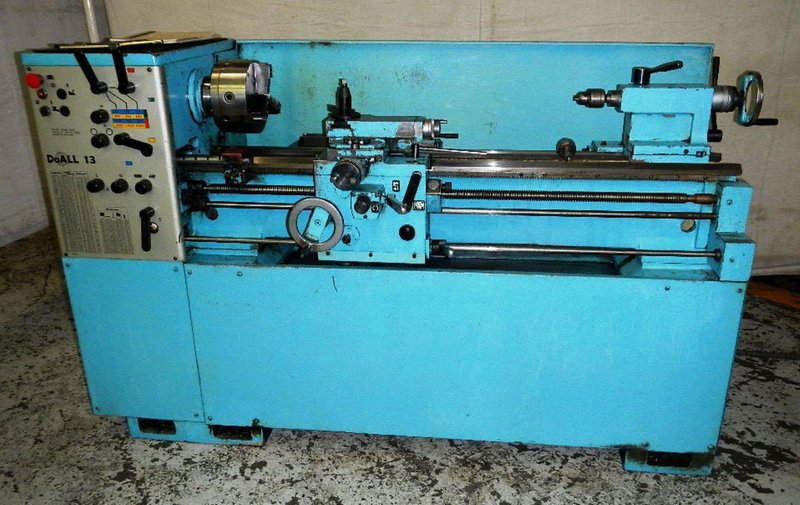

13” X 40” DOALL-ROMI ENGINE LATHE

MODEL 1340

SPECIFICATIONS:

SWING OVER BED ................... 13"

SWING OVER CARRIAGE WINGS ........ 11-3/8"

DISTANCE BETWEEN CENTERS ......... 40"

SWING OVER CROSS SLIDE ........... 7-11/16"

CROSS SLIDE TRAVEL ............... 7-7/8"

HOLE THROUGH SPINDLE ............. 1-9/16"

SPINDLE NOSE ..................... D1-4"

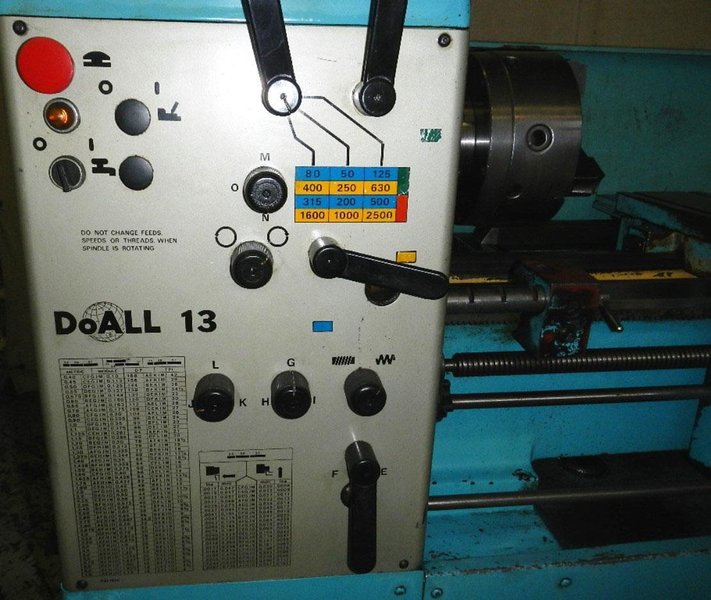

SPINDLE SPEEDS (12) .............. 50 - 2,500 RPM

LONGITUDINAL FEEDS (40) .......... 0.0008 - 0.0287 IN./REV

CROSS FEEDS (40) ................. 0.0004 - 0.0129 IN./REV

INCH THREADS (46) ................ 4 - 72 TPI

METRIC THREADS (646) ............. 0.4 MM - 7 MM PITCH

TAILSTOCK QILL TRAVEL ............ 4-11/16"

QUILL DIAMETER ................... 1-3/4"

TAILSTOCK SPINDLE TAPER .......... 3 MT

APPROXIMATE FLOOR SPACE REQUIRED 34" X 77" X 48" HIGH

APPROXIMATE WEIGHT ............... 2,500 LBS.

EQUIPPED WITH:

TAPER ATTACHMENT

8" 3-JAW CHUCK

THREADING DIAL

CARRIAGE STOP

FULL BACK SPLASH

TOOL POST

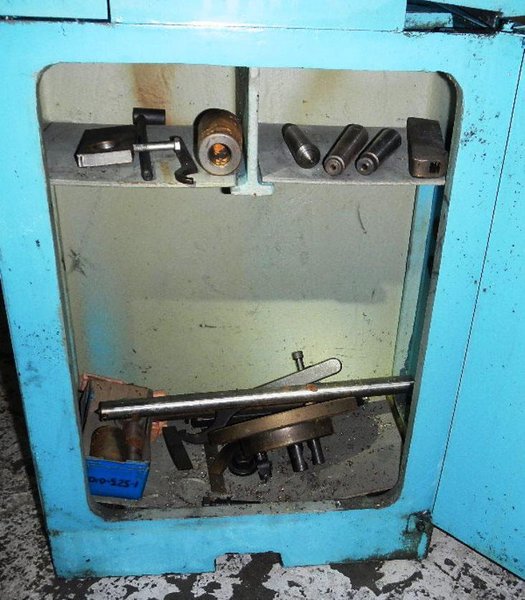

MISCELLANEOUS TOOLING

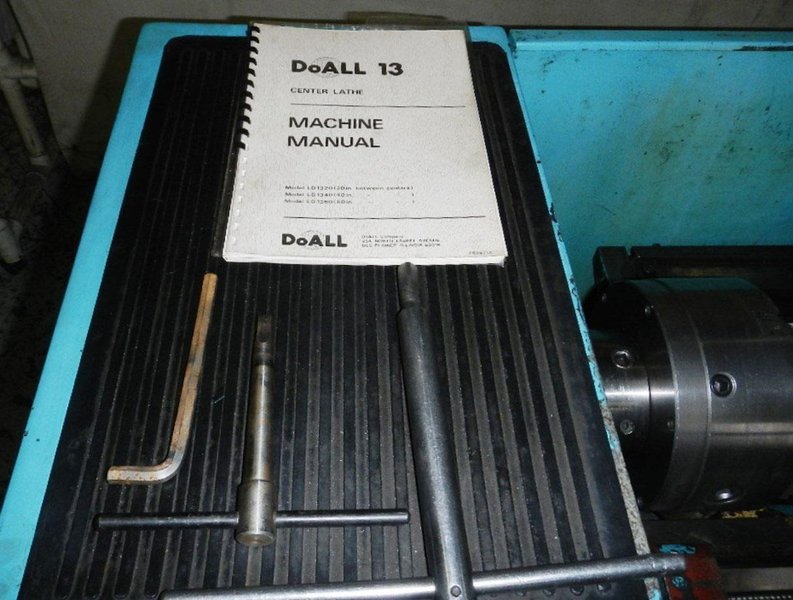

MANUALS

5 HORSE POWER SPINDLE DRIVE MOTOR

FOB: NJ
