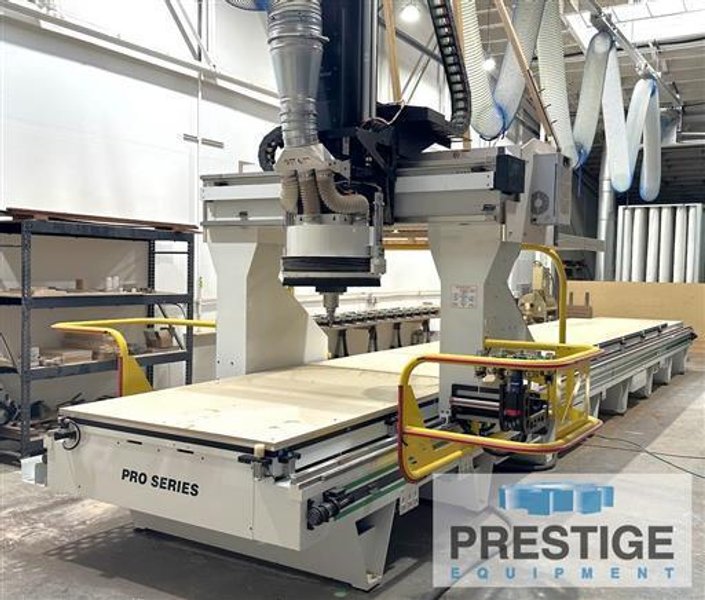

C.R Onsrud Model F396G24 5-Axis Pro Series CNC Router

SPECIFICATION:
Vacuum Table Dimensions 60" x 408"
Spindle Speed 24,000 RPM
X-Axis Travel 418.60"
Y-Axis Travel 76.68"
Z-Axis Travel 28"
A-Axis Rotation +/- 120°
C-Axis Rotation +300°/-115°
Spindle Taper HSK-63F
Distance Between Columns 64.99"
Spindle Motor 24 HP
Vacuum Pump 40 HP



Equipped With:

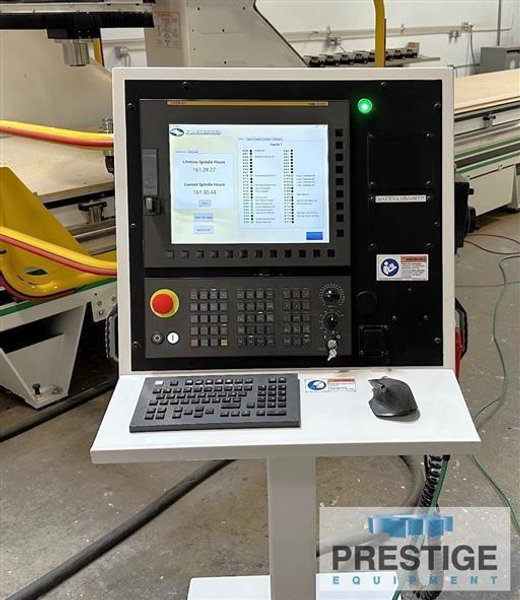

Fanuc 31-B5 CNC Control

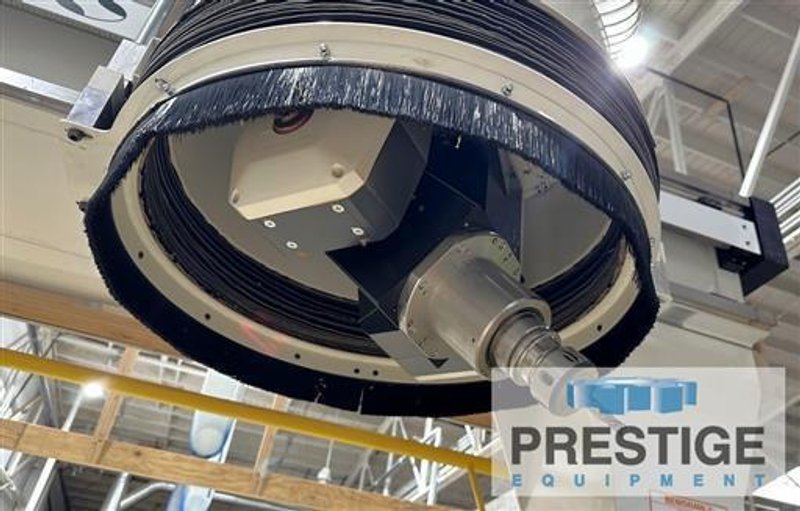

5-Axis Spindle Head

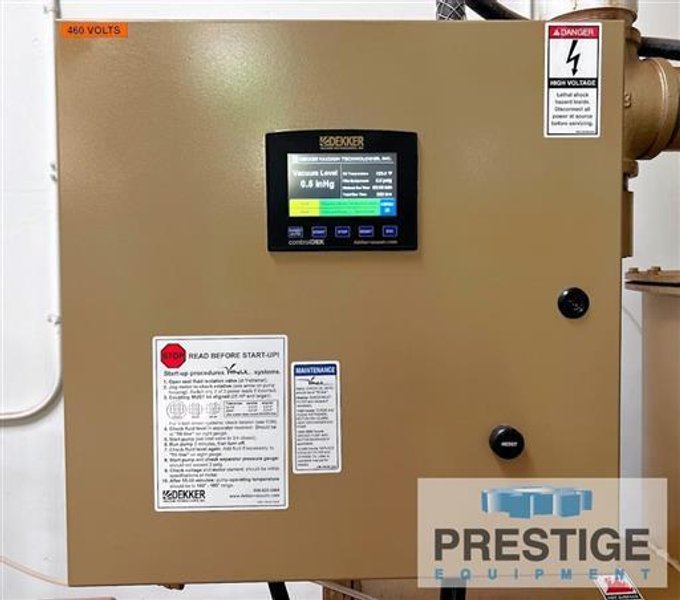

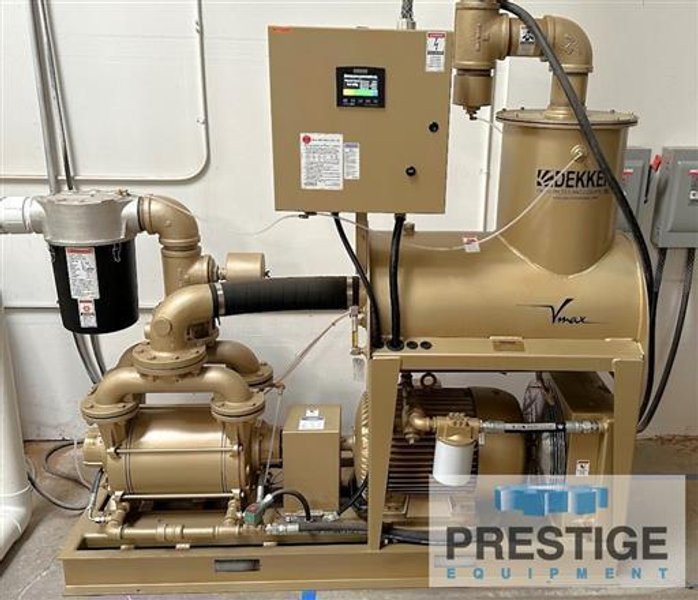

Dekker V-Max Liquid Ring 40HP Vacuum Pump

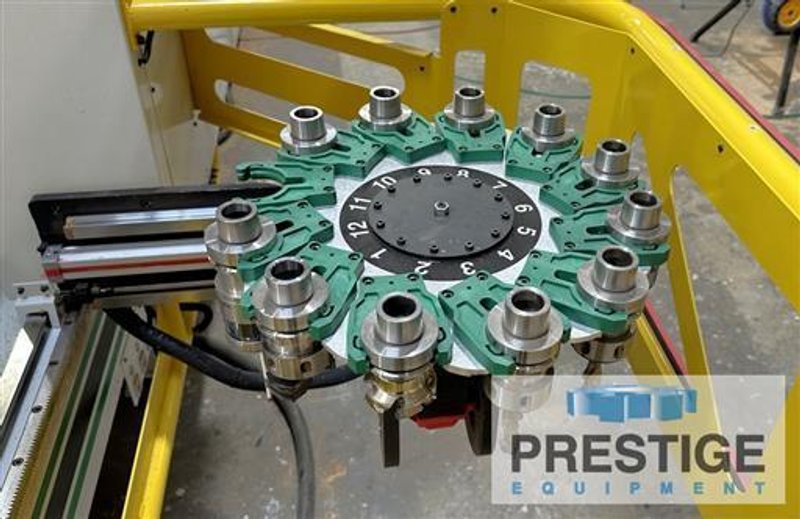

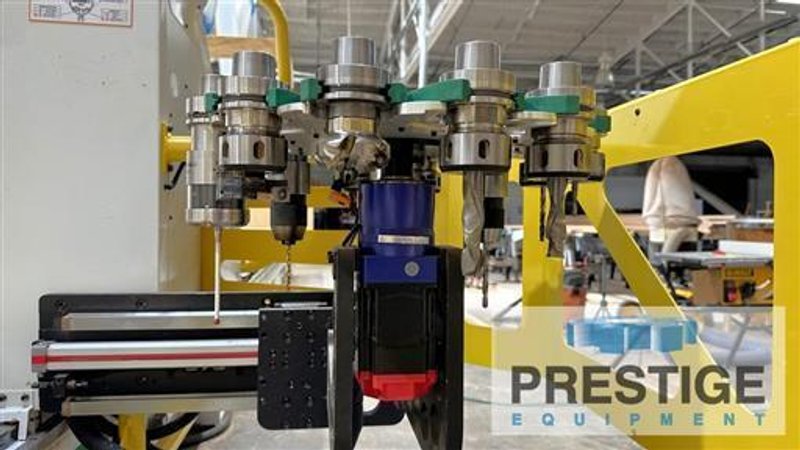

12-Station Automatic Tool Changer

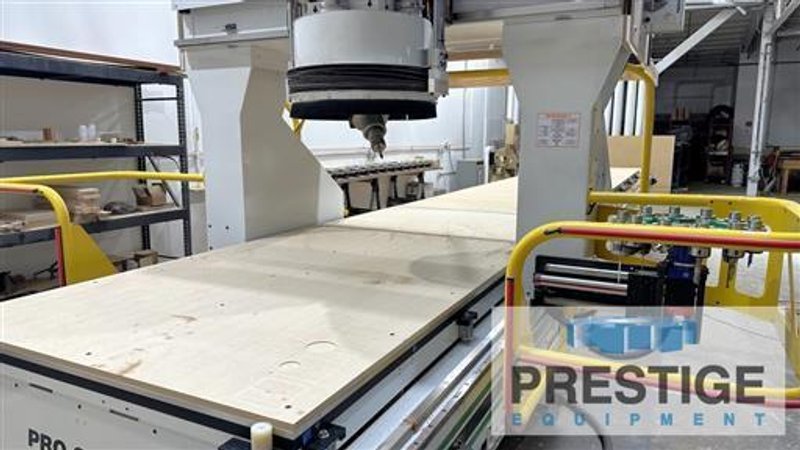

60" x 408" Aluminum Vacuum Grid Table
High Flow Vacuum Zone
Pneumatic Controlled Reference Positioning Pin
Renishaw RMP60 RF Touch Probe System

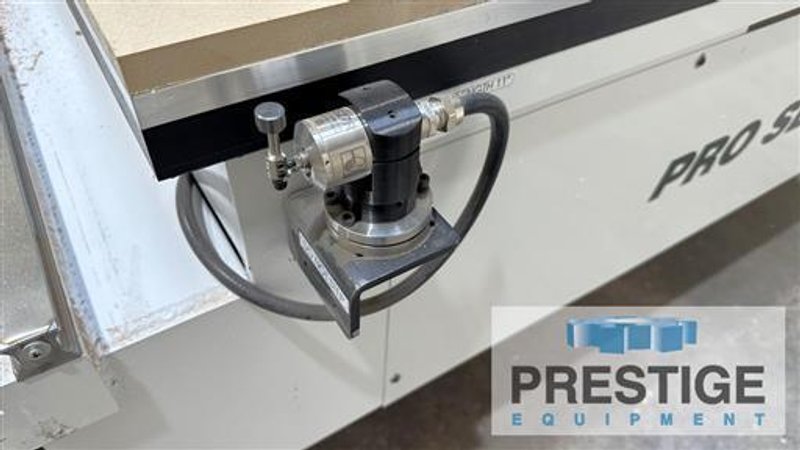

Renishaw TS27R Wired Length & Diameter Tool Setter
24 HP Spindle Motor
Spindle Chiller
Fanuc MPG Handheld Remote Jog Pendant
Factory Pre-Wire & Retrofit Kit
Removable Dust Hood


HOURS: 405 Spindle Hours
