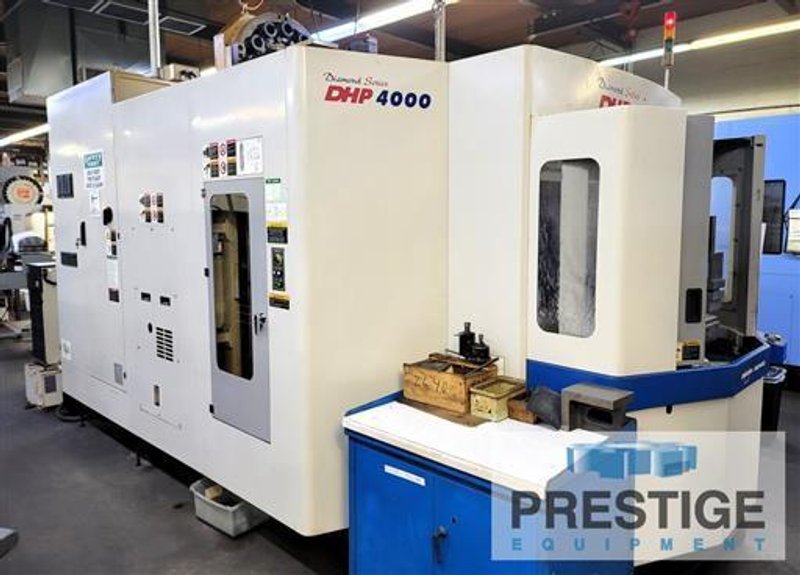

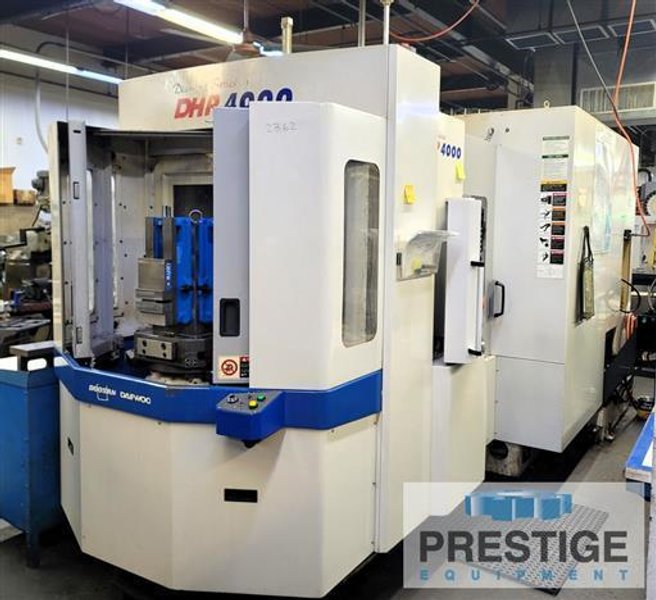

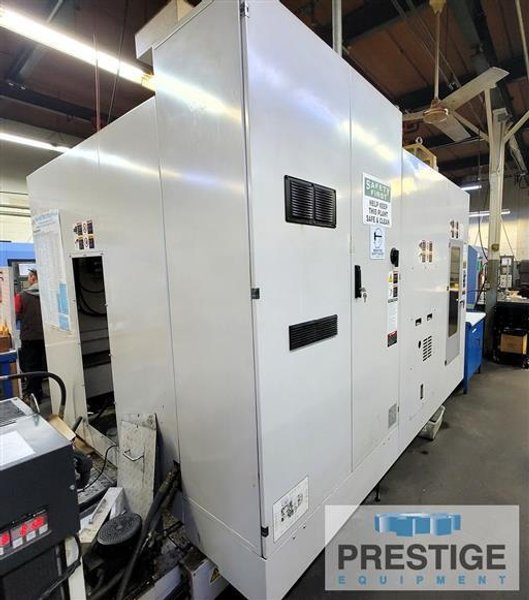

Doosan DHP-4000 CNC Horizontal Machining Center

SPECIFICATION:
X-Axis Travel 23.62"
Y-Axis Travel 22.05"
Z-Axis Travel 23.62"

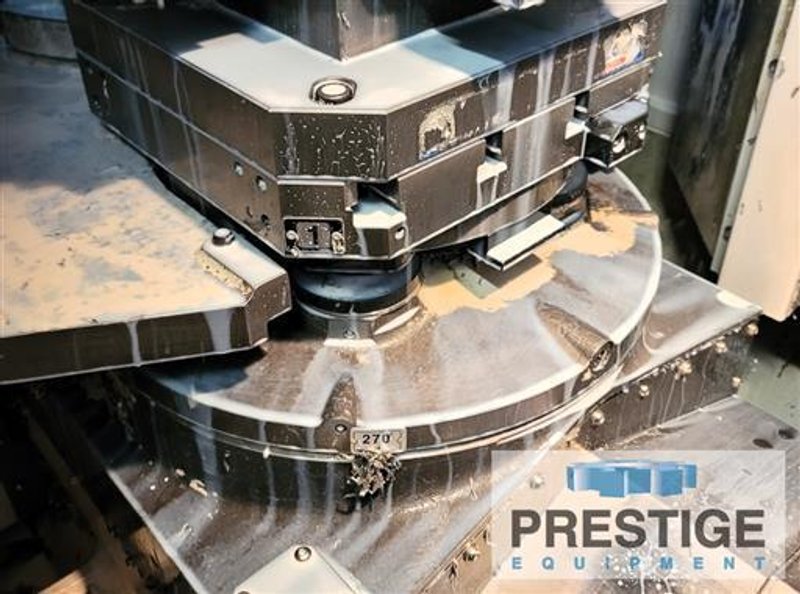

B-Axis Pallet Rotation 1°
Pallet Dimensions, 2 15.75" x 15.75"
Max. Workpiece Weight 1,100 Lbs
Spindle Speeds 14,000 RPM
Spindle Taper CAT 40
Spindle Nose - Table Center 5.91" - 29.53"
Spindle Center - Pallet Top 1.97" - 24.02"
Cutting Feedrate .04 - 1181.1 IPM
Rapid Traverse 2362.2 IPM
Positioning Accuracy +/- .0002
Repeatability +/- .00008
Max. Tool Length 11.81"
Max. Tool Weight 22 Lbs
Approx. Machine Dimensions 224" x 104" x 113"
Approx. Machine Weight 30,000 Lbs



Equipped With:

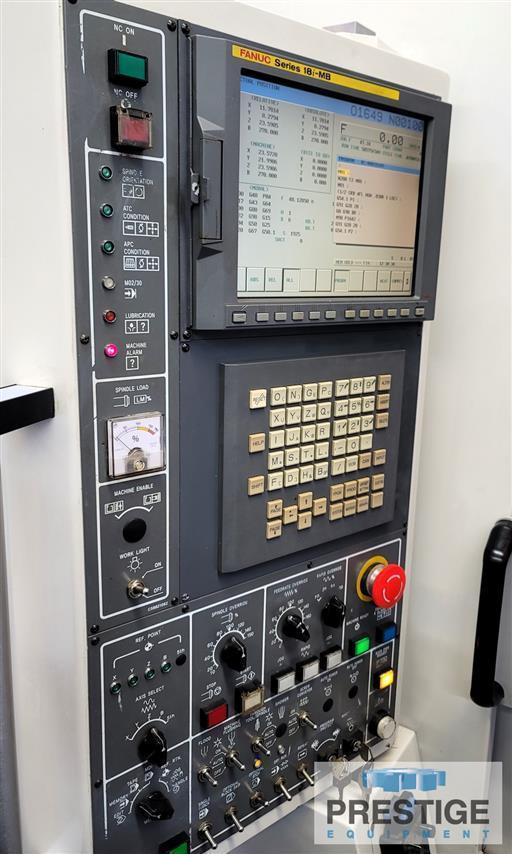

Fanuc 18i-MB CNC Control

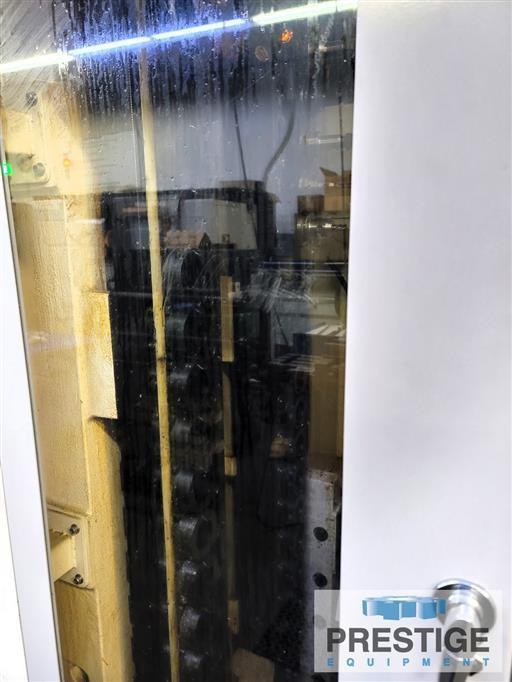

60-Station Automatic Tool Changer
2-Station Automatic Pallet Changer

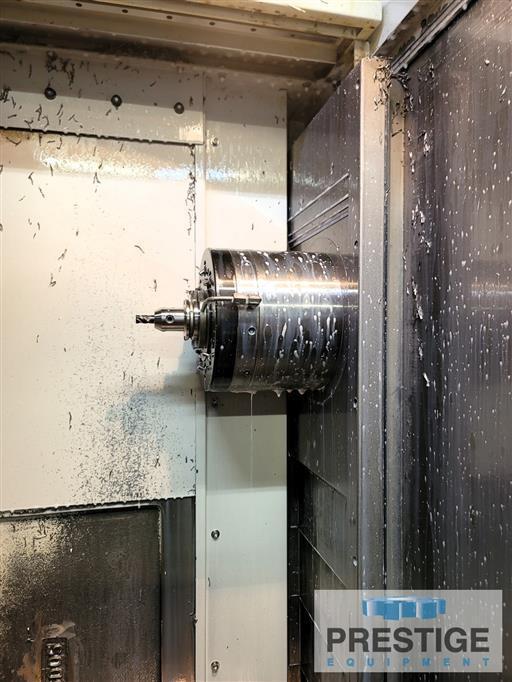

14,000 RPM Spindle
Coolant Thru Spindle (284 PSI)

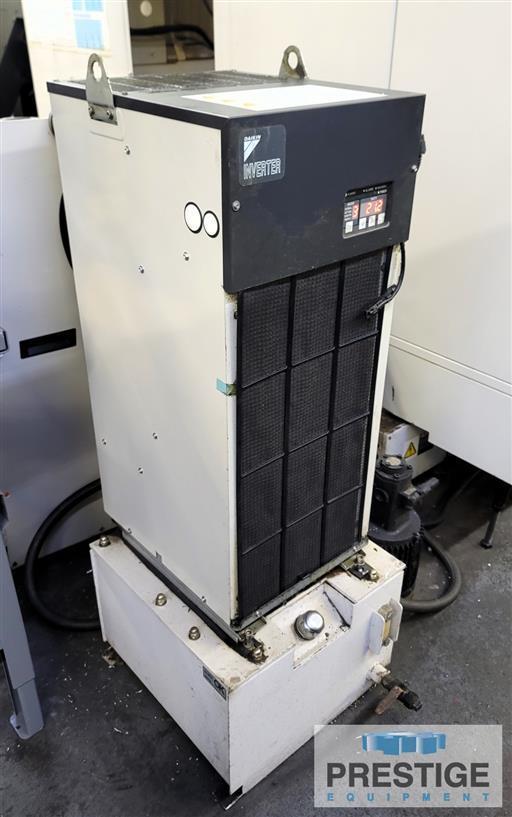

Daikin Chiller Unit

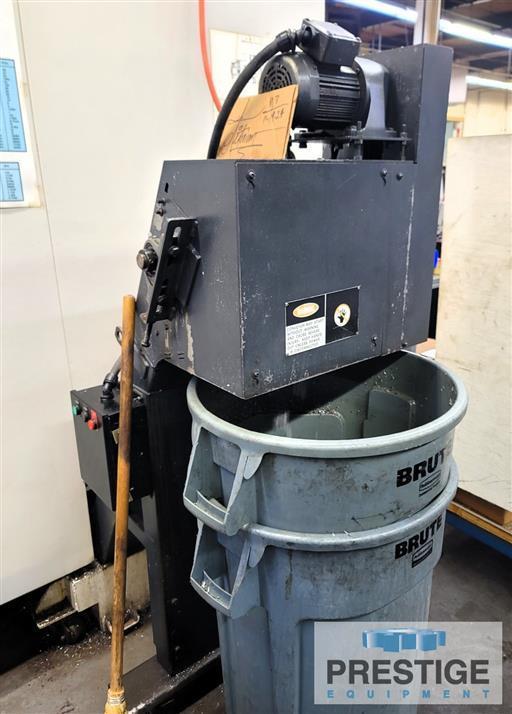

Chip Conveyor

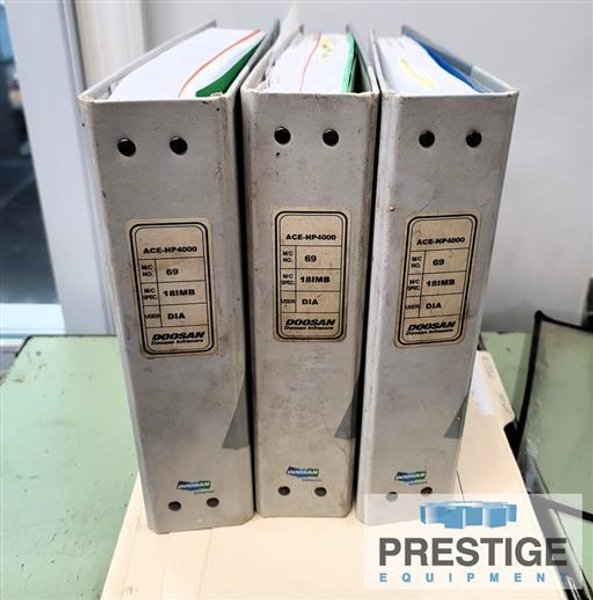

All Available Manuals & Documentation

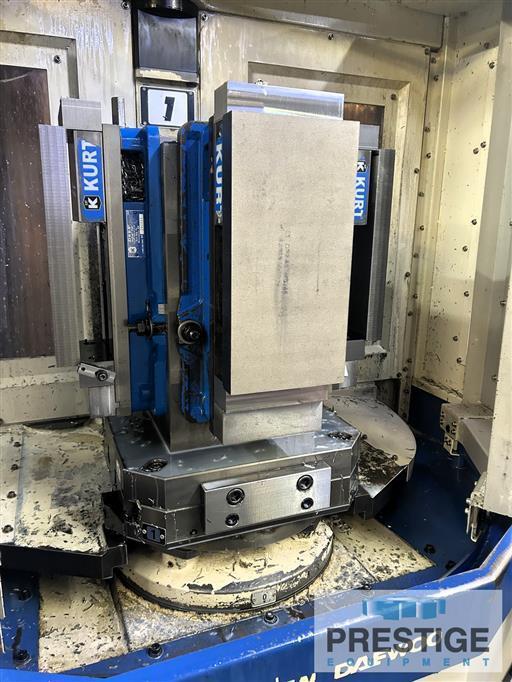

NOTE: Vises & Tombstones Not Included with Machine
