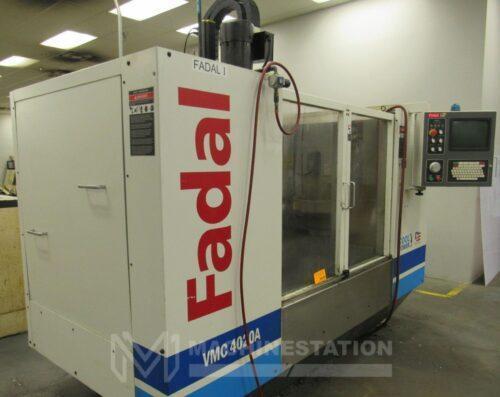

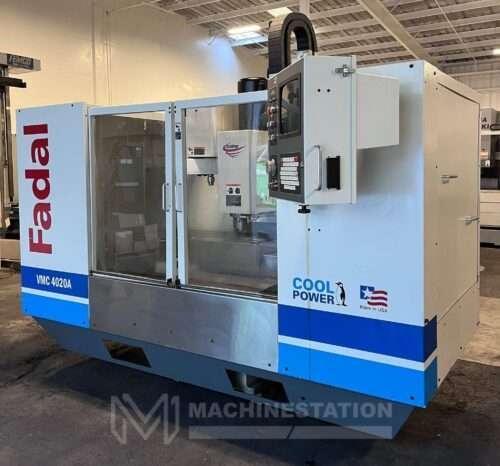

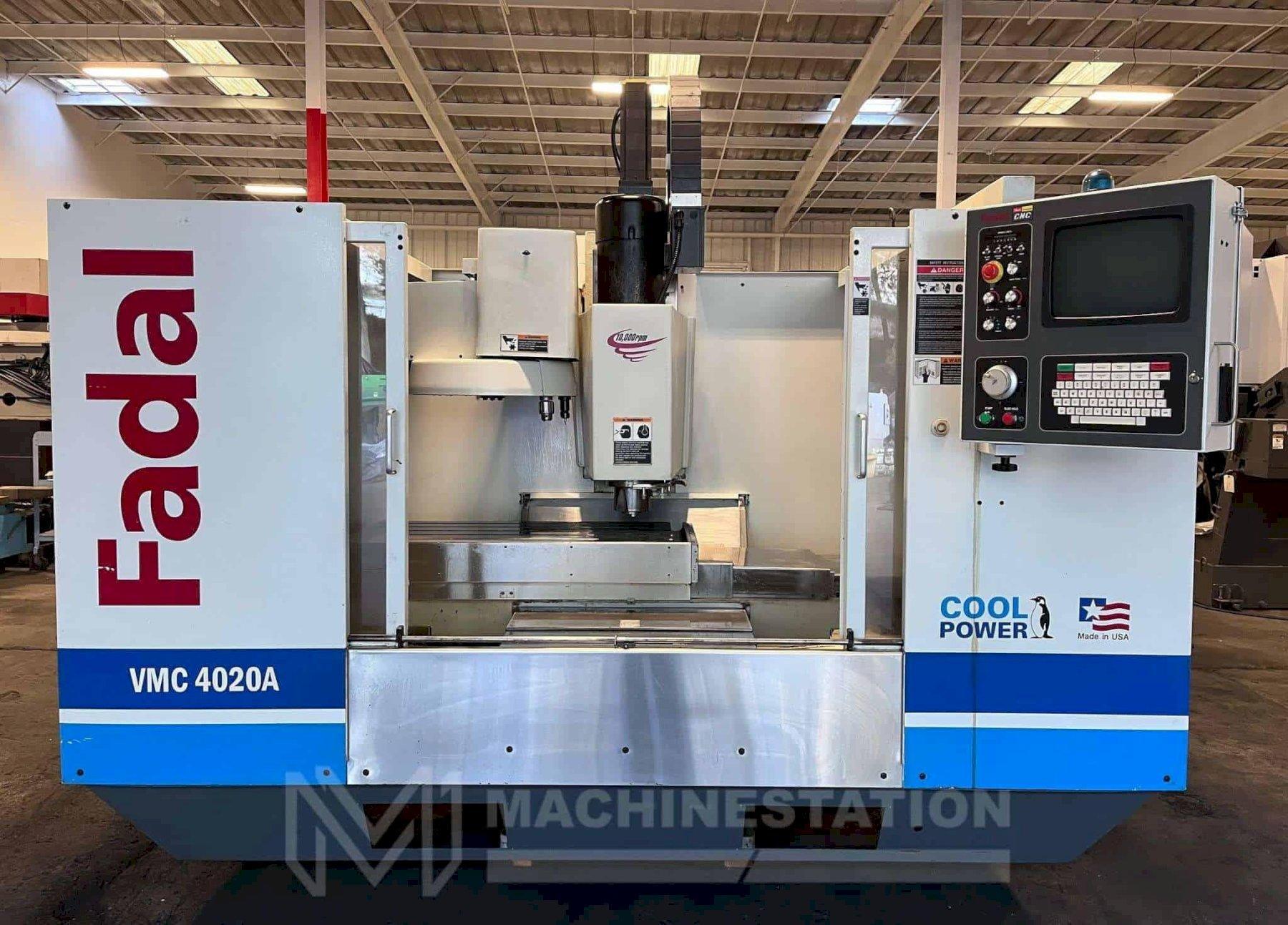

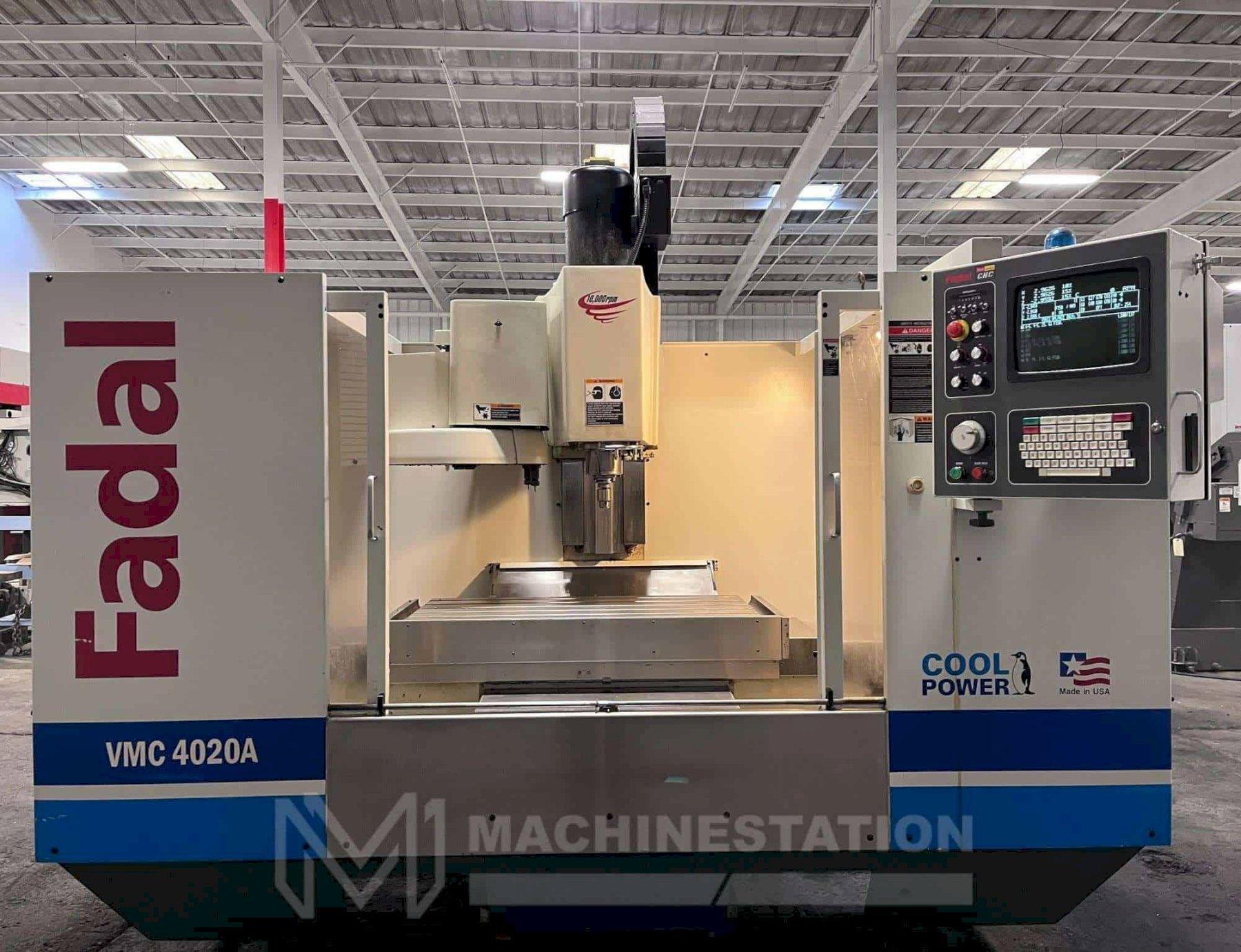

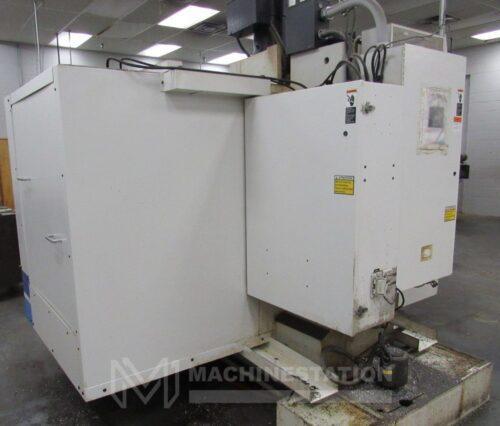

Fadal 4020A HT CNC Vertical Machining Center – 4th Axis Ready

Fadal 4020A HT CNC Vertical Machining Center – 4th Axis Ready

Name: Used FADAL 4020A HT For Sale 112671
Brand: FADAL
SKU: 112671

Brand

FADAL

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Fadal
Model:	4020A HT
Year:	2003
Condition:	Used – Good

Features:

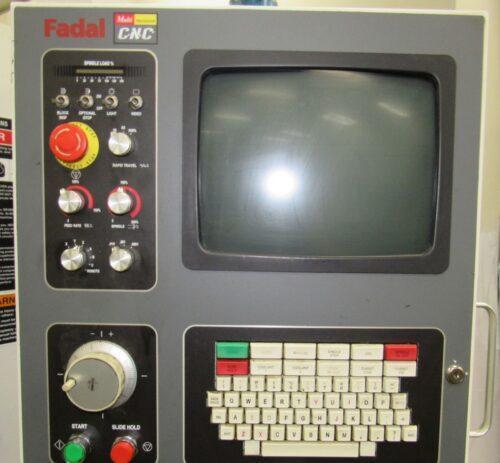

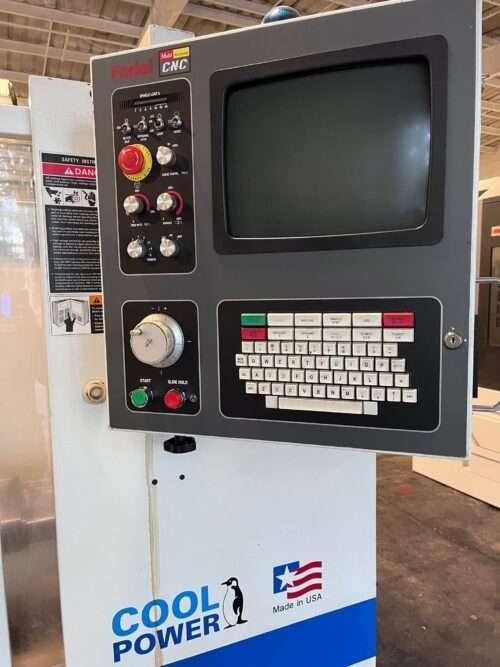

Fadal CNC Control
4th Axis Drive
10,000 RPM High-Speed Spindle
20 Station Umbrella Type Tool Changer
20 HP High Torque Spindle
Floppy Drive
Rigid Tapping
Programmable Coolant
Telescopic Way Covers

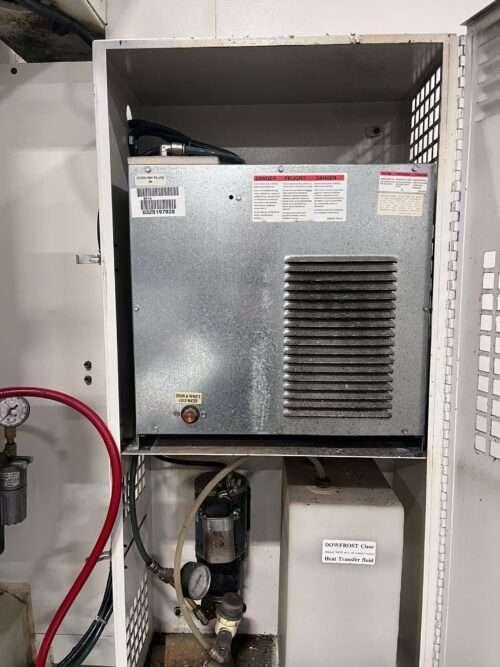

Coolant System
Notes: Machine fully inspected by a certified Fadal technician,
Machine was rebuilt in 2016, it holds accuracy tolerance
Ran only 2000 hours after rebuilt.

Travel:

X-Axis: 40″
Y-Axis: 20″
Z-Axis: 20″
Rapid Traverse Rates: 900 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

Table:

Length: 48″
Width: 20″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 3000 lbs

Spindle:

Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:

Capacity: 20 Tools
Max Tool Weight: 15 lbs
Max Tool Dia: 6″
Max Tool Length: 15″
Tool Changing Time: 4.2 Seconds

General:

Air Required: 100 psi 4 scfm

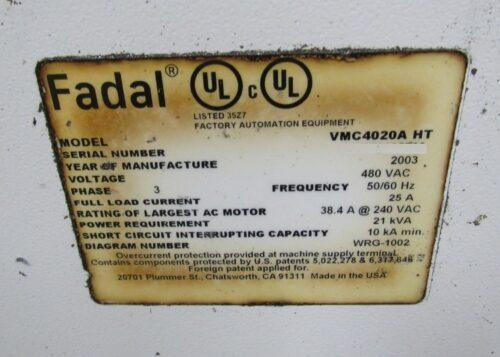

Power: 480v / 21 kva / 3-Phase
Overall Dimensions: 122″ x 100″ x 100″ High
Weight: 12,000 lbs Approx.
