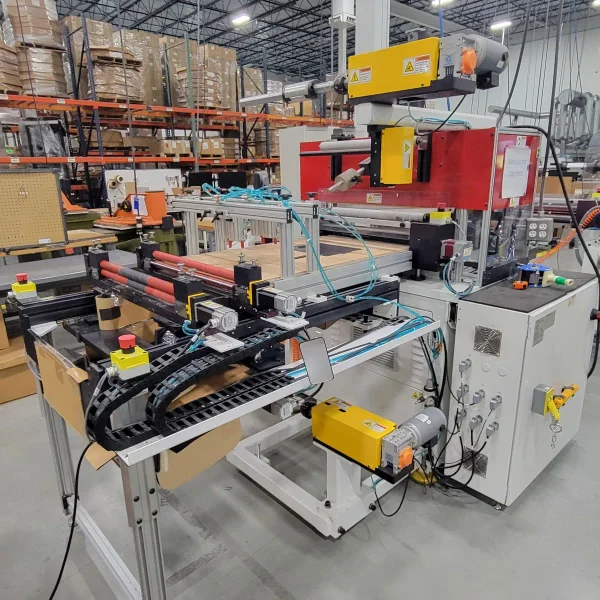

2021 Preco Model 2024-60T Hydraulic Die Cutting Press

2021 Preco Model 2024-60T Hydraulic Die Cutting Press

Name: 2021 Preco Model 2024-60T Hydraulic Die Cutting Press
Brand: PRECO
SKU: 33735
Availability: PreOrder

Brand

PRECO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

2021 Preco 2024-60T
60T Die Cutting 4-Post Hydraulic Press; Micrometer adjustment
20" x 24", 10" Daylight, 10" Feed, 10HP

Specifications

Preco Model 2024-60T Hydraulic Die Cutting Press
New: 2021

Specifications:
Capacity: 60 Tons
Platen Area: 20" D x 24" W
Daylight: 10" (Includes 2" Bolster)
Roll Feed Diameter: 2.25"
Max Feed Length: 10"
Press Stroke: 4"
Pump Motor: 10 HP

*Ultra Accurate Kiss-Cut
*Micrometer Stop
*Quick Change Steel Rule Die Clamps
*Microprocessor Controlled Touch Panel Display
*Robust 4-Post Press Design
*Precision Controlled Hydraulics
*Precise Roll-Feed Material Drives
*Variable Material & Toll Stroke Length Adjustment

Equipped With

4 Post Hydraulic Press, Micrometer Adjustment

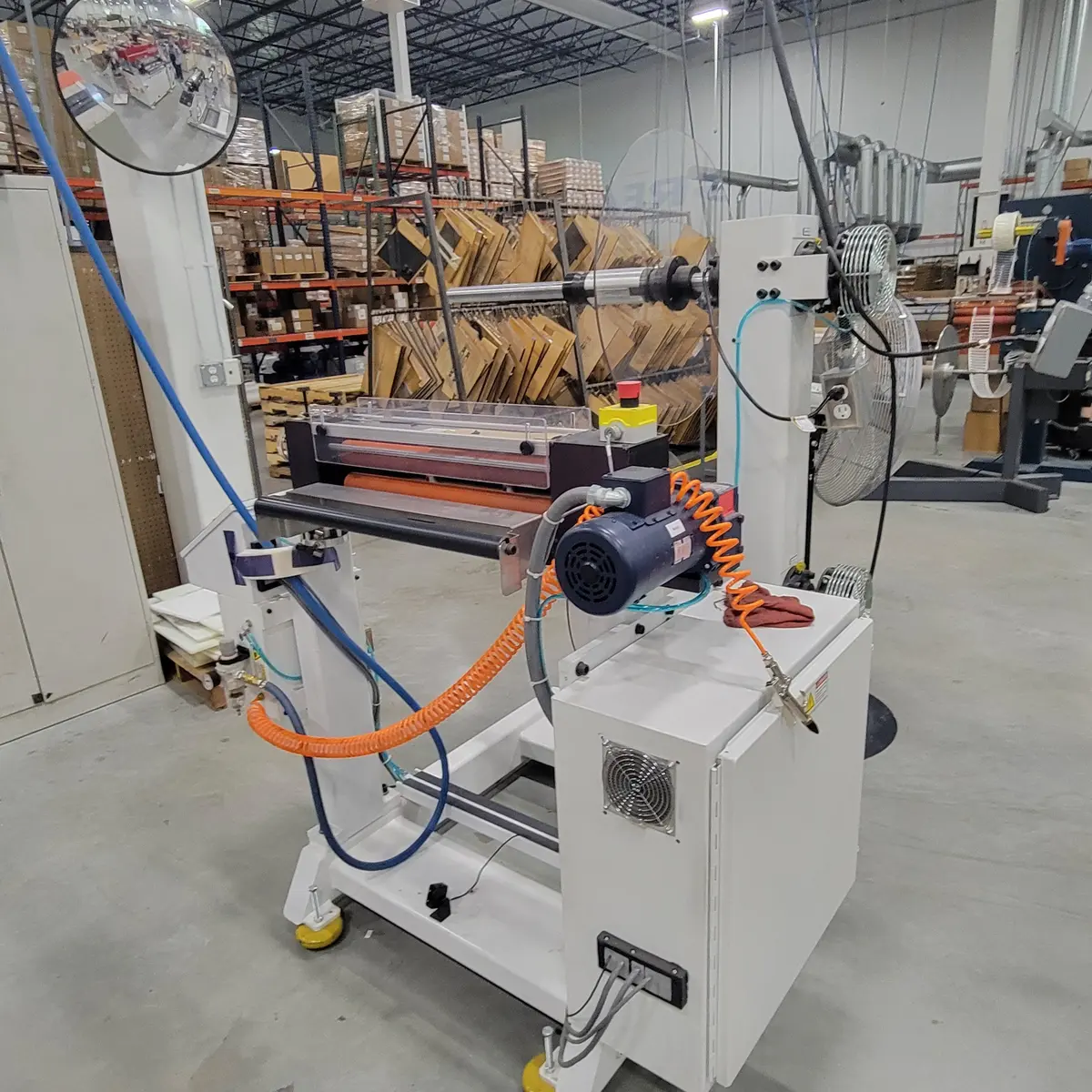

Unroll Station
10" Daylight
(2) Dual Driven Roll Feeds (2.25" Dia)
Quick Change Tooling, (4) Pneumatic Clamps
10 HP Pump Motor, 3000 PSI

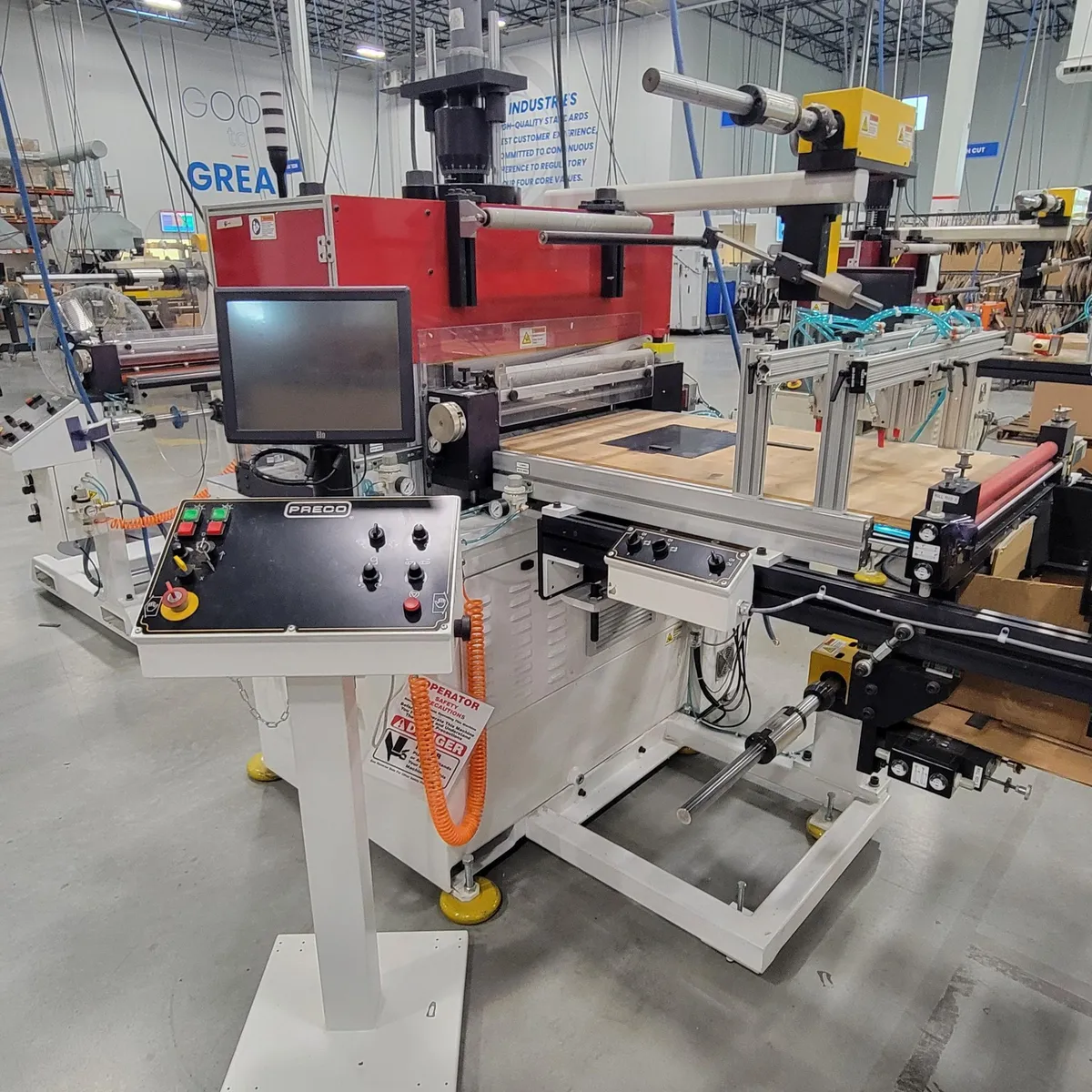

Pedestal Control
Manual, Schematics, and Software
Approximate Weight 6000 Lbs
