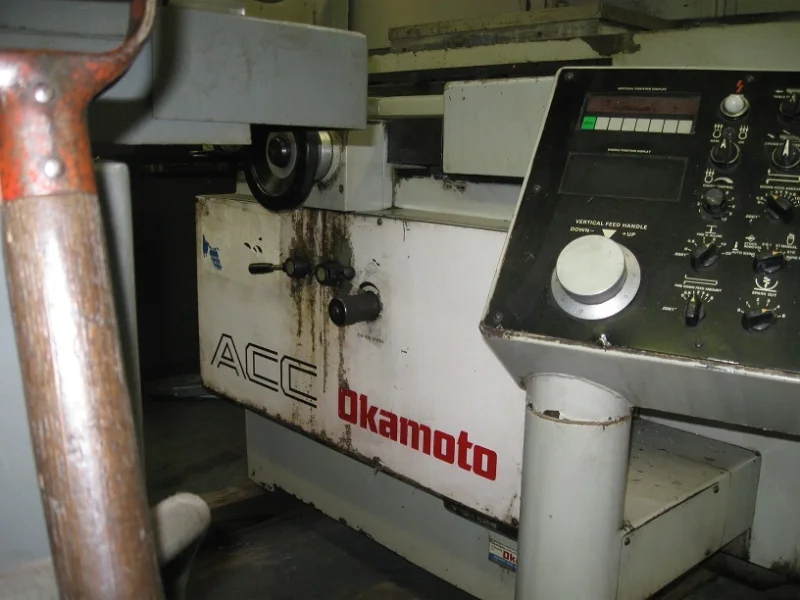

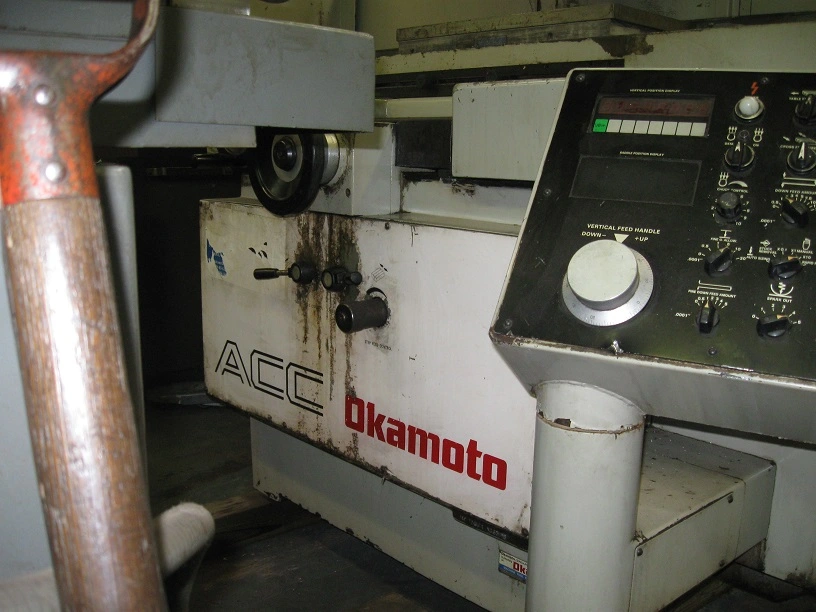

OKAMOTO ACC-12.24-DX | Grinders, Surface

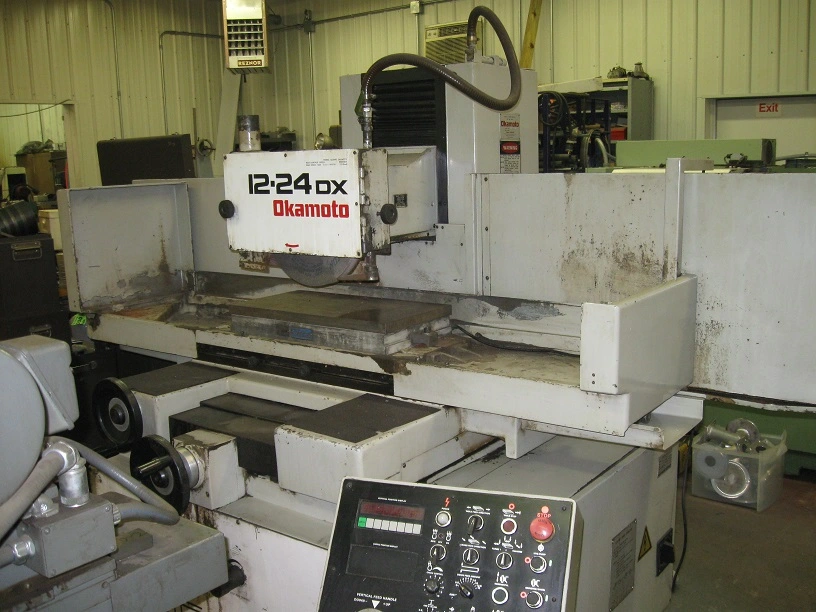

12" x 24" Okamoto Surface Grinder w/ Kanetsu Chuck

Specification:

Nominal Grinding Capacity:                              12" x 24"

Maximum Height Under 12" Wheel:                13.6"

Table Speed, Infinitely Variable:                       up to 82 FPM

Max. Longitudinal Table Movement:              29.5"

Auto Cross Feed Increment:                            0.002" To .80"

Auto Continuous Crossfeed:                          4 - 40 IPM

Crossfeed, Manual, Hand Feed Per Rev:       0.25"

Grad. Of Handwheel:                                         0.001"

Max. Crossfeed:                                                 13.4"

Auto Incremental Downfeed Increments:     0.00005" To .0015"

Power Rapid Wheel Positioning Rate:          16 IPM

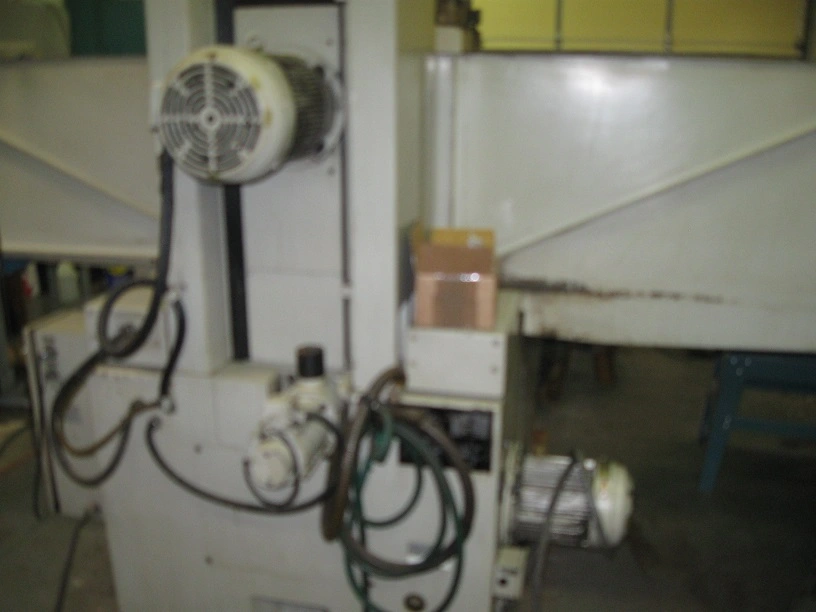

Spindle Motor:                                                   5 HP

Wheel Size:                                                        12" X 1.5" X 5"

Approximate Dimensions For Operation:     108" X 76"D X 70"H

Approximate Machine Weight:                       5,500 lbs

Specifications subject to verification

Equipped With:

Kanetsu Magnetic Chuck
