2007 DOOSAN PUMA 2000SY | Lathes, CNC (3-Axis or More)

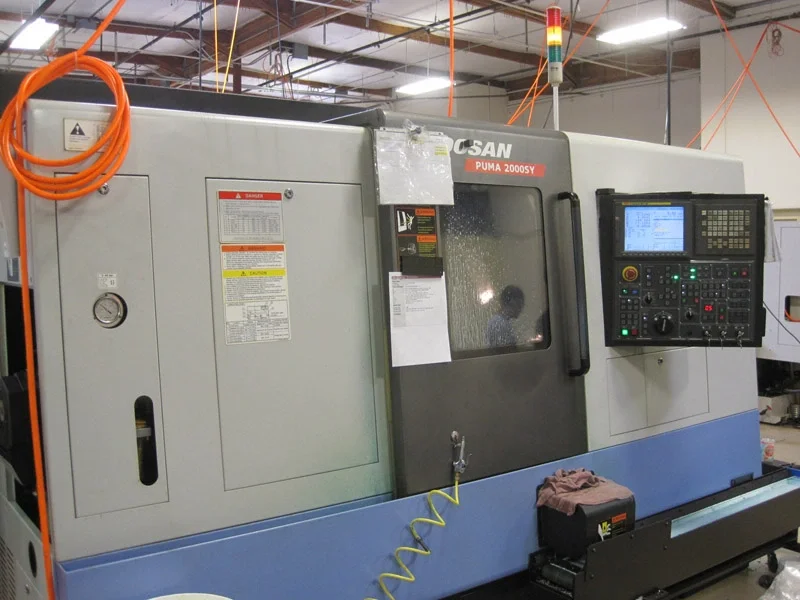

2007 Doosan Puma 2000SY

CNC Turning / Milling Center with Y-Axis

Specifications:

Swing Over Bed 23.62”

Swing Over Saddle 21.65”

Recom. Turning Diameter 8.27”

Max. Turning Diameter 12.99”

Max. turning Length 20.08”

Bar working Diameter 2.56”

X-Axis Travel 9.84”

Z-Axis Travel 22.83”

Y-Axis Travel 3.94 +/-1.97”

B-Axis Travel 22.83”

Spindle Speed 4500 RPM

Spindle Nose A2-6

Spindle Through Hole Diameter 2.99”

Min. Spindle Indexing Angle (C-Axis) Main Spindle .001 Degrees

No. of Tool Stations 12

Indexing Time .1 Sec

Rotary Tool Spindle Speed 5000 RPM

Sub-Spindle Speed 6000 RPM

Sub-Spindle Through Hole Diameter 1.77”

Sub-Spindle Indexing .001 Degree

Rapid Traverse X/Z/Y/B 787 / 944 / 295 / 787 IPM

Main Spindle Motor 20 / 15 HP

Sub-Spindle Motor 10 HP / 7.5 HP

Rotary Tool Spindle Motor 7.5 HP

Machine Dimensions 122” x 67” x 81”

Machine Weight 10,700

Equipped With:

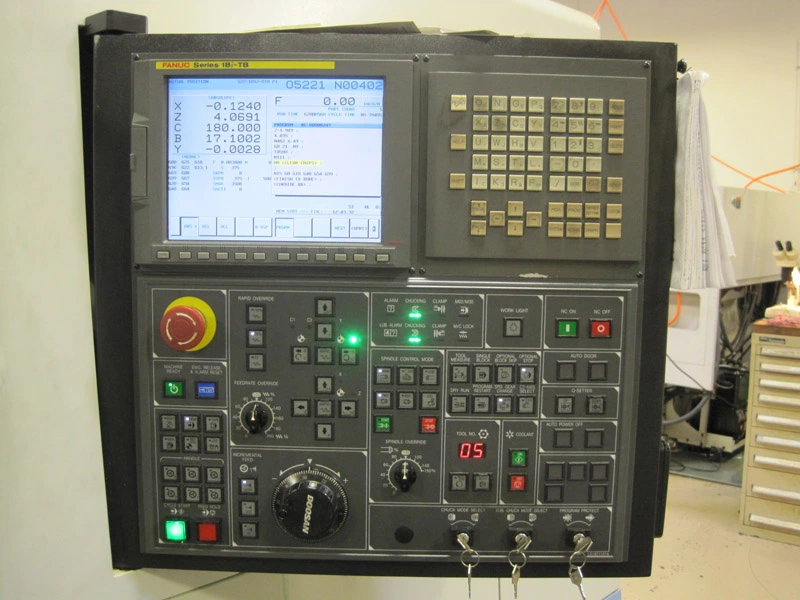

Fanuc Series 18i-TB

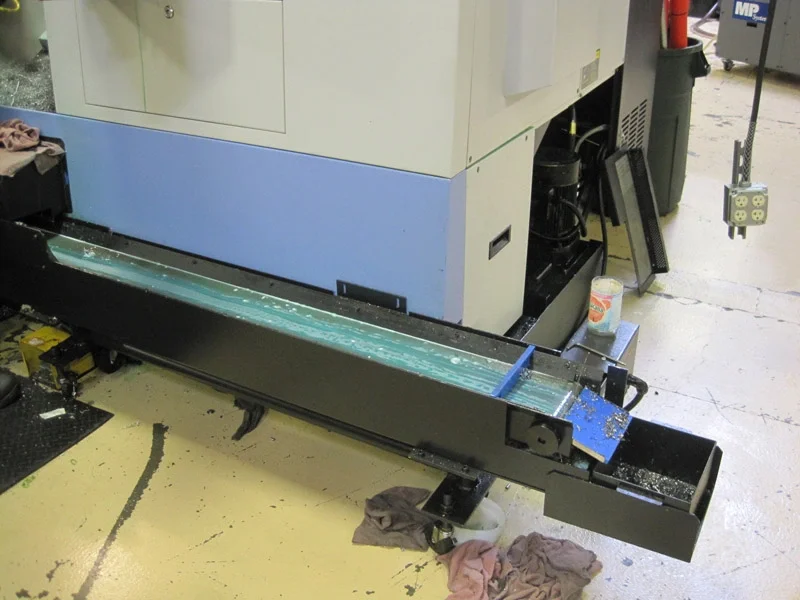

Parts Catcher and Exit Conveyor

Tool Pre-setter

All Available Tooling
