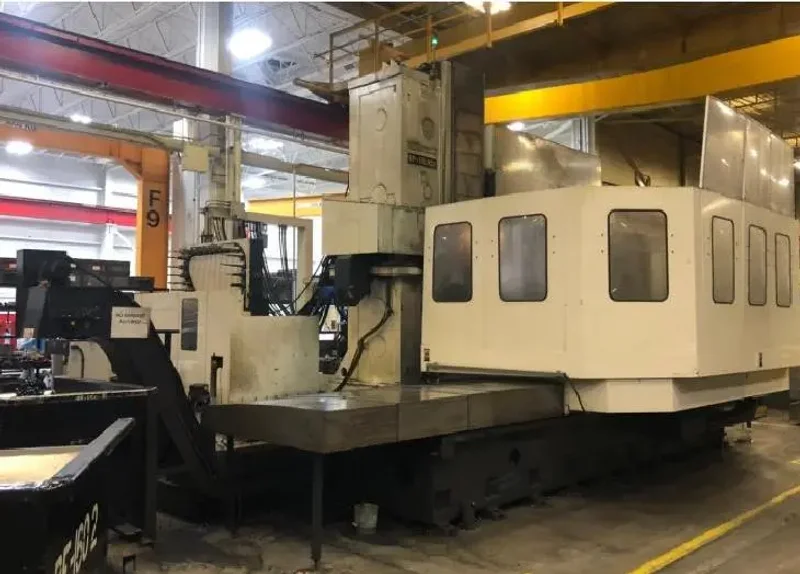

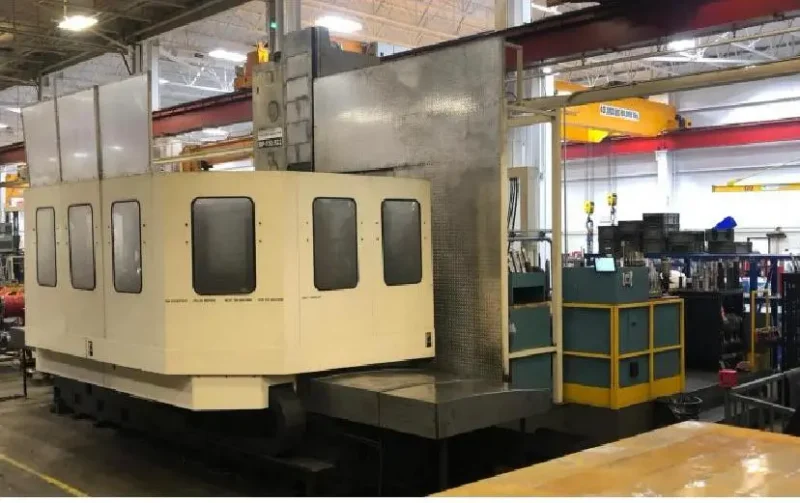

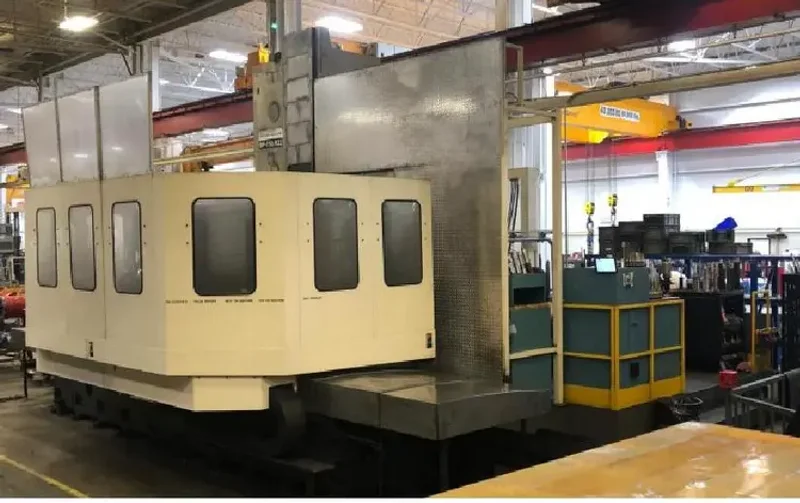

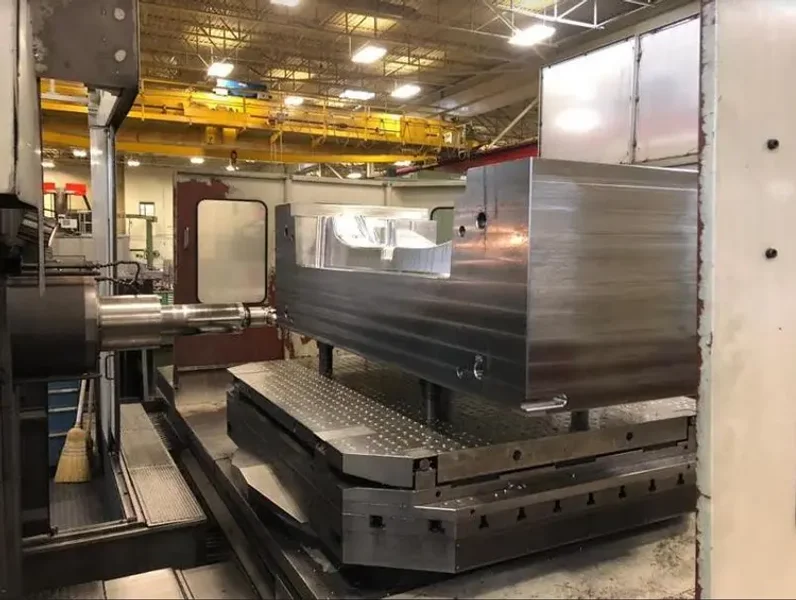

2014 TOSHIBA BP-150.R22 | Boring Mills, Horizontal, Table Type

Brand
Model
BP-150.R22
Stock #
32914
Year
2014
Condition
Not specified

Location

Not specified

Toshiba BP-150.R22, 4th Axis Rotary, 160"x100"x60", 5.9" Quill Dia, ISO50 Tpr, 120 Tools, Tosnuc 999 Ctrl, Coolant, Renishaw Probe

Toshiba BP-150.R22 Horizontal Boring & Milling Machine with 4-Axis Rotary Table

New: 2014

Specifications:

 Travels:

  X-Axis: 160"

  Y-Axis: 100"

  Z-Axis: 60"

  W-Axis: 28"

 Quill Diameter: 5.9"

 Rapid Traverse Rate: 393 RPM

 Spindle Taper: ISO#50

 Spindle Speed: 2500 RPM

 Spindle Power: 37 KW

 Spindle Gearbox: 2 Speed

 Table Load Capacity: 44,000 Lbs

 Table Size: 86.6" x 70.8"

 Automatic Tool Changer: 120 Tools

 Power: 220 V/60 Cycle/80KVA

Equipped With:

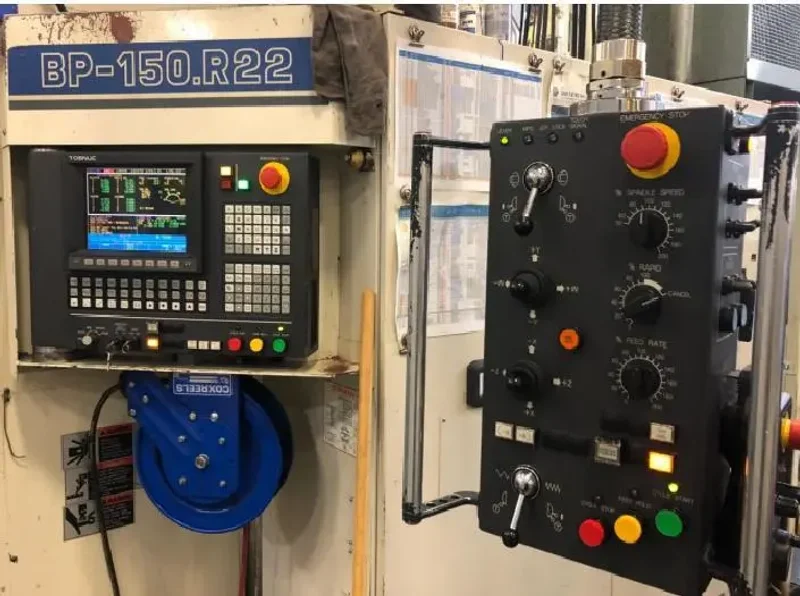

 Tosnuc 999 32-Bit CNC Control

 Glass Scales

 Coolant Thru Spindle (110 Gallon Coolant Tank)

 Renishaw RMP60 Wireless Touch Probe

 All Manuals and Documents
