EMCO VT250 | Lathes, VTL (Vertical Turret Lathe)

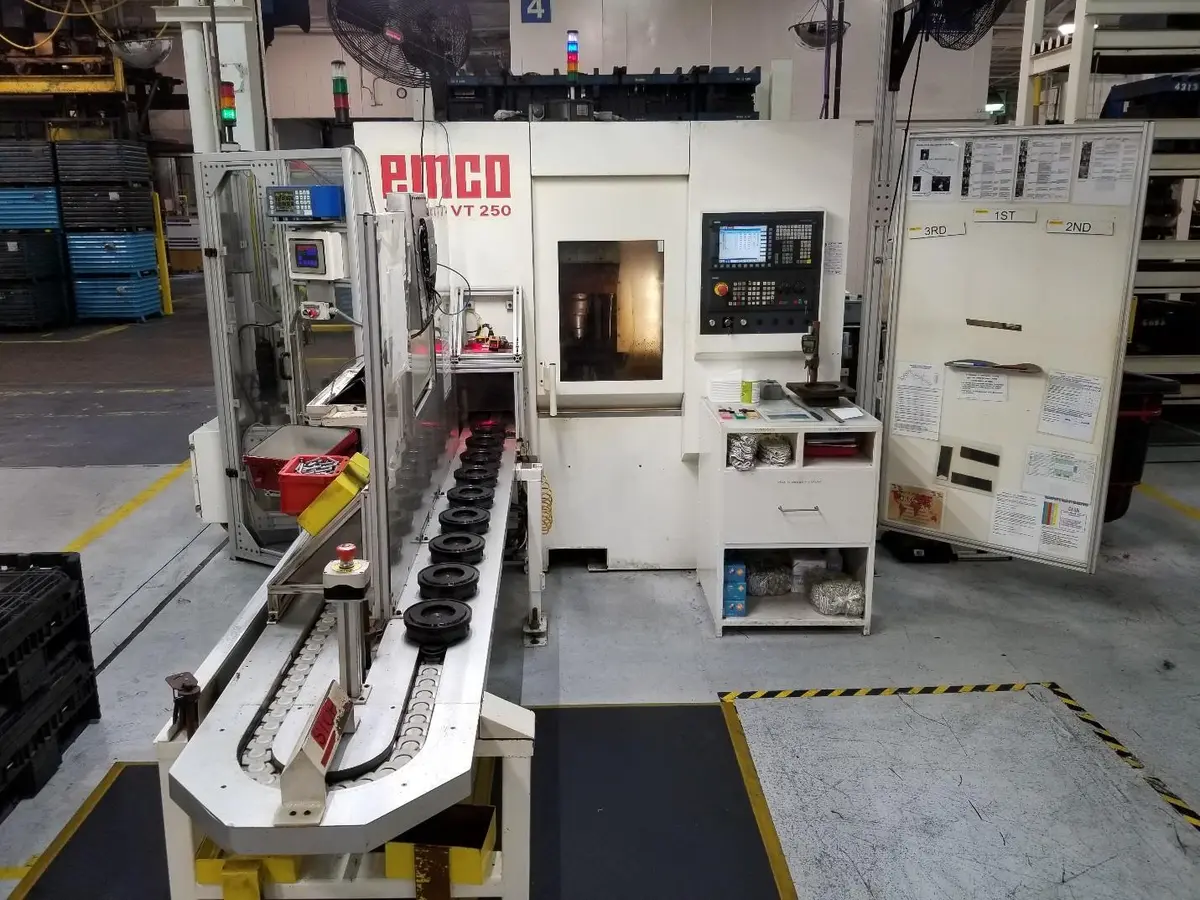

Emco VT250 Inverted Vertical Turret Lathe
New: 2012

Specifications:
 Travels:
  X-Axis:                      20.9"
  Z-Axis:                      12.2"
  Y-Axis:                      +/- 3.5"
 Max Workpiece Dia:        7.87"
 Max Length:               5.91"
 Spindle Motor:           24 HP
 Spindle Speed:           4,000 RPM
 Spindle Nose:             A2-6
 Chuck Size:                10"
 Max Swing:                10.2"

 Tool Turret:
  Stations:                   12
  Tool Holder Type:     VDI40
  Tool Storage:            24
  Power:                      8.5 kW (25% duty cycle)
  Tool Speed:              4000 Max RPM

 Power:                       400 VAC, 50-60Hz, 20kVA
 Machine Weight:      8400 Lbs
 Cutting Hours:          12,100 (approx)

Equipped With:
 Siemens Sinumerik 828D CNC Control
 High Torque, High Power Spindle
 Integrated Self-Loading Pickup System
 Oversized Roller Guides
 Coolant
 Chip Conveyor
