2007 PROMAC ZEPHYR VTR 1.2 | Machining Centers, Vertical, (5-Axis or More)

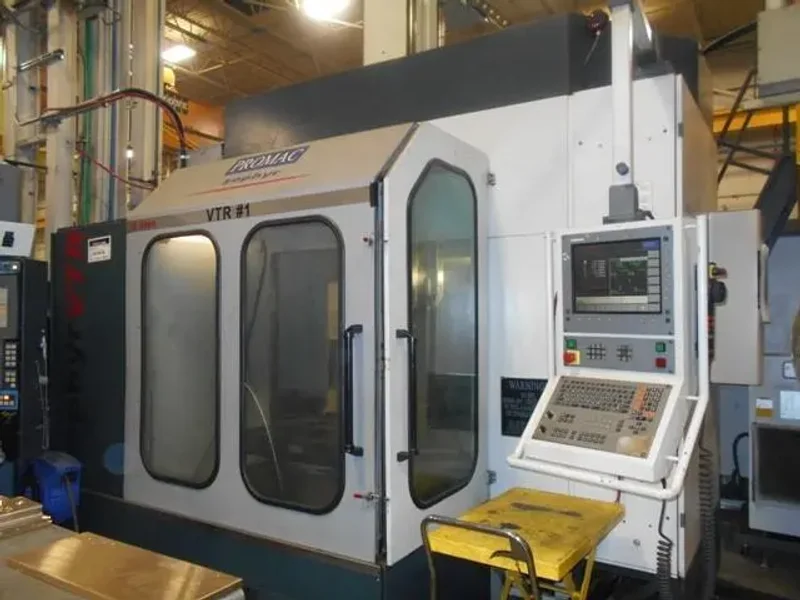

PROMAC ZEPHYR VTR 1.2  5  AXIS VERTICAL MACHINING CENTER
NEW-2007

Specifications:
CONTROL TYPE...............................: HEIDENHAIN TNC 530i

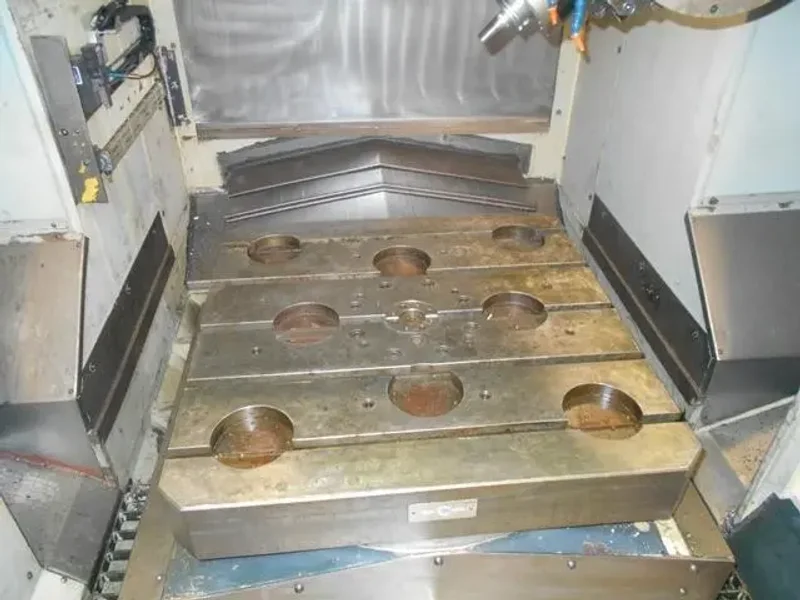

TABLE SIZE (1) FULL ROTATION...............: 39" X 39"
CROSS TRAVEL (X)...........................: 67"
LONGITUDINAL TRAVEL (Y)....................: 39"
VERTICAL TRAVEL (Z)........................: 27"
SPINDLE SPEEDS.............................: 15,000 RPM
SPINDLE DRIVE..............................: 40 HP
SPINDLE TAPER..............................: HSK A63
TOOL CHANGER ..............................: 32 ATC
HEAD ROTATION..............................: +/- 110 DEGREE
MAX TABLE ROTATION ........................: 10 RPM/MIN

EQUIPPED WITH:
ELECTRICS-380 Volt -50 hz - 40 kW

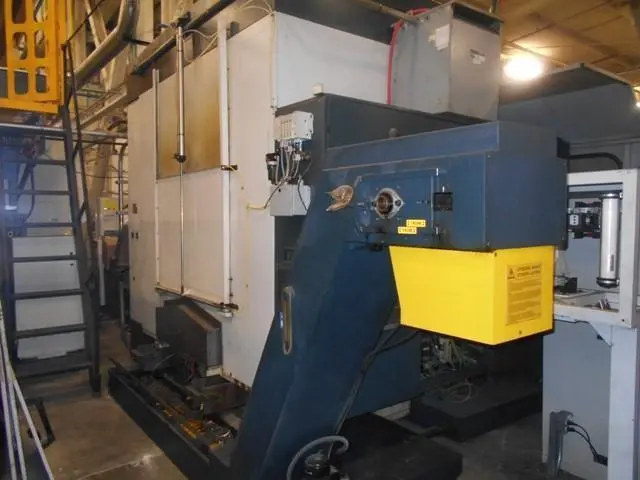

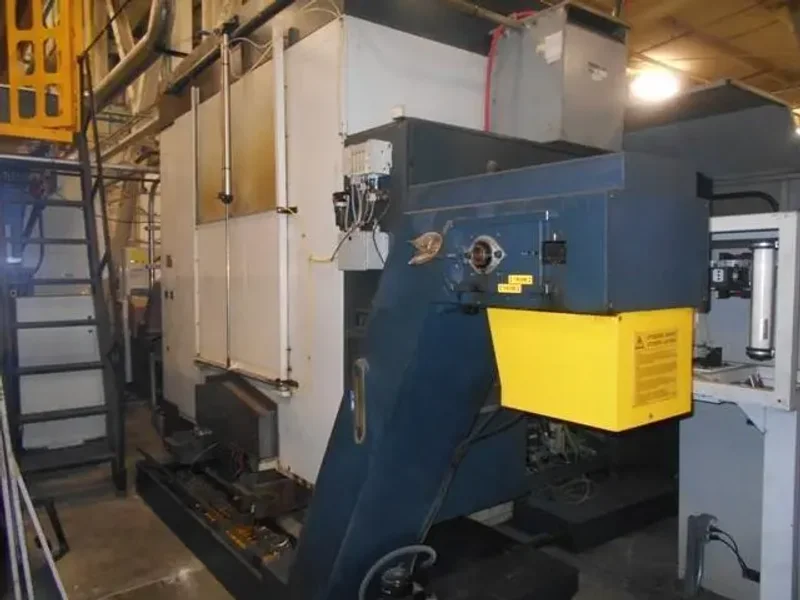

CHIP CONVEYOR
COOLANT
DOUBLE PINION AXIS DRIVE

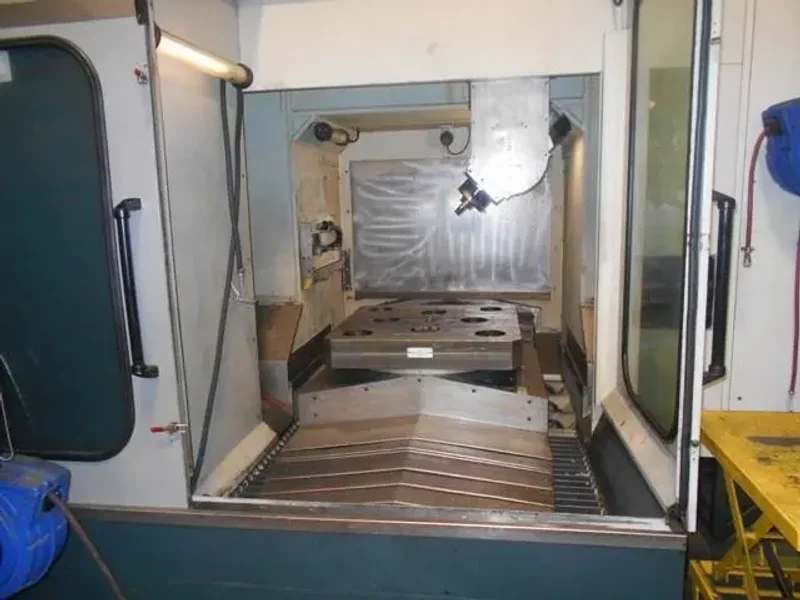

FULL ENCLOSURE
FULL 5 AXIS MACHINING TO A NEGATIVE ANGLE
WEIGHT .... 13,000 Kg (28,660 Lbs.)
TRANSFORMER
TOOL PROBE
RECENTLY REPLACED LINEAR BEARINGS Z AXIS
HSK 63 TOOL HOLDERS WITH CART
PROMAC MADE IN ITALY
