2013 TOSHIBA BP-150.R22 | Boring Mills, Horizontal, Floor Type

2013 TOSHIBA BP-150.R22 | Boring Mills, Horizontal, Floor Type

Name: 2013 TOSHIBA BP-150.R22 | Boring Mills, Horizontal, Floor Type
Brand: PURE-AIRE
SKU: 33421
Availability: PreOrder

Brand

PURE-AIRE

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Boring Mills, Horizontal, Floor Type

Manufacturer:

TOSHIBA

Model:

BP-150.R22

Year:

2013

Stock #:

33421

Status:

For Sale

Description

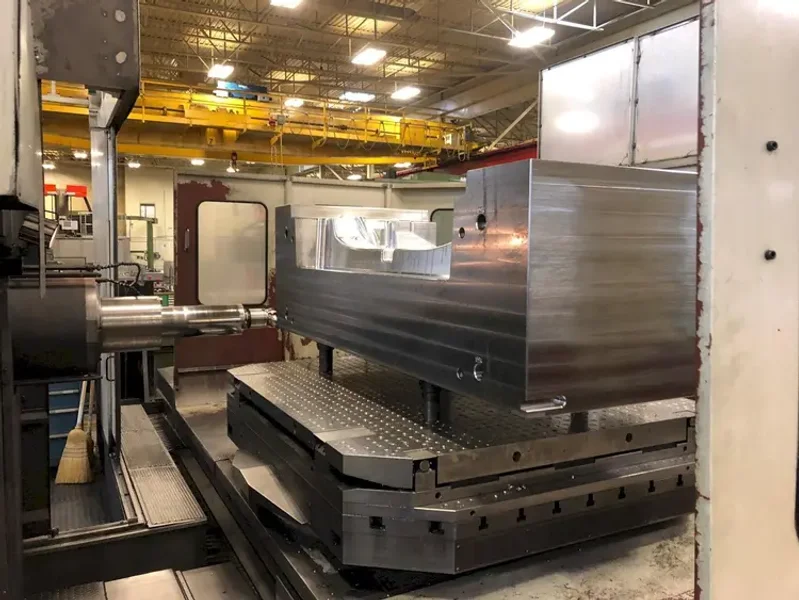

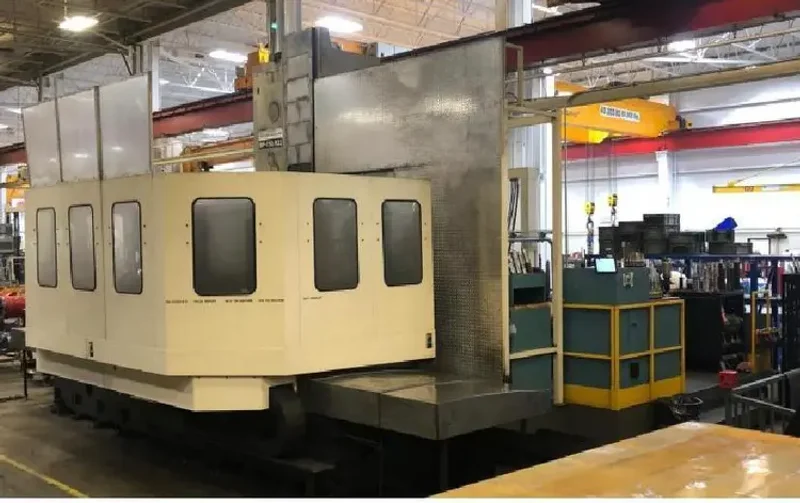

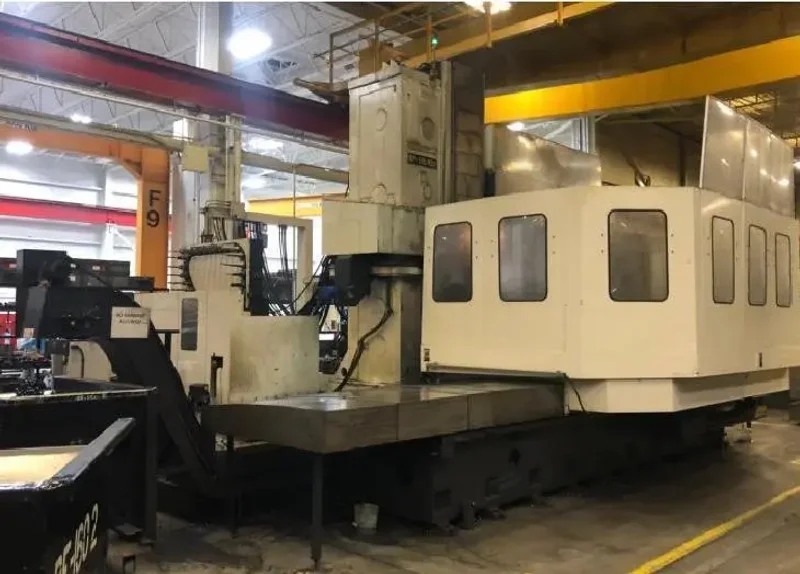

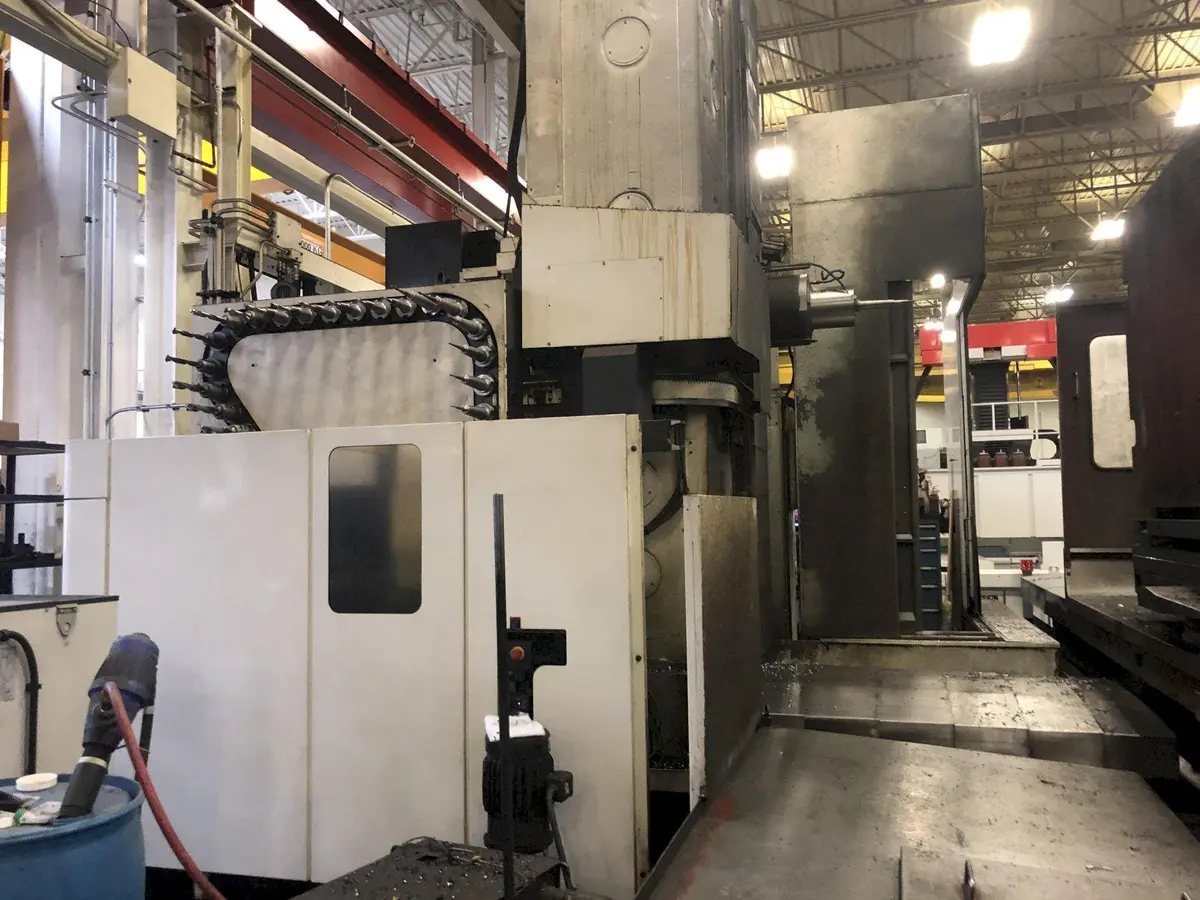

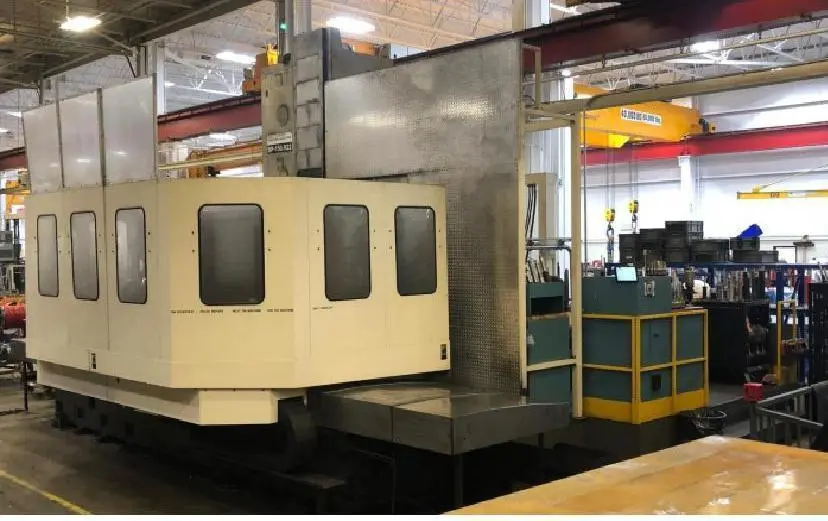

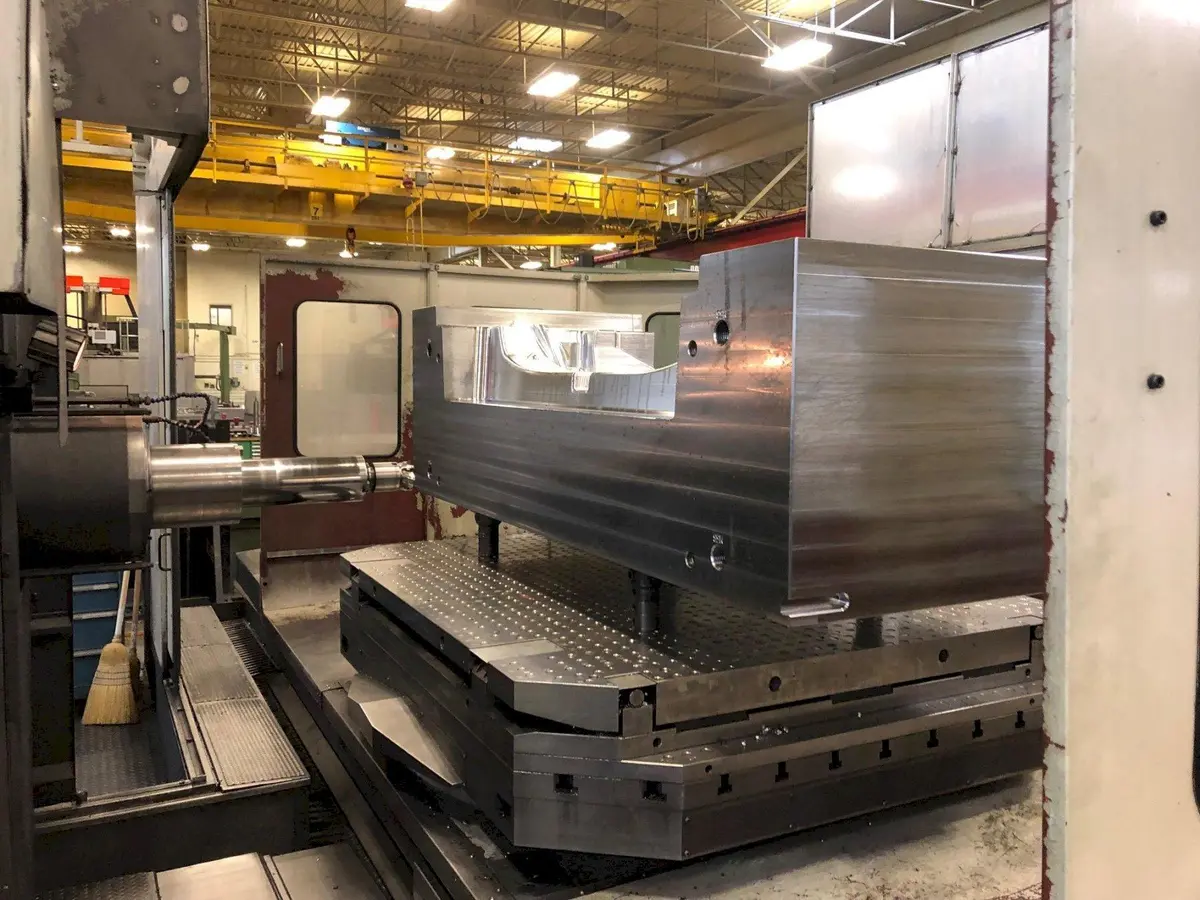

Toshiba BP-150.R22 CNC Horizontal Boring Mill

Toshiba BP-150.R22 CNC Horizontal Boring Mill
New: 2013

Specifications:
Travels:
X-Axis: 160"
Y-Axis: 100"
Z-Axis: 60"
W-Axis (Quill): 28"
Spindle Diameter: 5.9"
XYZ Rapid Traverse: 393 IPM
Spindle Taper: ISO #50
Spindle Speed: 2,500 RPM
Spindle Power: 37 kW
Spindle Gearbox: 2 Speed (Low/High)
Chiller Unit: Spindle Oil
Table Weight Capacity: 44,000 Lbs
Table Size: 86.6" x 70.8"
Coolant Pump Max Pressure: 13 gal/min
Coolant Tank Capacity: 110 Gal
Tool Changer: 60 ATC

Equipped With::

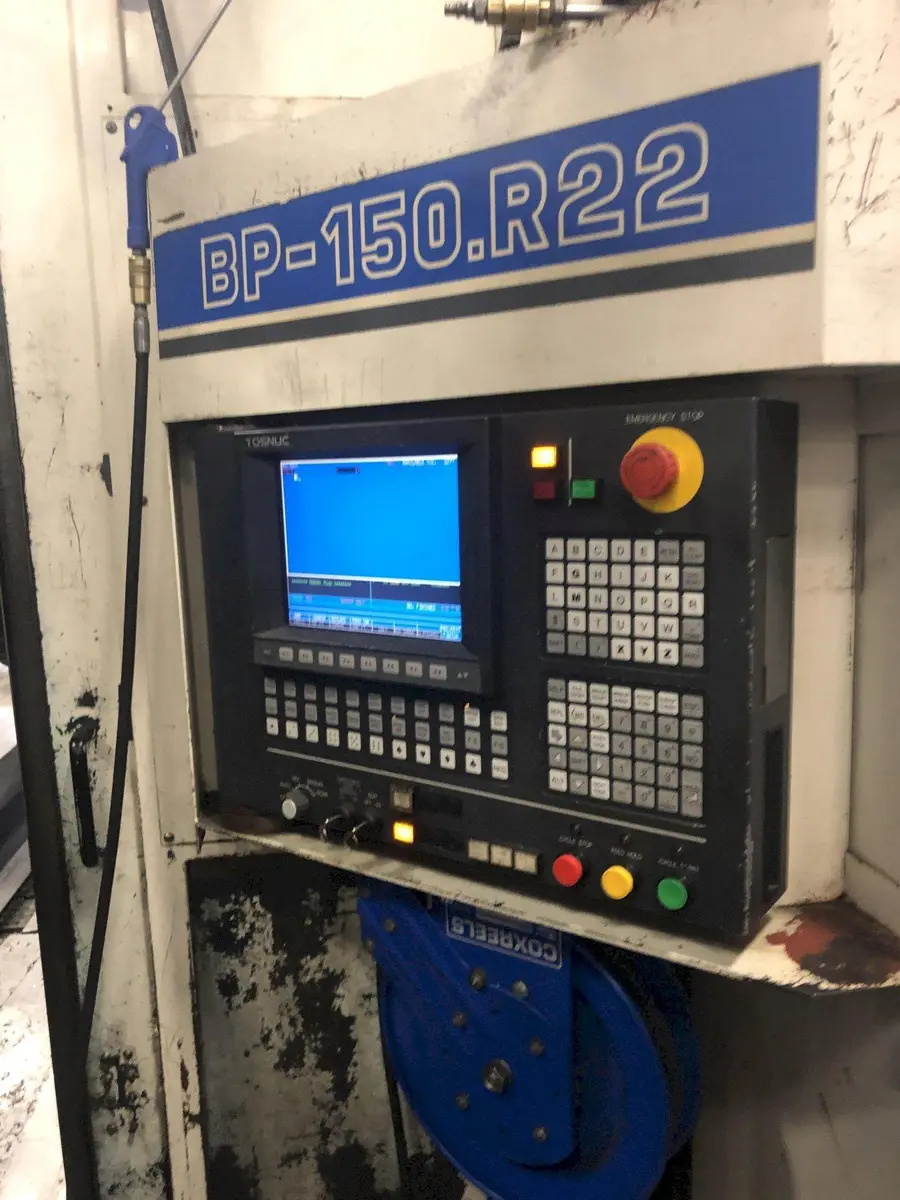

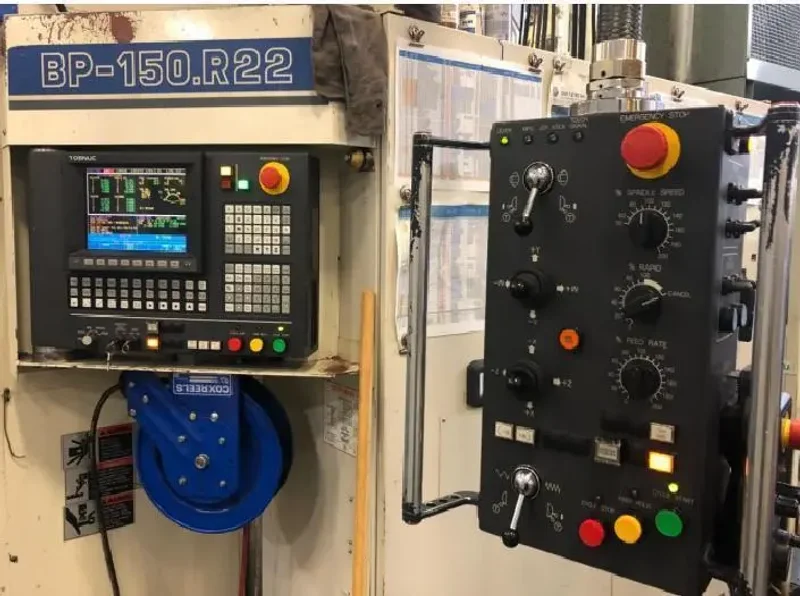

Tosnuc 999 CNC Control
60 Position ATC
Chip Conveyor

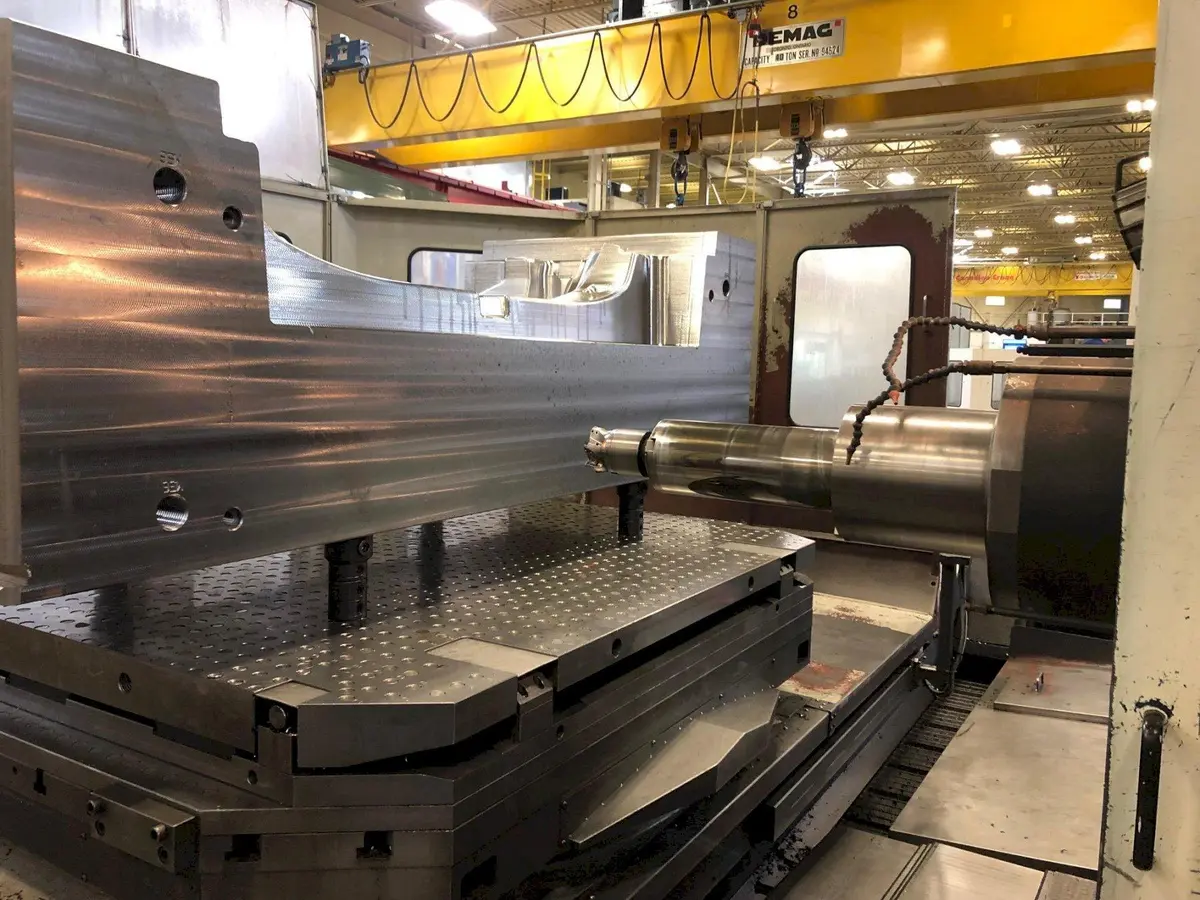

10" Dia. Milling Quill Extension
Renishaw RMP60 Wireless Touch Probe

Documentation:
1. Foundation Prints
2. Maintenance Manual
3. Parts Manual
4. Mechanical Prints
5. Electrical Prints
