Name: 2012 AMADA S10 | Lathes, CNC (3-Axis or More)
Brand: AMADA
SKU: 33530
Availability: PreOrder

Brand

AMADA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Lathes, CNC (3-Axis or More)

Manufacturer:

AMADA

Model:

S10

Year:

2012

Stock #:

33530

Status:

For Sale

Description

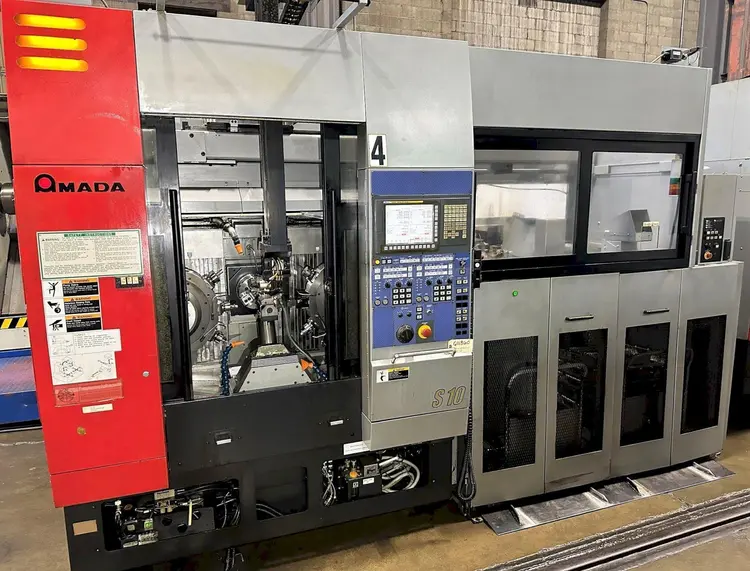

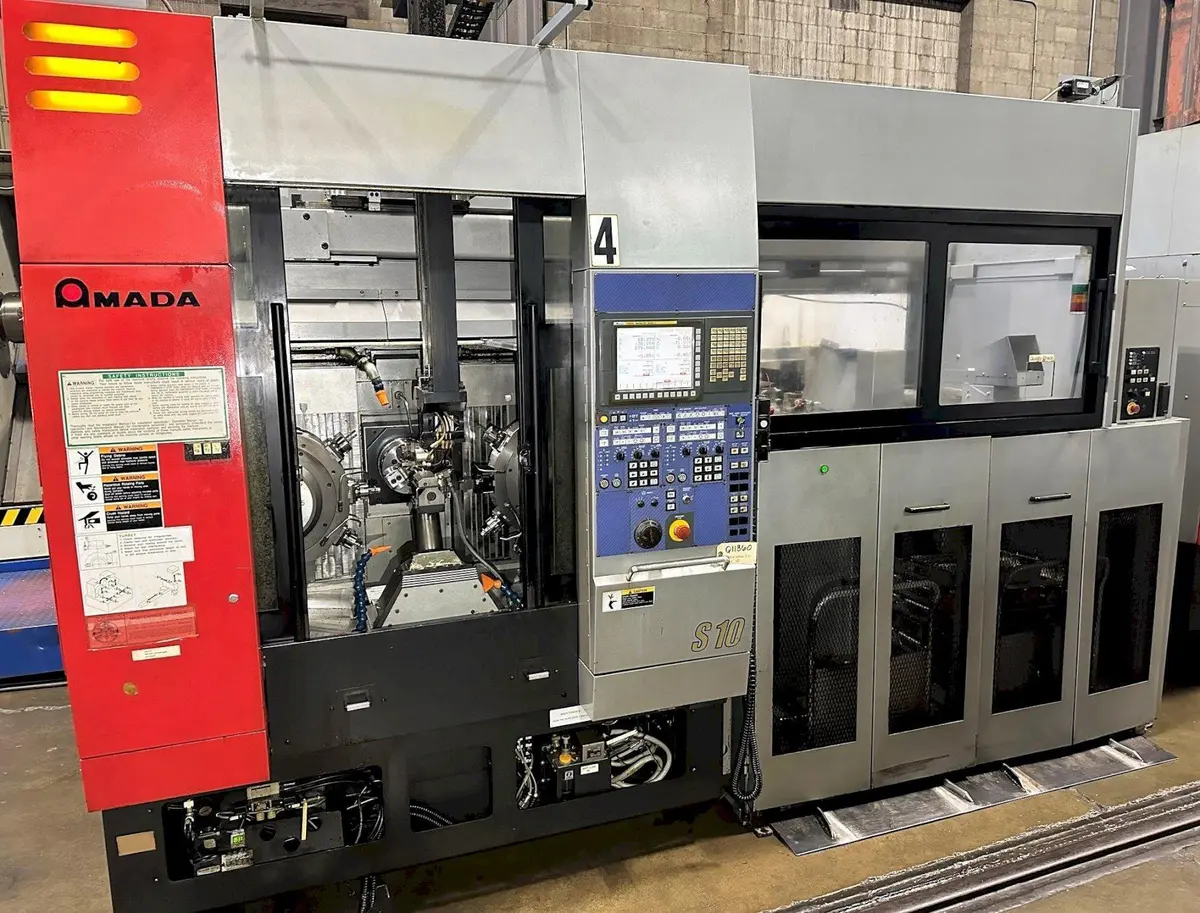

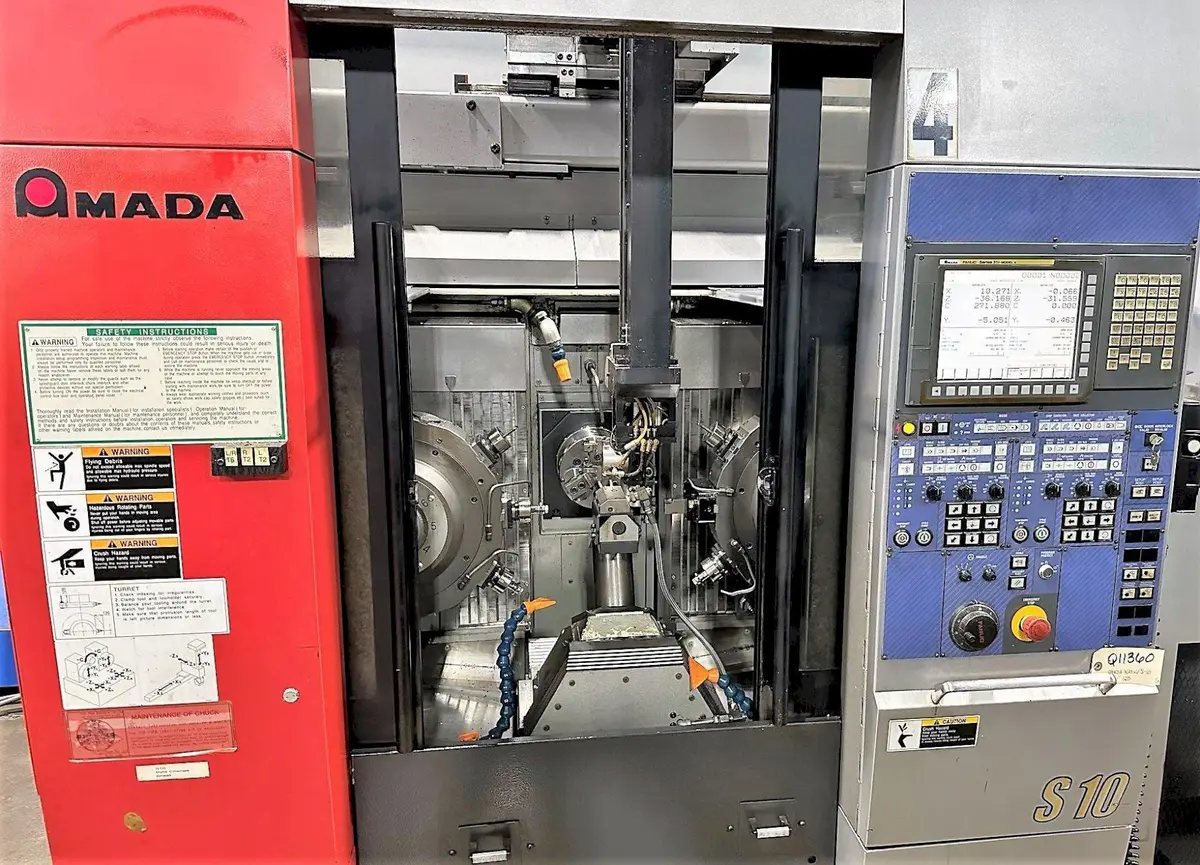

Amada S10 Single Spindle/Dual Turret 7-Axis CNC Lathe - New 2012; 8 available!

AMADA S10 SINGLE SPINDLE/ DUAL TURRET 7-AXIS CNC LATHE
Model: S10 S/N: 108 Year: 2012
*(8) Machines Available

SPECIFICATIONS:
# Axis: 7
Chuck Size: 6"
Max Swing Over Bed: 12.20"
Max Turning Diameter: 10.24"
Max Distance Between Centers: 10.63"
X-Axis (Cross Travel of Left Turret): 5.91"
Z-Axis (Longitudinal Travel of Left Turret): 13.39"
X2-Axis (Cross Travel of Right Turret): 5.91"
Z2-Axis (Longitudinal Travel of Right Turret): 13.39"
Spindle Horsepower: 20 HP (30 minute) / 14 HP (Continuous)
Max Spindle Speed: 5,000 RPM
X-Axis Cross Travel Rapid Traverse Rate: 994.88 IPM
Z-Axis Longitudinal Rapid Traverse Rate: 1,260 IPM
Left Turret Live Tooling Horsepower: 6 HP
Left Turret Live Tooling Speed Range: 6,000 RPM
Left Turret Tool Capacity: 12
Right Turret Tool Capacity: 12

Equipped With::
Fanuc 31i Model B CNC Control
Tailstock

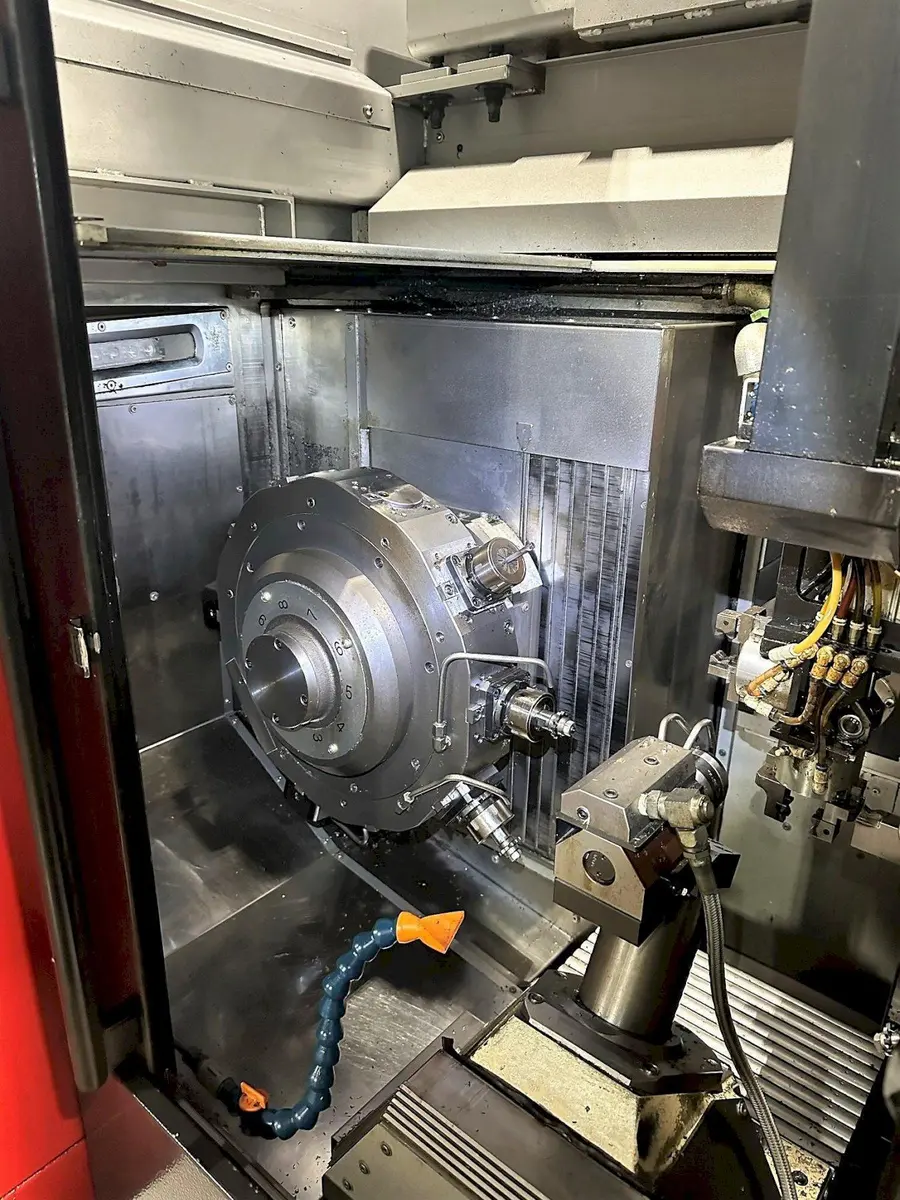

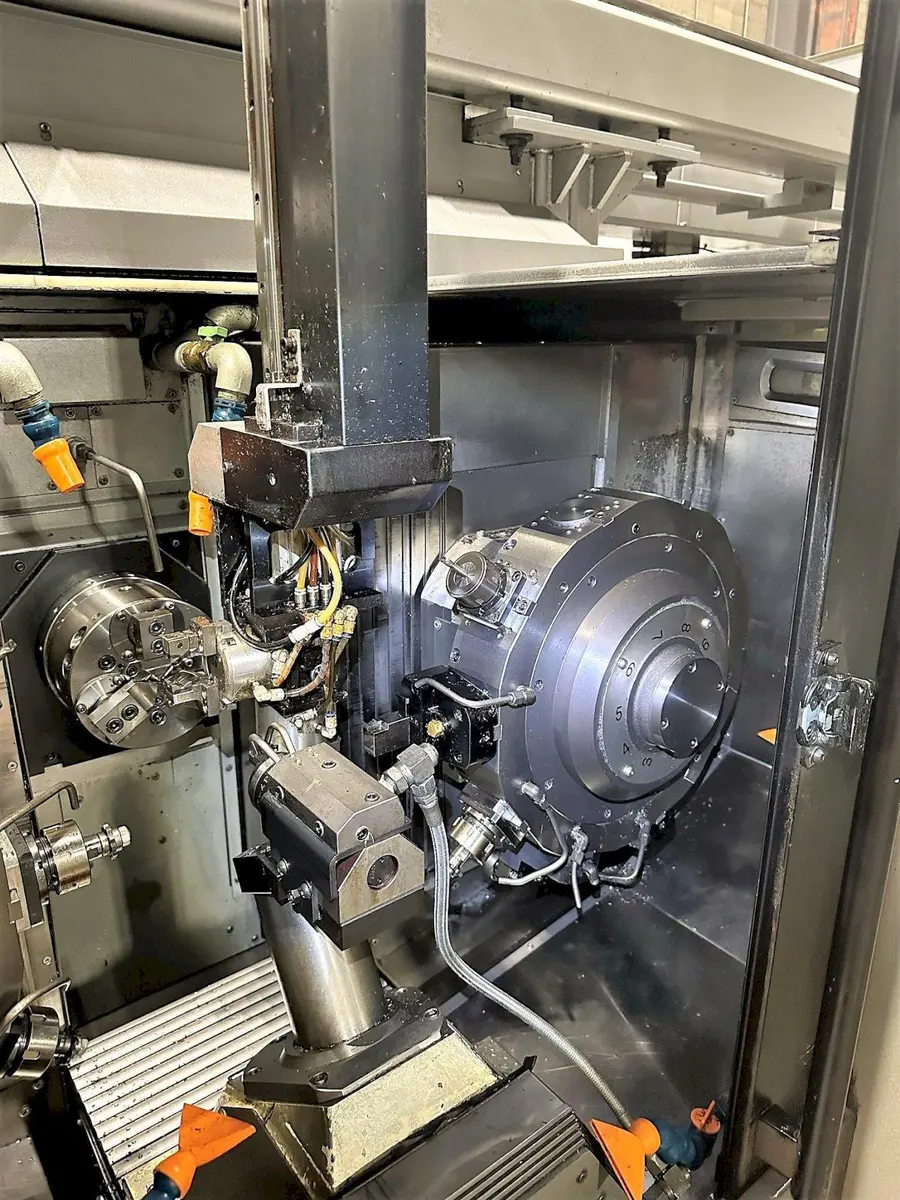

Single Spindle/Dual Turrets with Live Tooling

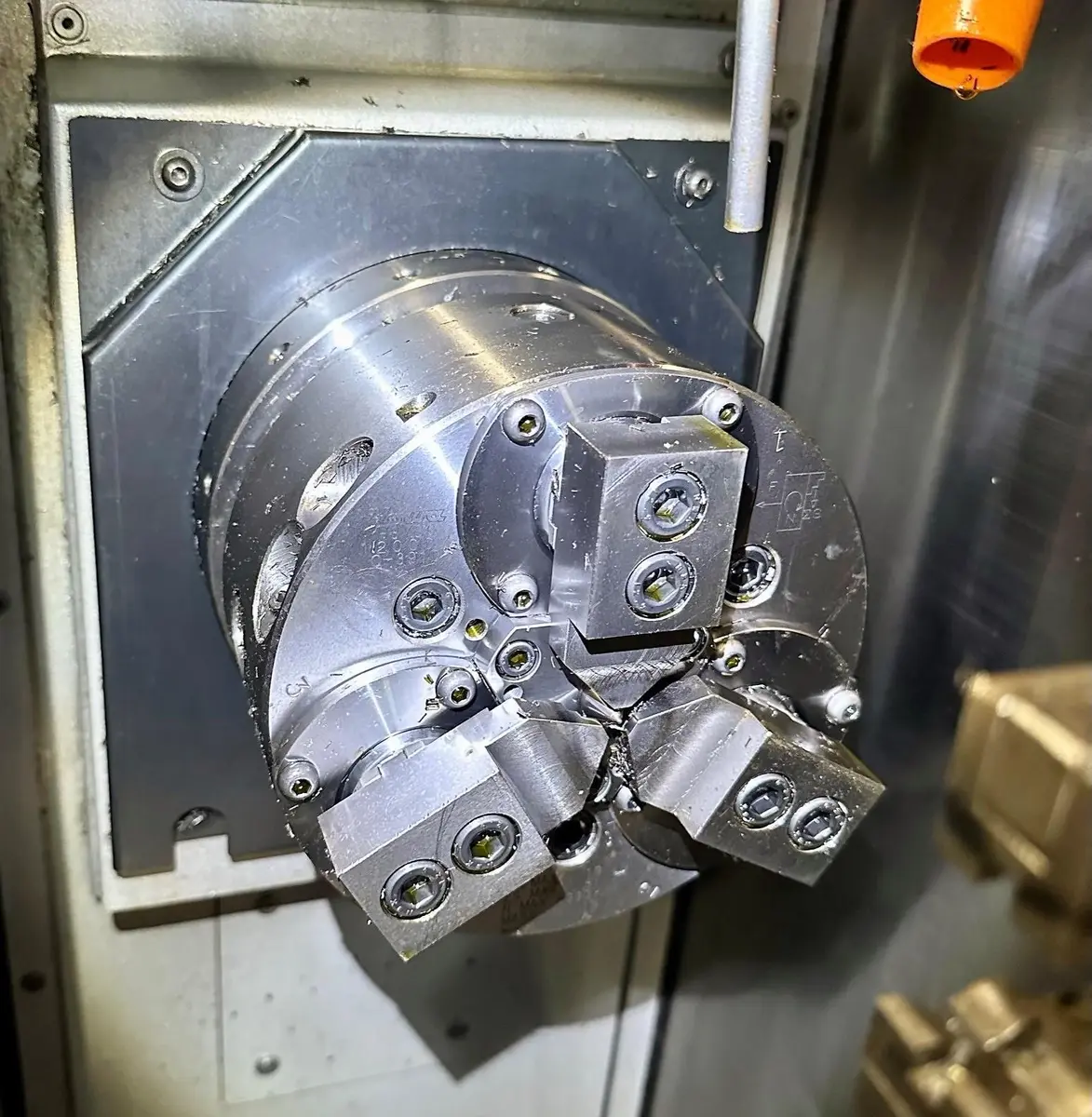

6” Howa H3YS6 Power Chuck
12-Position Left and Right Turrets with Live Tooling

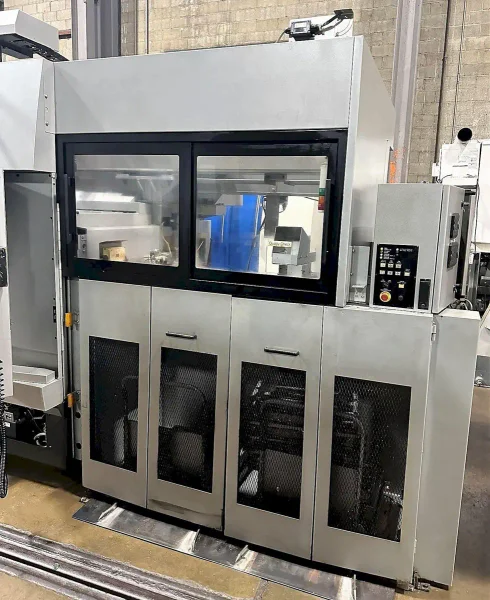

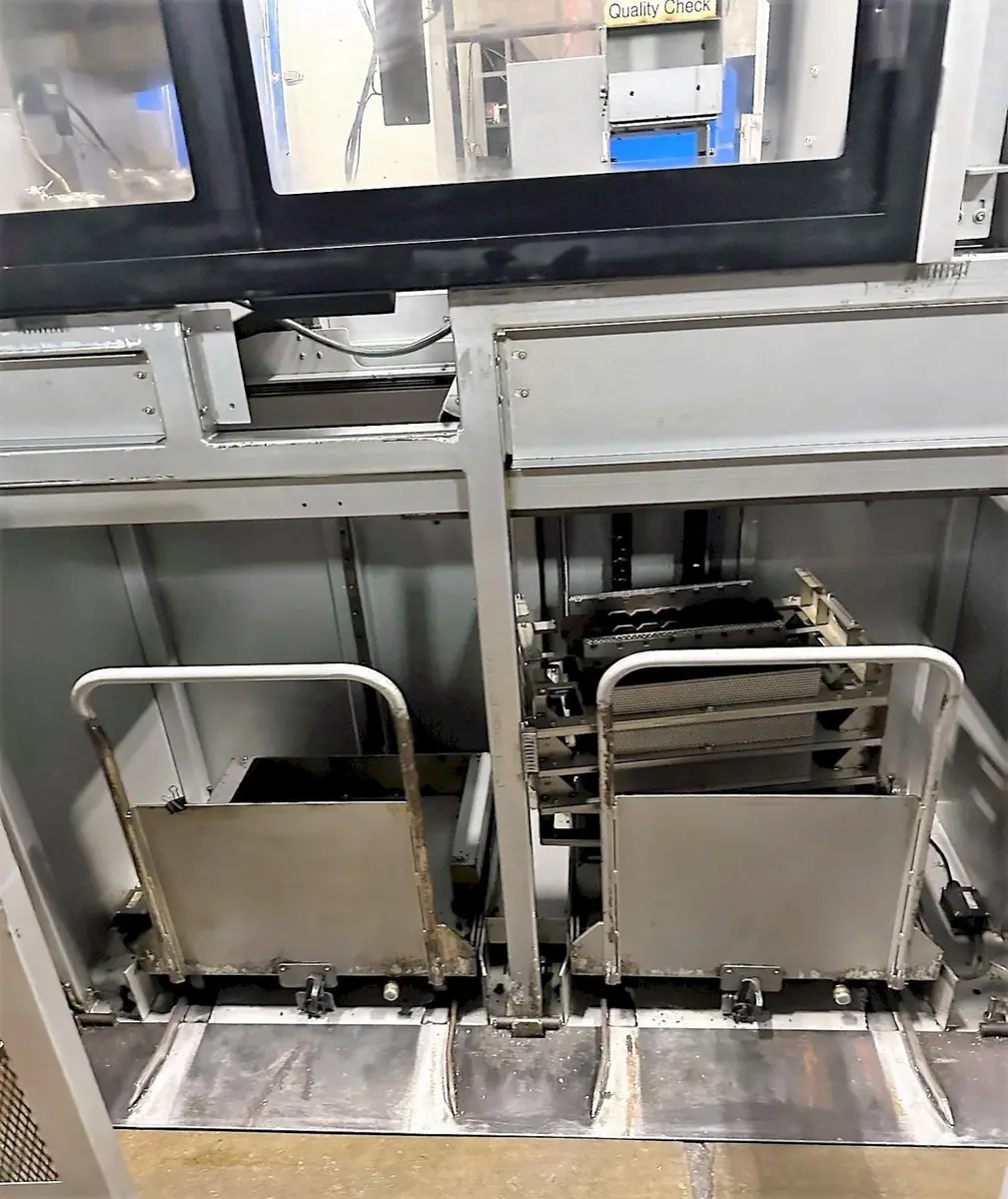

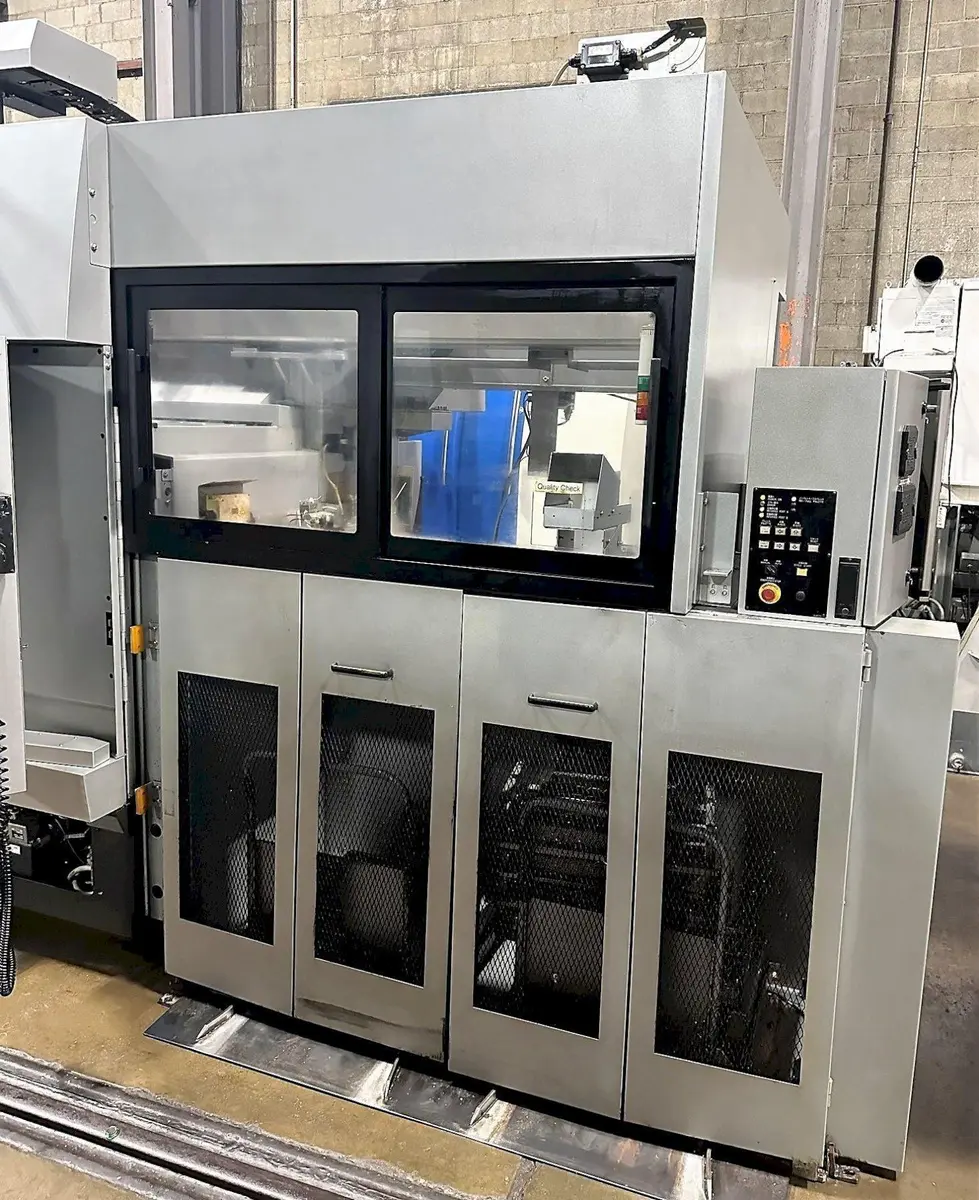

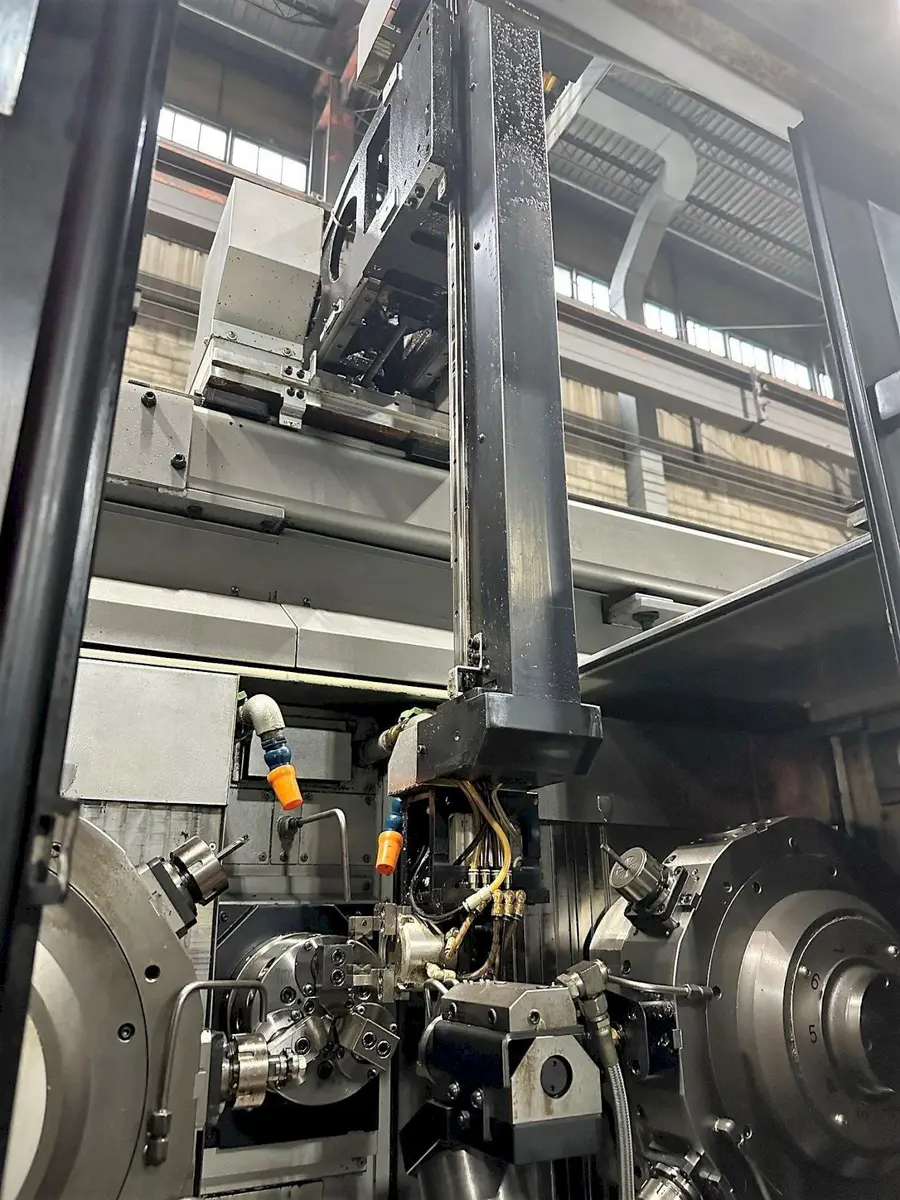

Gantry Loading and Unloading System
Remote Handwheel
Part Gauging
Coolant System
Chip Conveyor
Approximate Machine Dimensions: 66.9" x 78.7"
Approximate Machine Height: 80"
Approximate Machine Weight: 12,500 LBS
CONDITION: This Machine Appears to be in Excellent Condition !
