2007 TOSHIBA BP-130.R22 | Boring Mills, Horizontal, Table Type

2007 TOSHIBA BP-130.R22 | Boring Mills, Horizontal, Table Type

Name: 2007 TOSHIBA BP-130.R22 | Boring Mills, Horizontal, Table Type
Brand: PURE-AIRE
SKU: 33572
Availability: PreOrder

Brand

PURE-AIRE

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Boring Mills, Horizontal, Table Type

Manufacturer:

TOSHIBA

Model:

BP-130.R22

Year:

2007

Stock #:

33572

Status:

For Sale

Description

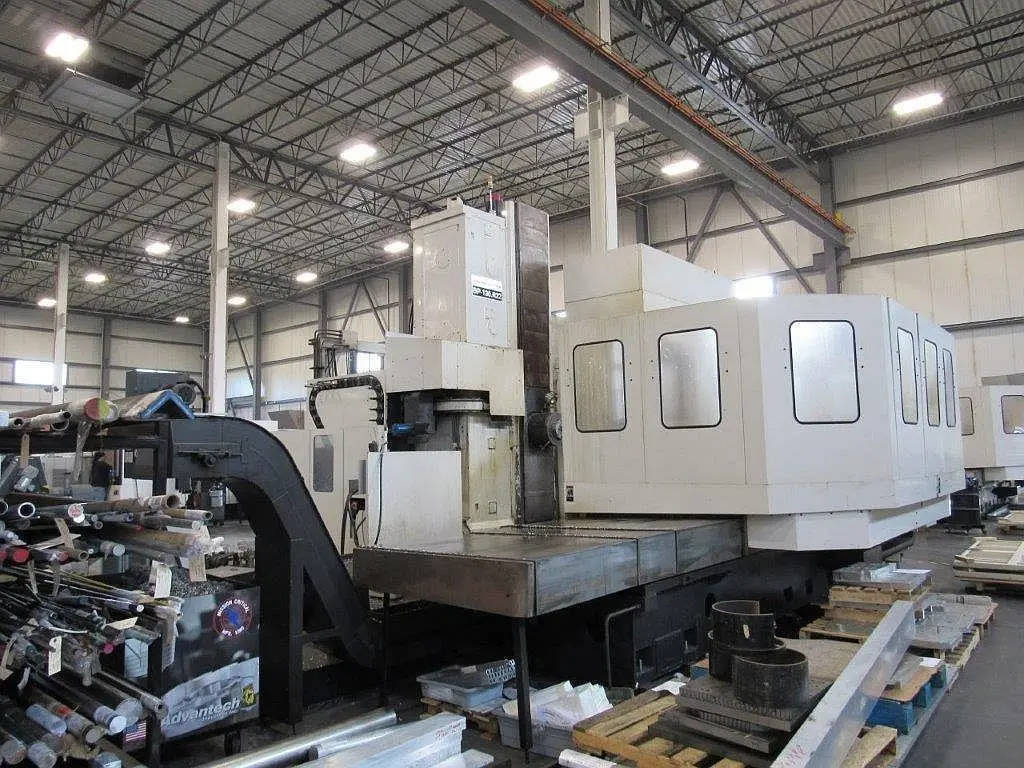

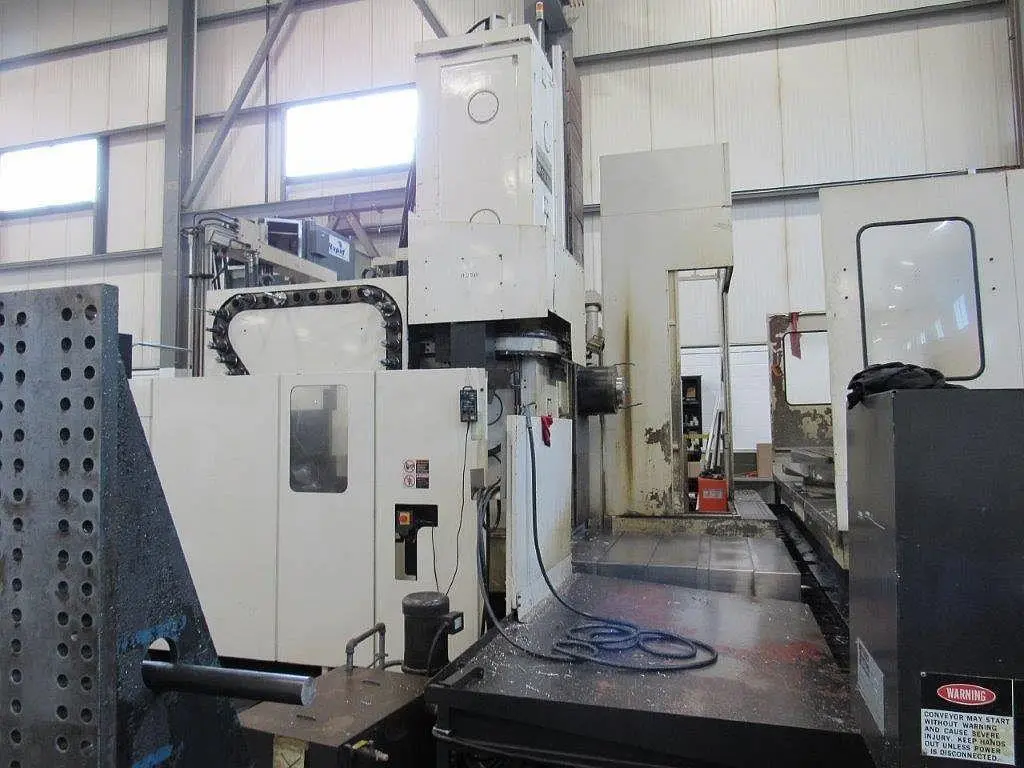

Toshiba BP-130.R22 Horizontal Table-Type Boring Mill

ImperialMetric

Spindle Size	5.1"	129.54 mm
X-Horiz Tvl of Table	160"	4,064 mm
Y-Vert Tvl of Head	100"	2,540 mm
Power	40 hp	29.8 kW
RPM	2,500 RPM	2,500 RPM
Table-W	70.9"	1,800.9 mm
Table-L	86.6"	2,199.6 mm
Spindle Tvl.	60"	1,524 mm
Weight	44000	44000

Toshiba BP-130.R22 Horizontal Boring & Milling Machine
New: 2007

Specifications:
Travels:
X-Axis: 160"
Y-Axis: 100"
Z-Axis: 60"
W-Axis: 27.5"
B-Axis: 360,000 deg
Spindle Diameter: 5.1"
Table Size: 70.9" x 86.6"
Automatic Tool Changer: 60 Tools
Spindle Motor: 40 HP
Spindle Speed: 2500 RPM
Coolant Thru Spindle: 150 PSI
Table Load Capacity: 44,000 Lbs

Equipped With::

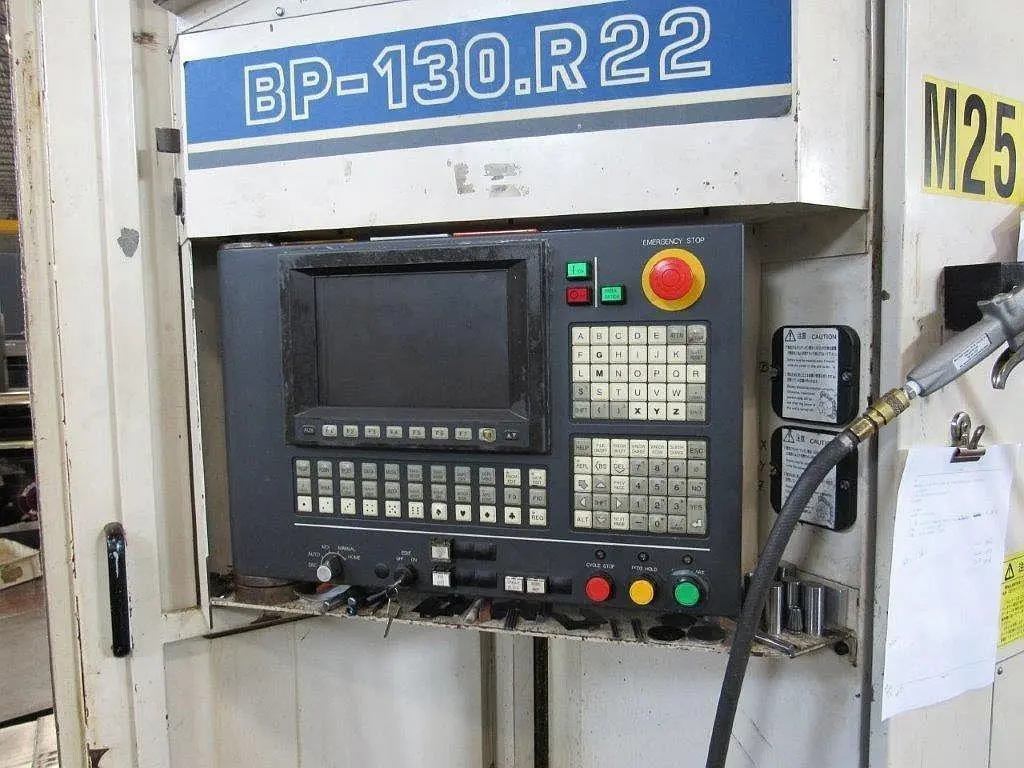

Tosnuc 888 32-Bit CNC Control

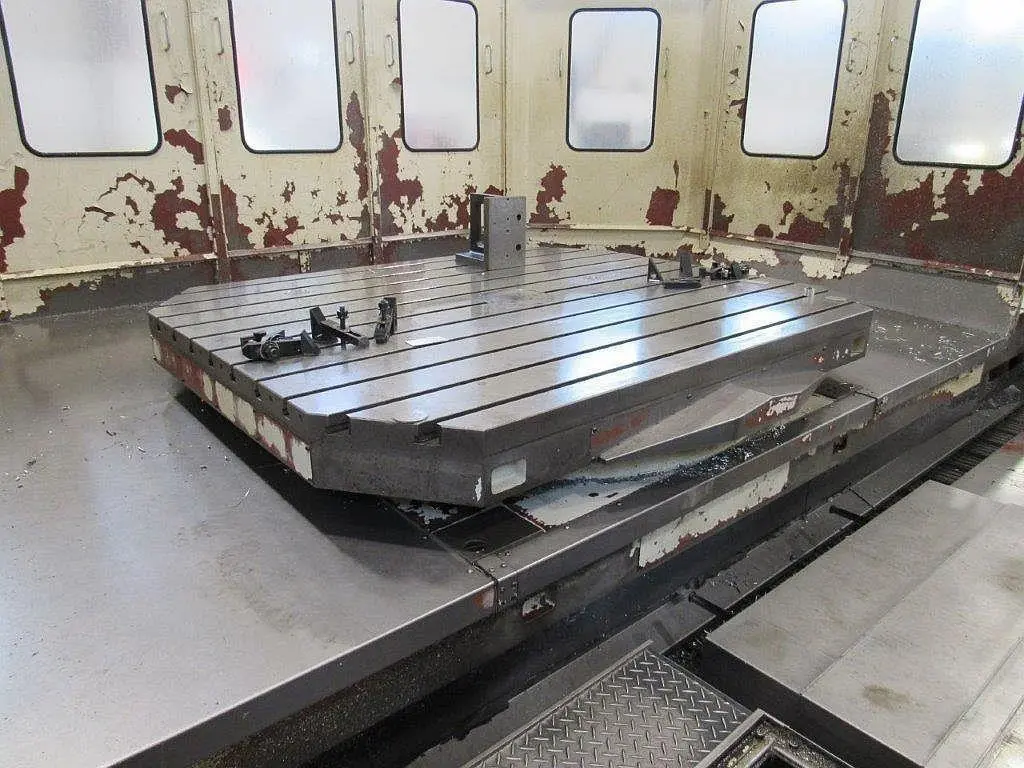

4-Axis Rotary Table
Coolant Thru Spindle
Operators Pendant
Chip Conveyor
