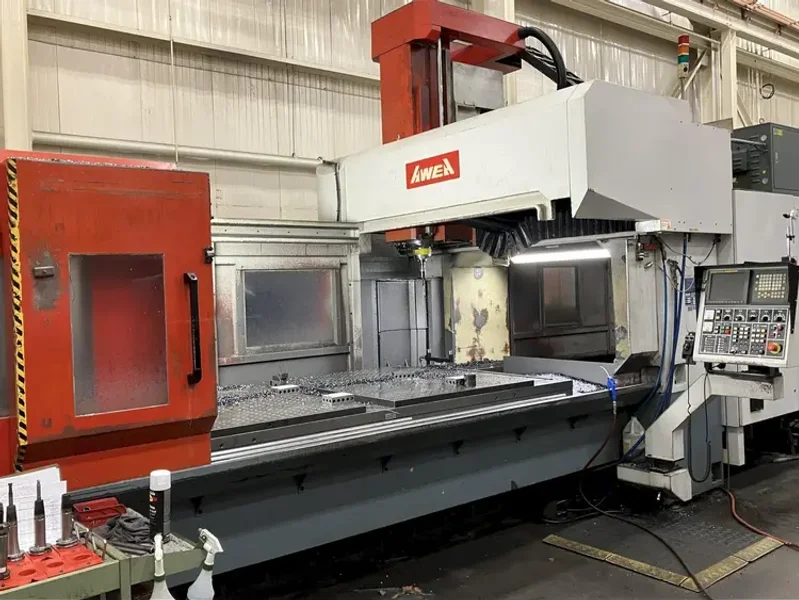

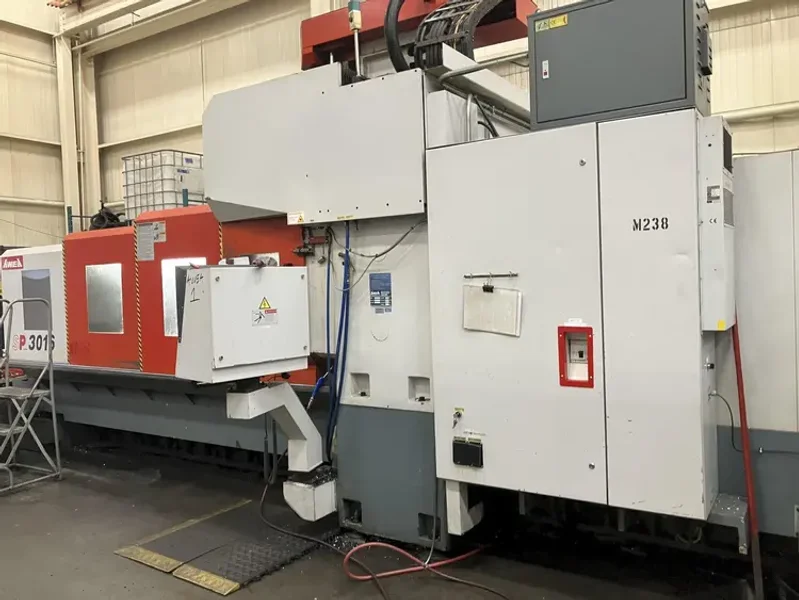

2005 AWEA SP 3016 | Machining Centers, Gantry (incld. Bridge & Double Column)

2005 AWEA SP 3016 | Machining Centers, Gantry (incld. Bridge & Double Column)

Name: Used BITEMAN SP 3016 For Sale 33632
Brand: BITEMAN
SKU: 33632
Availability: PreOrder

Brand

BITEMAN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Awea SP 3016 HSS Bridge Mill

Specifications

ImperialMetric

X	120"	3,048 mm
Y	63"	1,600.2 mm
Z	30"	762 mm
Power	30 hp	22.4 kW
RPM	15,000 RPM	15,000 RPM
# ATC	16	16
Taper	CAT 40	CAT 40
Table-W	59"	1,498.6 mm
Table-L	128.3"	3,258.8 mm
Weight	22000	22000

Awea SP 3016 HSS Bridge Type Machining Center
New 2005

Specifications:
X-Axis 120"
Y-Axis Travel 63"
Z-Axis Travel 30"
Table Size 128.3" x 59"
Spindle Speed 15,000 RPM
Spindle Taper CAT 40
Spindle Motor 30 / 25 HP
Tools 16 ATC
Table Load Capacity 22,000 lbs.
Rapid Traverse Rates (X & Y / Z) 787 / 591 IPM
Max Tool Diameter 4" / 5"
Max Tool Length 11.8"
Max Tool Weight 15 lbs.
Distance Between Columns 66.9"
Spindle Nose to Table Top 6.3" - 36.2"

Equipped With:

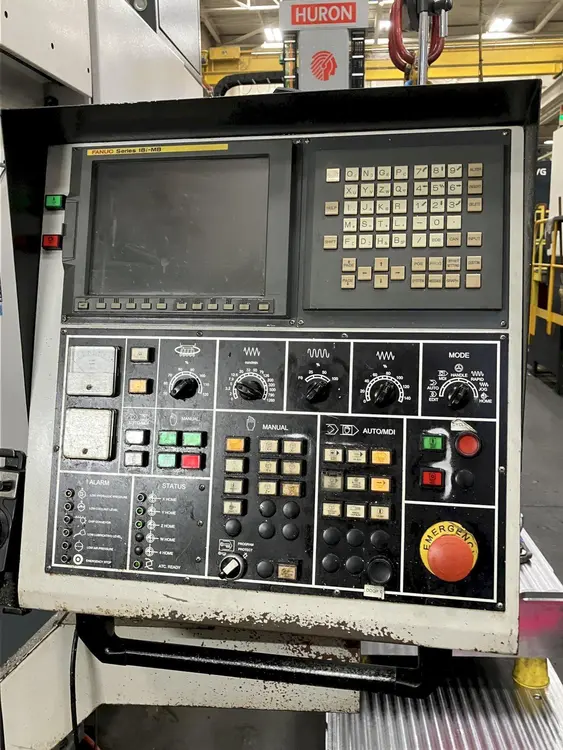

FANUC 18i-MB CNC Control
10.4" Color LCD
PC/MCIA Interface
USB Port
Rigid Tapping

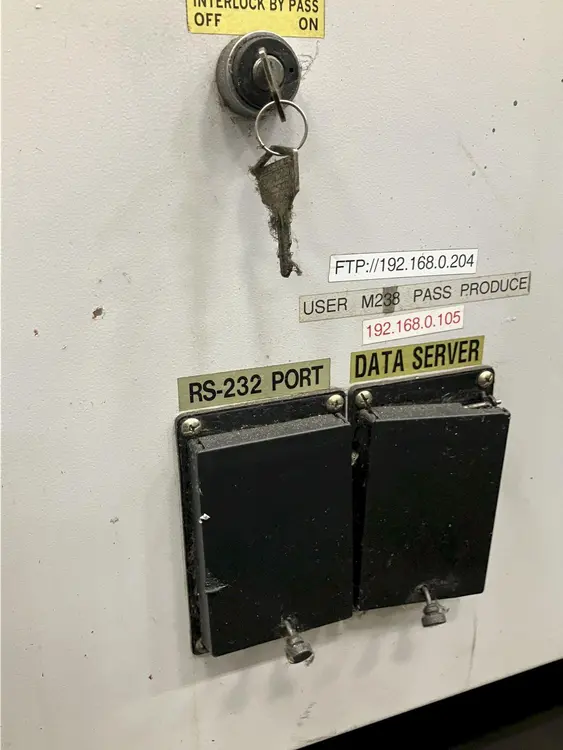

Data Server
Chip Conveyor
Chip Augers

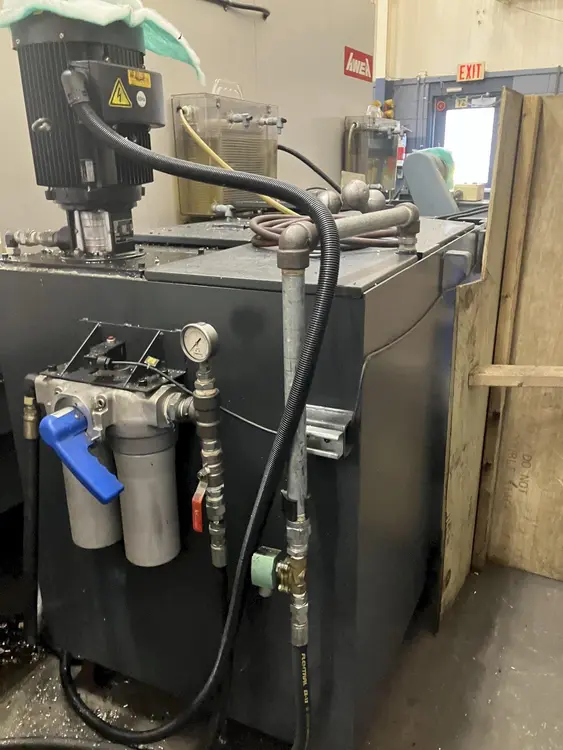

Additional Large Coolant Tank for CTS
1000 PSI Coolant Through Spindle
Laser Tool Measurement
HPCC High Speed Machining
