60" X .135" X 50,000 LBS. CINCINNATI/HERR-VOSS SLITTING LINE

60” X .135” X 50,000 LBS. CINCINNATI/HERR-VOSS SLITTING LINE

GENERAL SPECIFICATIONS:

MANUFACTURER: CINCINNATI/HERR-VOSS

WIDTH: 60”

GAUGE RANGE: .011”-.135”

WEIGHT CAPACITY: 50,000 LB.

LINE DIRECTION: LEFT TO RIGHT

IMPROVEMENTS:

A HERR-VOSS STRAND EXTENSIONER WAS ADDED IN 2003

A SKY-LOOP IN 2010

THE ENTRY-TABLE & RECOILER WERE REPLACED IN 2015

LINE INCLUDES:

ENTRY COIL RAMP

CONE UNCOILER

SNUBBER ROLL

PEELER/PINCH/SIDE-GUIDE/CROP SHEAR UNIT

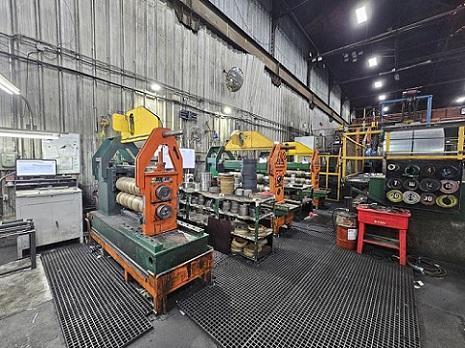

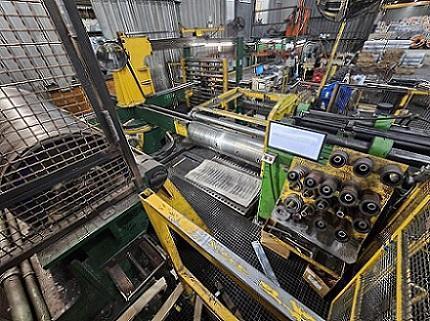

SLITTER HEAD - (3) HEADS

-(1) 48" WIDE X 6" DIAMETE ARBORS; (2) 60" WIDE X 6" DIAMETER ARBOR

-CRANE-REMOVE TYPE

-200 HP DC MOTOR

DUAL SCRAP WINDERS

-OSCILLATING EYE

-SELF DUMPING

CARRY-OVER TABLE

LOOPING PIT

-SKY LOOP SYSTEM ADDED IN 2010

PIT EXIT TABLE, STRAND-ENTRY

TENSION STAND

-PAD-TYPE

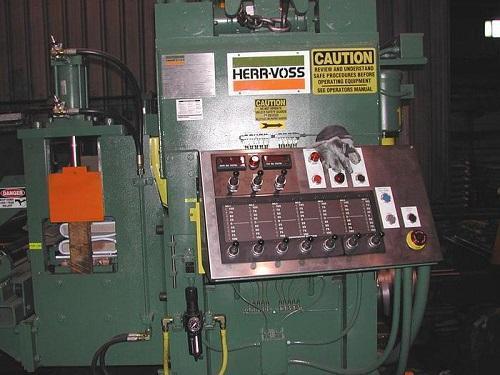

HERR-VOSS STAND EXTENSIONER

-VKSE 72/1.5-19/7 4HI LH

EXIT BRIDLE AND RECOILER FEED TABLE

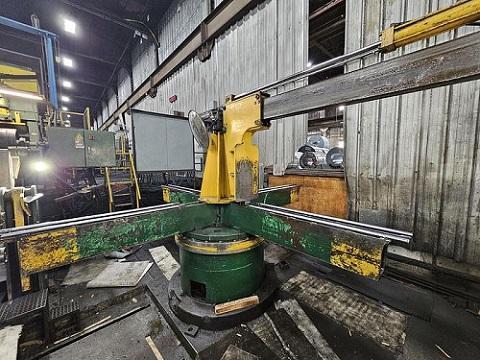

RECOILER W/ ATTACHED SEPARATOR & PUSH-OFF

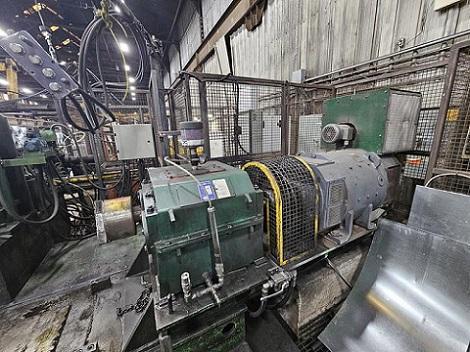

-200 HP GE DC MOTOR

-TWO-SPEED GEARBOX
