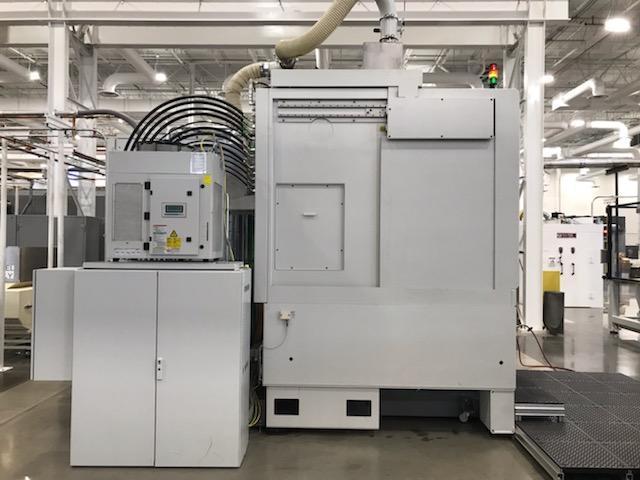

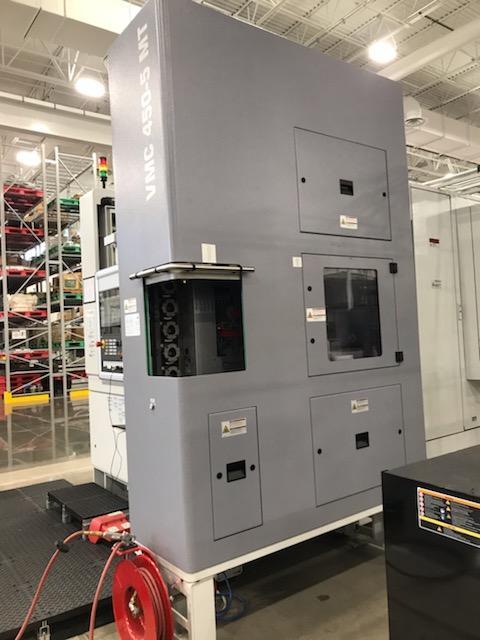

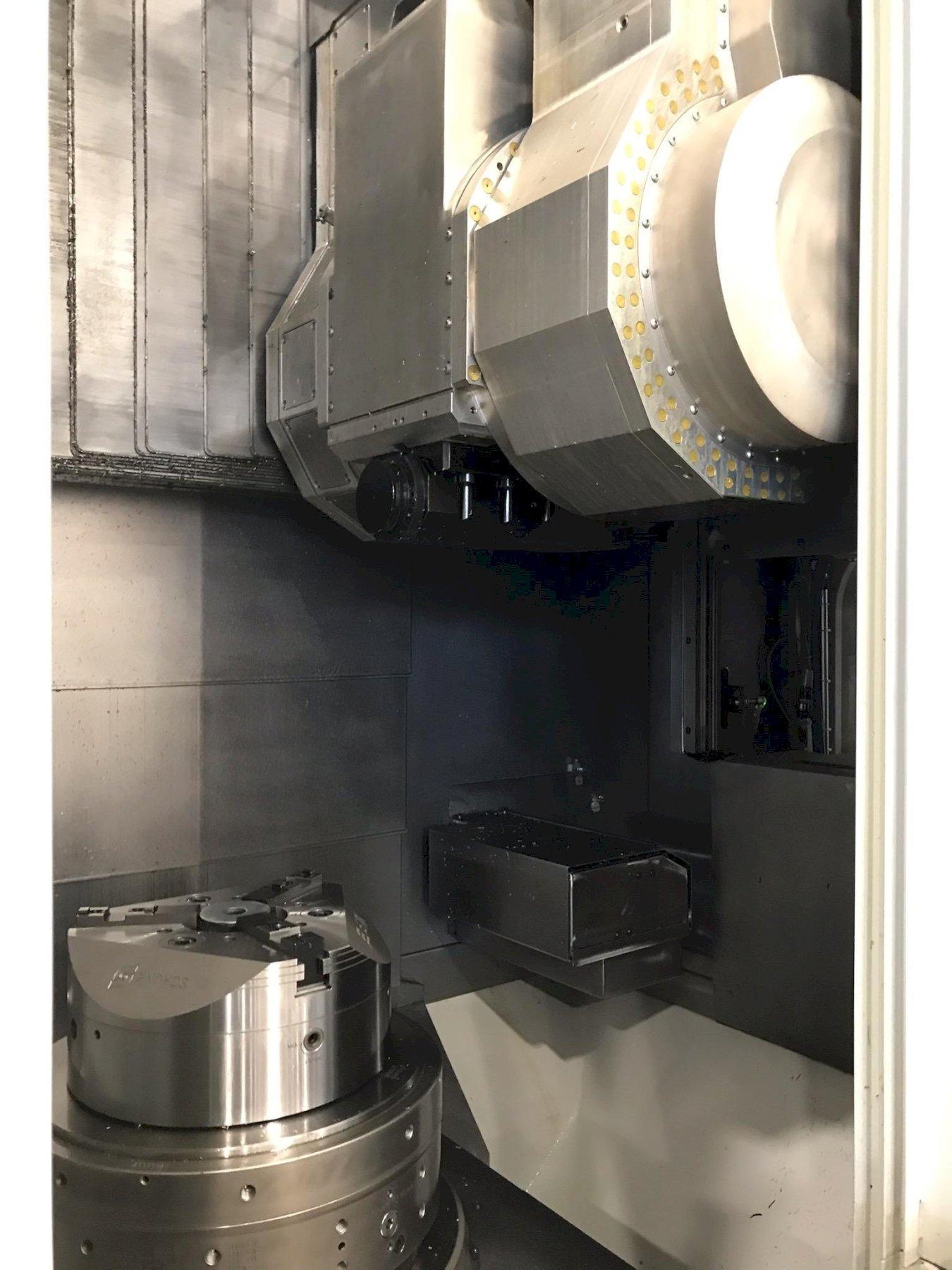

24" EMAG, 5 AXIS VERTICAL TURNING AND MILLING CENTER, VMC 450-5MT; UNUSED
Brand
Category
Model
VMC 450-5MT
Stock #
20540
Year
2021
Condition
Not specified
Location
Texas
| Chuck Dia. | 24 inches |
| Capacity | 1100 pounds |
| Max Swing Diameter | 31 inches |
| Turning Diameter | 23.5 inches |
| X-Axis Travel (Upper/Lower) | 30 inches |
| Z-Axis Travel (Upper/Lower) | 19 inches |
| Drive Power | 100 HP (full power at 800 RPM) |
| Max Spindle Speed (RPM) | 2000 RPM |
| Z-Axis Rapid Traverse Rate | 60/30 M/Min. |
| Feed Force X / Z | 4 / 15 kN |
| Ball Screw Diameter X / Z | 40 / 50 MM |

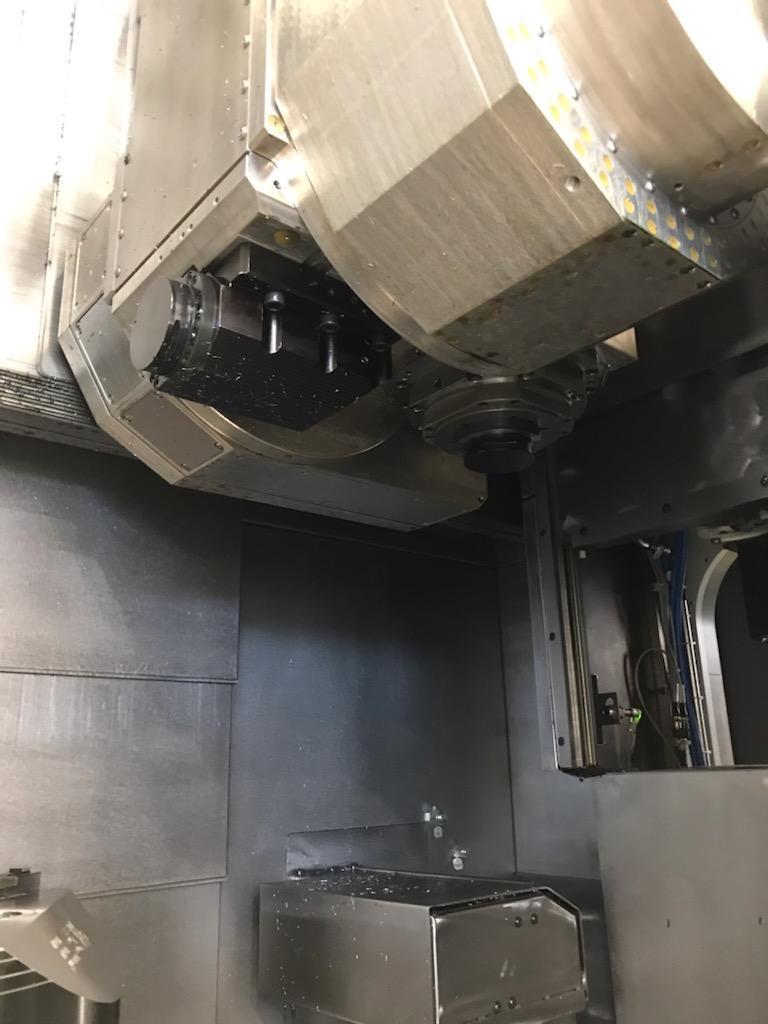

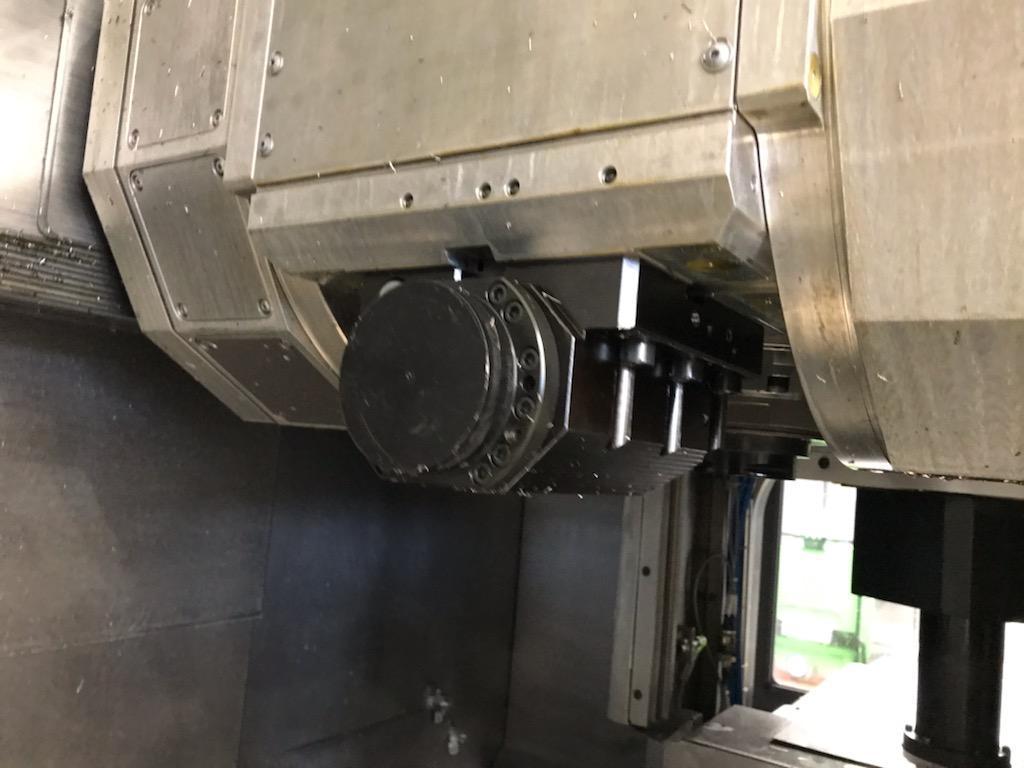

| Milling Spindle Motor | 100 HP |
| Max Milling Spindle Speed (RPM) | 7000 RPM |
| Milling Spindle Taper | CAPTO C8 |
| Tool Changer Capacity | 60 |
|

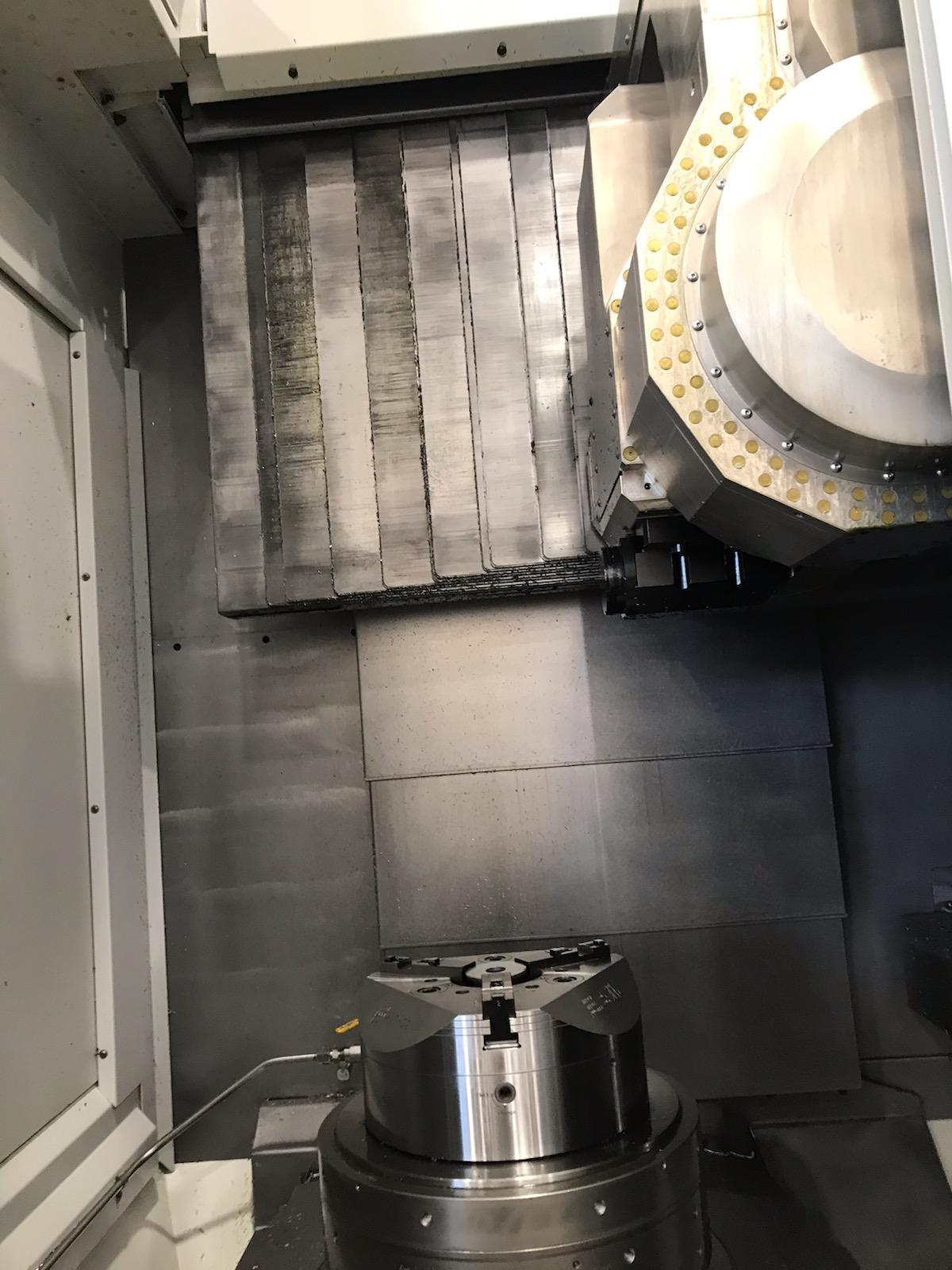

CHUCK DIAMETER: 24"

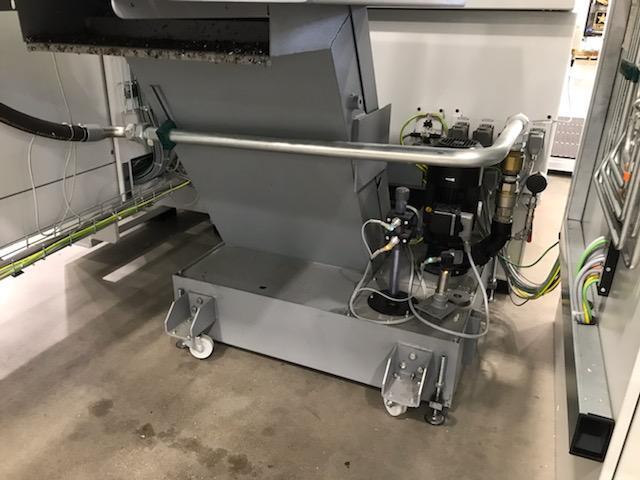

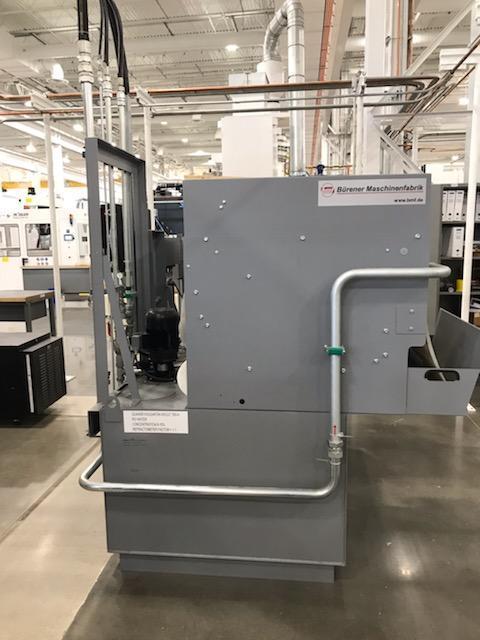

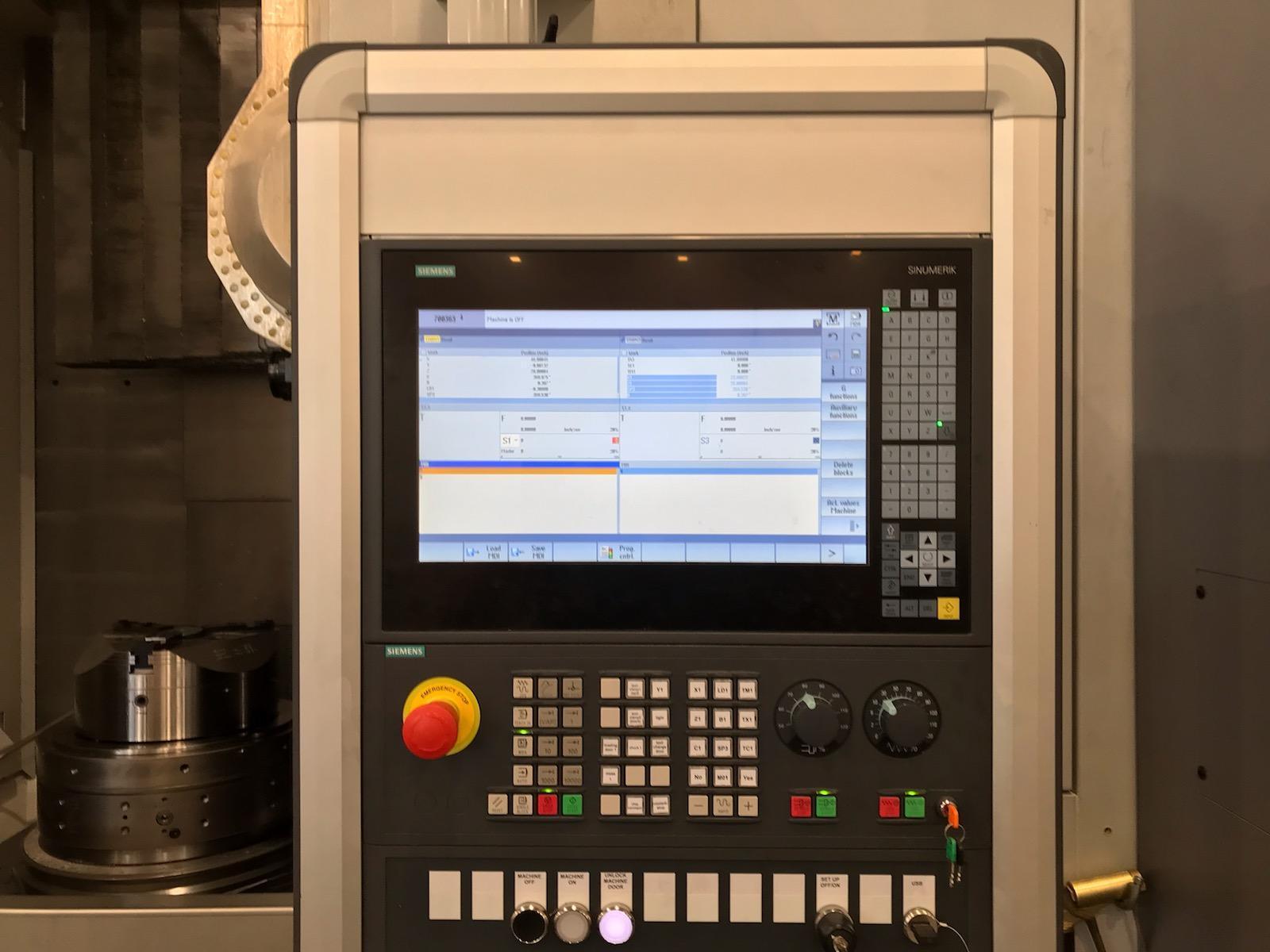

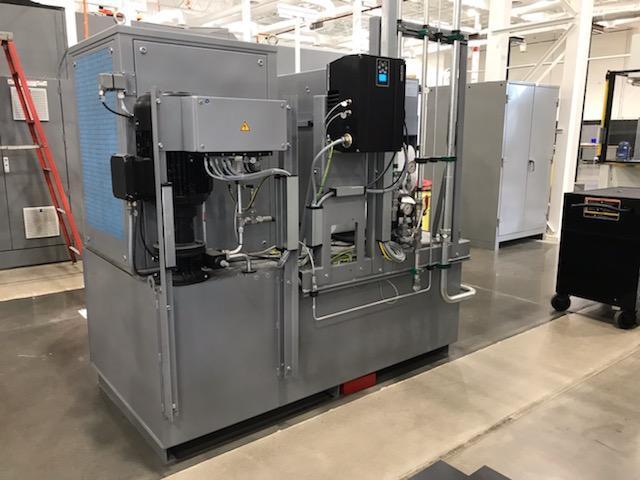

MAX WEIGHT: 1100 LBS. MAX SWING DIAMETER: 31" MAX TURNING DIAMETER: 23.5" X STROKE: 30" Z STROKE: 19" MAIN DRIVE: POWER: 100 HP FULL POWER AT 800 RPM MAX SPINDLE RPM: 2,000 C AXIS POSITIONIONG TO .01MM ANGULAR DEGREES FEED DRIVE: RAPIDS Z / Z: 60 / 30 M / MIN. FEED FORCE X / Z 4 / 15 kN BALL SCREW DIAMETER X / Z: 40 / 50 MM MILLING SPINDLE: POWER: 100 HP MAX SPINDLE SPEED: 7000 RPM SPINDLE TAPER: CAPTO C8 TOOL MAGAZINE: 60 EQUIPPED WITH: MINERALIT MACHINE BED SIEMENS 840 Dsl FULL ENCLOSURE LEVEL PADS TURN MILL DRIVE EMAG WORKPIECE CORRECTION SYSTEM EMAG OPERATING AND SETTINGS MASKS EMAG REMOTE DIAGNOSIS Y AXIS B AXIS +/- 95 DEGREE 1000 PSI COOLANT THROUGH TOOL X-AXI CLAMPING FOR GEAR TOOTH FORMING SWARF CONVEYOR, CHAIN TYPE - REAR DISCHARGE LIFTING PUMP PAPER FILTER LOW PRESSURE COOLANT HIGHT PRESSURE COOLANT 1000 PSI PROGRAMMABLE COOLANT PRESSURE COOLANT MIST EXTRACTOR AIR BLAST CHIP FLUSH QUALITY CONTROL: WIRELESS GAUGING CALIBRATION BLK FOR PROBE TOOL GAUGING - BLUM LASER |
|
