OverviewDescriptionMUST MOVE 64 CAVITY AND 8 CAVITY MOLDS FOR 38 MM CLOSURE STACK MOLD Mold Details:
valve gate manifold and hot runner.
Accompanying Molds for Sale:

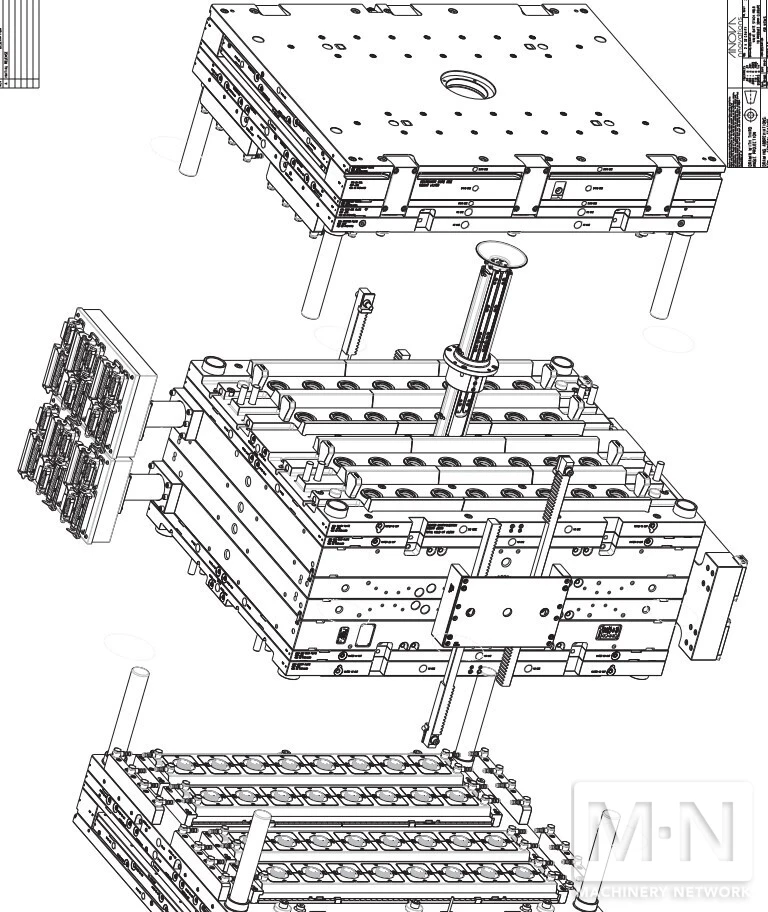

The 64-cavity mold is a 2x32 cavity stacked mold. it as essentially two molds stacked on top of one another in which the two halves that but up to one another are combined into a single part. Schematically, where '|' is the mold half and 'o' are the cavities:
The 64-cavity mold cavities and cores have not been completely machined as they were waiting on the final closure design prior to finishing, hence the incomplete state of the molds. The 8-cavity and single cavity tools are complete. The 8-cavity tool has around 50 hours of run time so is practically new. The unit cavity has around 500 hours of use with some sings of wear. ** PLEASE CALL FOR MOLDS DRAWINGS |
