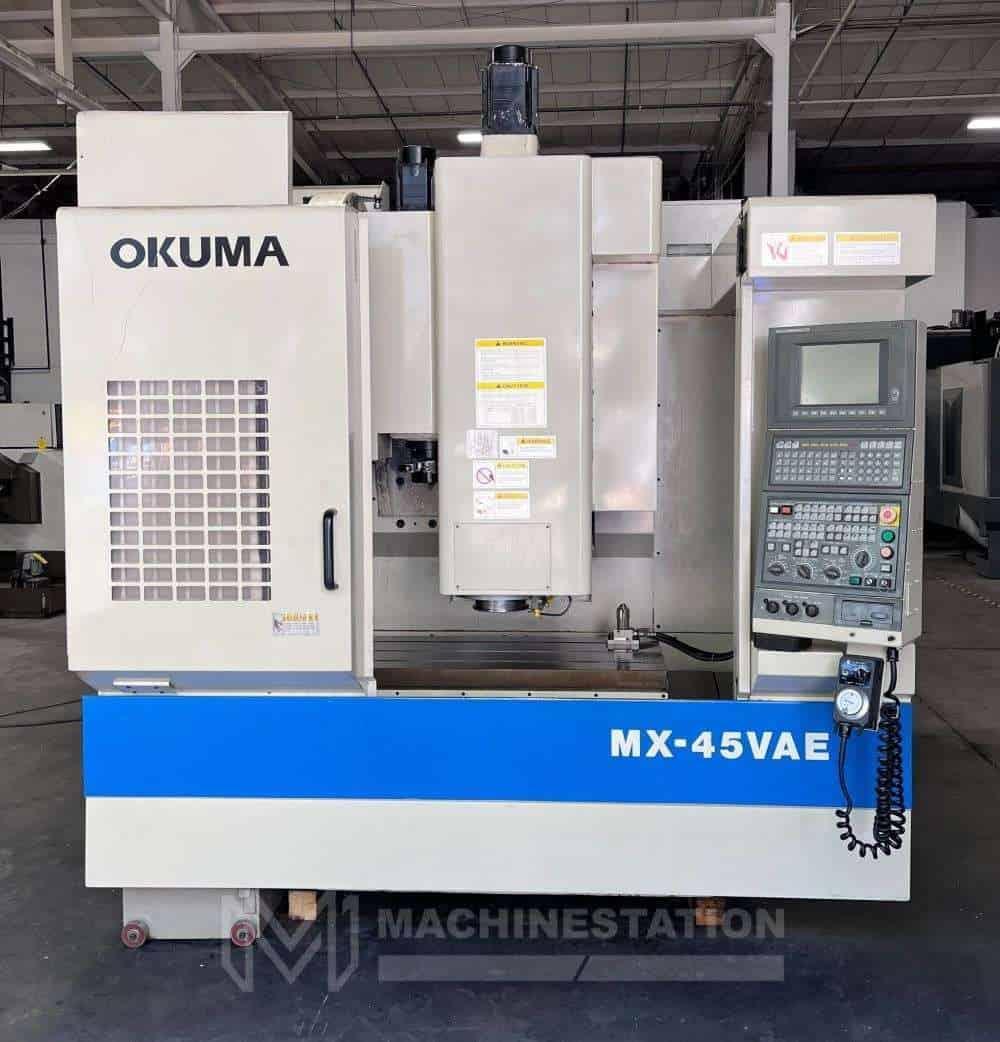

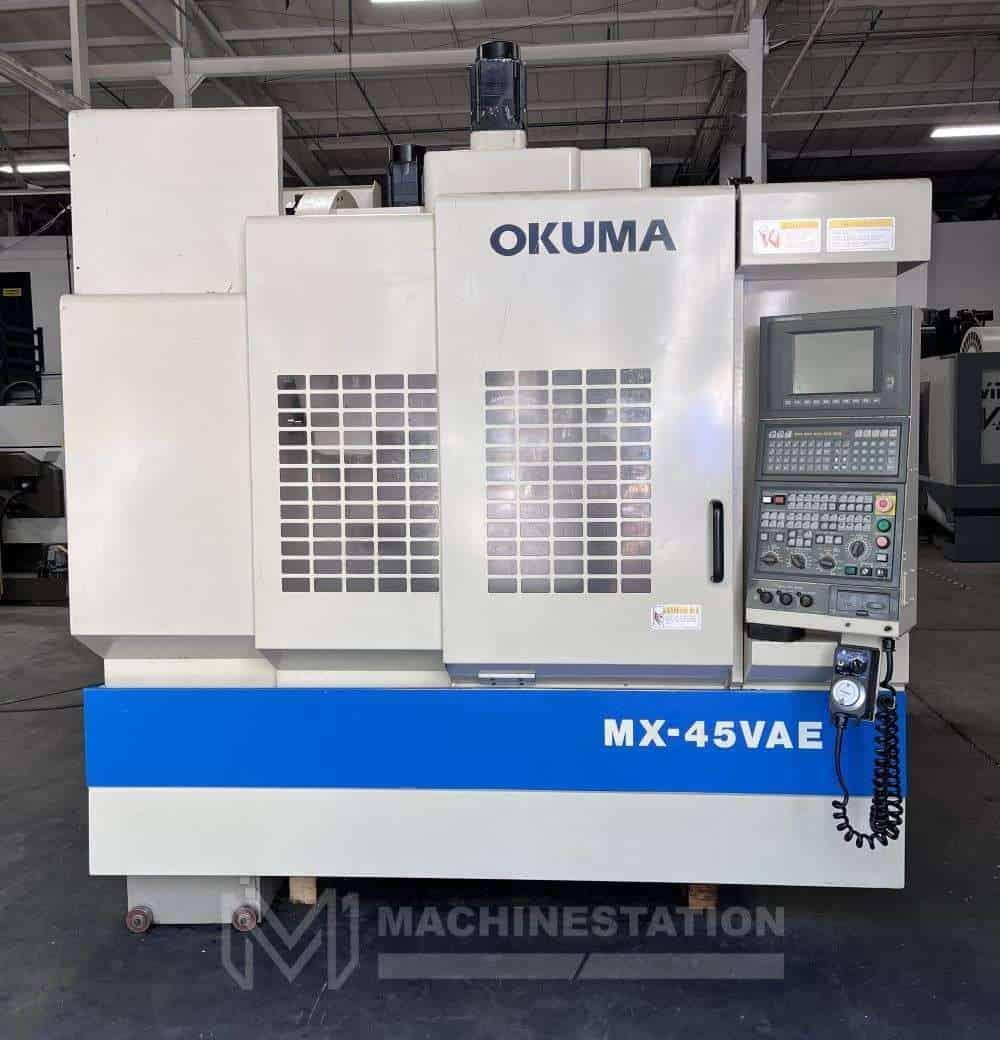

Okuma MX-45VAE CNC Vertical Machining Center

Okuma MX-45VAE CNC Vertical Machining Center

Brand

OKUMA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Okuma
Model:	MX-45VAE
Year:	1997
Condition:	Used – Good (Machine has Used For Only Prototype Parts)

Features:
Okuma OSP7000M Series CNC Control
Y Axis Travelling Column
20 Station Automatic tool changer
7,000 RPM Spindle
40 Taper Spindle
Touch Probe
RS-232 Port
MPG Handwheel Control
Rigid Tapping
Spindle Chiller Unit
Coolant Tank
Levelling Pads
Lubrication System
(2) Tool Holders
Machine Comes with Original Paint

Travels:
X-Axis: 30.00″
Y-Axis: 18.11″
Z-Axis: 17.72″
Spindle Nose to Table (Min.- Max.): 6.29″ – 24.01″
Rapid Traverse Rates X, Y Axis: 1181″ Per Minute
Rapid Traverse Rates Z Axis: 787″ Per Minute
Cutting Feed Rates: 394″ Per Minute

Table:
Length: 39.37″
Width: 18.11″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1102 lbs

Spindle:
Spindle: Taper Size: CAT-40
Speed Range: 7,000 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 20 Station Side Mounted
Tool Weight: 17.6 lbs
Max Tool Dia: 3.95″
Max Tool Length: 9.84″

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 3-Phase / 22 kva
Overall Dimensions: 90″ x 104″ x 106″ High
Weight: 12,125 lbs
