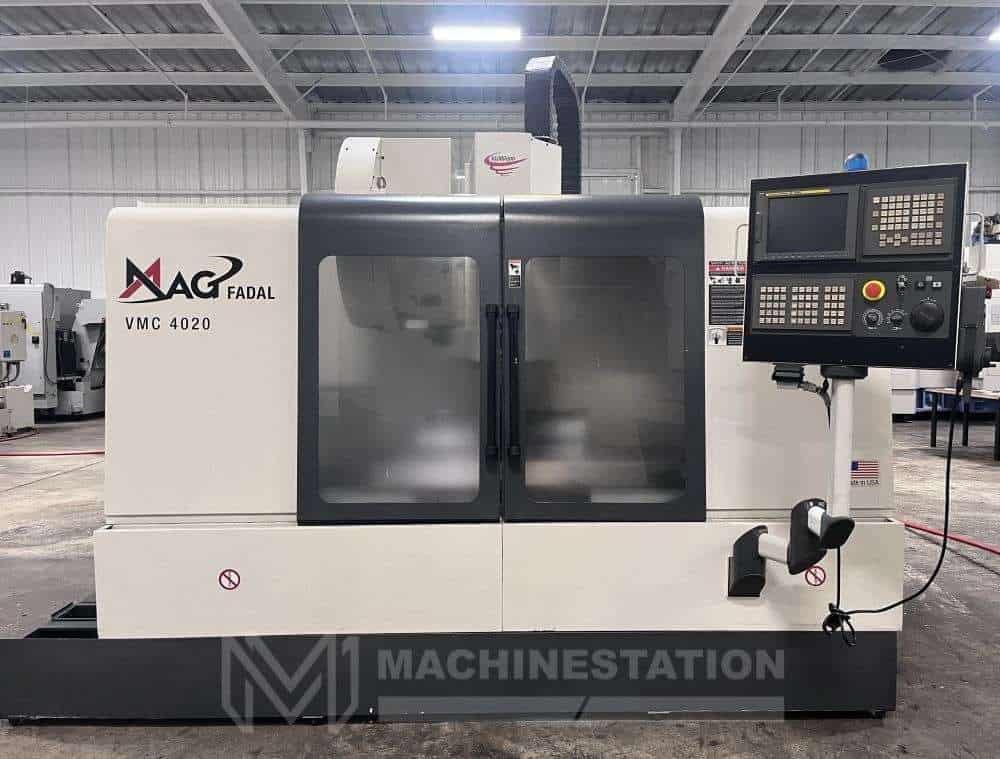

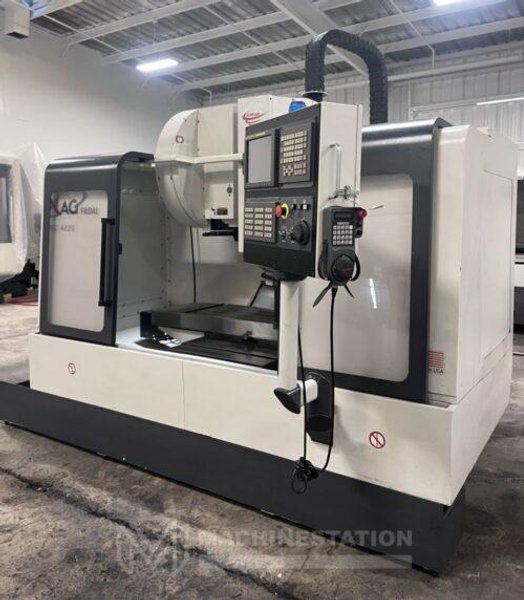

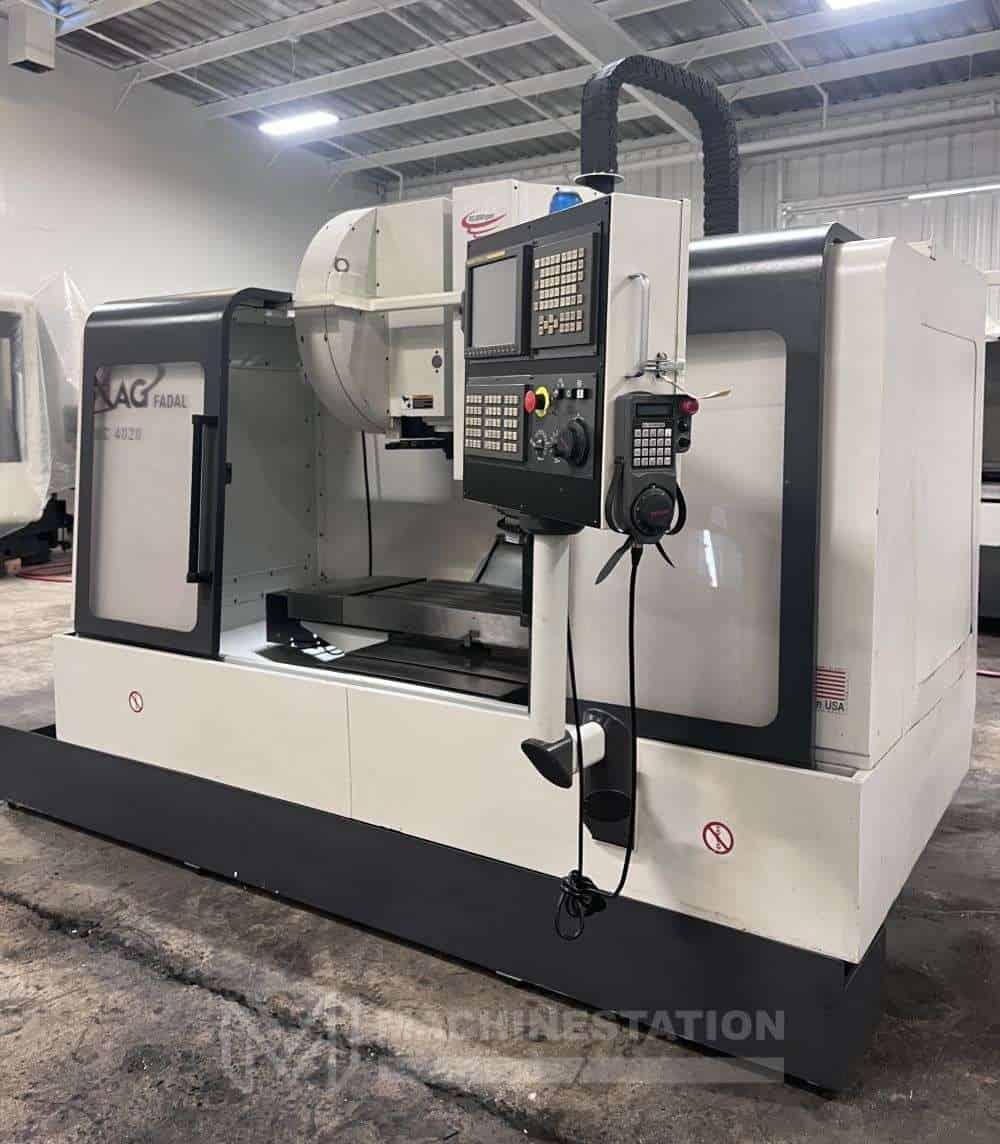

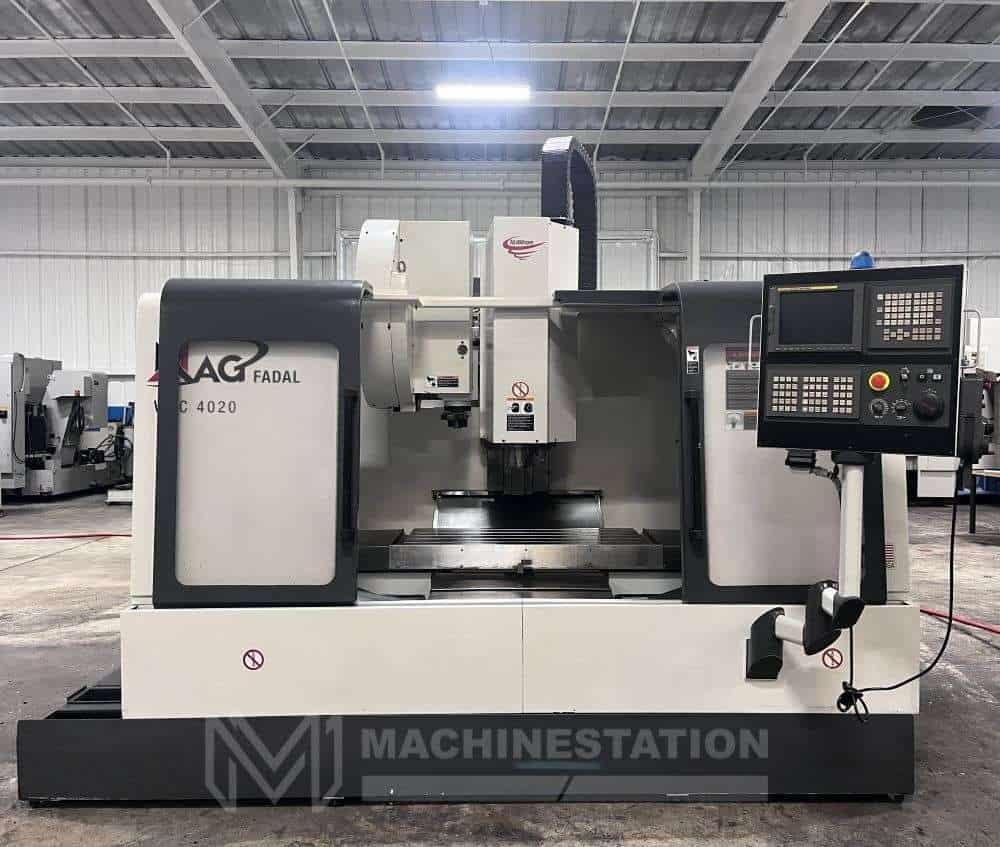

Fadal 4020D-3HT CNC Vertical Machining Center

Fadal 4020D-3HT CNC Vertical Machining Center

Brand

FADAL

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112592
Make:	Fadal
Model:	4020D-3HT
Year:	2008
Condition:	Used – Good

Features:
Box Way construction

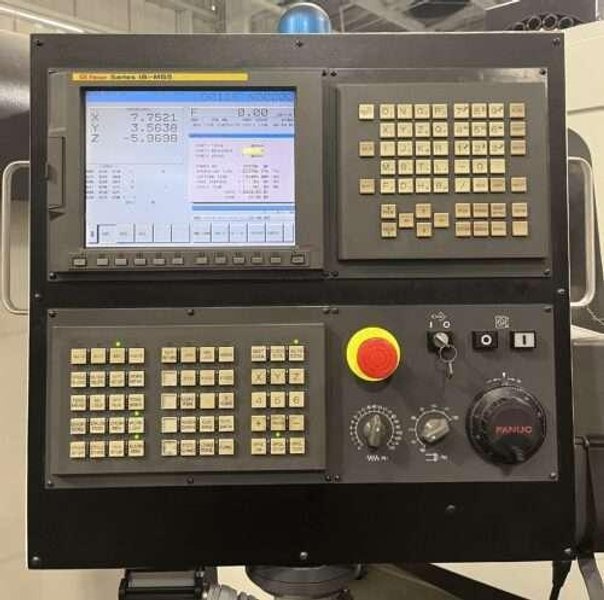

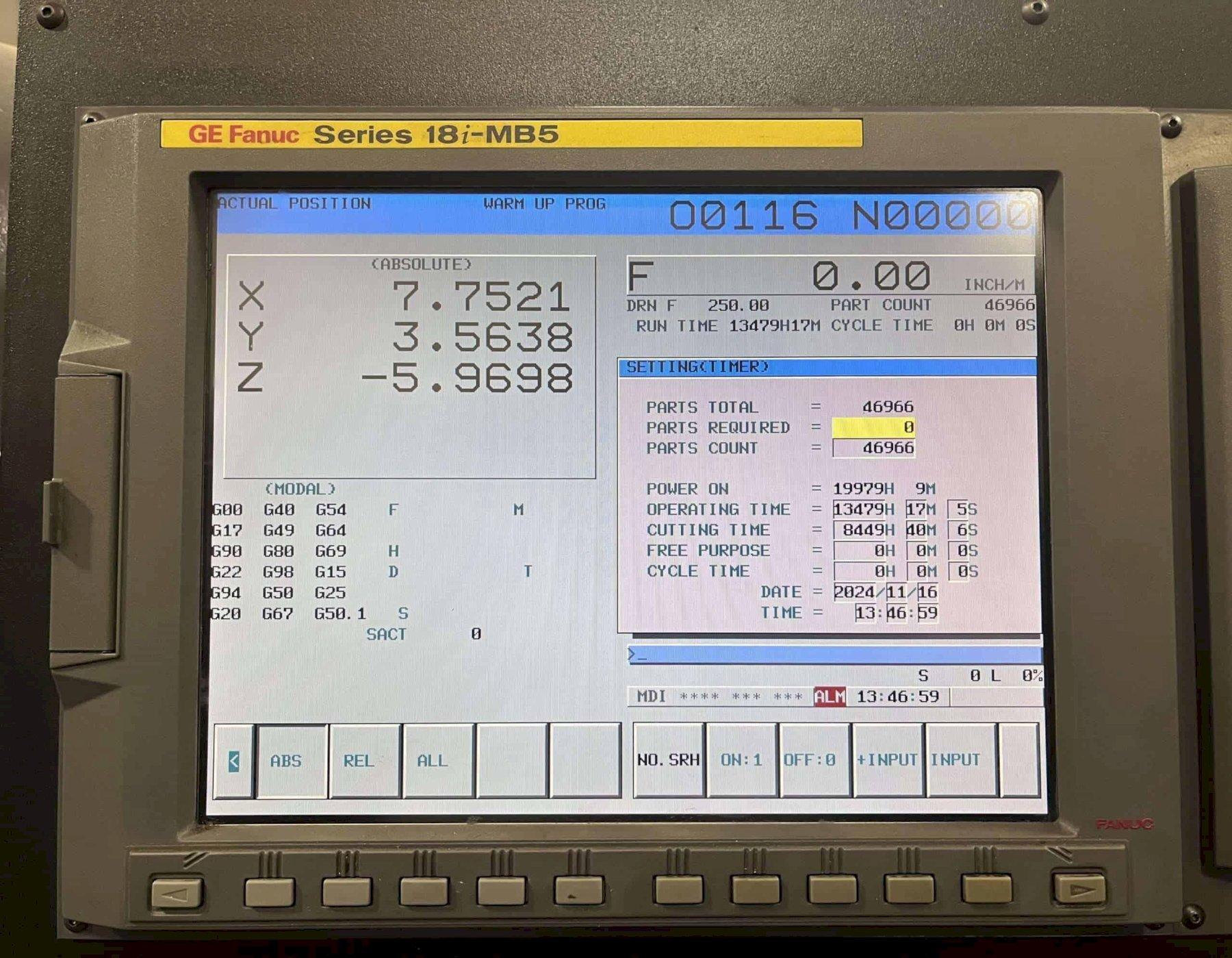

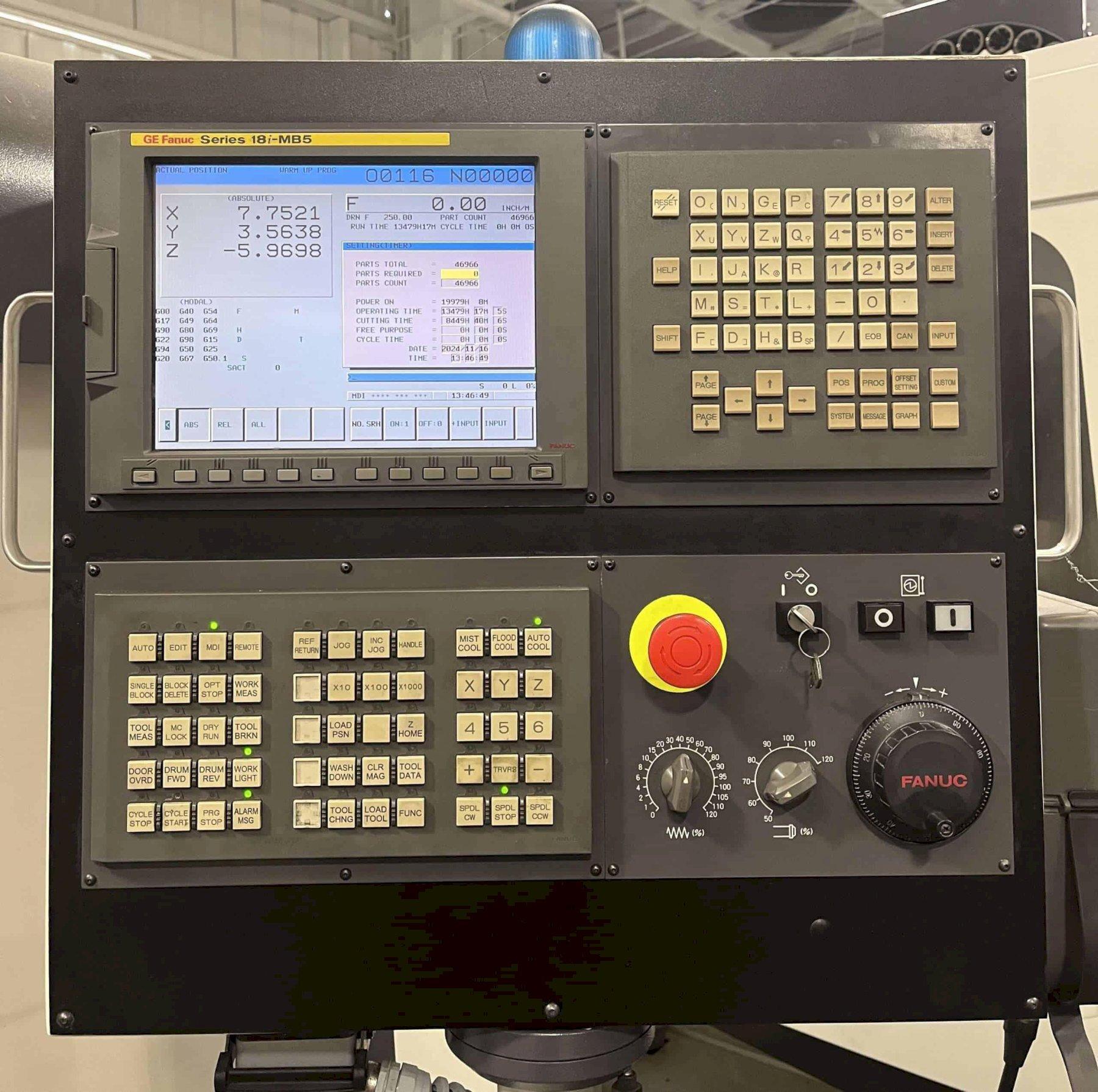

Fanuc 18iMB5 series CNC Control
24 Station Automatic tool changer

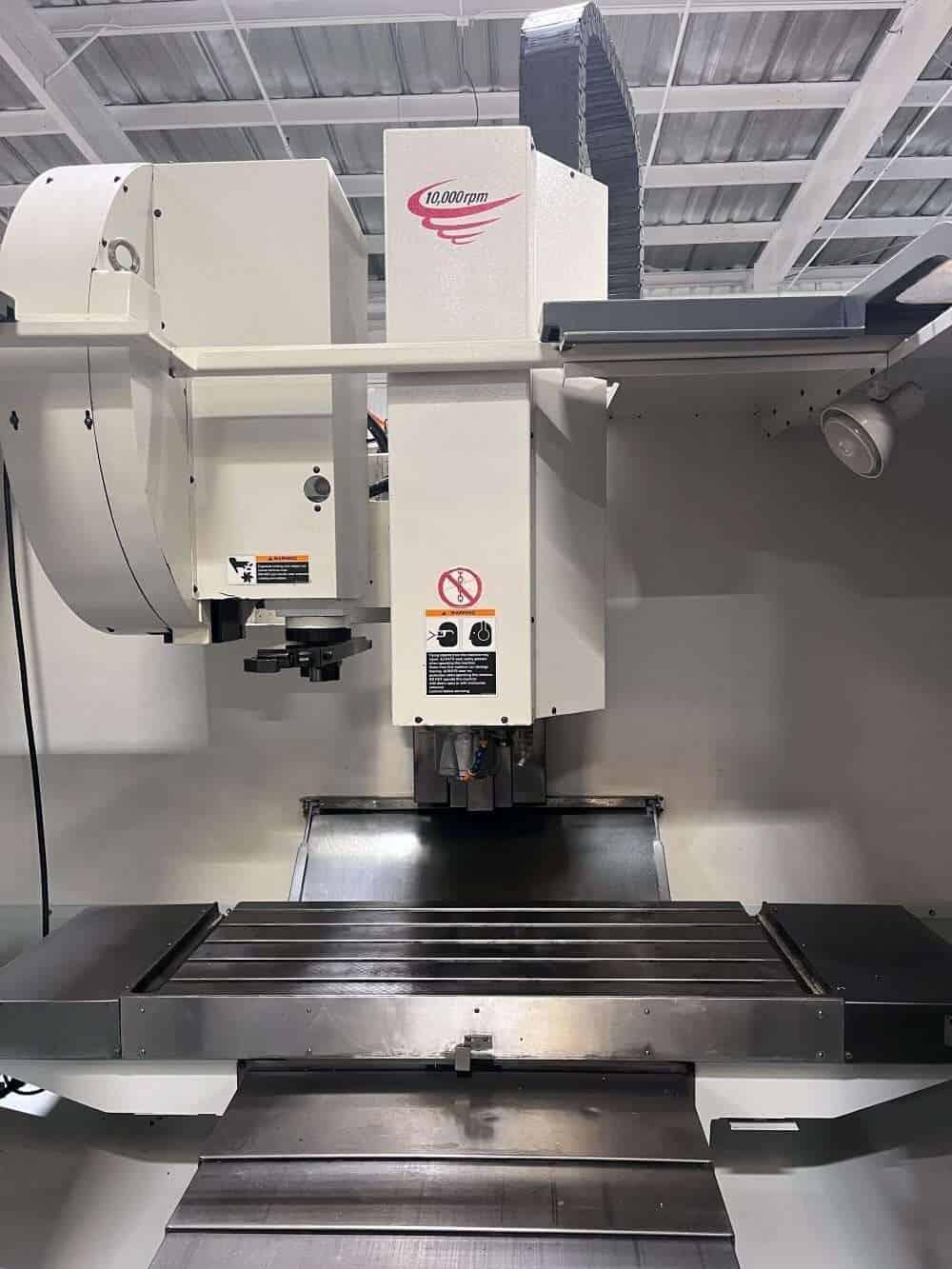

10,000 RPM High Torque Spindle
PCMCIA Card Slot

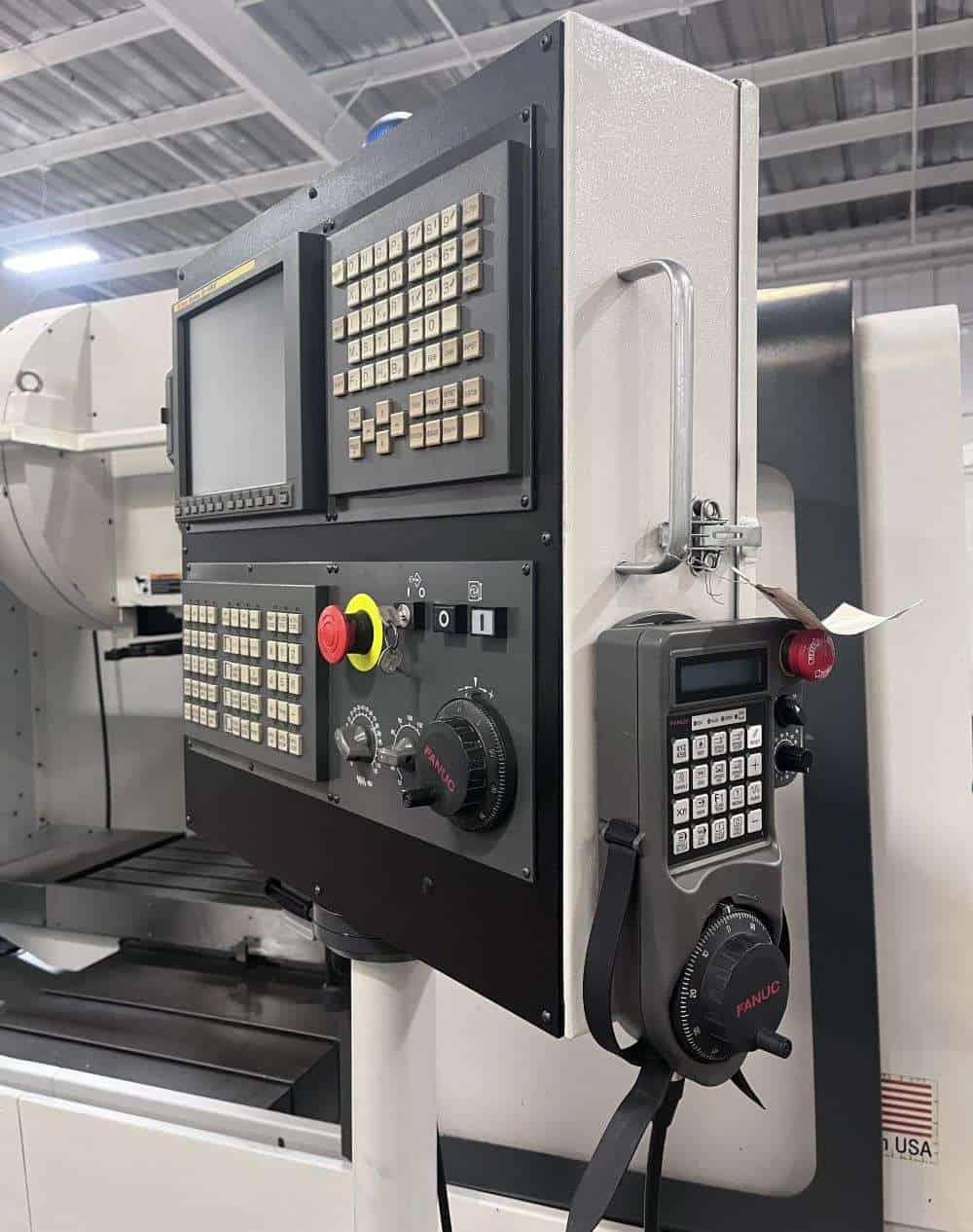

MPG Handwheel Control
Rigid Tapping
Telescopic way covers
Coolant System

Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 20″
Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″
Rapid Traverse rates: 900 IPM
Cutting Feedrate: 400 IPM

Spindle:
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 15 HP

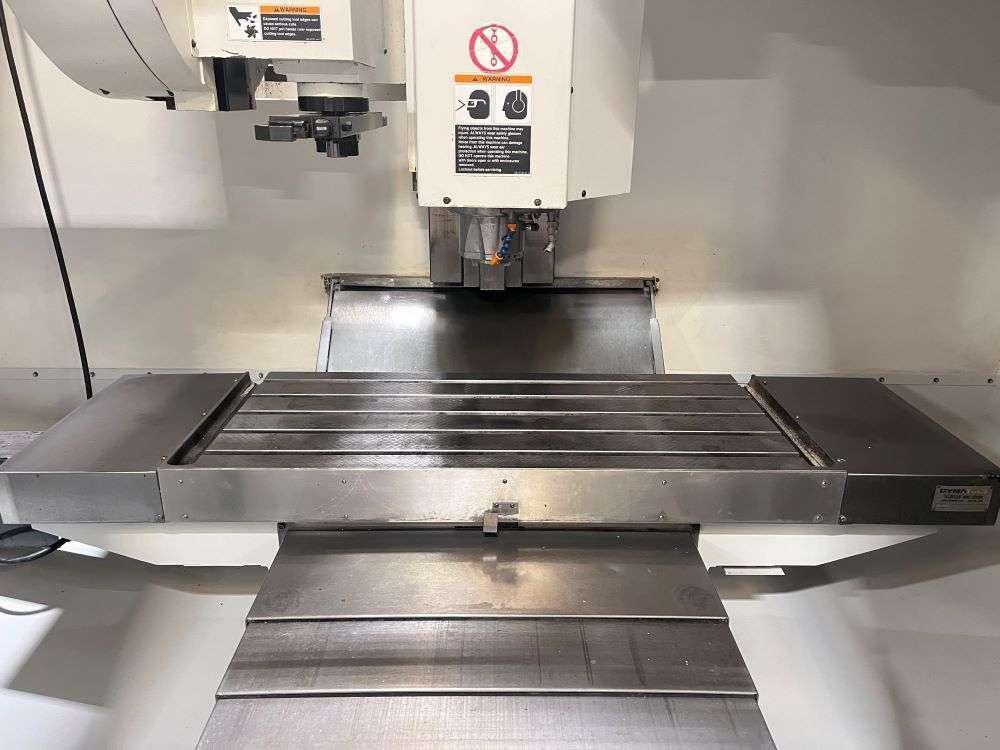

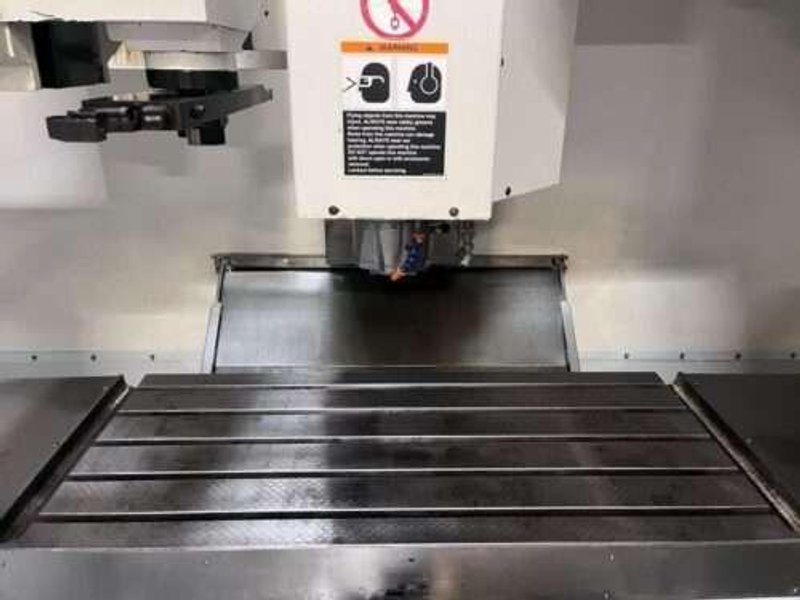

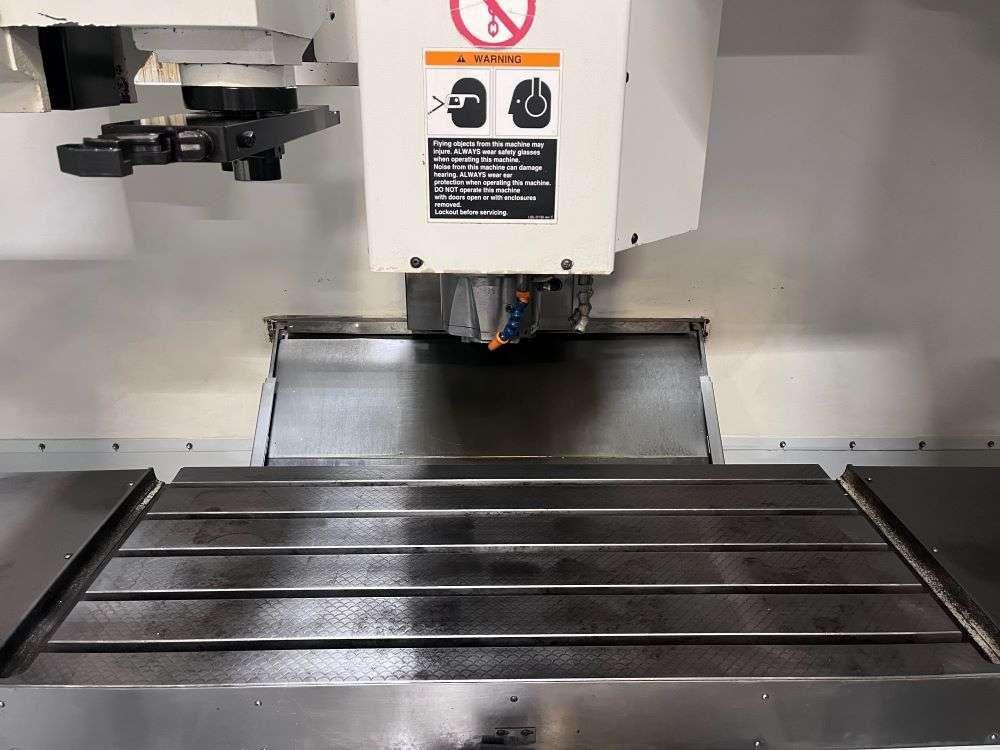

Table :
Length: 48″
Width: 20″
Max Weight on Table: 3000 lbs

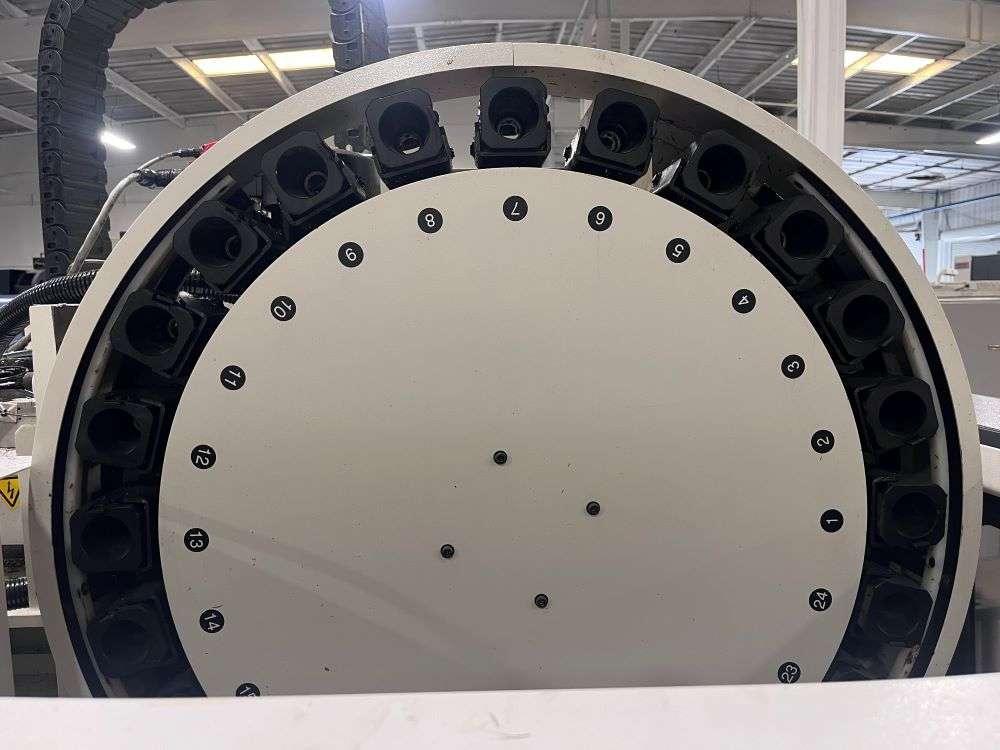

Automatic Tool Changer:
cat-40 Taper
Capacity: 24 Station Side Mounted
Tool Weight: 15 lbs
Max Tool Length: 15″
Max Tool Dia.: 4.33″

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 3-Phase, 35 Kva
Overall Dimensions: 122″ x 100″ x 100″ High
Weight: 12,500 lbs

No files or videos to display
