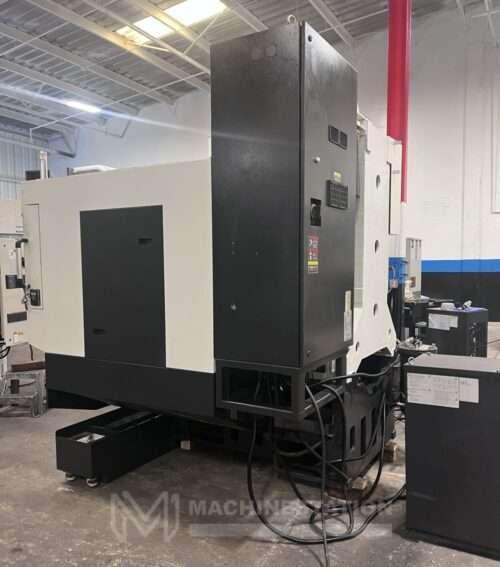

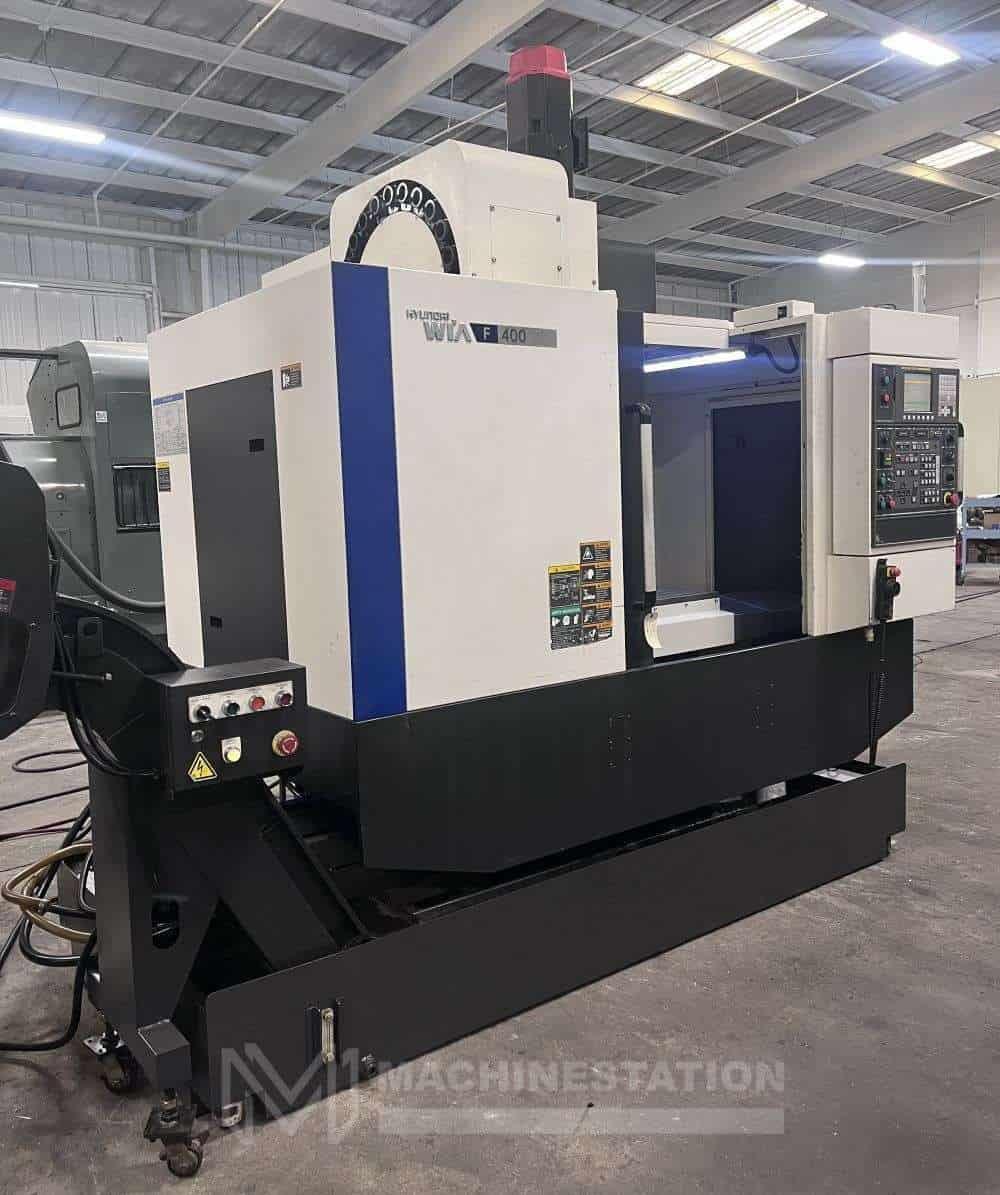

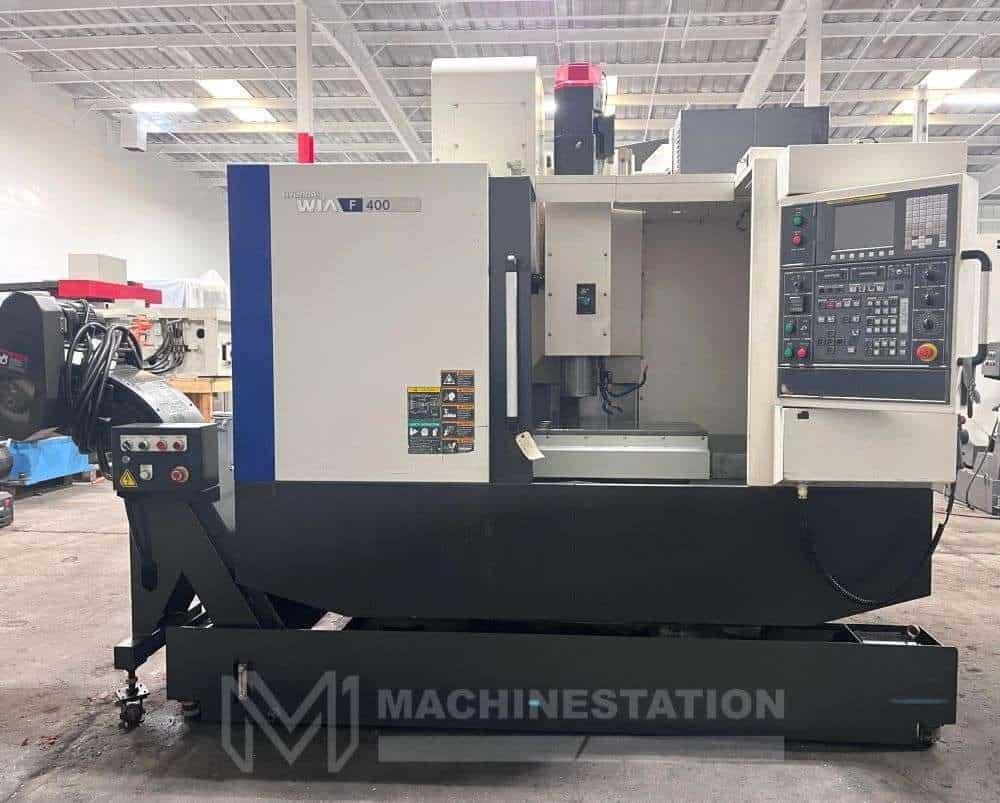

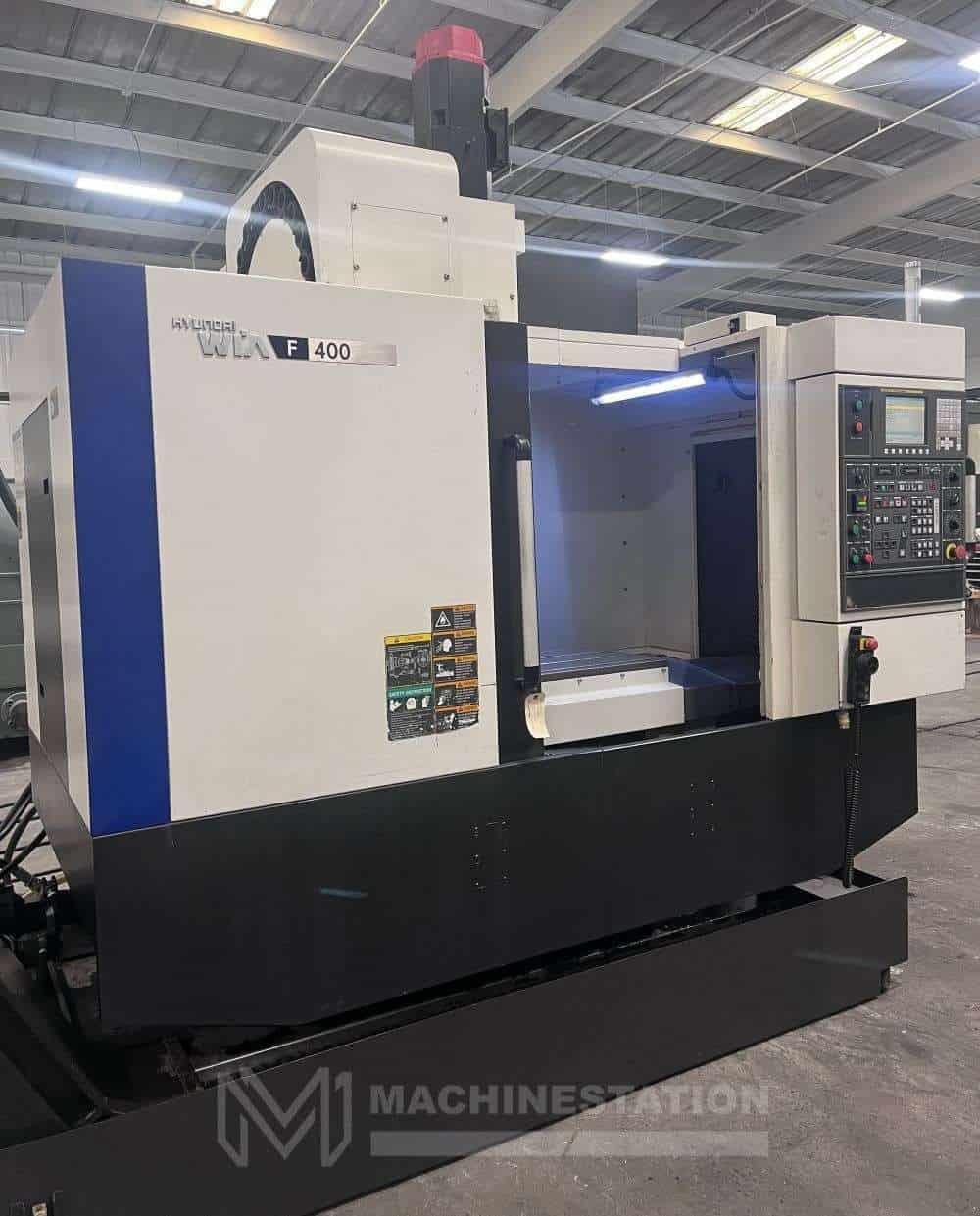

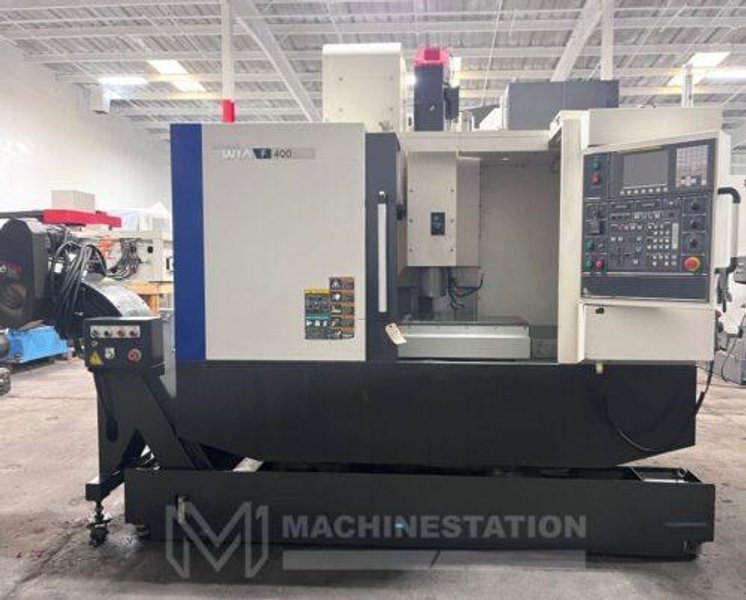

Hyundai Wia F400 CNC Vertical Machining Center – Mill

Brand
Model
Wia F400
Stock #
112597
Year
Not specified
Condition
Not specified

Location

Not specified

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Hyundai
Model:Wia F400
Year:
Condition:Used – Good

Key Features of the Hyundai Wia F400:

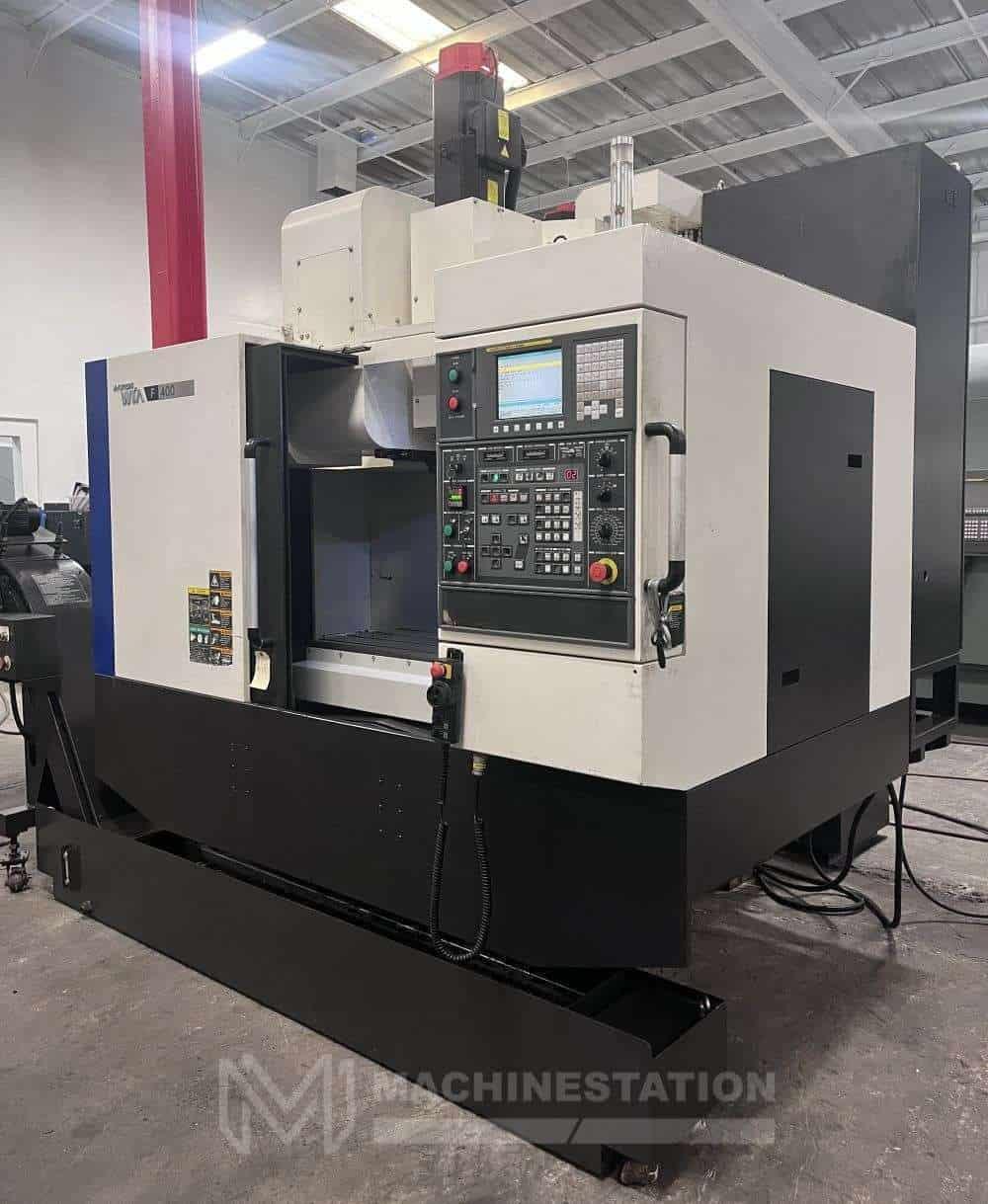

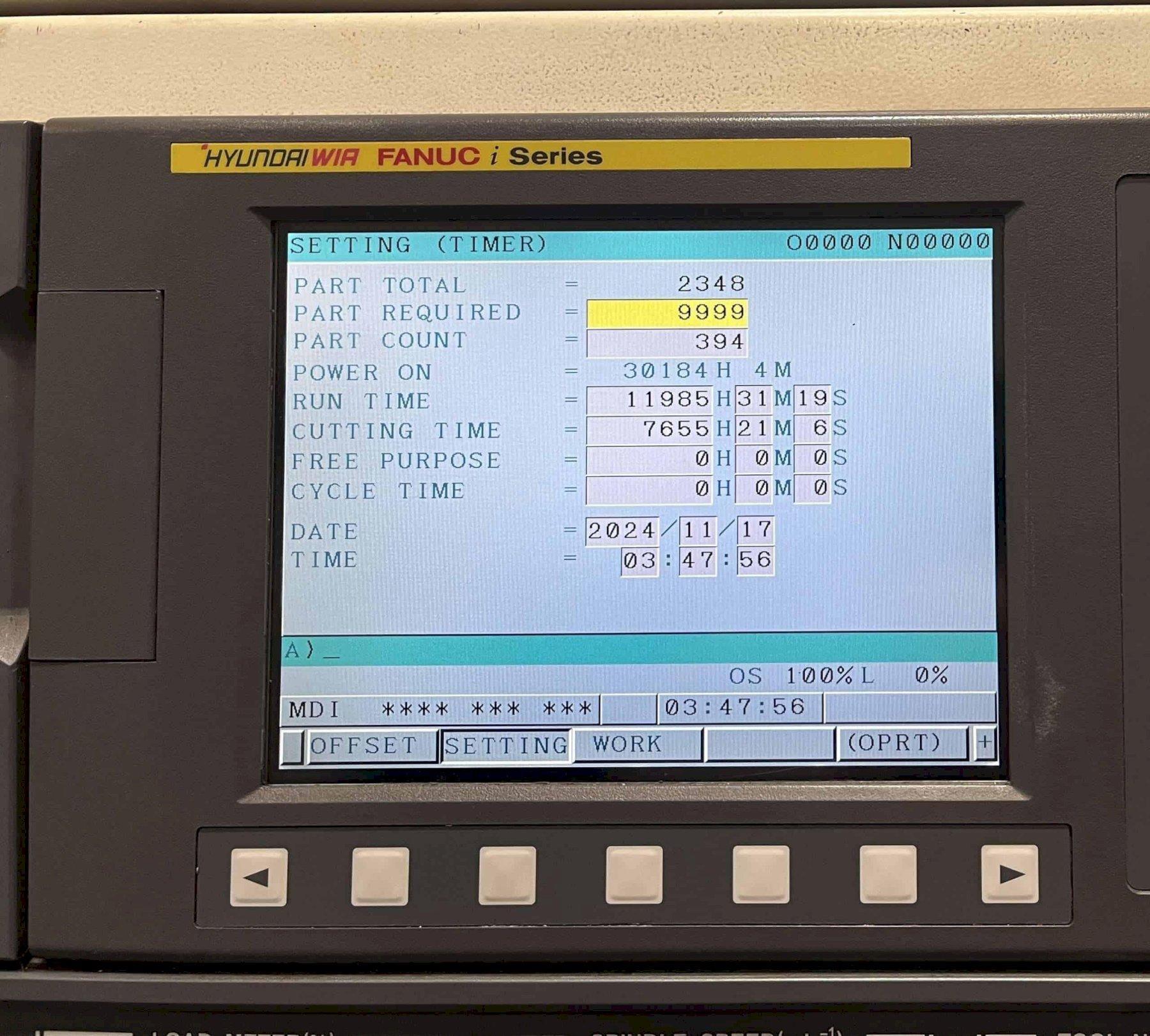

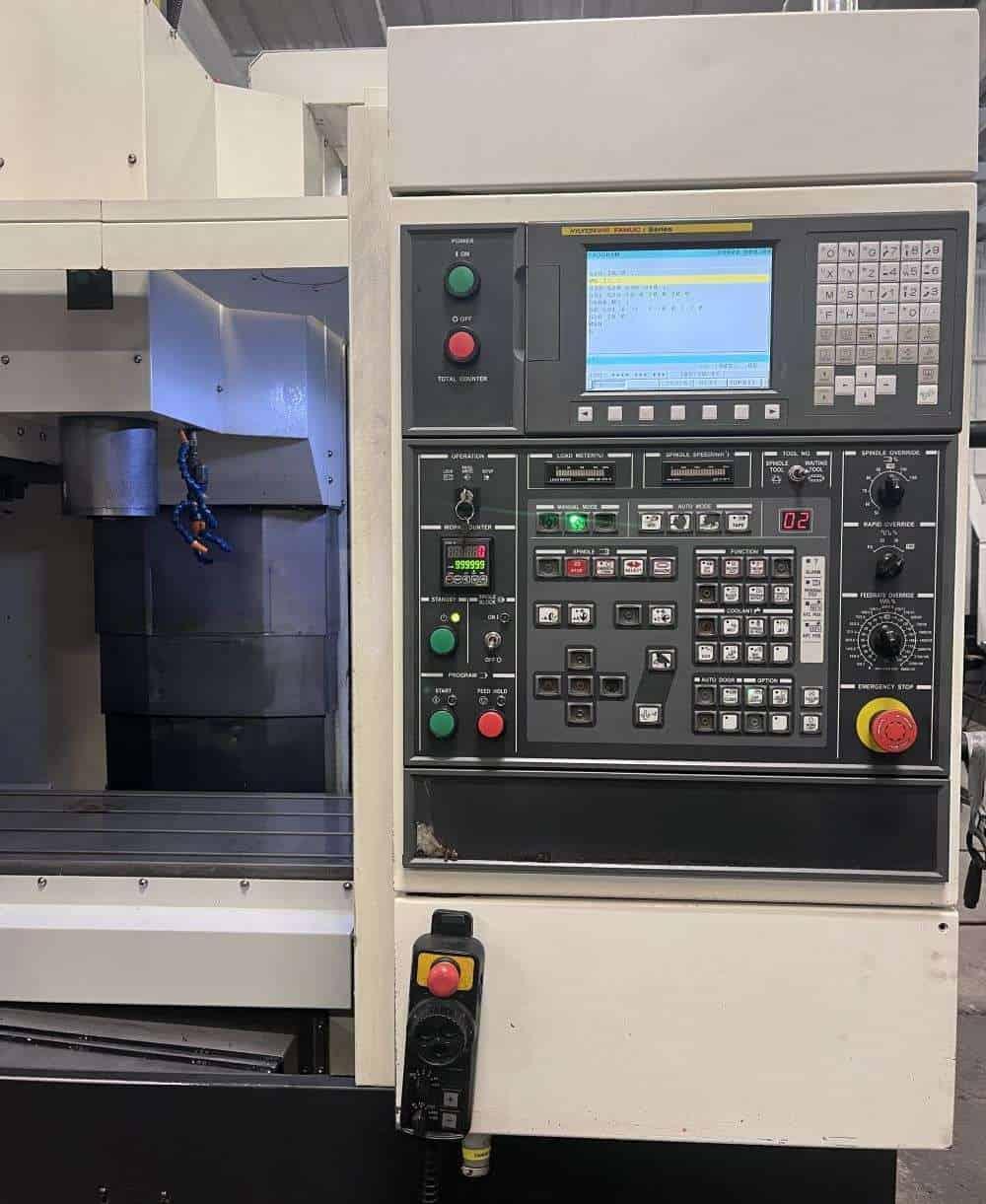

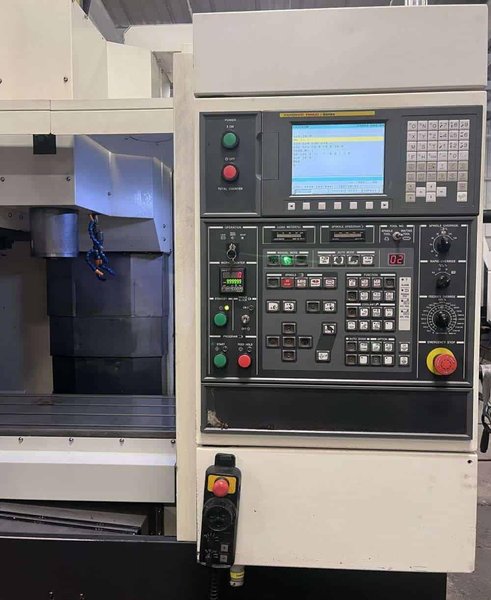

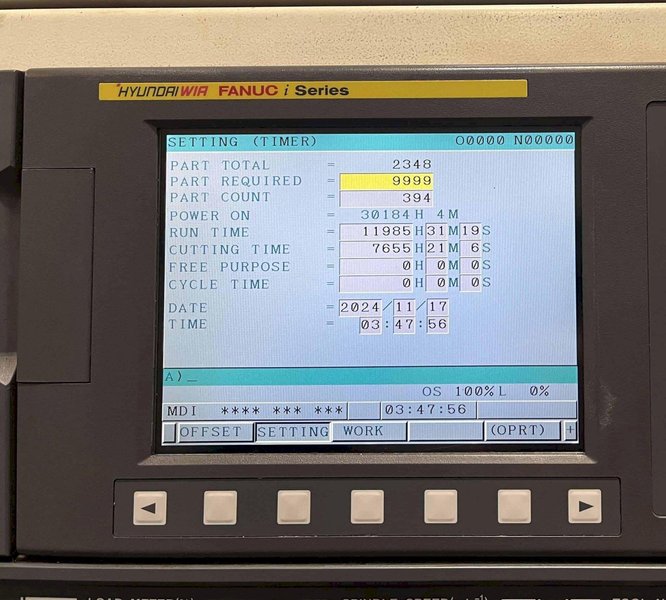

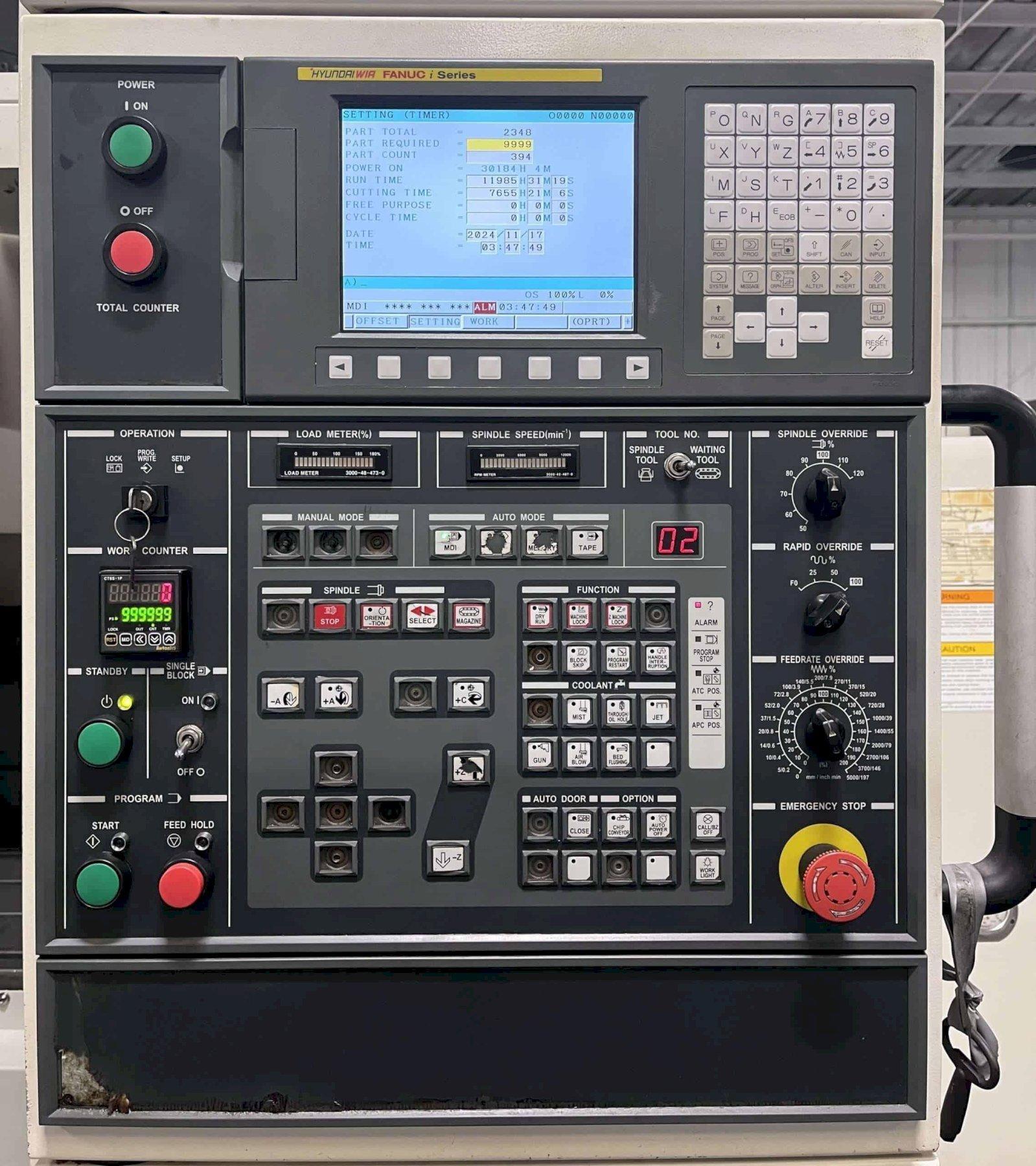

  • Fanuc i-series CNC Control
  • 12,000 RPM Gear Head Spindle
  • Through Spindle Coolant
  • CAT-40 Taper Spindle

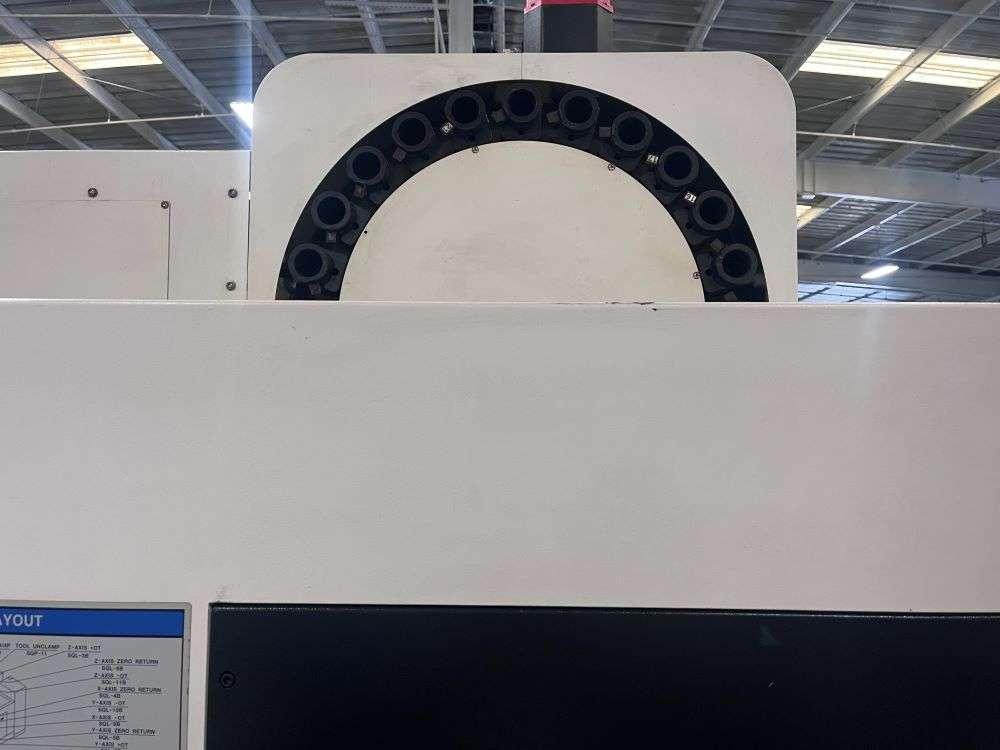

  • 24 Station Automatic Tool Changer
  • 20 HP High Torque Spindle
  • MPG Handwheel Control
  • PCMCIA Card Slot

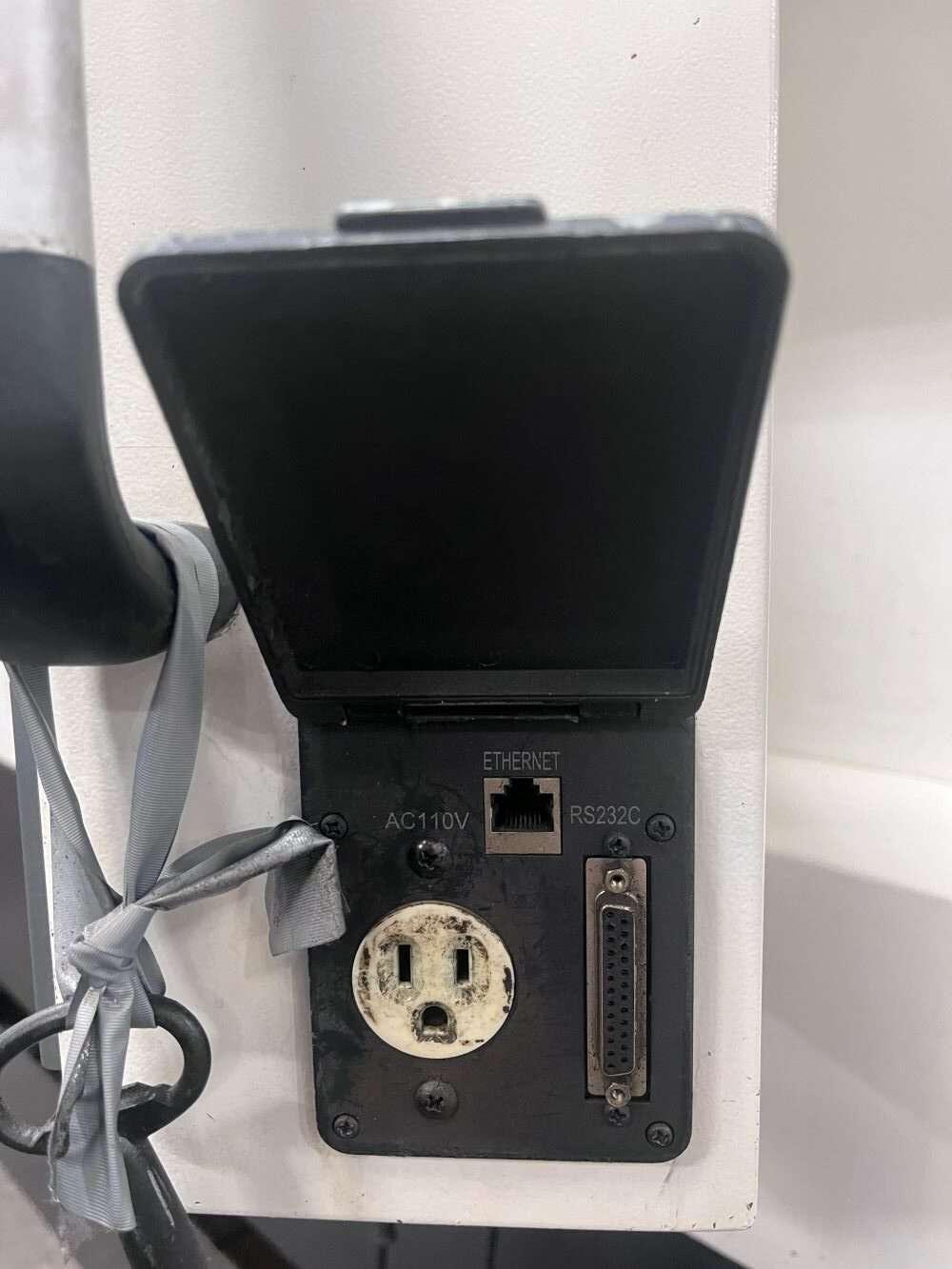

  • RS-232 Port
  • Ethernet
  • Rigid Tapping

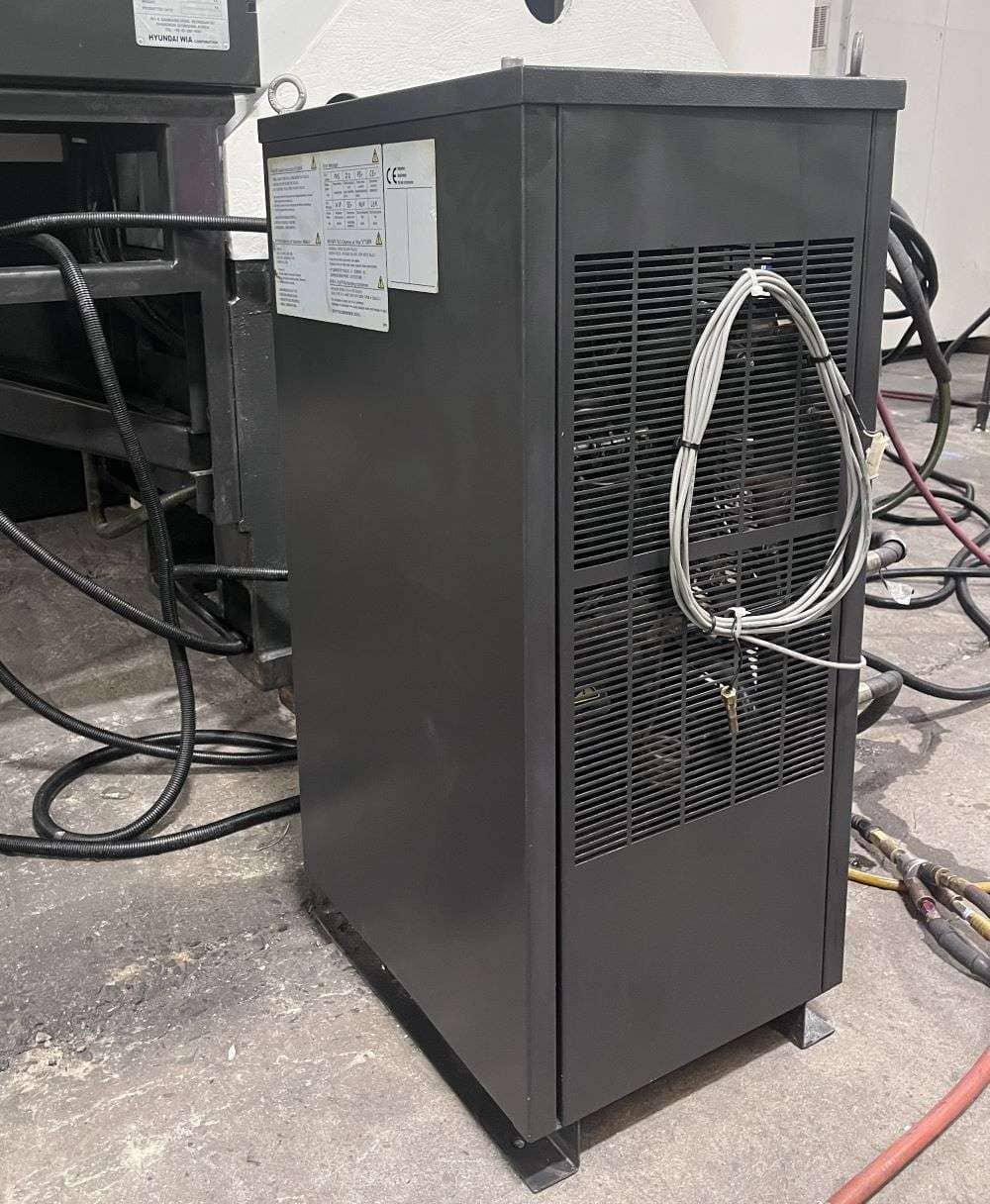

  • Spindle Chiller Unit
  • Coolant System
  • Chip Conveyor

Travel:

  • X-Axis: 31.5″
  • Y-Axis: 18.1″
  • Z-Axis: 20.5″
  • Rapid Traverse Rates X, Y Z Axis: 1260 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 5.1″ – 25.6″

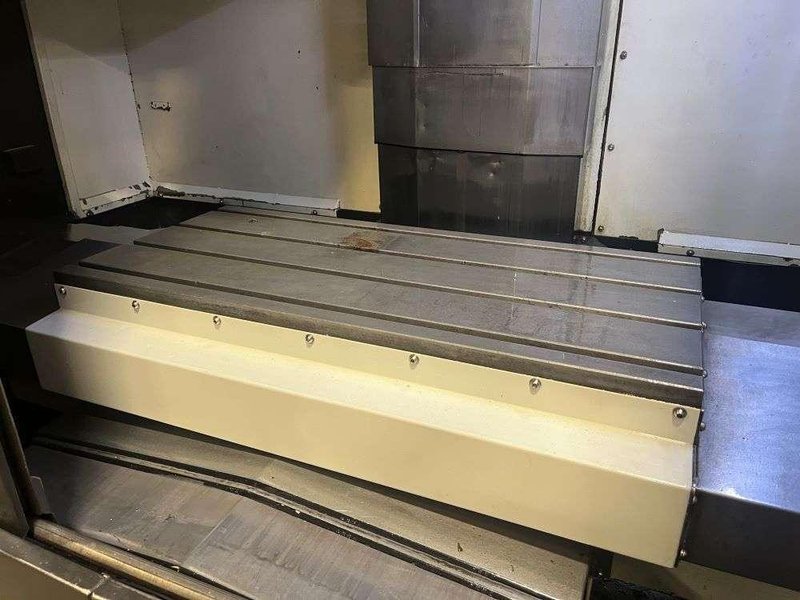

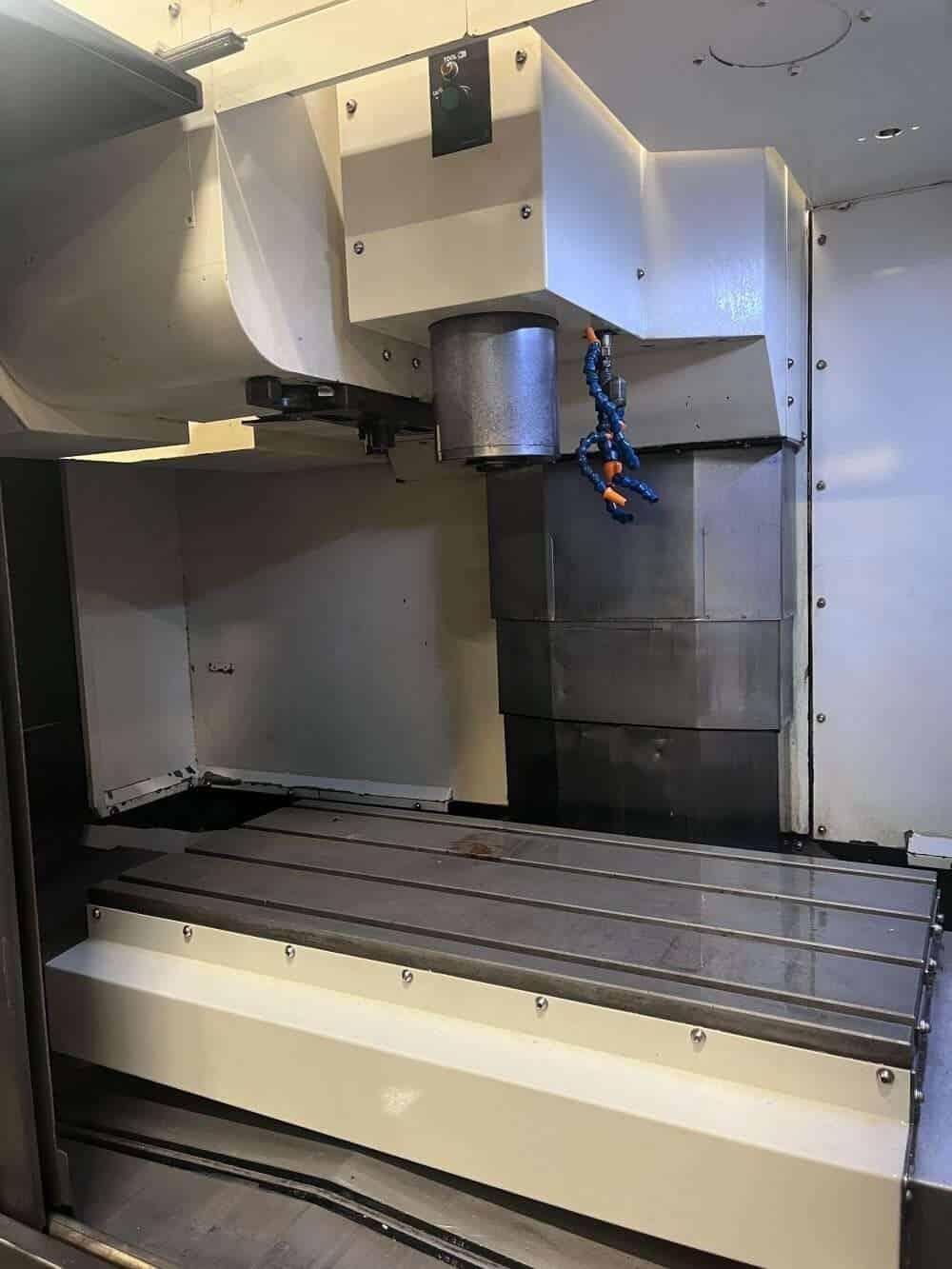

Table:

  • Length: 39.4″
  • Width: 18.1″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1323 lbs

Spindle:

  • Taper Size: CAT-40
  • Speed Range: 12,000 RPM
  • Spindle Power: 20 HP

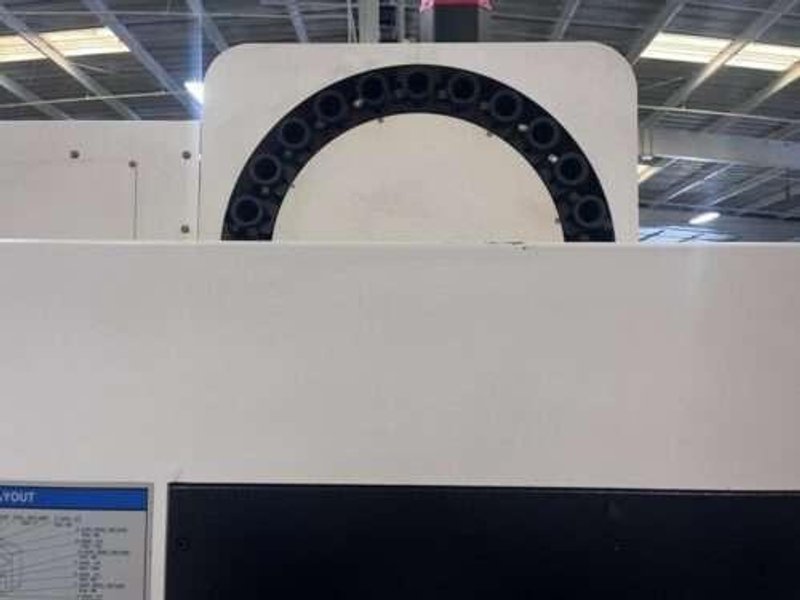

Automatic Tool Changer:

  • Capacity: 24 Tools
  • Max Tool Weight: 17.6 lbs
  • Max Tool Dia: 3.5″ – 5.9″
  • Max Tool Length: 11.8″
  • Tool Changing Time: 1.3 Seconds

General:

  • Air Required: 100 psi 4 scfm
  • Power: 220v / 66FLA / 3-Phase / 20 kva
  • Overall Dimensions: 96.5″ x 82.7″ x 111.5″ High
  • Weight: 11,244 lbs Approx.
