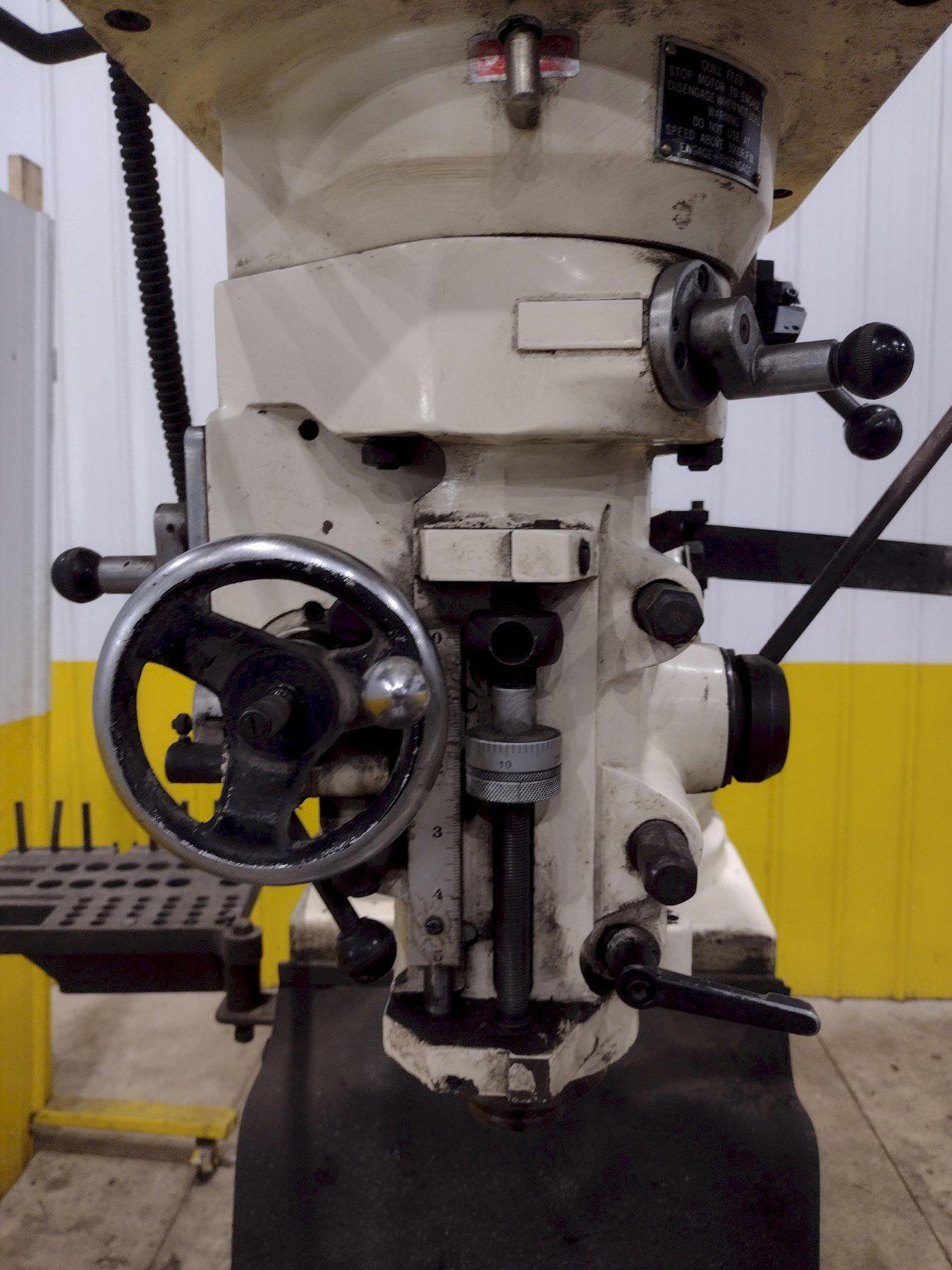

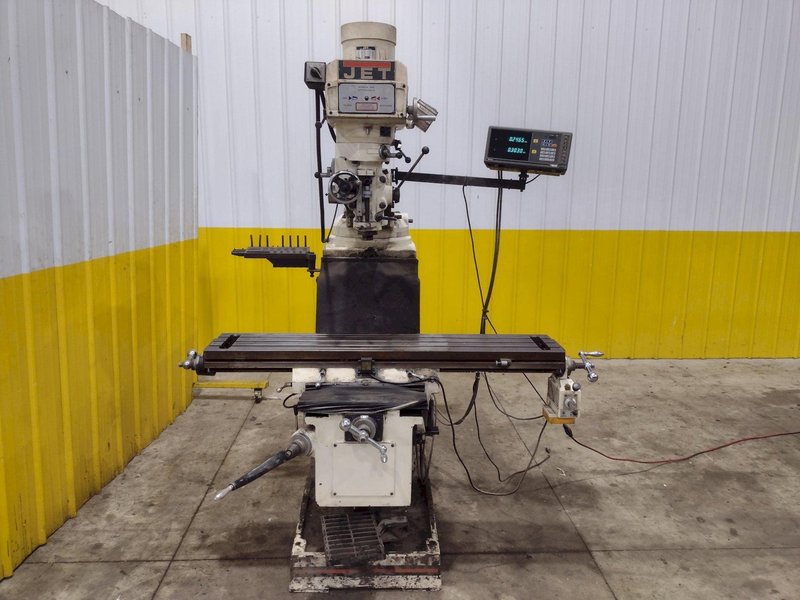

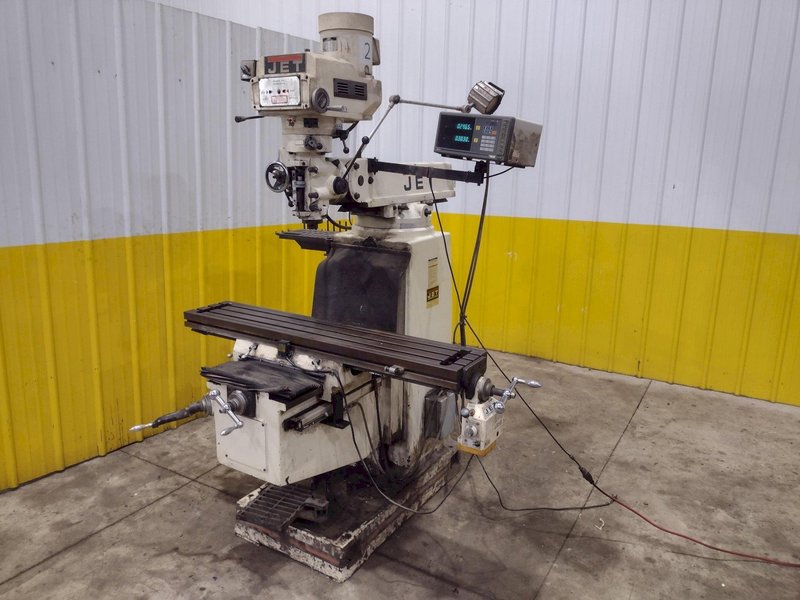

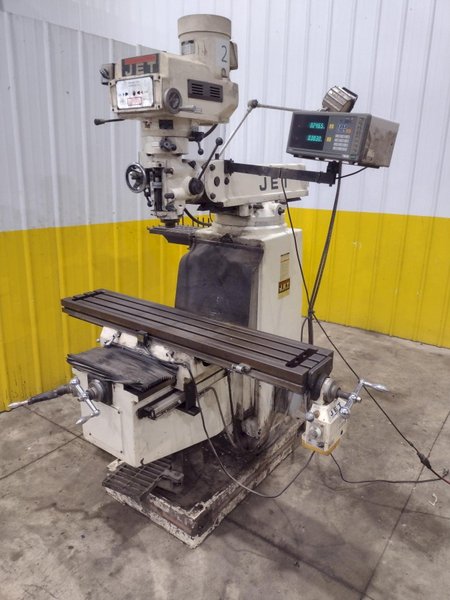

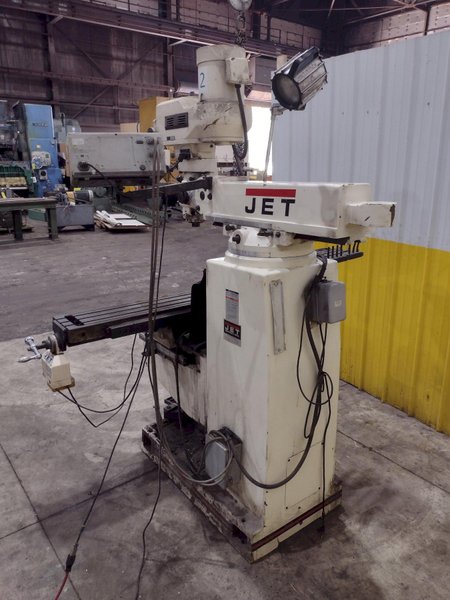

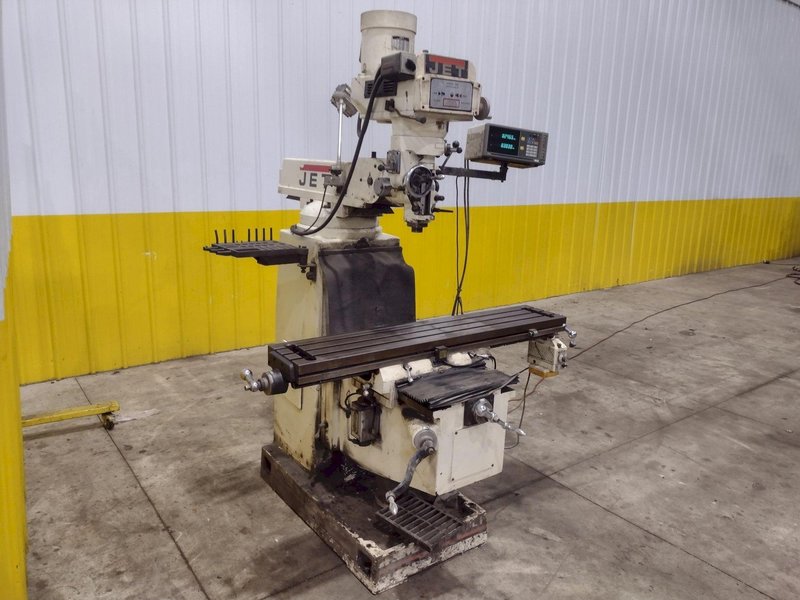

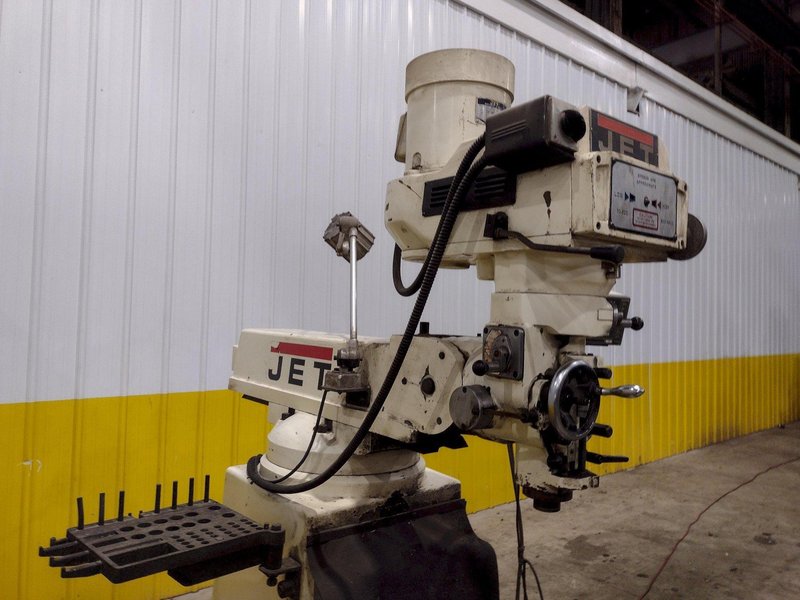

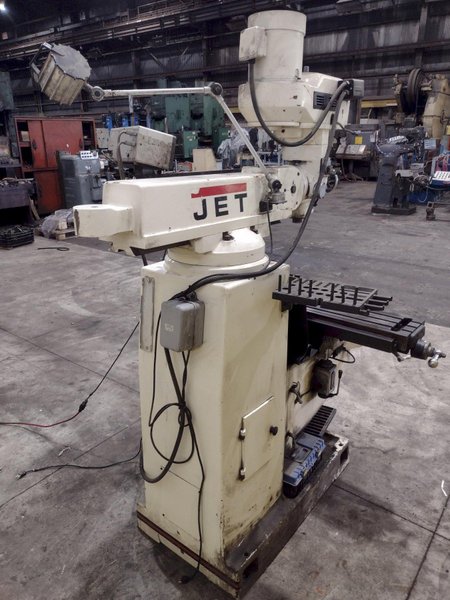

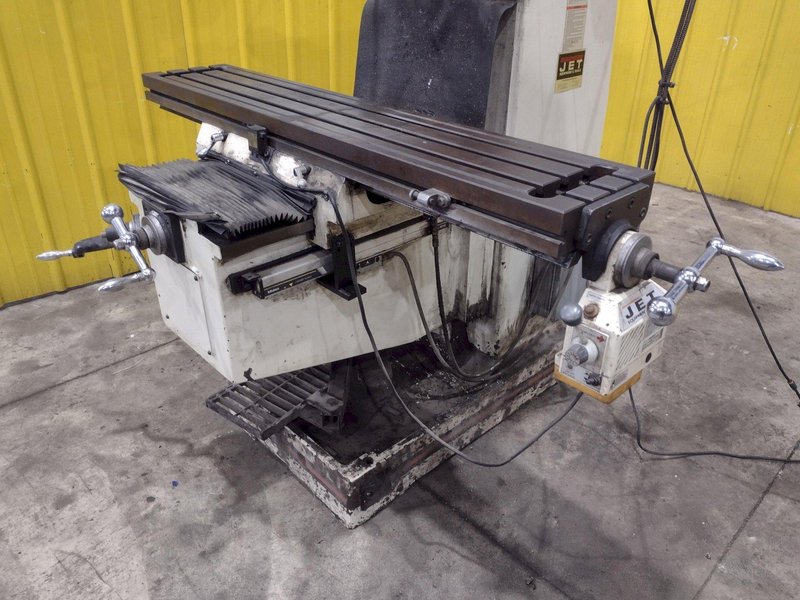

3 HP JET MODEL #JTM-1054 VERTICAL RAM TYPE MILL: STOCK 22336
Brand
Category
Model
3 HP JTM-1054
Stock #
22336
Year
Not specified
Condition
Excellent
Location
Ohio
Price
$6,950.00
| Dimensions | 108" x 80" x 80" |
| Weight | 3450 pounds |
|

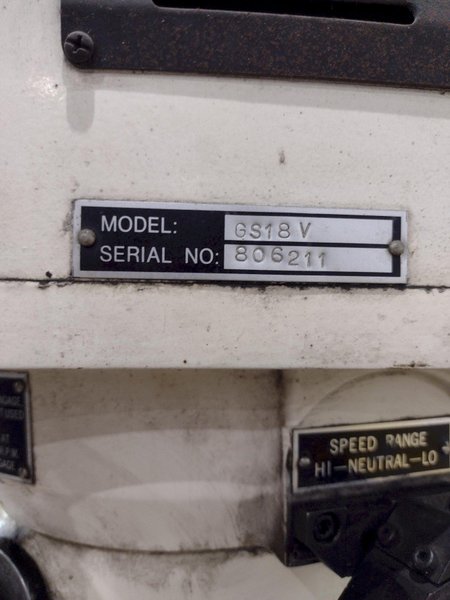

SERIAL ............................... 8061211

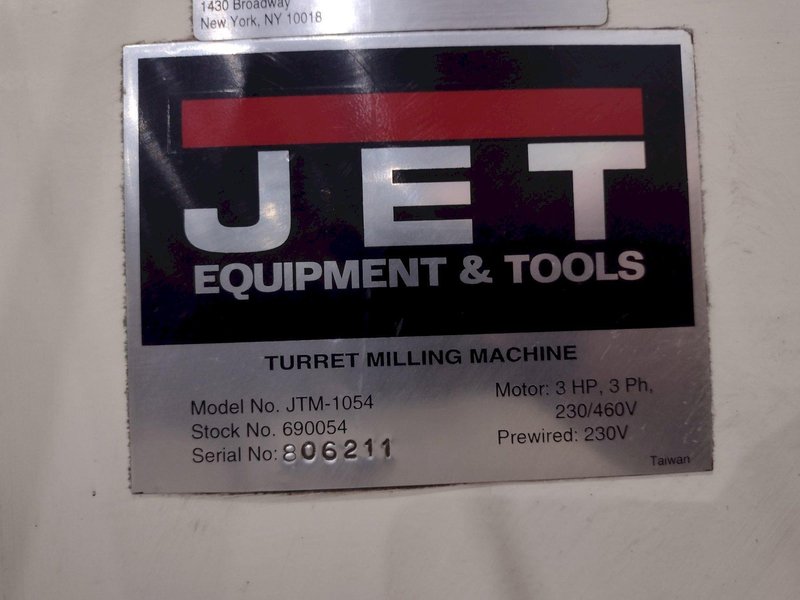

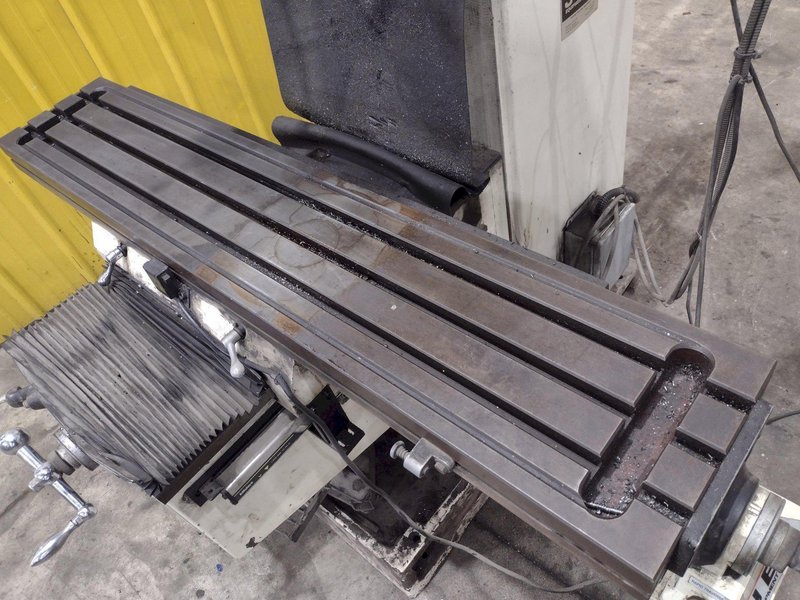

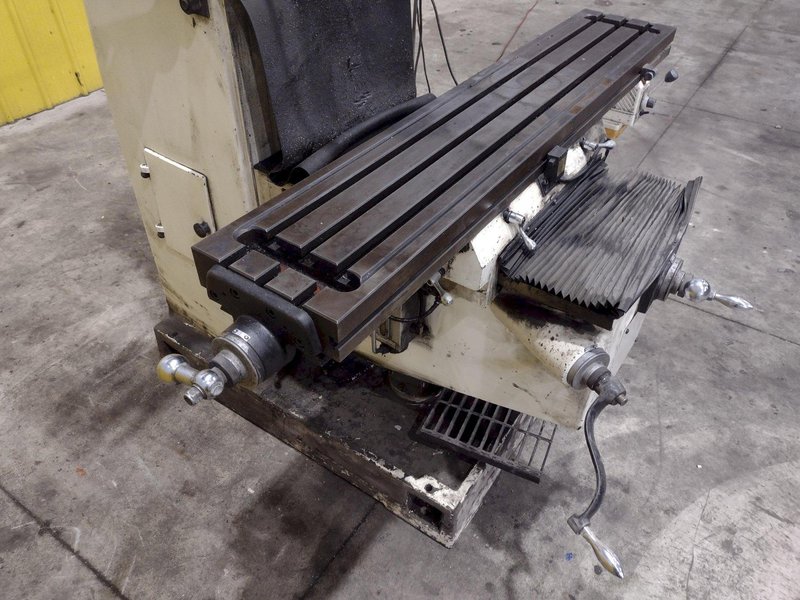

JET STOCK ............................ 690054 MODEL ................................ JTM-1054 Table Size (L x W) ................... 10" x 54"
Spindle Taper ........................ R-8

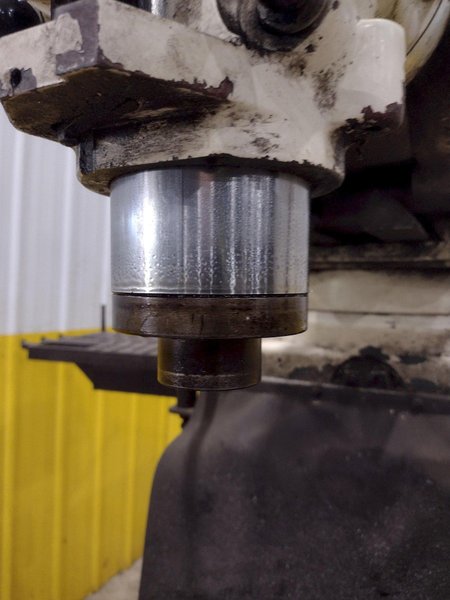

Quill Diameter ....................... 3-3/8"

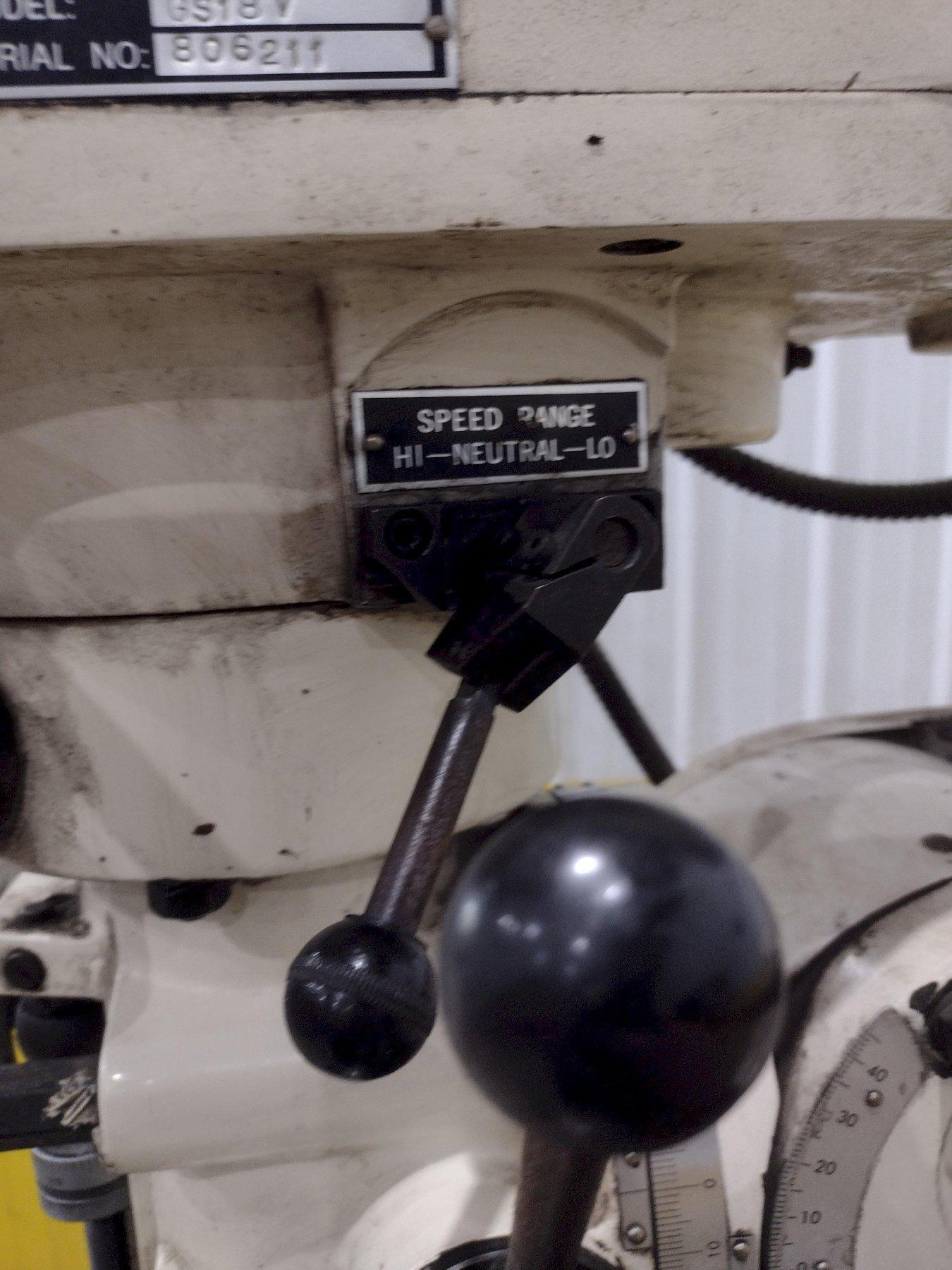

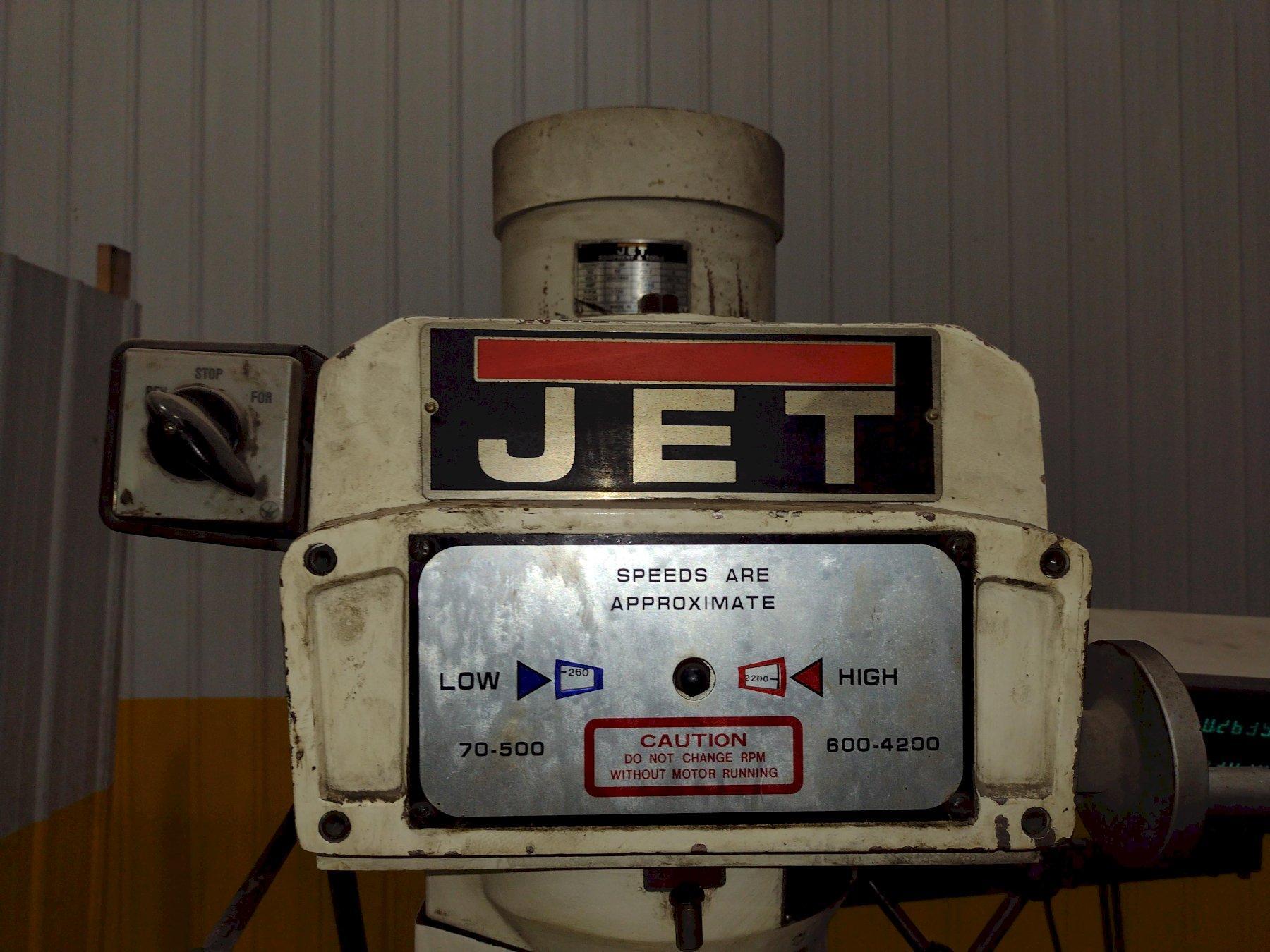

Range of Spindle Speeds .............. 80 TO 3,800 RPM

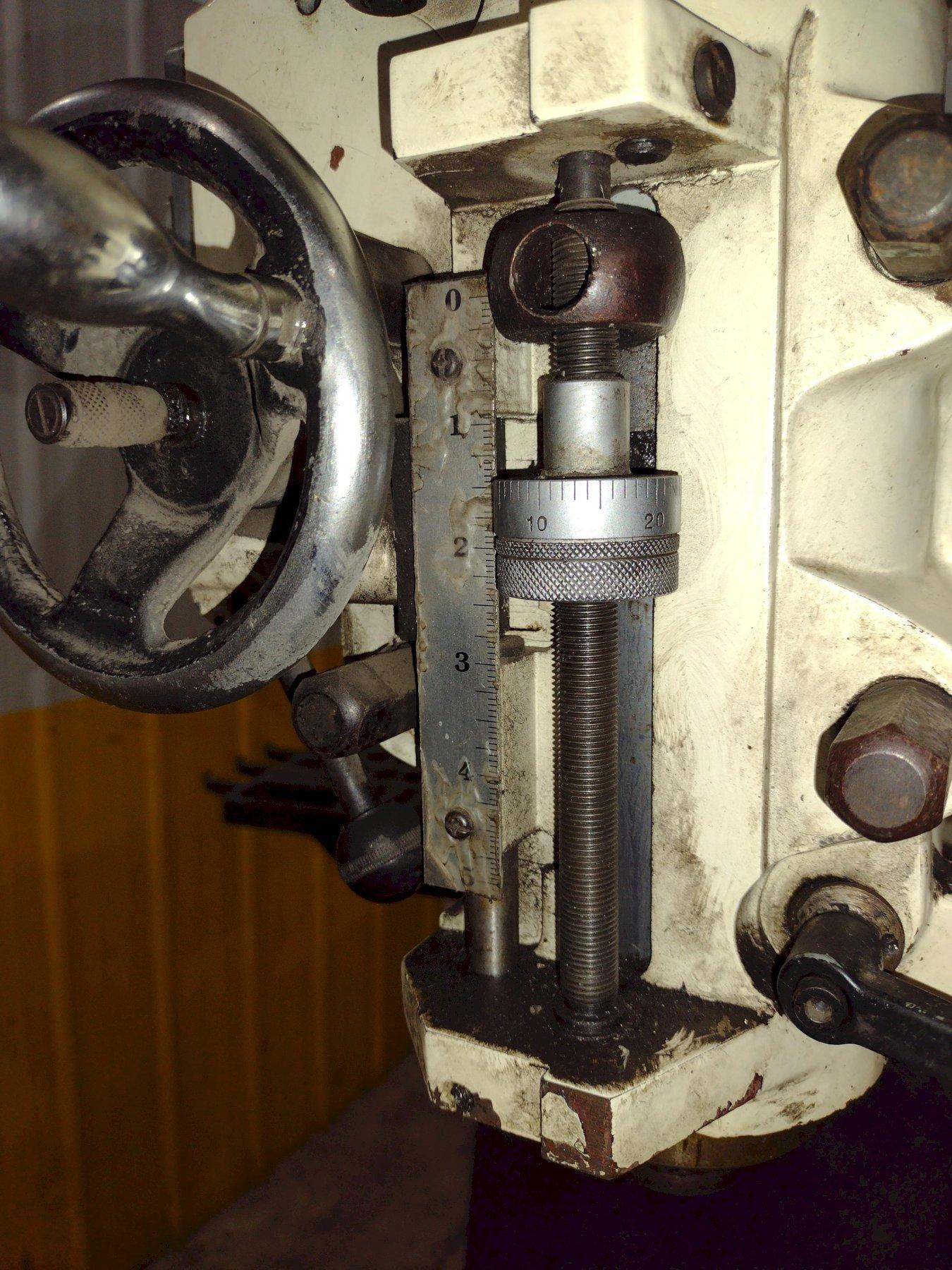

Quill Down Feed Rates ................ .0015 - .003 - .006 IPM
Spindle Travel ....................... 5"

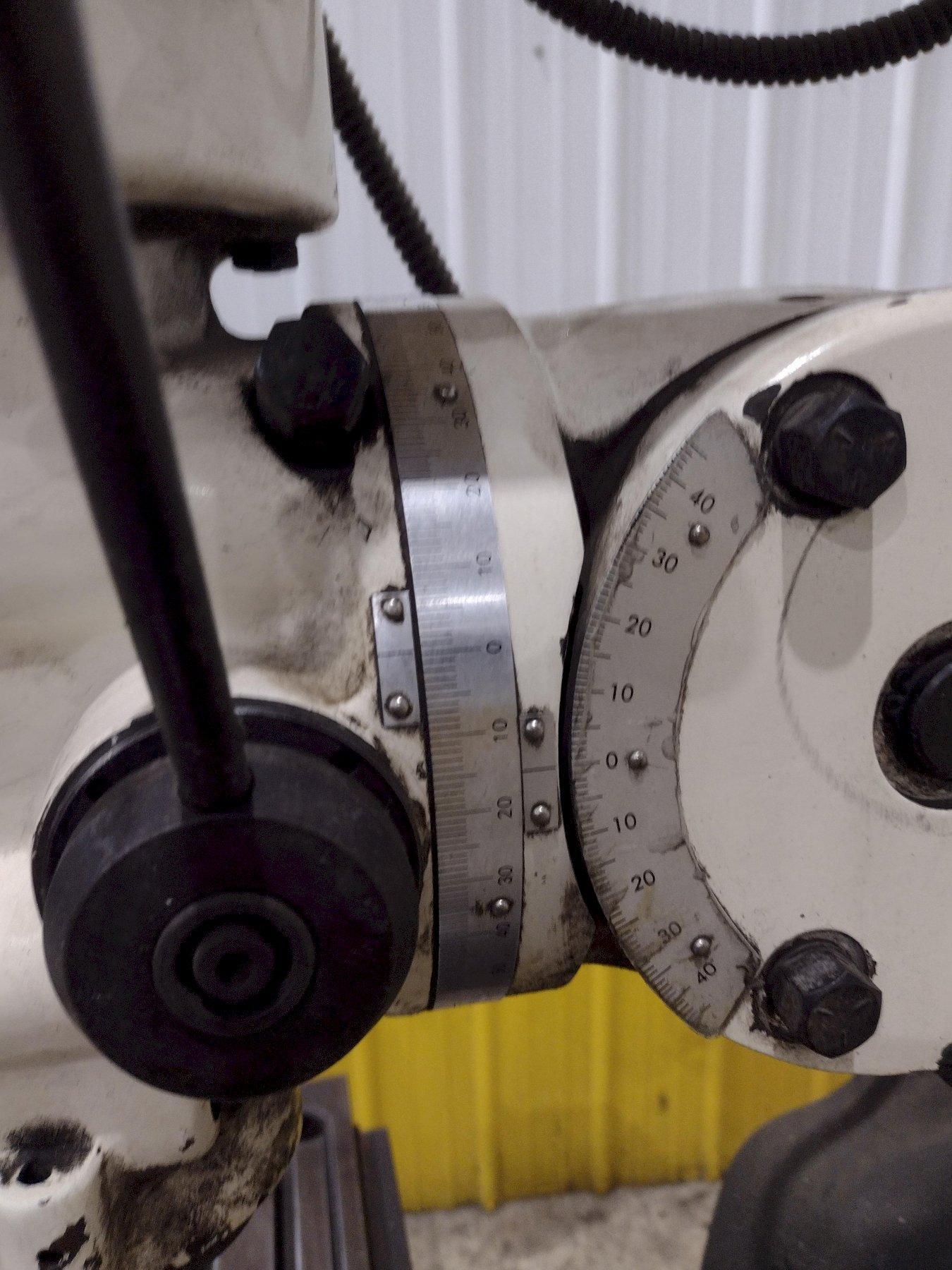

Head Movement ........................ 90° R & L, 45° F & B
Max Distance Spindle to Table ........ 20"
Distance Spindle to Column (Max.) .... 26"
Distance Spindle to Column (Min.) .... 5-1/2"
Collet Capacity ...................... 1/8 to 7/8
Table Longitudinal Travel ............ 38"
Table Cross Travel ................... 16"
T-Slots .............................. 3
T-Slots Size ......................... 5/8" T-Slot Centers ....................... 2-1/2"
Work Table Weight Capacity ........... 800 lbs.

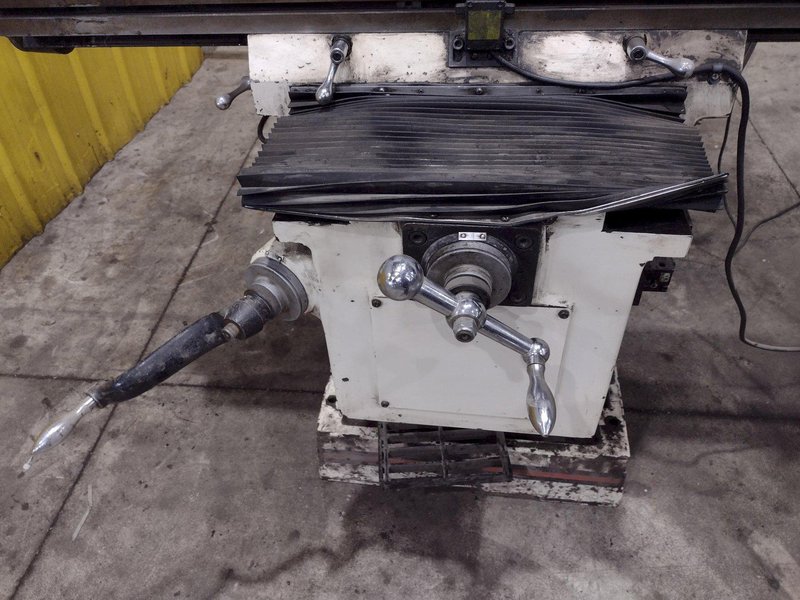

Travel of Knee ....................... 17-1/2"
Travel of Ram ........................ 20-1/2"
MOTOR ................................ 3 HP |
|
