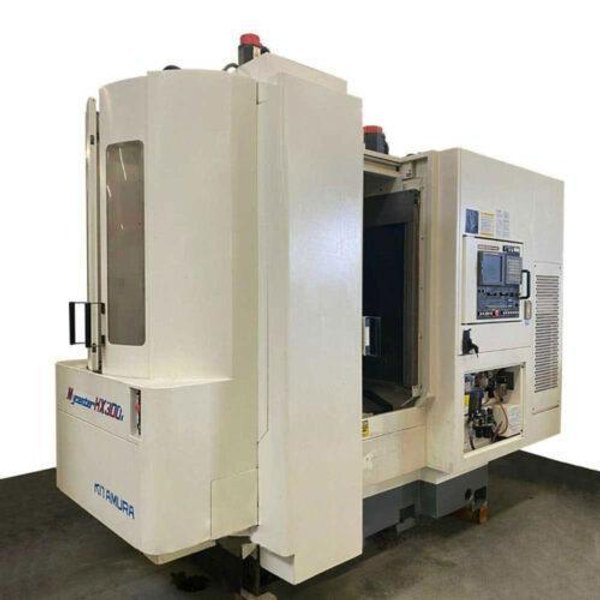

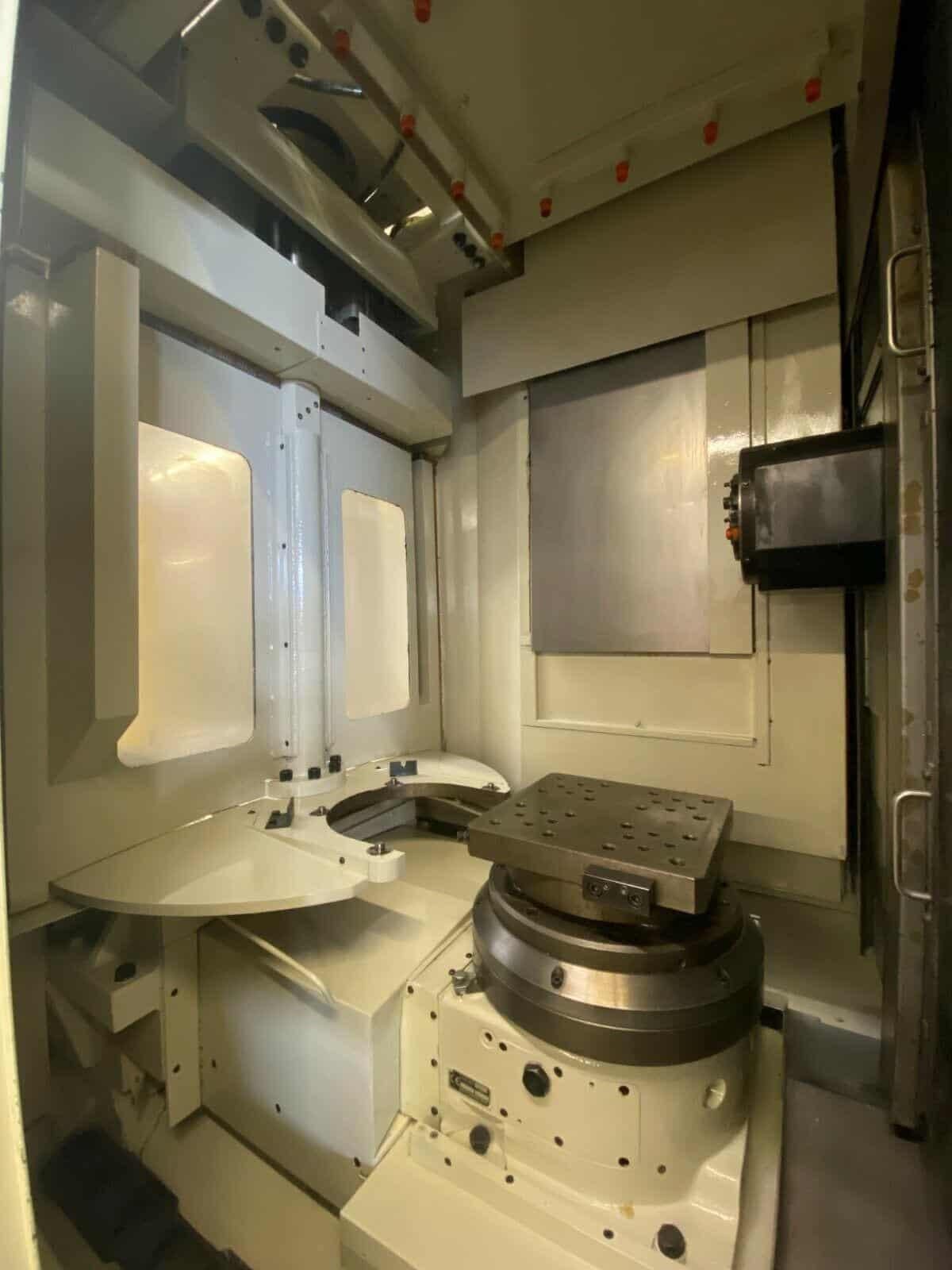

Kitamura HX-300i Horizontal Machining Center – Mill

Brand
KITAMURA
Category
Machining Centers
Type
Machining Centers, Horizontal
Model
KITAMURA HX-300I
Stock #
111836
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

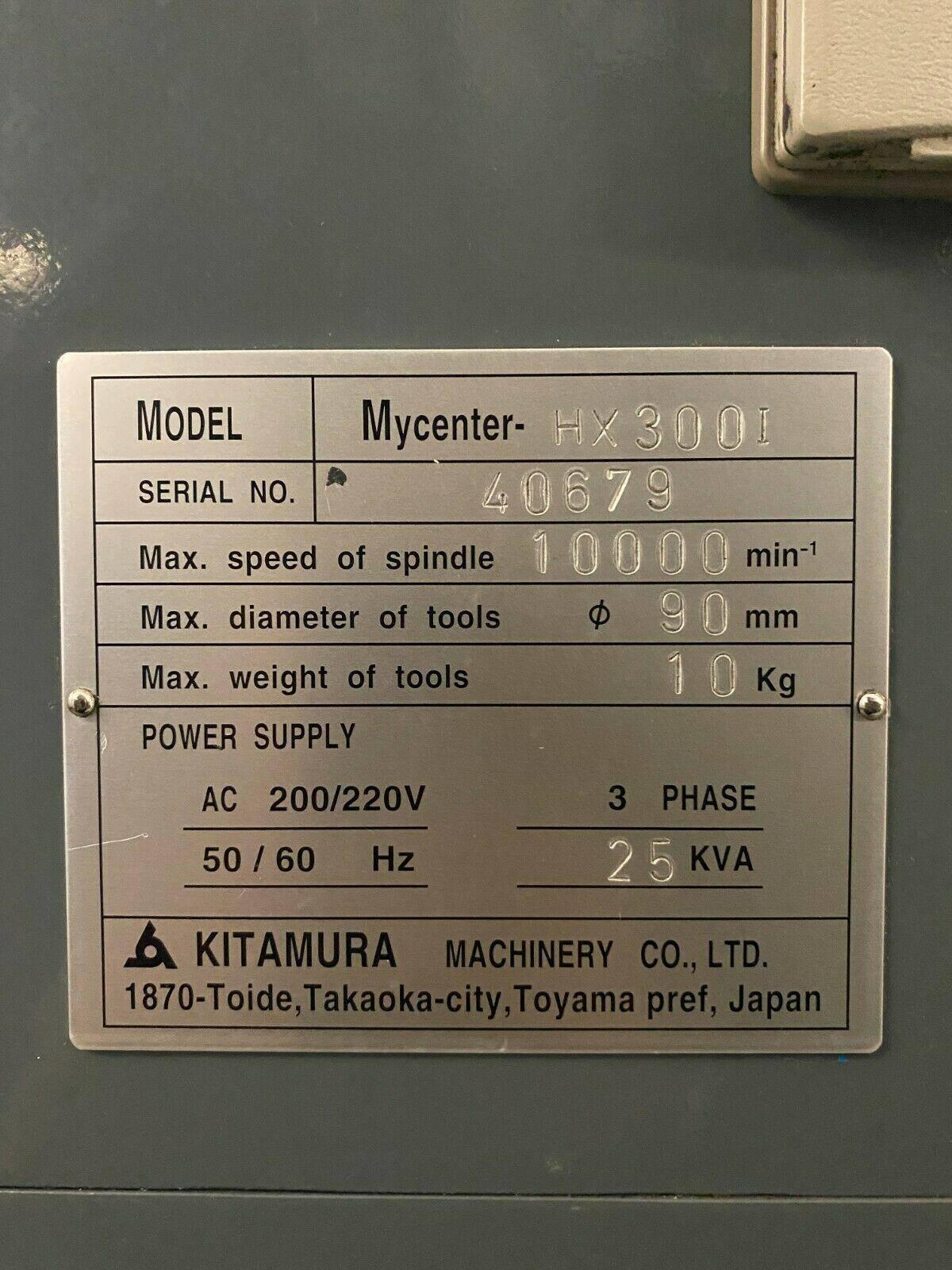

Make:  KITAMURA
Model:HX300I
Year:
Condition:Used – Good
Equipped With:

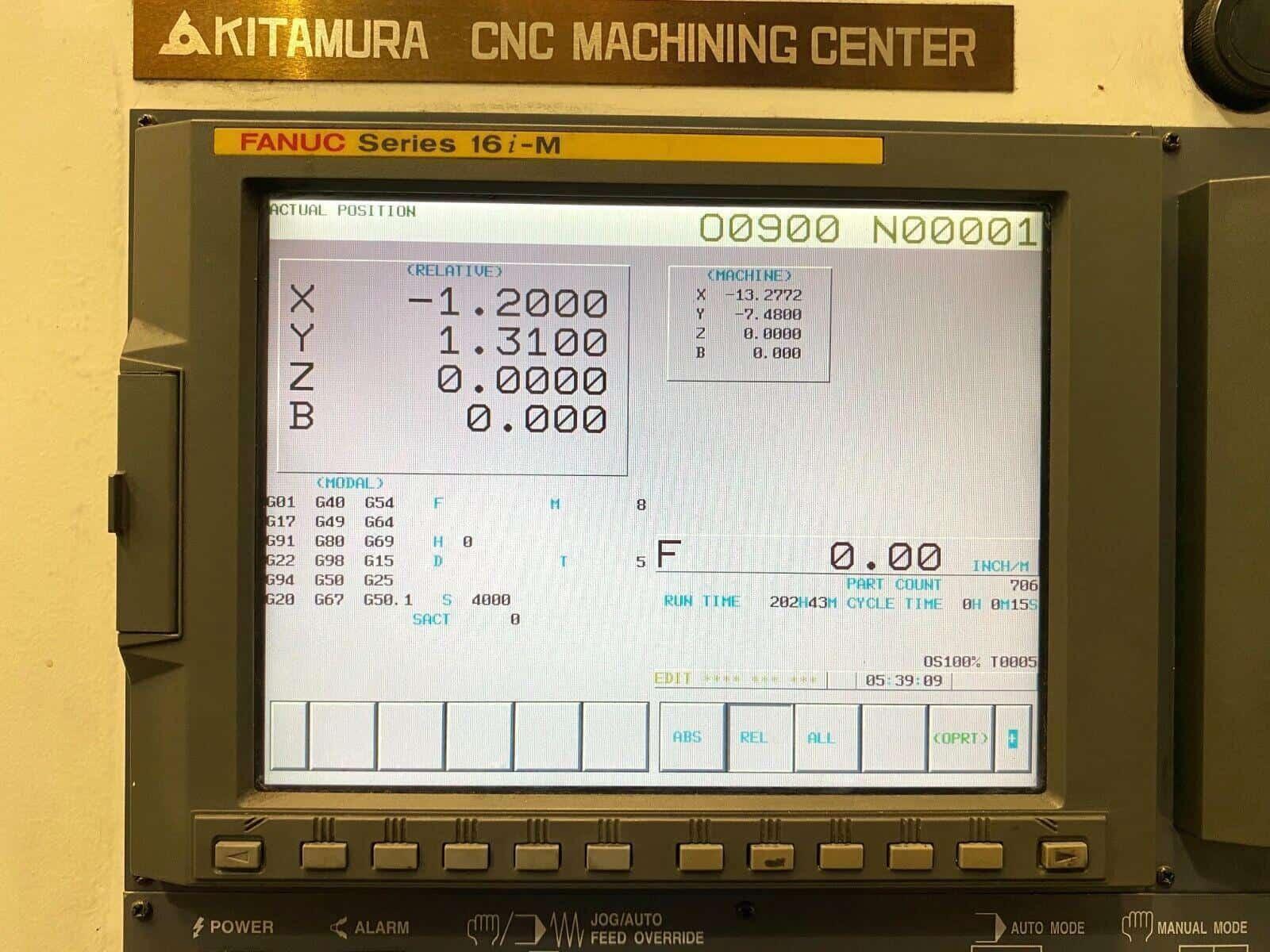

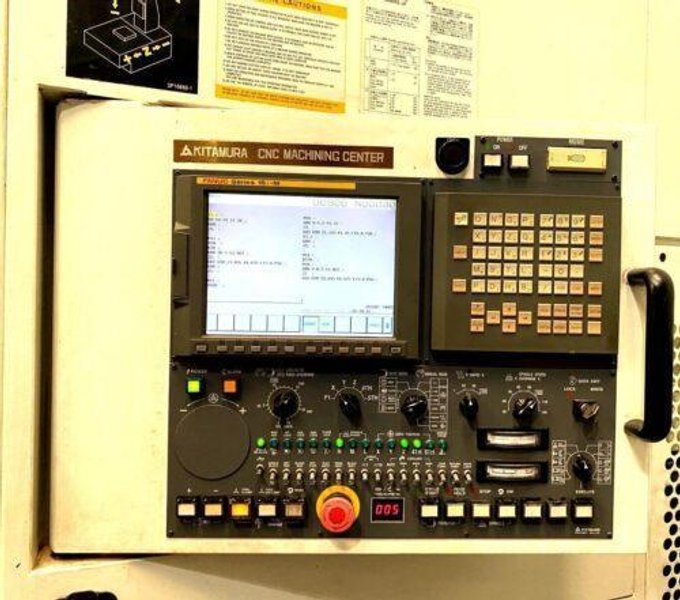

FANUC 16iM CNC Control
Full  4th Axis
10000 RPM High Torque Spindle
Through Spindle Coolant
Twin  Pallet Changer
40 Station Tool Changer
PCMCIA Card Slot
Upgraded Memory
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Helical Interpolation
Fast Rapid Traverse Rate
Flood coolant with large coolant tank
Chip Conveyor
Travels:
X Axis: 20.1″
Y Axis: 20.1″
Z Axis: 16.1″
B Axis: 0.001° ( Full 4th )
Spindle Nose to Table Center: 3.9″ – 20.1″
Spindle Center to Table Top: 1.6″ – 21.7″

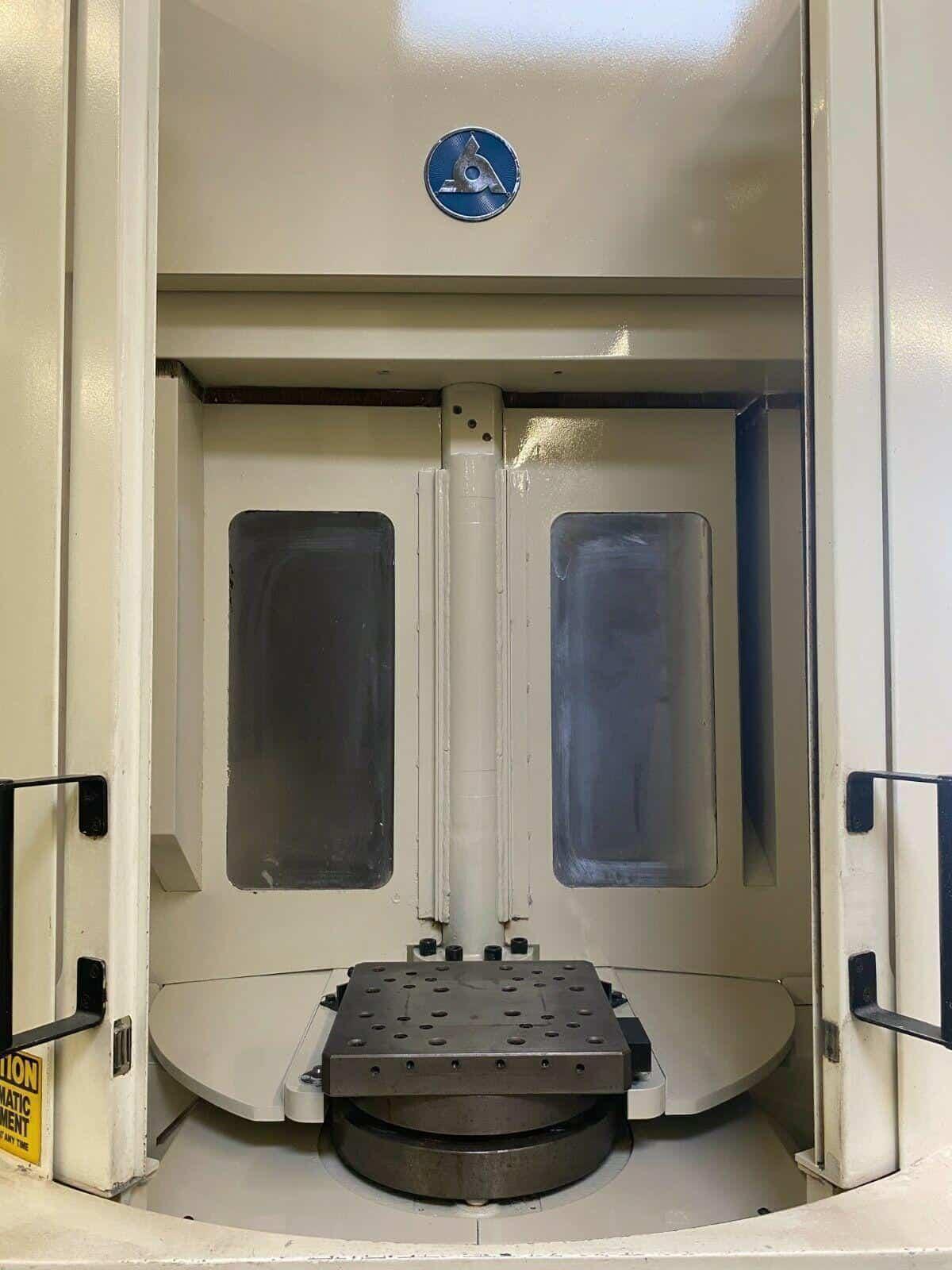

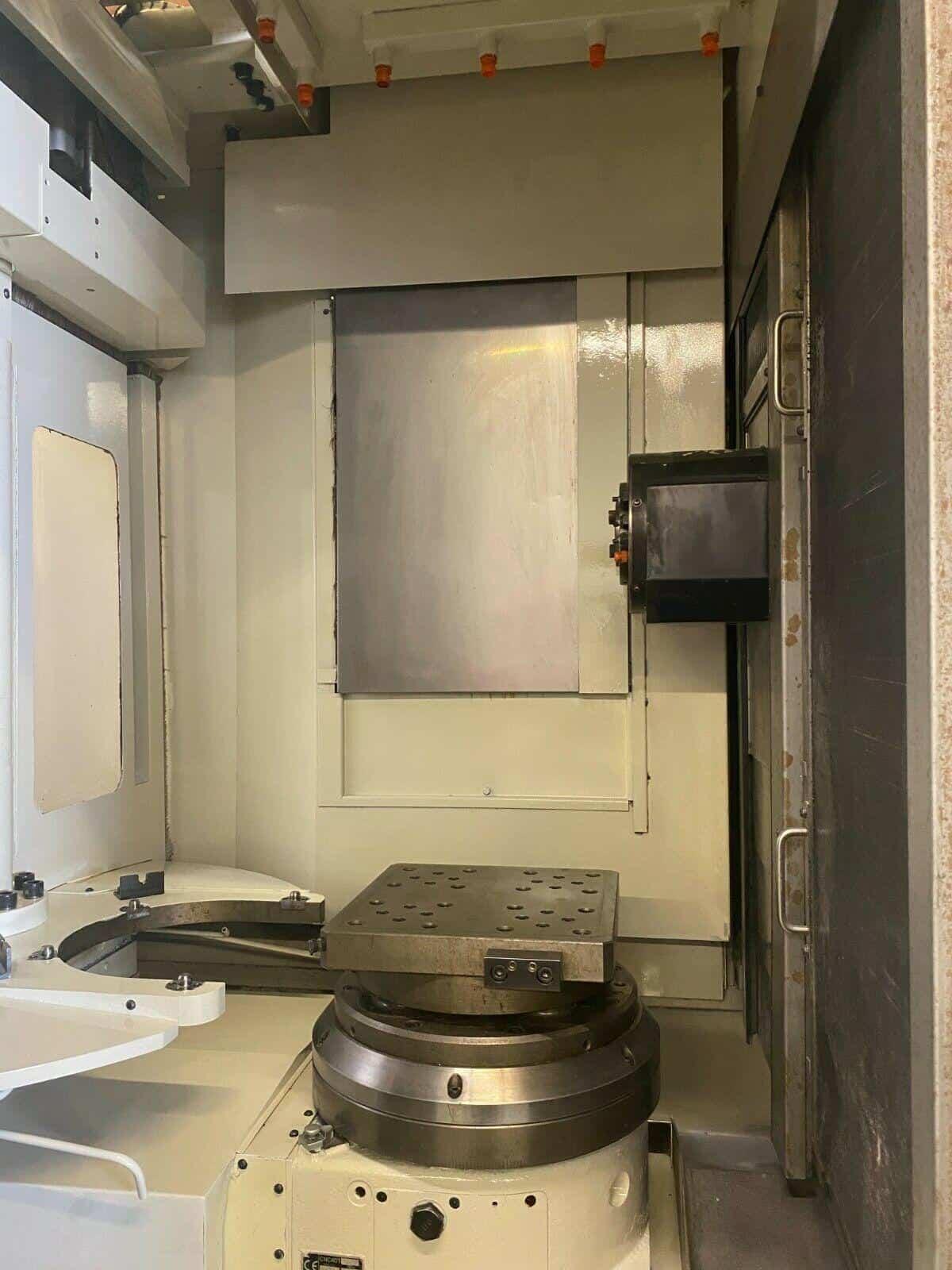

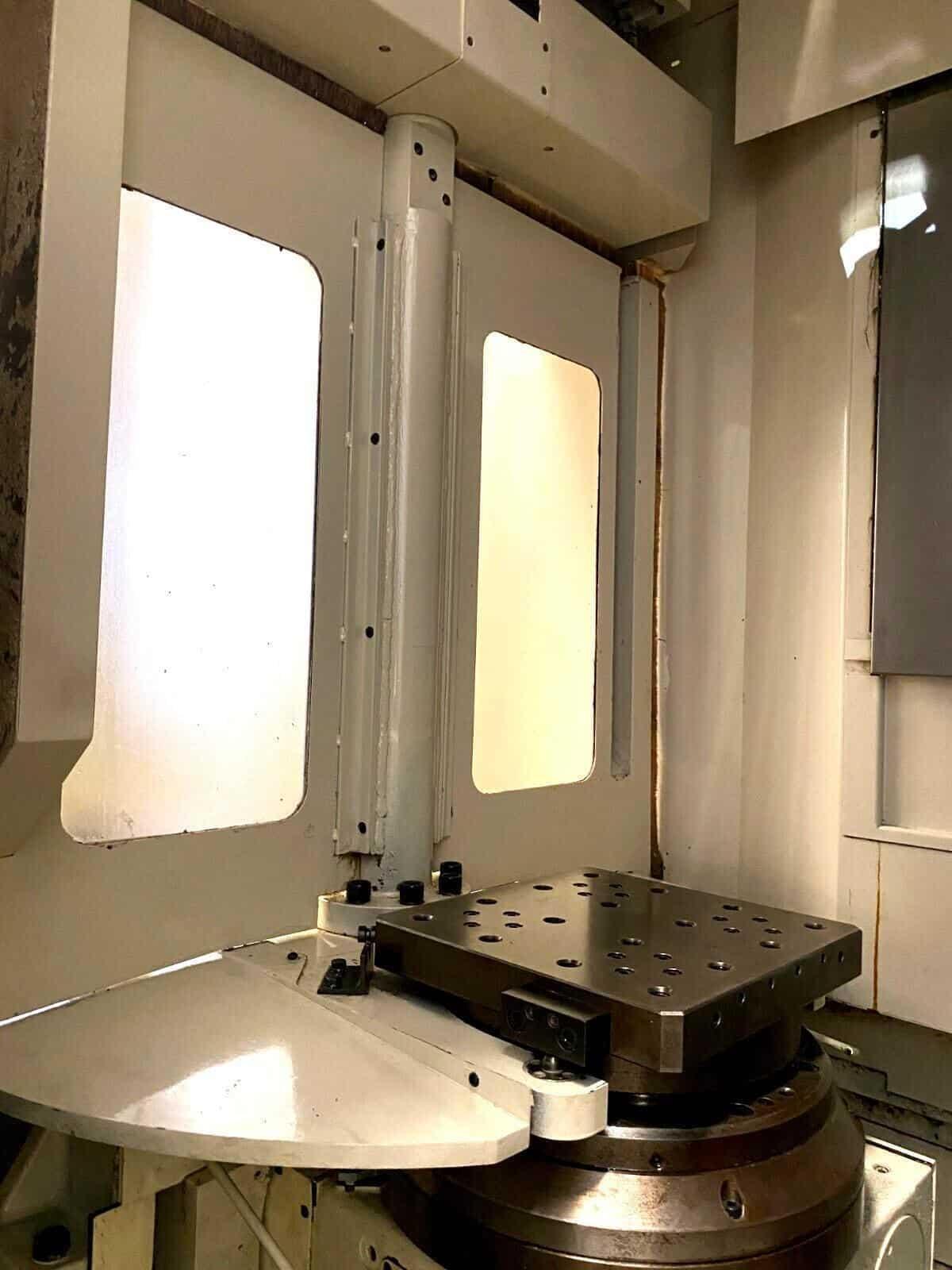

Table:
Length: 12.0″
Width: 12.0″
Max Weight on Table: 550 lbs
Index Time: 5.5 seconds

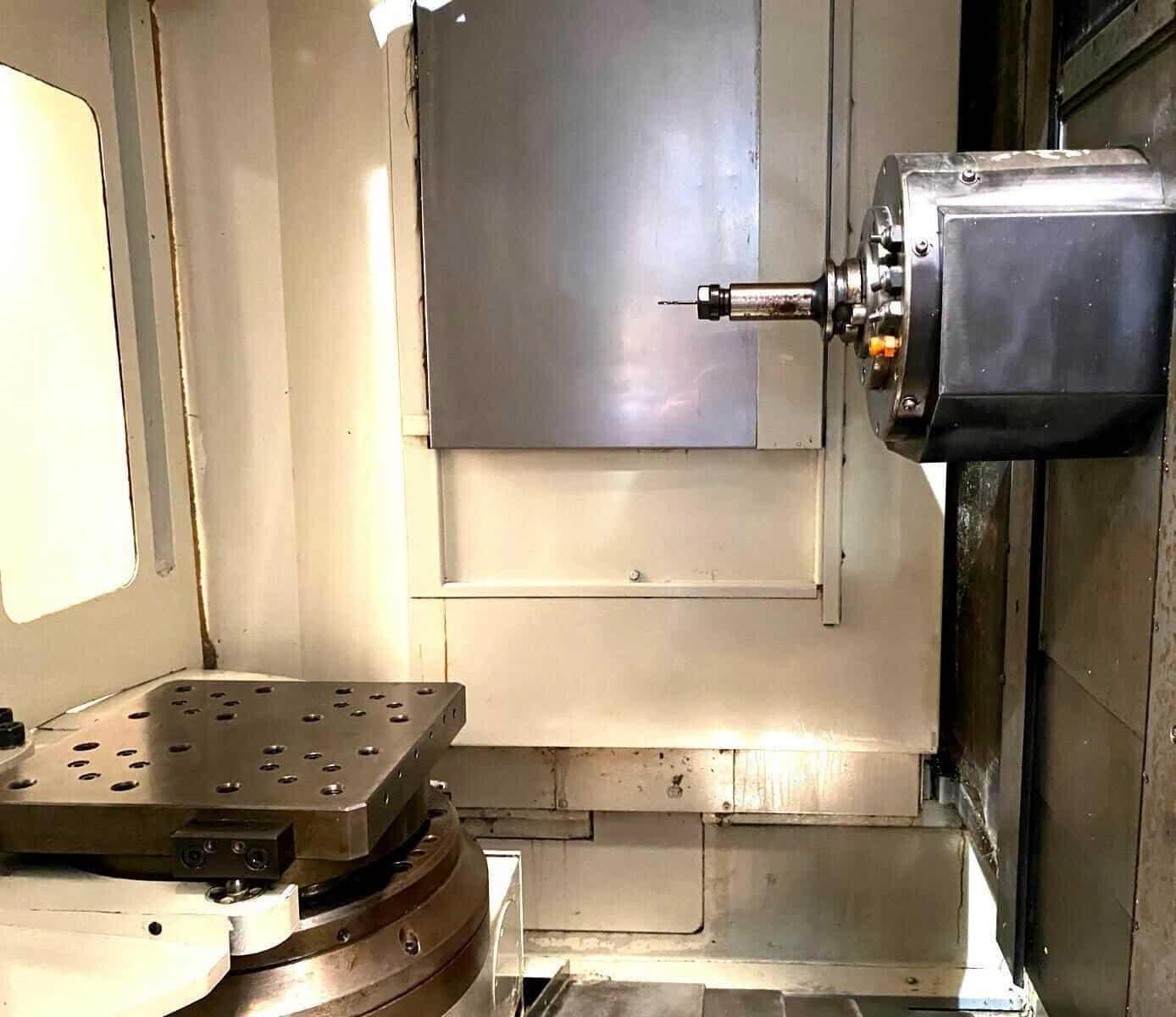

Spindle:
Taper Size: 40
Max. Speed: 10000 RPM
Power: 20 HP
Feed rates:
Rapid X & Y : 1969 Inch Per Minute
Rapid Z : 1969 Inch Per Minute
Cutting Feedrate: 1945 Inch Per Minute

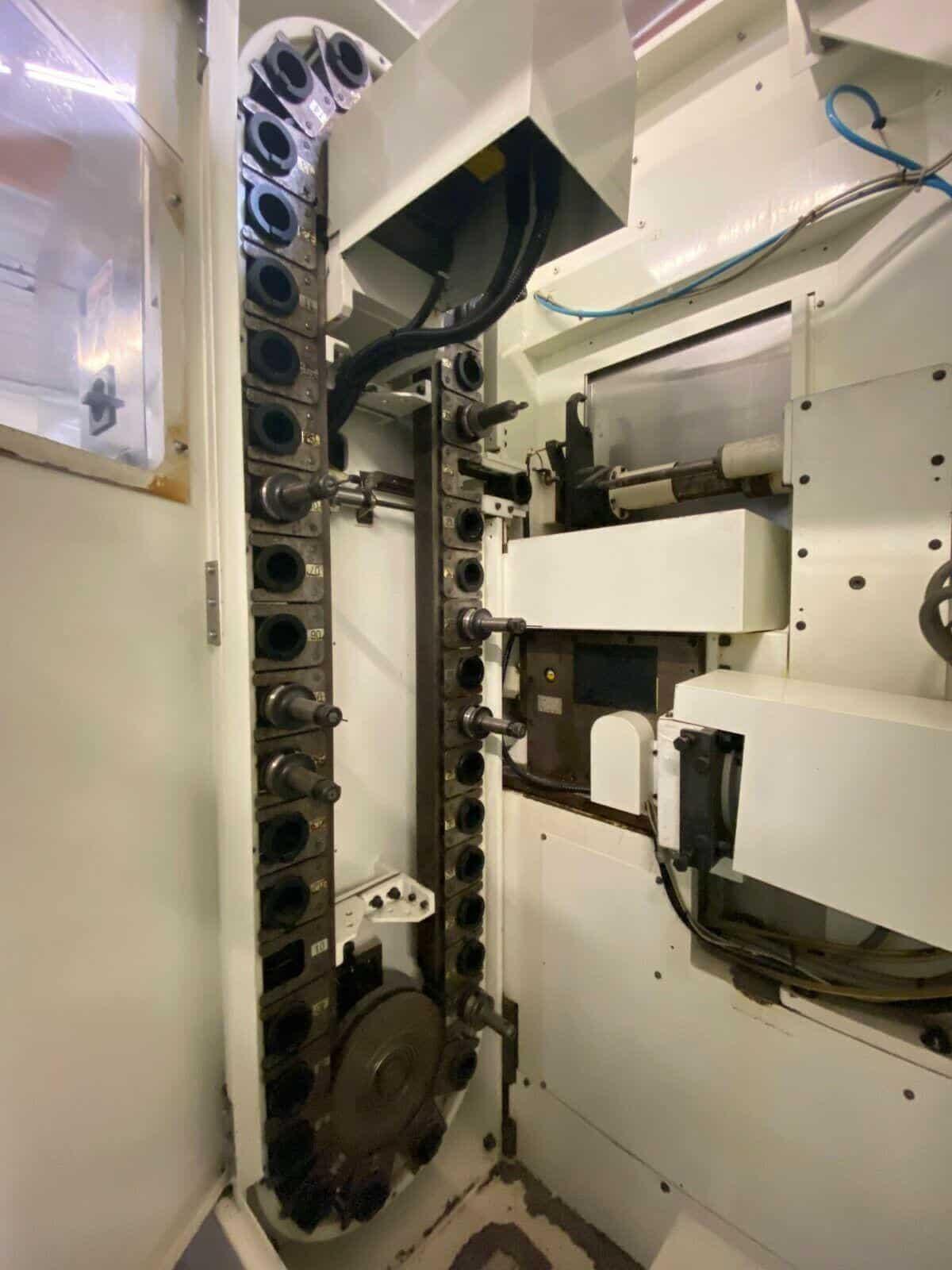

Tool changer:
Capacity: 40 Tools
Taper: BT-40
Max Tool Size: 3.54″
Max Tool Length: 11.8″
Max Tool Weight: 22.04 lbs.
Tool Change Time: 1.7 Second
General:
Air Required: 90 psi 4 scfm
Power: 25kva / 200-220v / 3-Phase
Overall Dimensions: 140″ X 90″ x 100″ High ?
Weight: 20000 lbs
“No Charges for loading at list Price”
