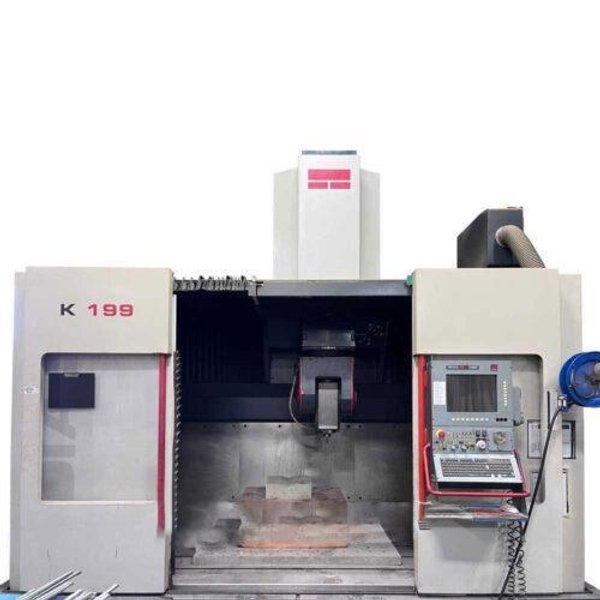

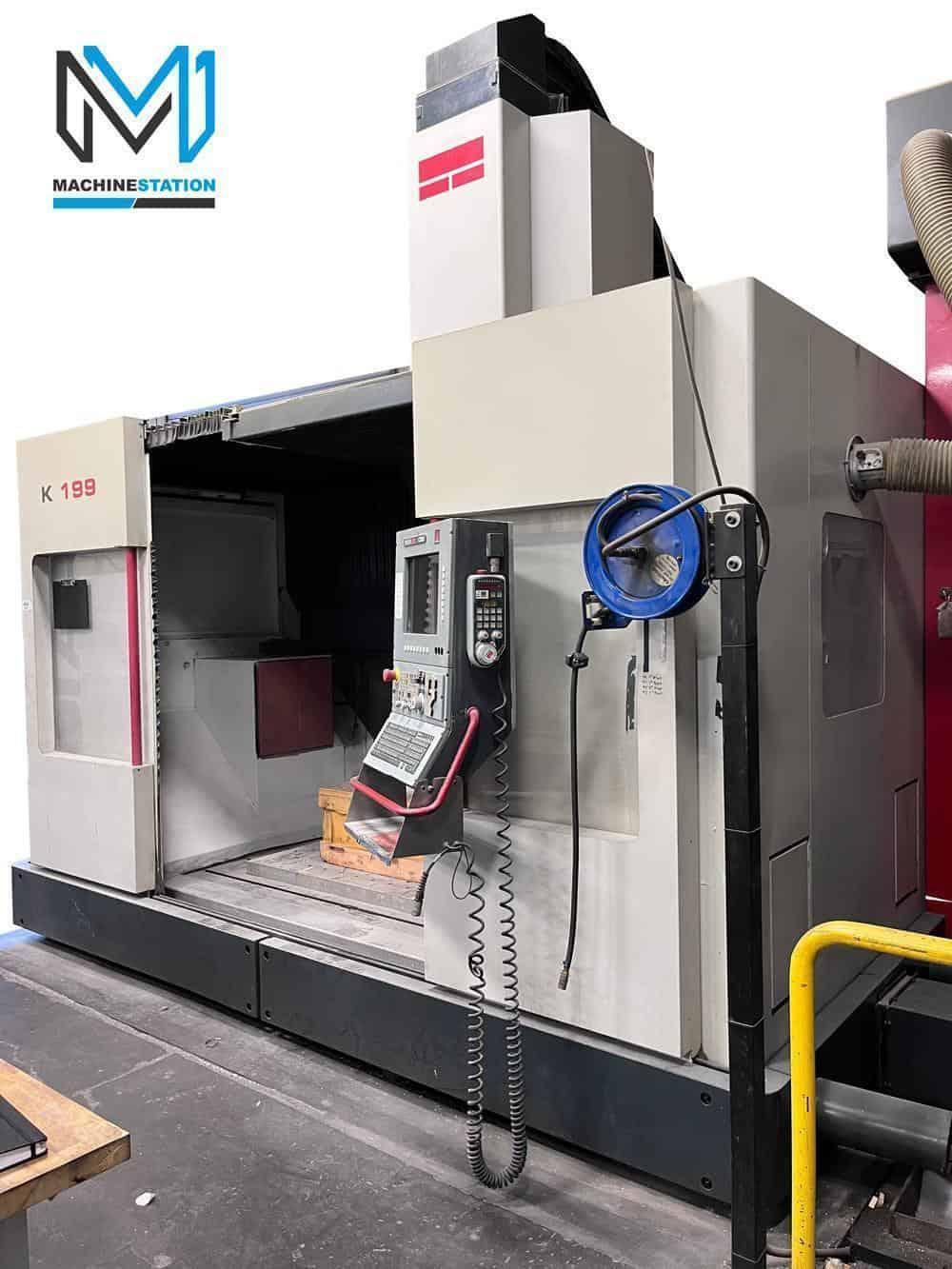

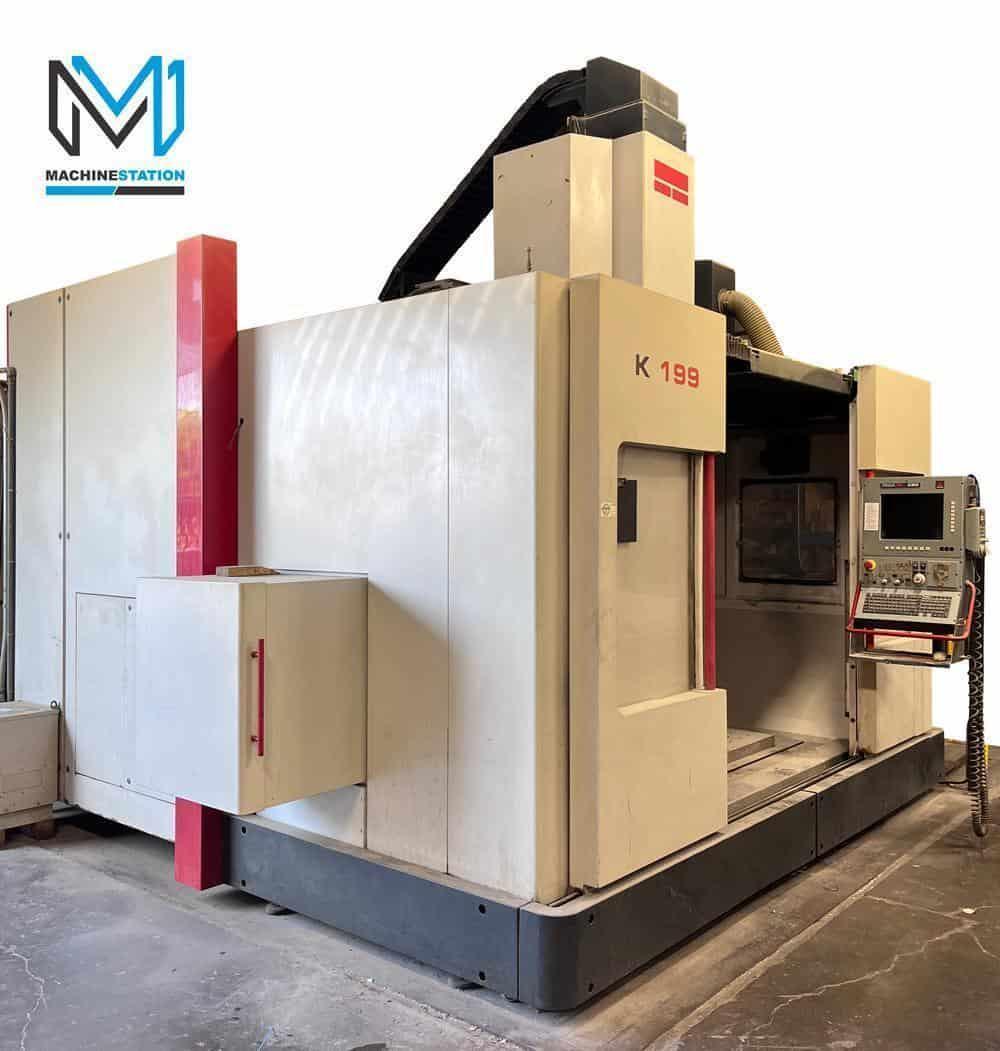

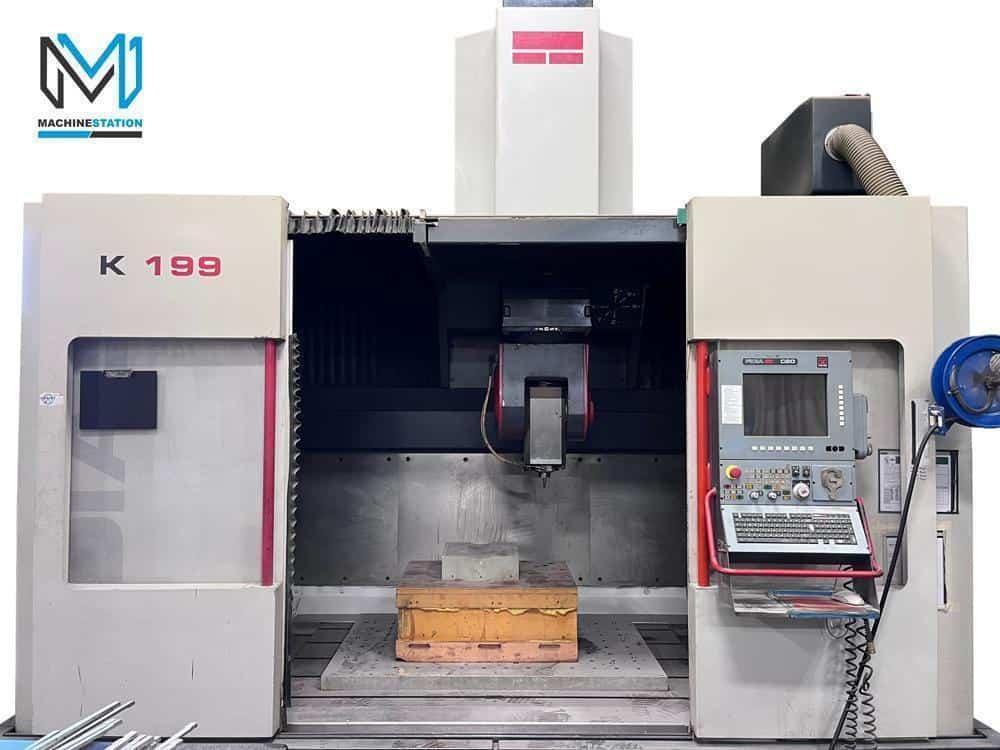

Fidia K199 5 Axis CNC Vertical Machining Center Mill 24000 Rpm

Brand
FIDIA
Category
Machining Centers
Type
Machining Centers, Horizontal, (5-Axis or More)
Model
FIDIA K199-5
Stock #
112363
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: FIDIA
Model: K199-5
Year: 2006
Condition: Used – Good



Features:

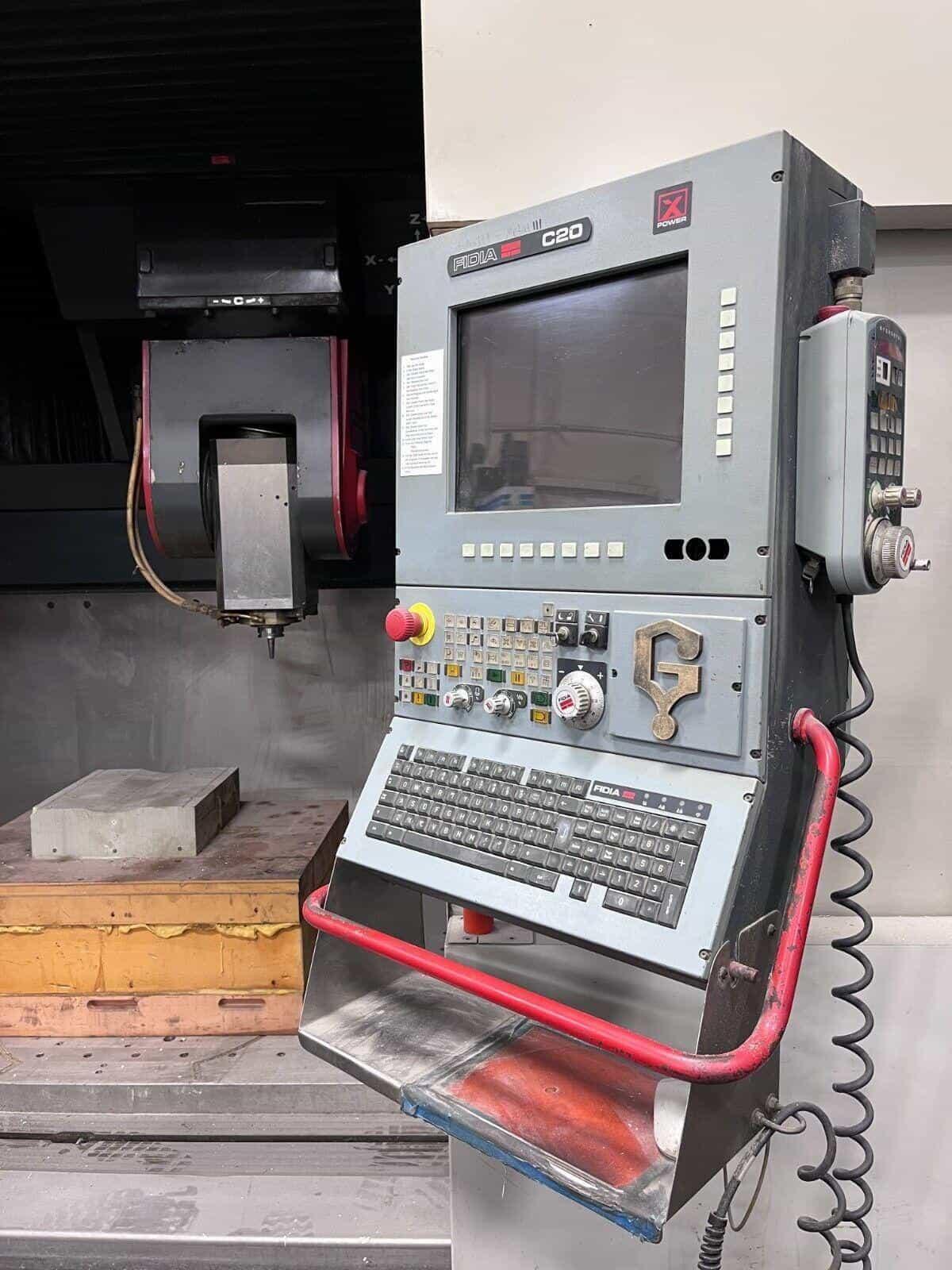

FIDIA C-20 Series CNC Control
Simultaneous 5 Axis Cutting

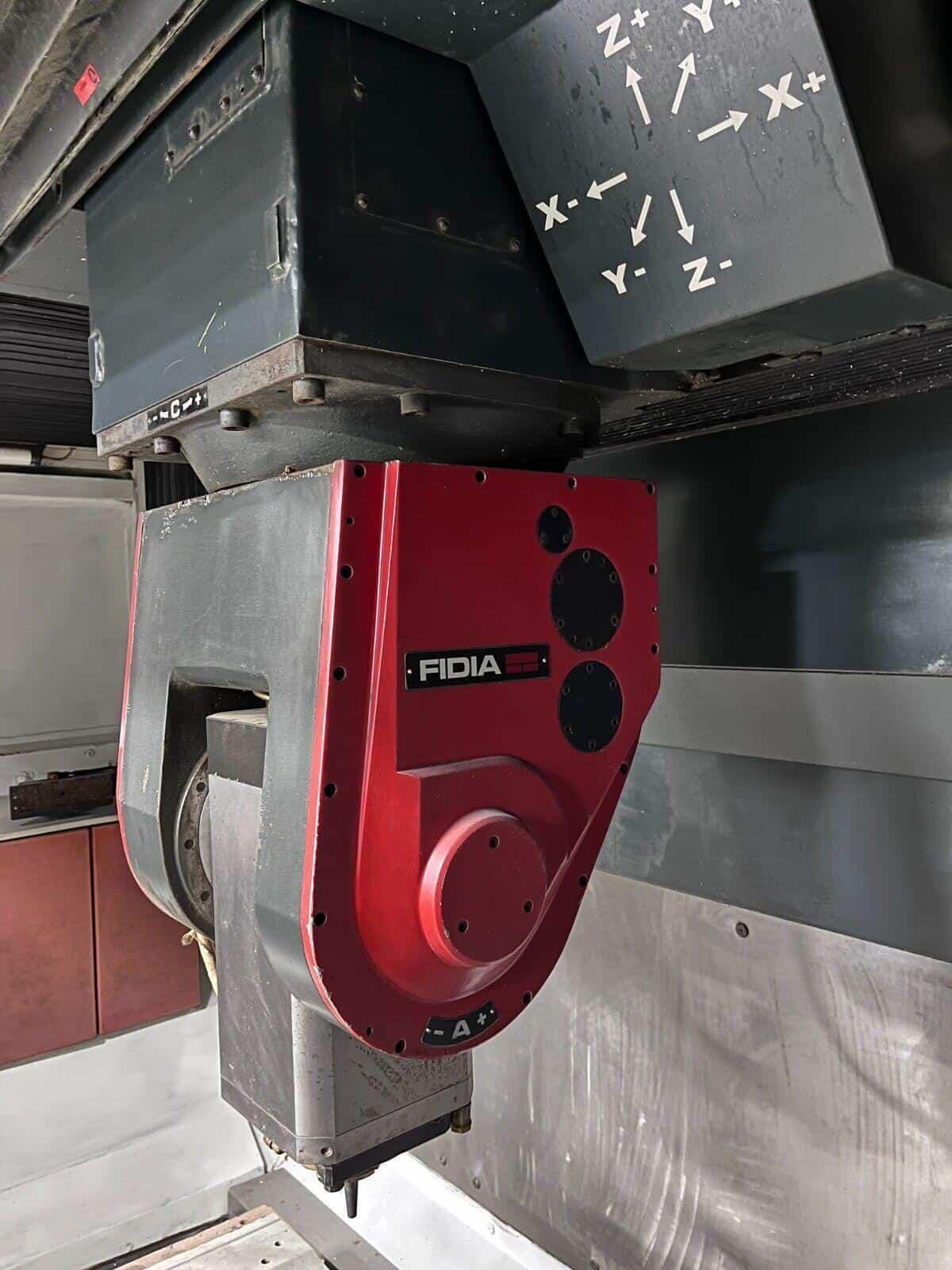

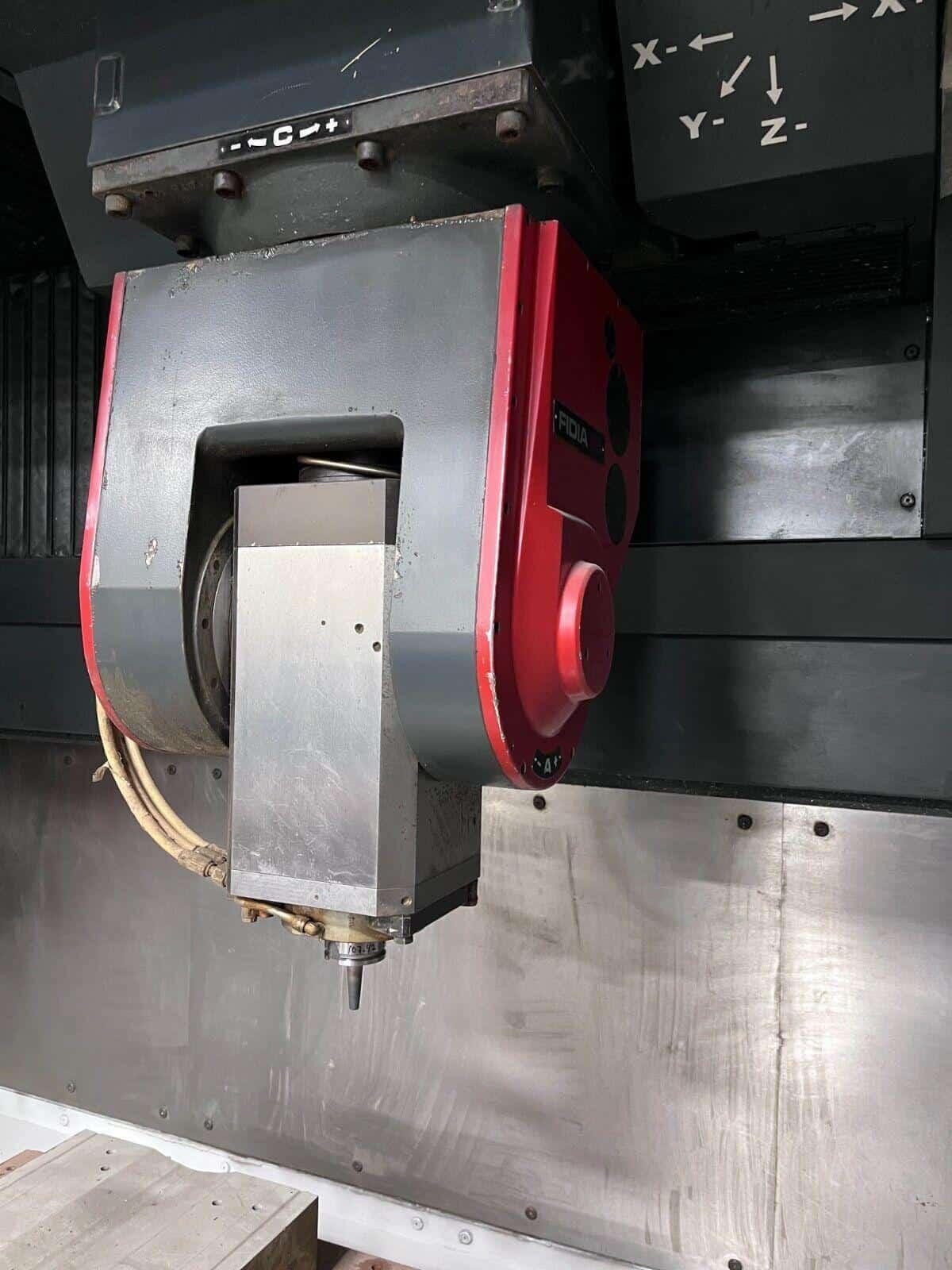

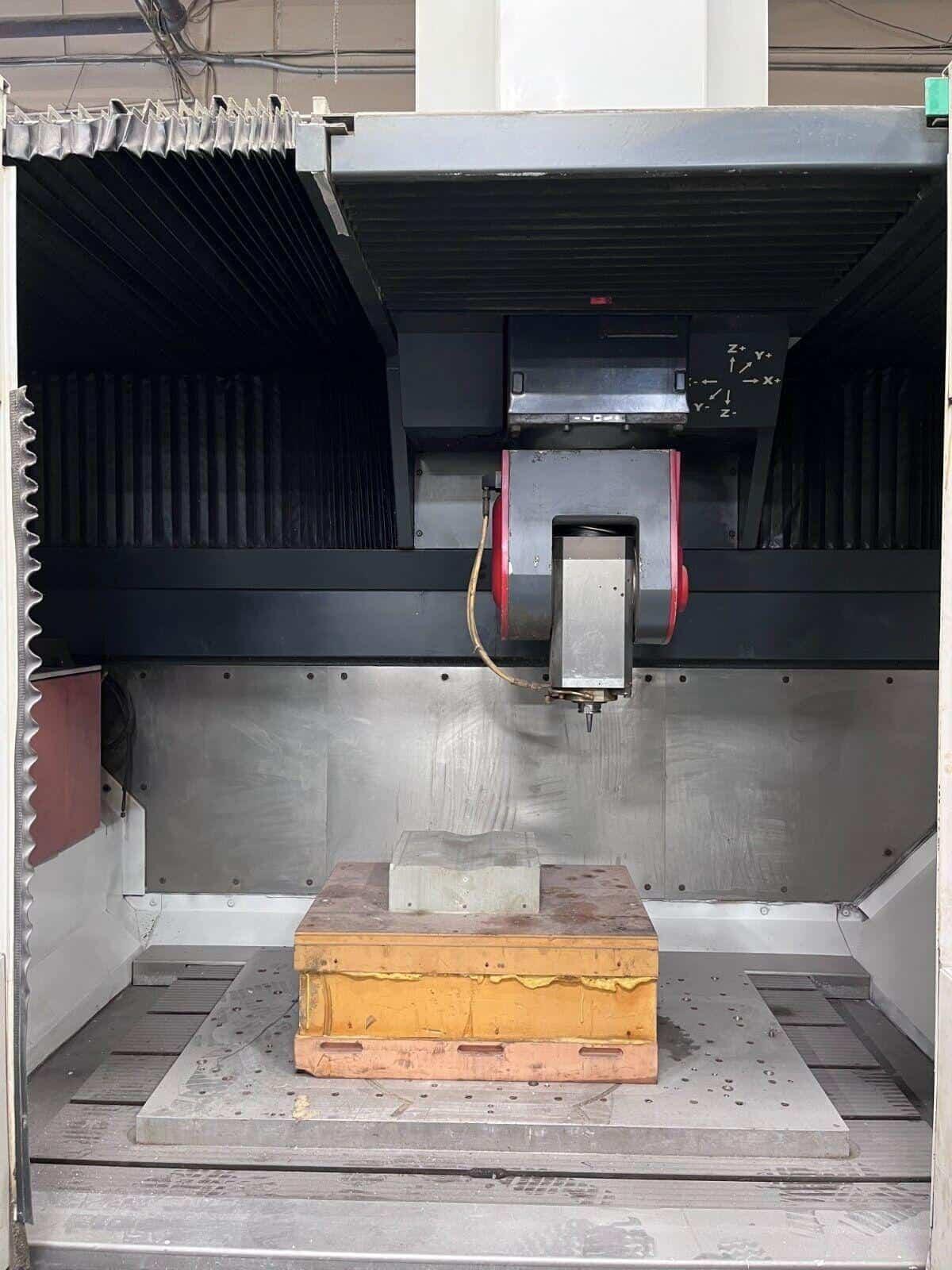

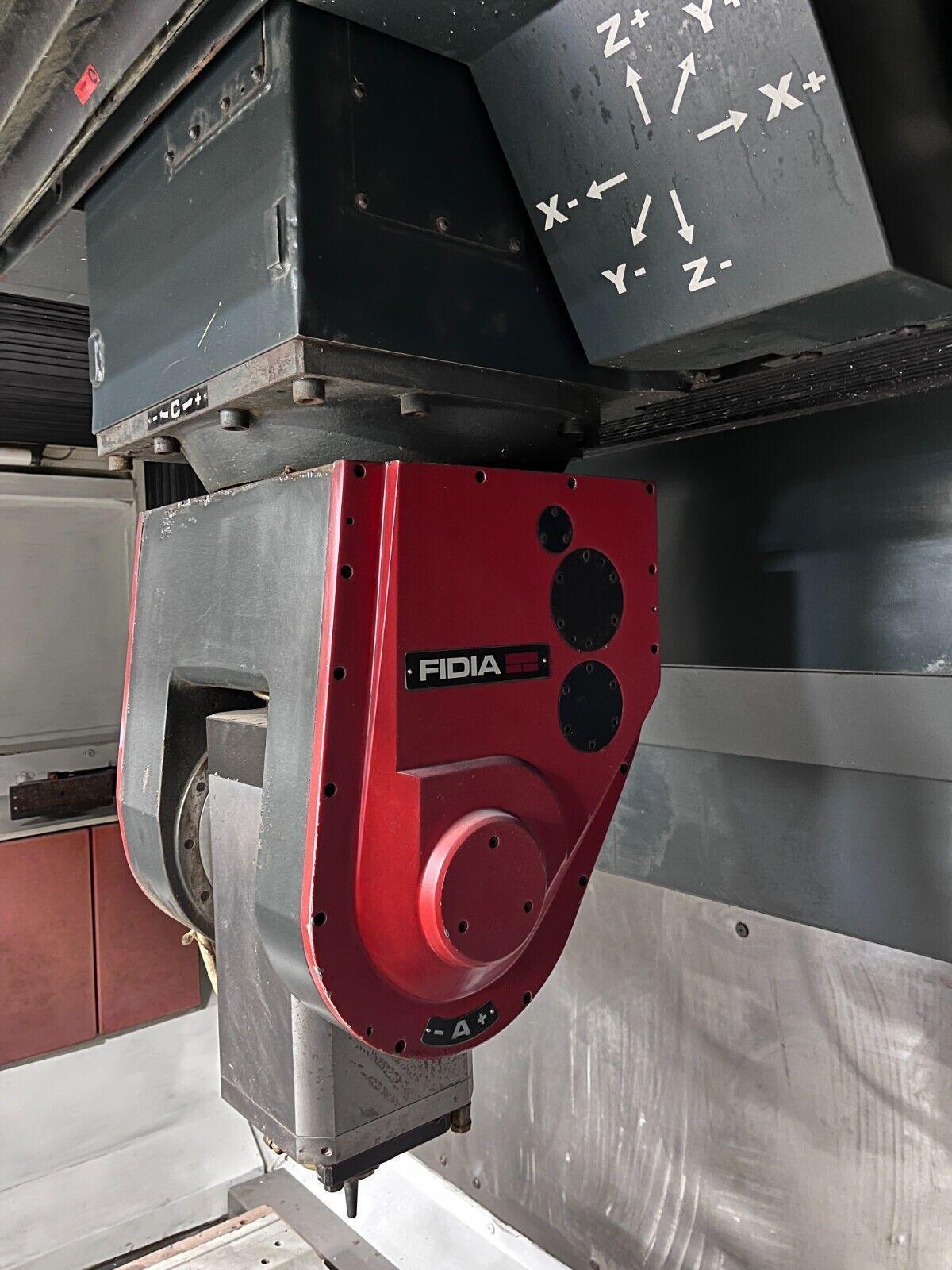

Swivel Milling Head (A & C Axis)
Gantry/Bridge Column Movement
Three-Dimensional Milling on High Speed
Scanning of Models With Storing of Tool Path
Three-Dimensional Measuring System
24000 RPM High Speed Spindle
24 Station Automatic Tool Changer
26455 lbs Heavy Table Load Capacity
Fast Rapid Traverse Rate
Coolant Through Spindle
Spindle Oil Cooler
Hand Wheel MPG Control
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Dust Collector
Coolant Tank

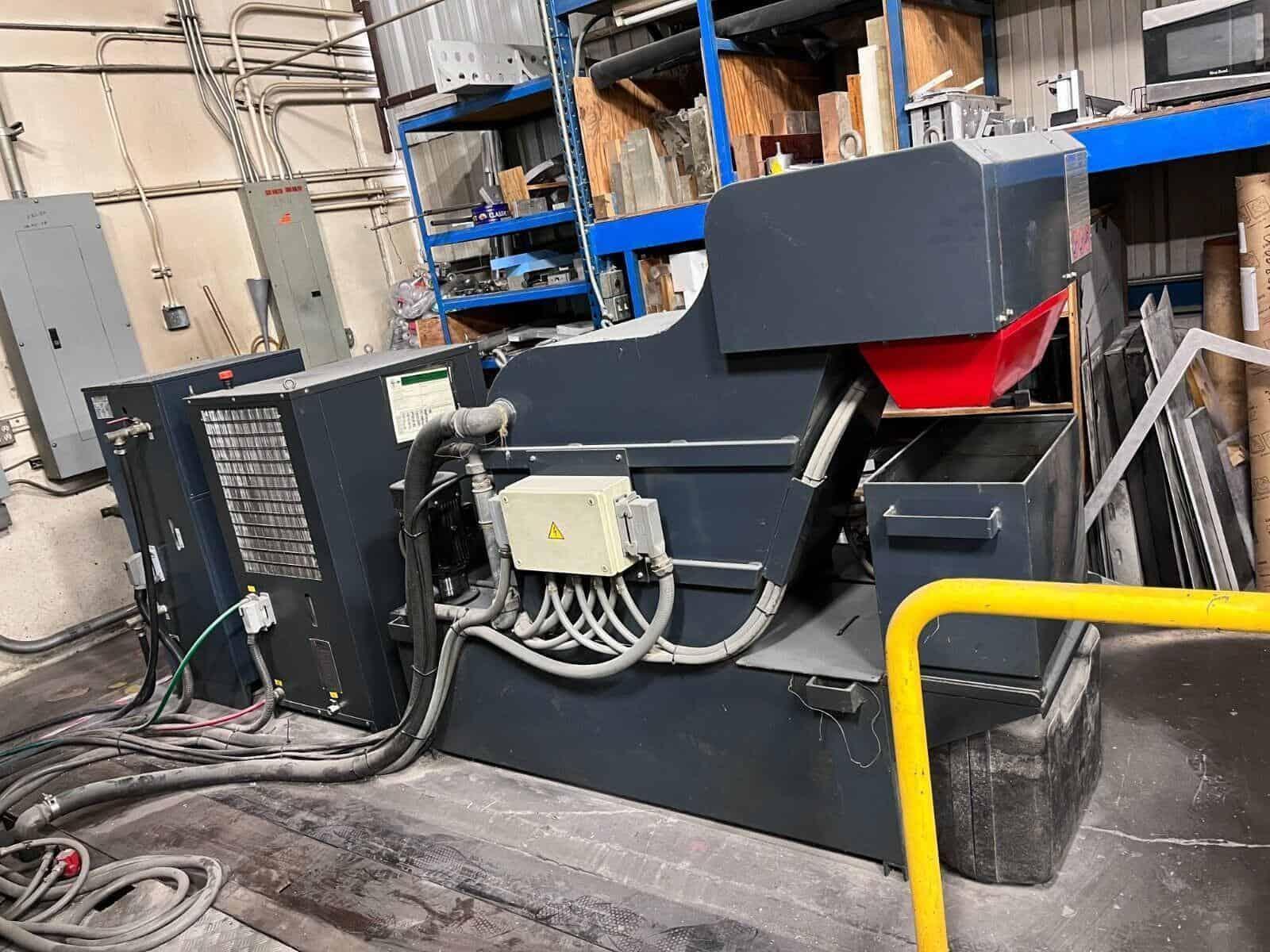

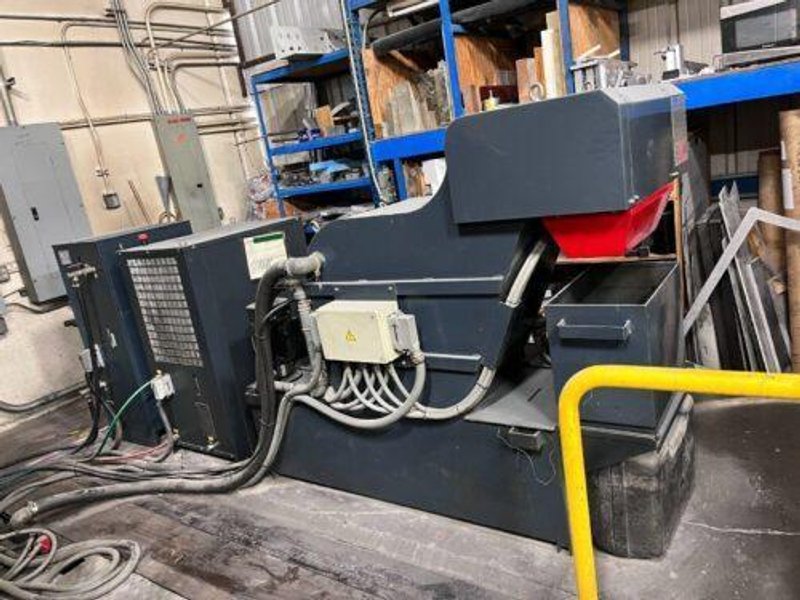

Chip Conveyor
Books & Manuals



Travels:
X Axis: 71″
Y Axis: 36″
Z Axis: 33″
A Axis: +95˚/ -110˚ (Swivelable)
C Axis: +200° / – 200° (Rotate)
Min. Increment: 0.001°



Table:
Length: 79″
Width: 49″
Number of Std T-Slots: 5
T-Slot Width: 0.70″ x 10″
Max Weight on Table: 26455 lbs
Table to Spindle Nose: 3.9″ – 35.82″



Spindle:

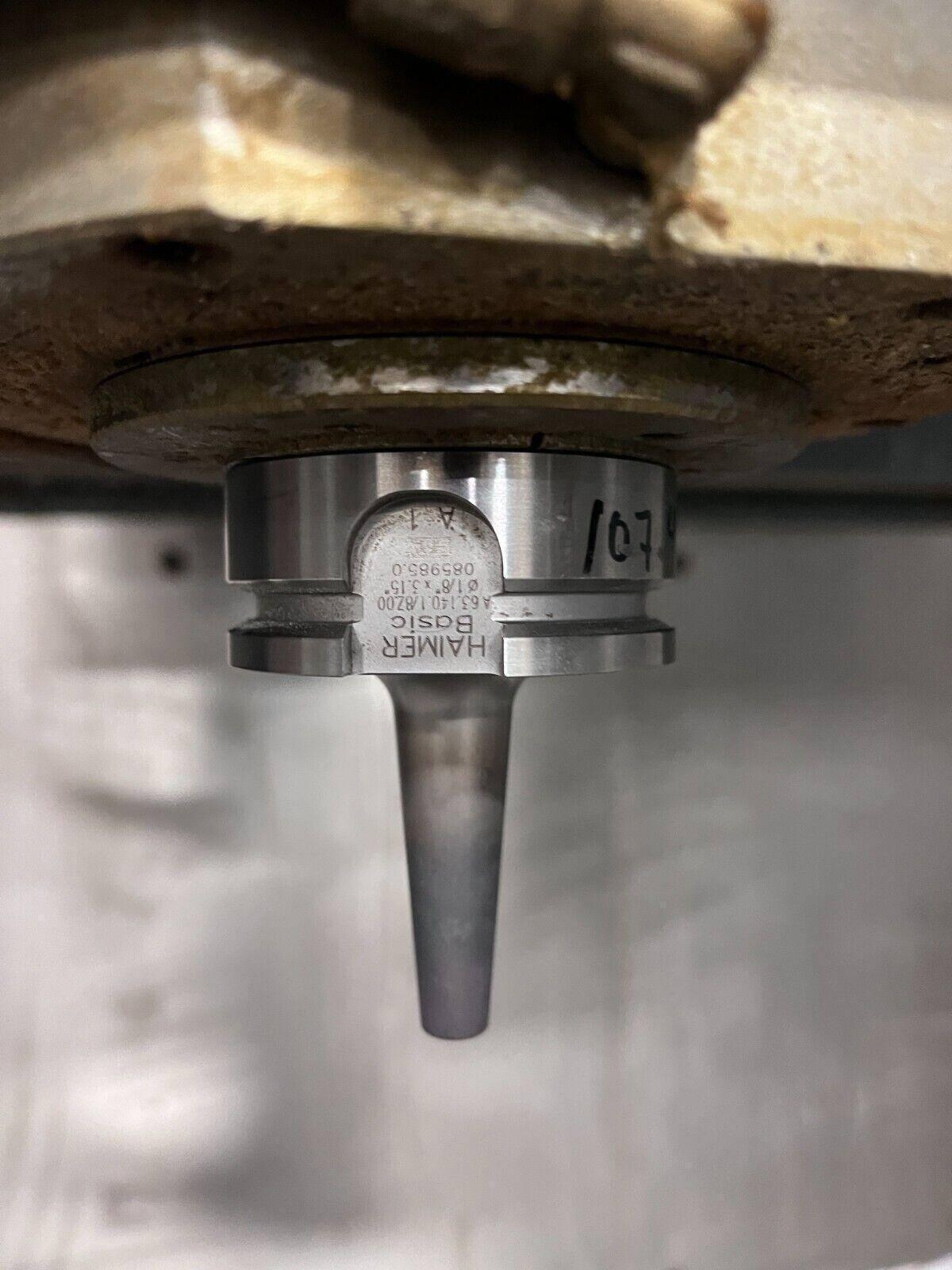

Taper Size: HSK 63A
Speed Range: 24000 RPM
Spindle Power: 46 HP



Feed rates:
Rapid X Y Z Axis: 1181 IPM
Rapid A: 3.240˚ / min
Rapid C: 3.240˚ / min
Cutting Feed rate: 394 IPM



Tool changer:
Capacity: 24 Tools
Taper: HSK 63A
Max Tool Size: 4.92” x 12”
Max Tool Weight: 17.63 lbs.
Tool Change Time: 5.5 Second



General:
Air Required: 80 psi 4 scfm

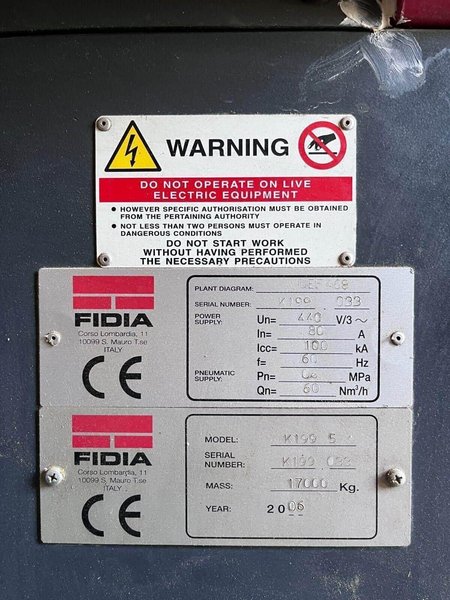

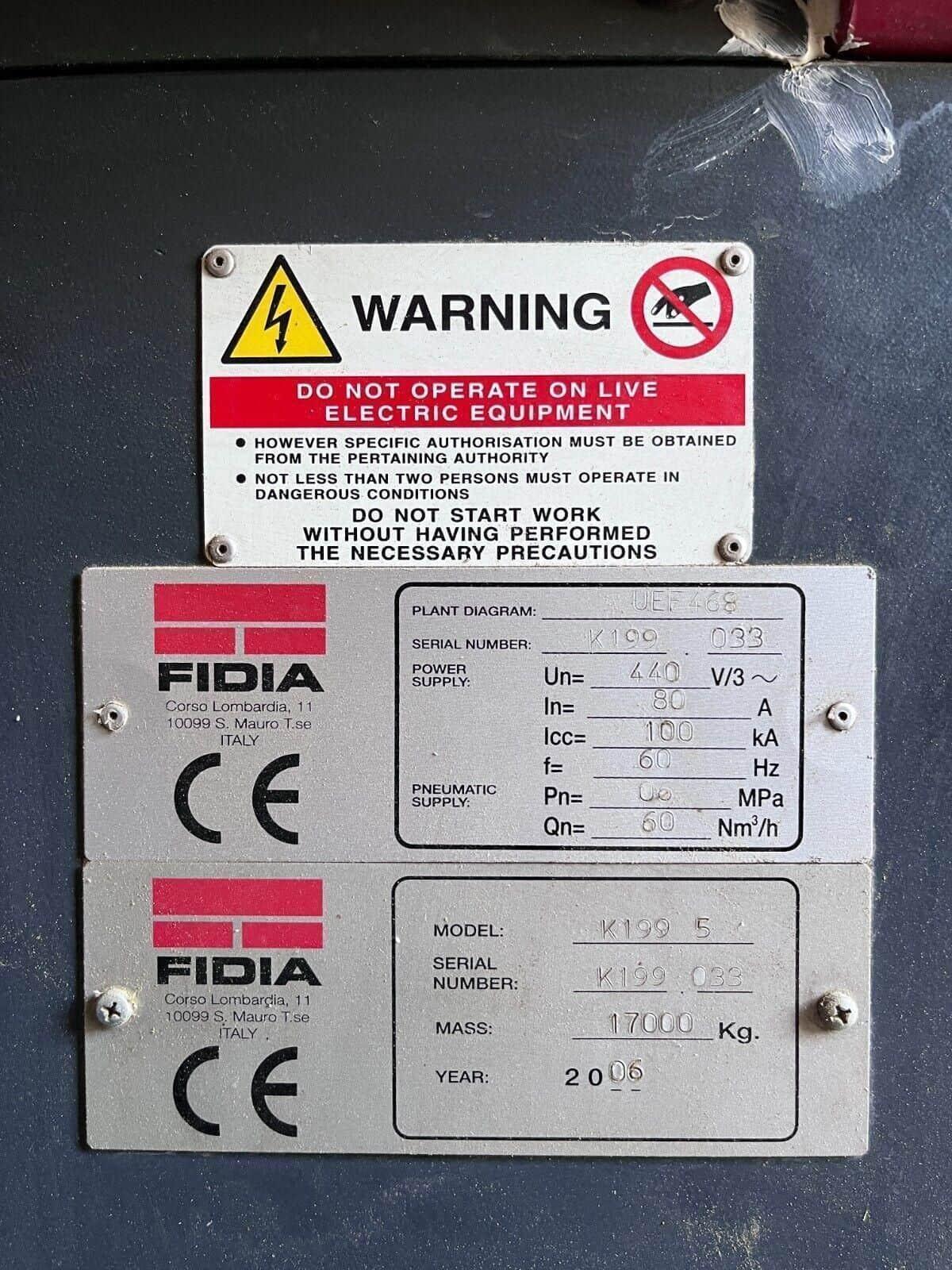

Power: 100 kva /440v / 3-Phase
Overall Dimensions: 236” x 197” x 177″ High
Weight: 37478 lbs



“No Charges for loading at list Price”
