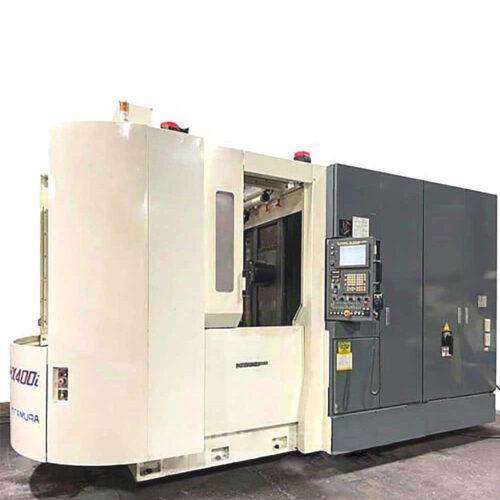

Kitamura HX-400i CNC Horizontal Machining Center

Kitamura HX-400i CNC Horizontal Machining Center

Name: Used KITAMURA HX-400i For Sale 112275
Brand: KITAMURA
SKU: 112275

Brand

KITAMURA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112275
Make:	Kitamura
Model:	HX-400i

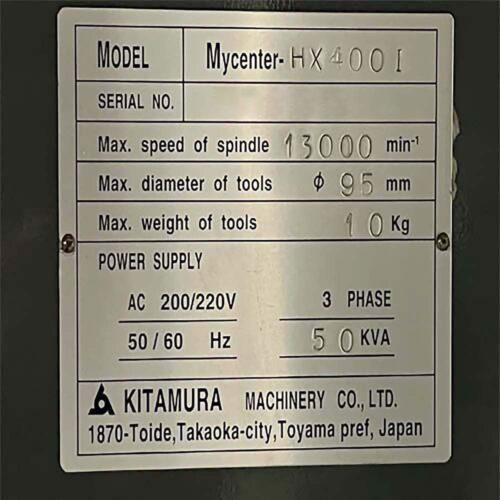

Serial:	42525
Cutting Hours:	10809

Features:
Fanuc 16iMB CNC Control w/10.4 Color LCD
Full 4th Axis
13,000 RPM Geared Head Spindle
Through Spindle Coolant

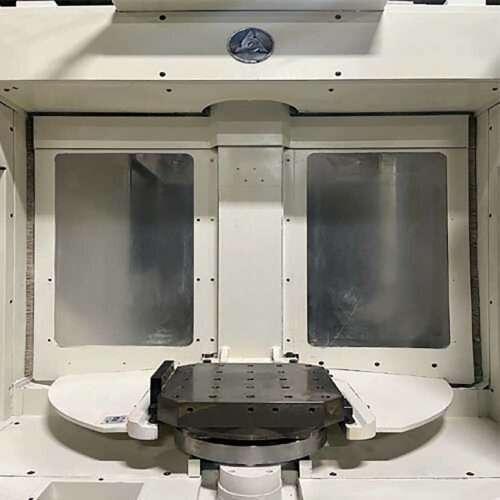

Twin Pallet Changer
50 High Speed Tool Changer
Scales on the Axis
PCMCIA Card Slot
MPG Control
50 MB Memory
Overhead Shower Coolant
Spindle Orientation
Rigid Tapping
Custom Macros
Fast Rapid Traverse Rate
Spindle Chiller
Flood coolant with large separate coolant tank
Chip Conveyor

Travels:
X Axis: 28.93″
Y Axis: 24.01″
Z Axis: 24.01″
B Axis: 0.001° ( Full 4th )

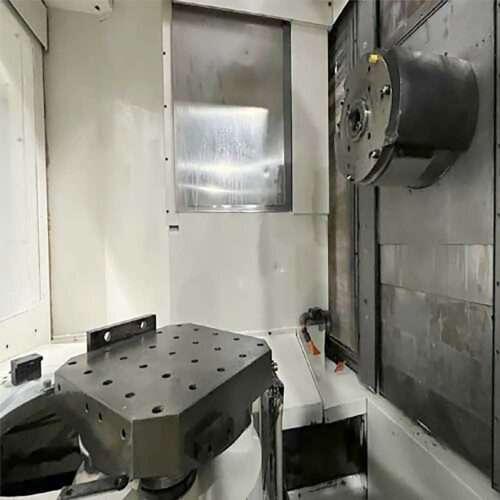

Table:
Length: 15.7″
Width: 15.7″
Max Weight on Table: 882 lbs
Max Workpiece Dia: 27.5″
Max Workpiece Height: 37.8″
Index Time: 6 seconds

Spindle:
Taper Size: CAT 40
Max. Speed: 13,000 RPM
Power: 30 HP
Torque: 76.7 ft/lbs

Feed rates:
Rapid X & Y : 1968 Inch Per Minute
Rapid Z : 1968 Inch Per Minute
Cutting Feedrate: 984 Inch Per Minute

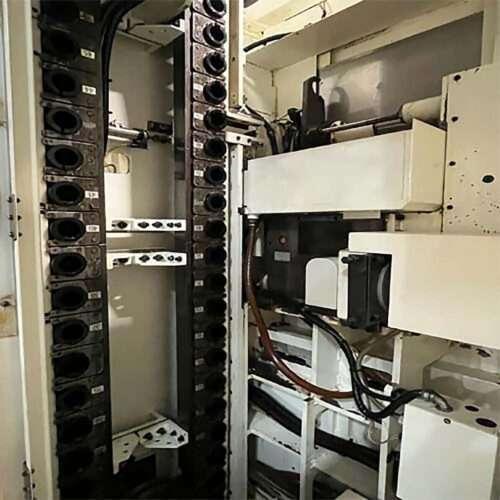

Tool Changer:
Capacity: 50 Tools
Taper: 40
Max Tool Size: 5.9″
Max Tool Length: 17.7″
Max Tool Weight: 22 lbs.
Tool Change Time: 0.9 Second

General:
Air Required: 90 psi, 4 scfm
Power: 45kva / 205-220v / 3-Phase
Overall Dimensions: 165″ X 105″ x 120″ High
Weight: 28,700 lbs
