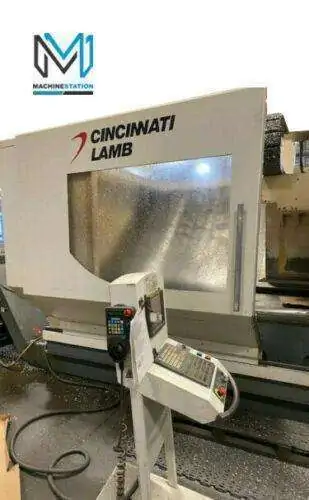

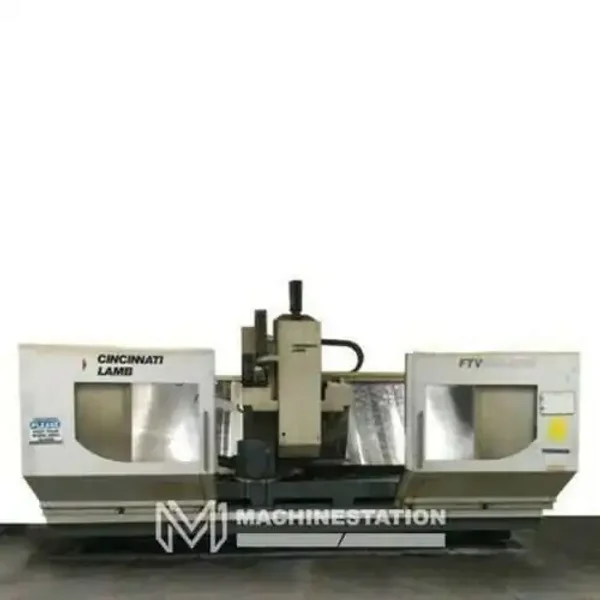

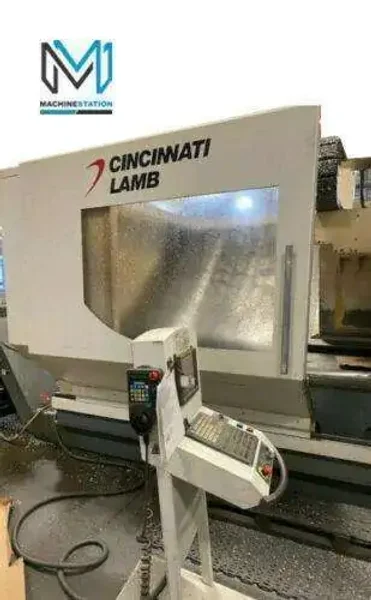

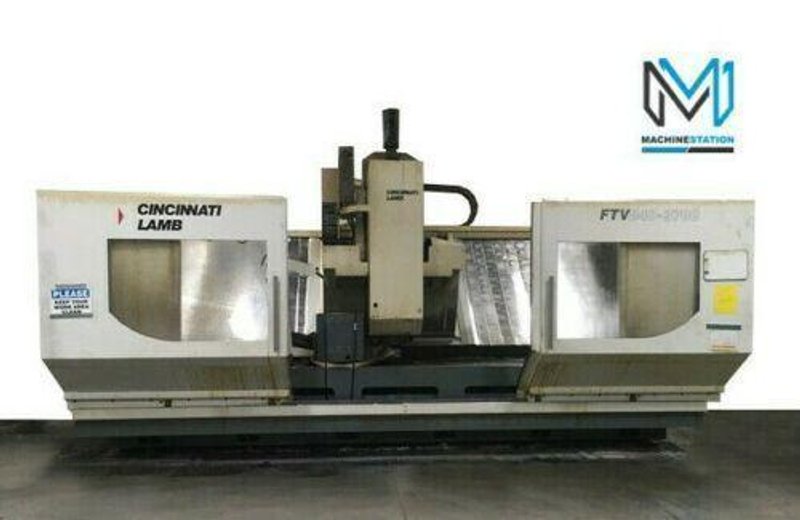

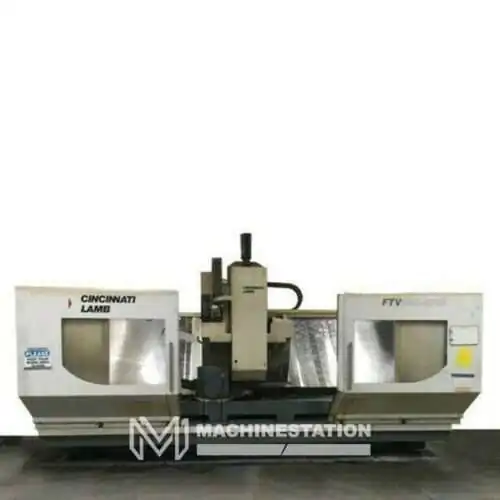

Cincinnati Lamb FTV-840 3700 CNC Vertical Mill

Brand
CINCINNATI LAMB
Category
Machining Centers
Type
Machining Centers, Vertical
Model
CINCINNATI LAMB FTV-840 3700
Stock #
112110
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:CINCINNATI LAMB
Model:FTV840 3700
Year:2004
Condition:Used – Good
Equipped With:

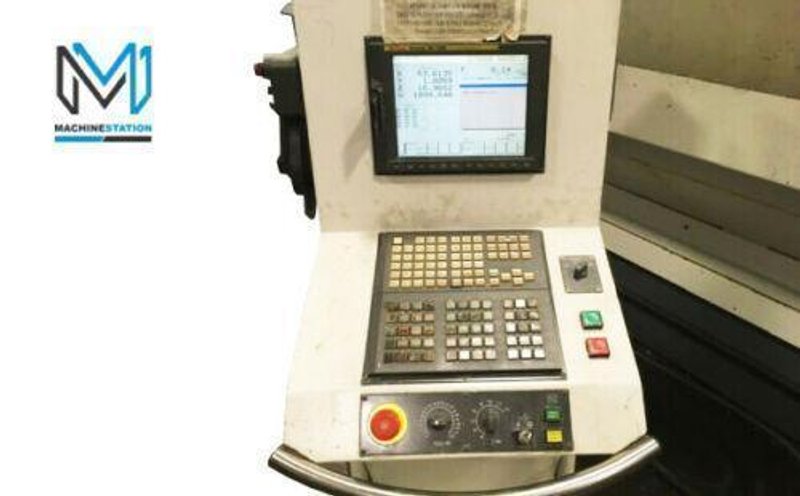

Fanuc 18i-MB CNC Control
Renishaw RMI-Q Radio Controlled Probe
25 HP High Torque Spindle Motor
40 Taper 10000 RPM Geared Head Spindle
PCMCIA Card Slot
MPG Control
50 Automatic tool changer
Chip Conveyor
Full Enclosure
Telescopic way covers
Coolant Through Spindle
Coolant System
Travels:
X-Axis: 145″
Y-Axis: 31.5″
Z-Axis: 32″
Rapid Traverse Rates: 1575 Inch Per Minute
Cutting Feed Rates: Inch Per Minute
Spindle Nose to Table (Min.- Max.): ” – “
Table:
Length: 165″
Width: 31.5″
Number of Std T-Slots:
T-Slot Width: “
Max Weight on Table: lbs
Spindle:
Taper Size: CAT-40
Speed Range: 10000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 50
Max Tool Weight: lbs
Max Tool Dia: “
Max Tool Length: “
Tool Changing Time: Seconds
General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 23’6″ x 11′ 6″ x 12′ 3″ High
Weight: 48000 lbs
“No Charges for loading at list Price”
Comes as shown in pictures..
