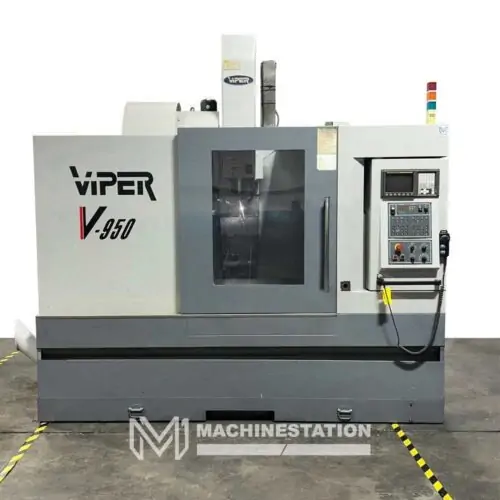

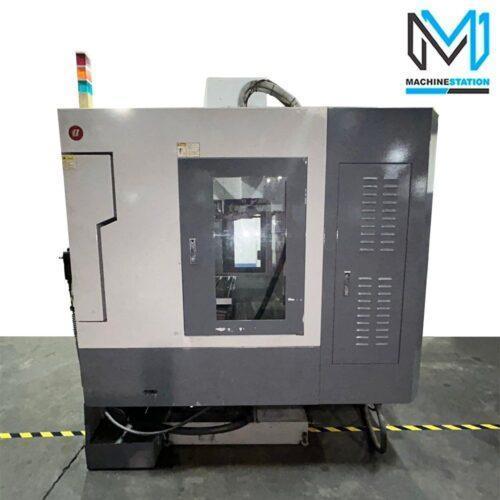

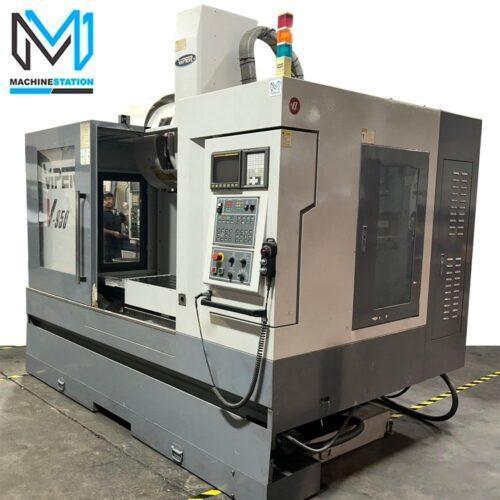

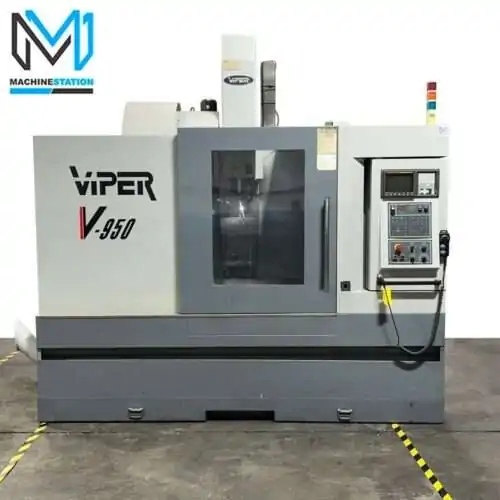

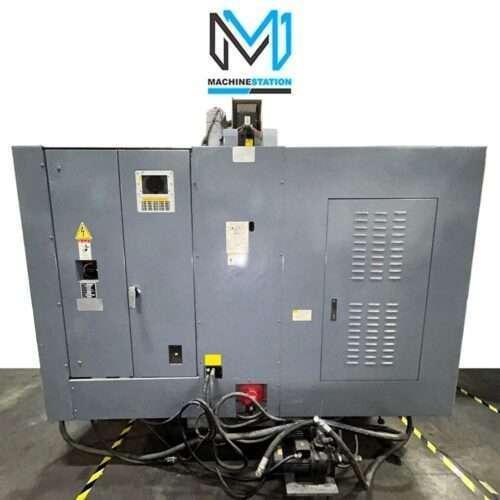

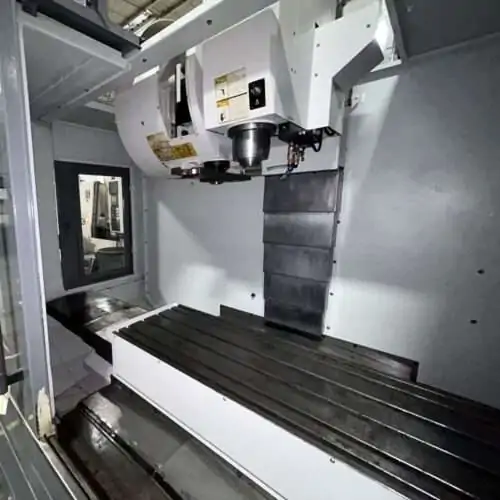

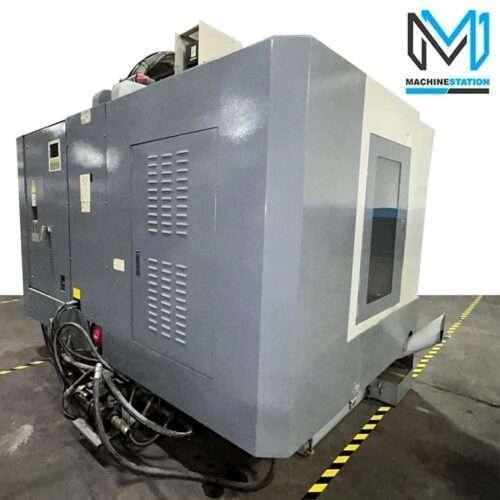

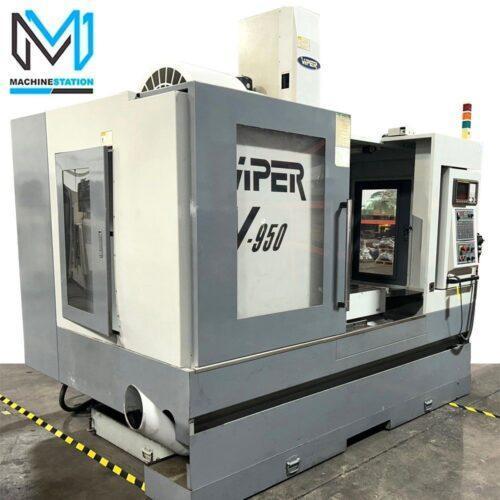

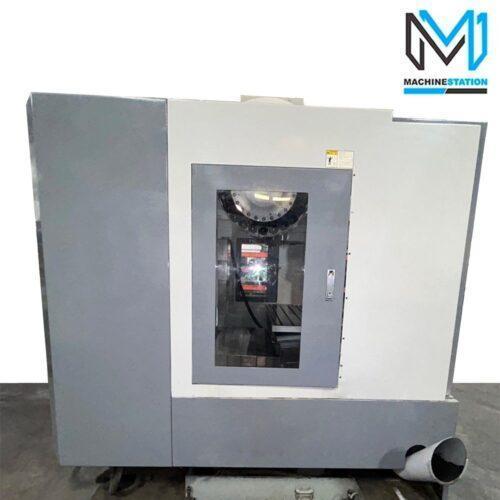

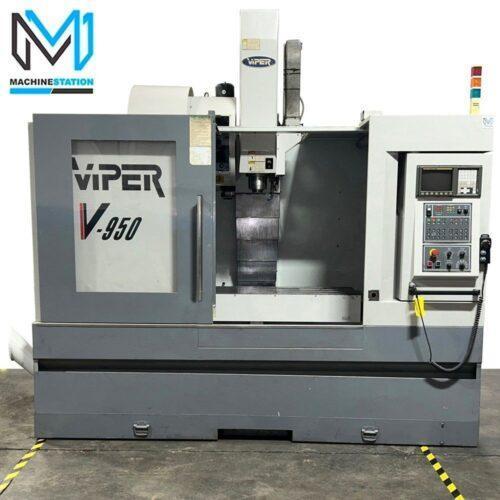

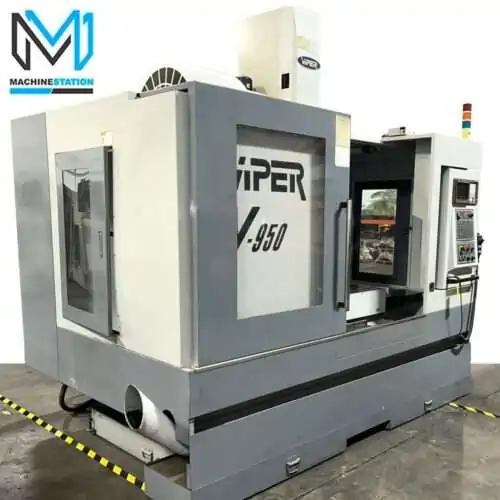

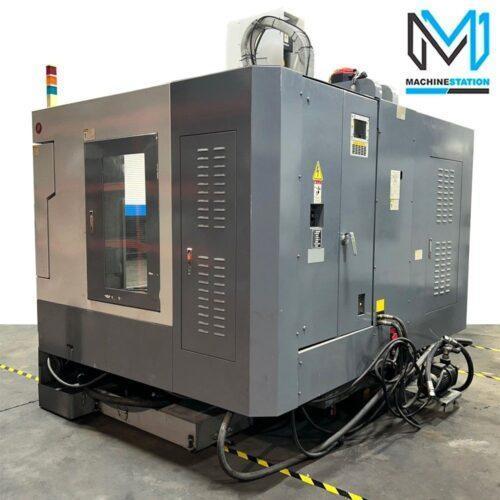

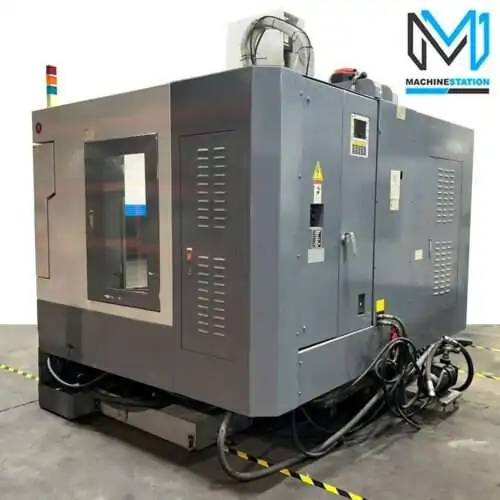

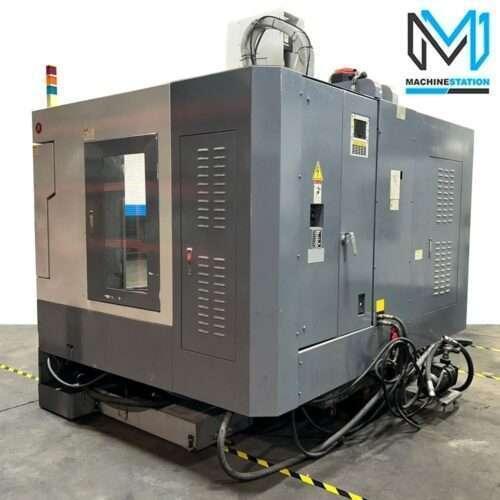

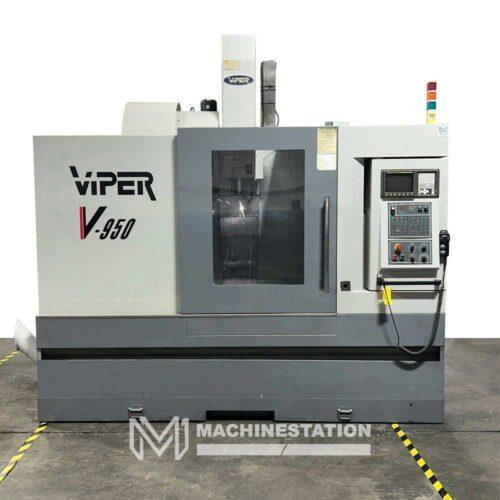

Mighty Viper V950 Vertical Machining Center – Mill

Mighty Viper V950 Vertical Machining Center – Mill

Name: Used MIGHTY VIPER V950 For Sale 112404
Brand: MIGHTY VIPER
SKU: 112404

Brand

MIGHTY VIPER

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

Make:	MIGHTY VIPER

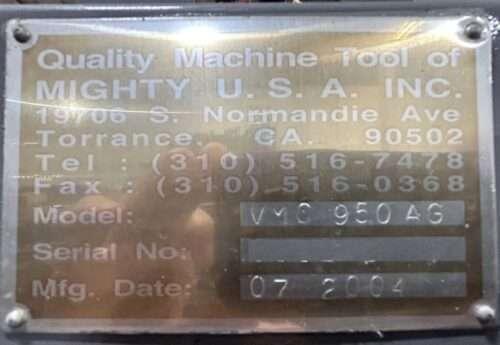

Model:	V950
Year:	2004
Condition:	Used – Good

Specifications:

Features:
Box Way construction Fanuc Oi-MB series CNC Control 24 Station Automatic tool changer 8,000 RPM Gear Head Spindle PCMCIA Card Slot RS-232 Port MPG Handwheel Control Rigid Tapping Telescopic way covers Coolant tank

Travels:
X-Axis: 40″ Y-Axis: 20″ Z-Axis: 25″ Spindle Nose to Table (Min.- Max.): 3.94″ – 28.7″ Rapid Traverse Rates X, Y Axis: 708″ Per Minute Rapid Traverse Rates Z Axis: 590″ Per Minute Cutting Feed Rates: 400″ Per Minute

Table:

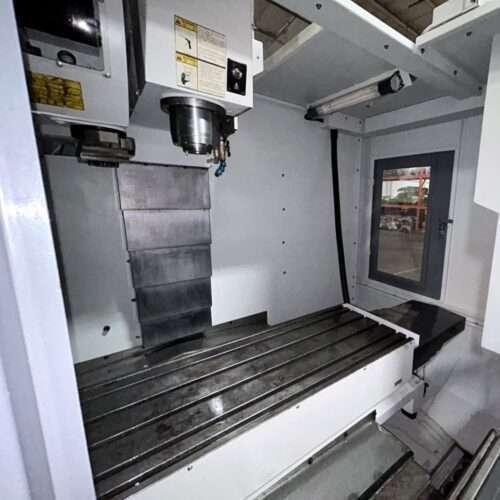

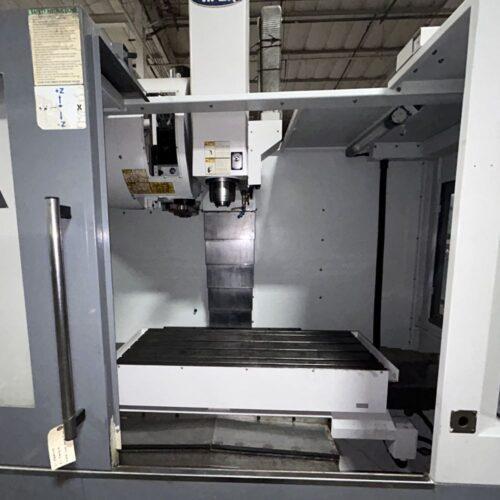

Length: 50″ Width: 18″ Number of Std T-Slots: 5 T-Slot Width: 5/8″ Max Weight on Table: 1550 lbs

Spindle:

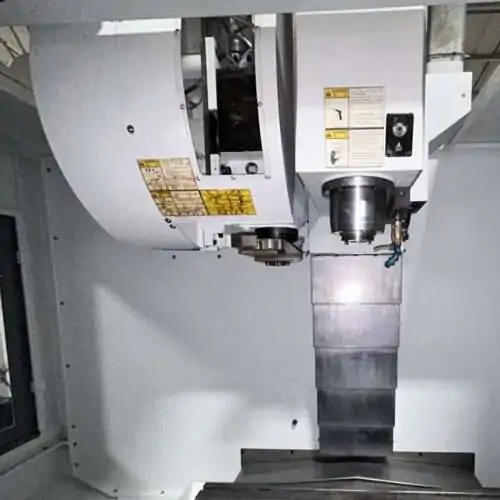

Spindle: Taper Size: 40 Speed Range: 8,000 RPM Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 24 Station Tool Weight: 14 lbs Max Tool Dia: 3.95″ Max Tool Length: 9.84″

General:
Air Required: 80 psi, 4 scfm Power: 220v / 3-Phase / kva Overall Dimensions: 152″ x 86″ x 106″ High Weight: 15,440 lbs

No files or videos to display
