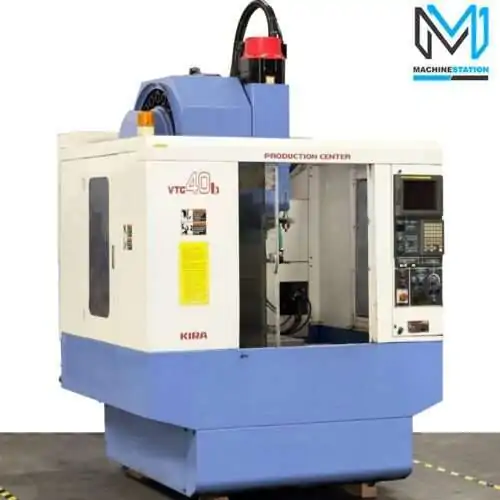

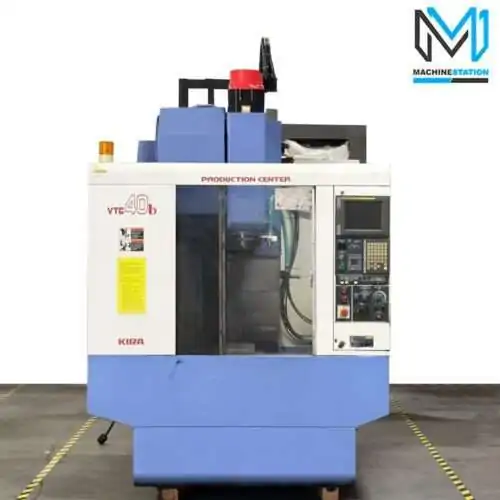

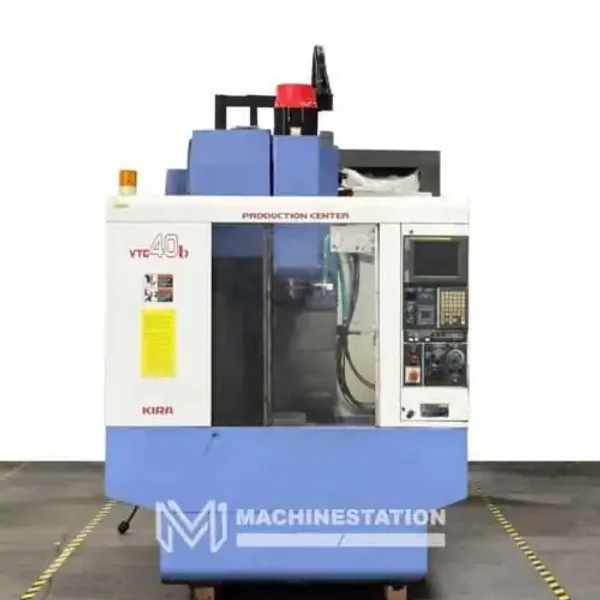

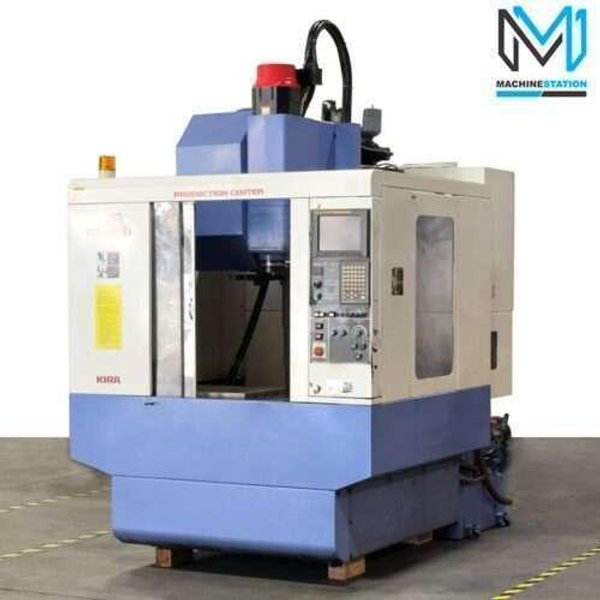

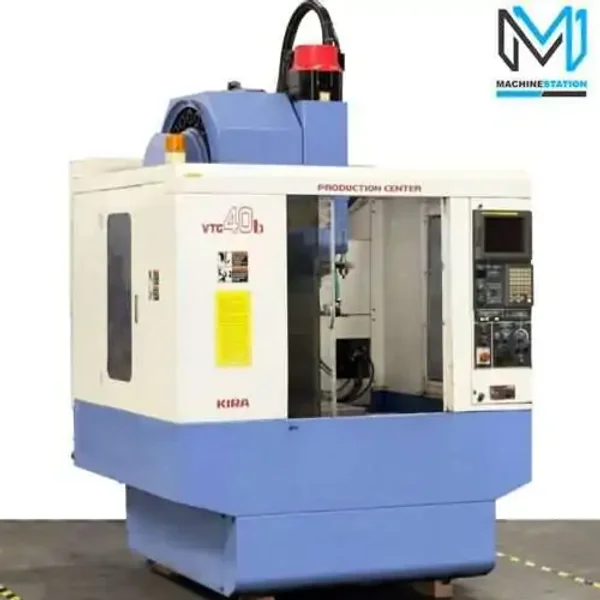

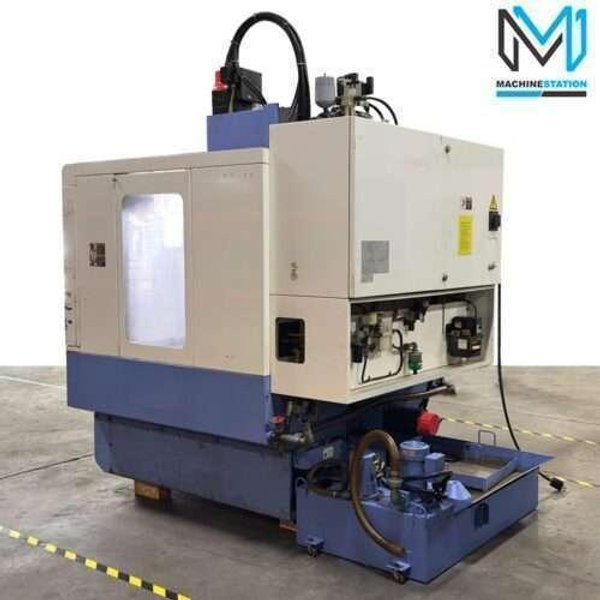

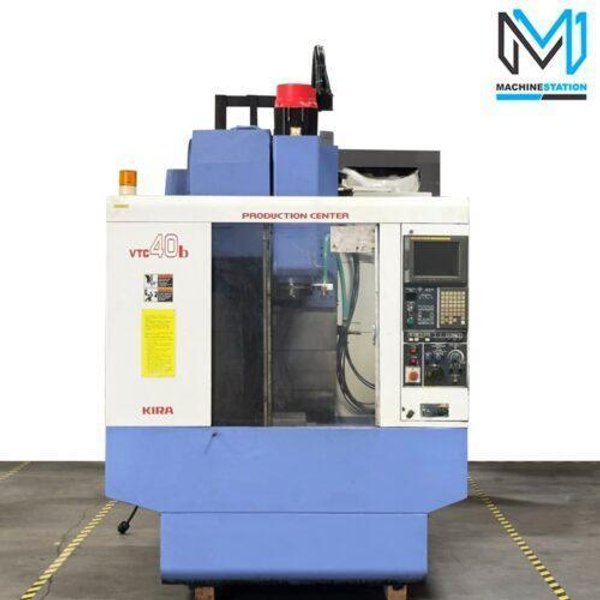

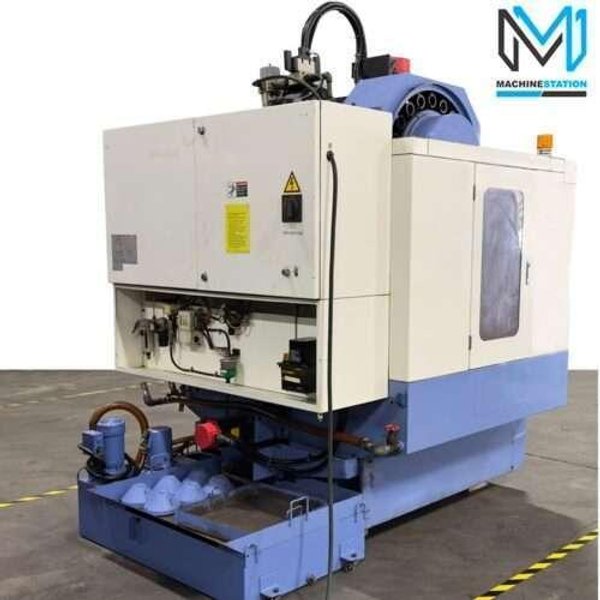

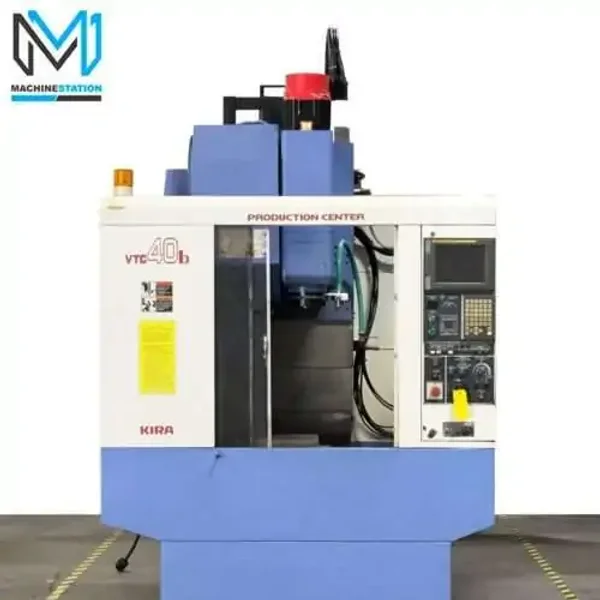

Kira VTC-40B CNC Vertical Machining Center

Kira VTC-40B CNC Vertical Machining Center

Name: Used KIRA VTC-40B For Sale 112479
Brand: KIRA
SKU: 112479

Brand

KIRA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	2479
Make:	KIRA
Model:	VTC-40B
Year:	2000

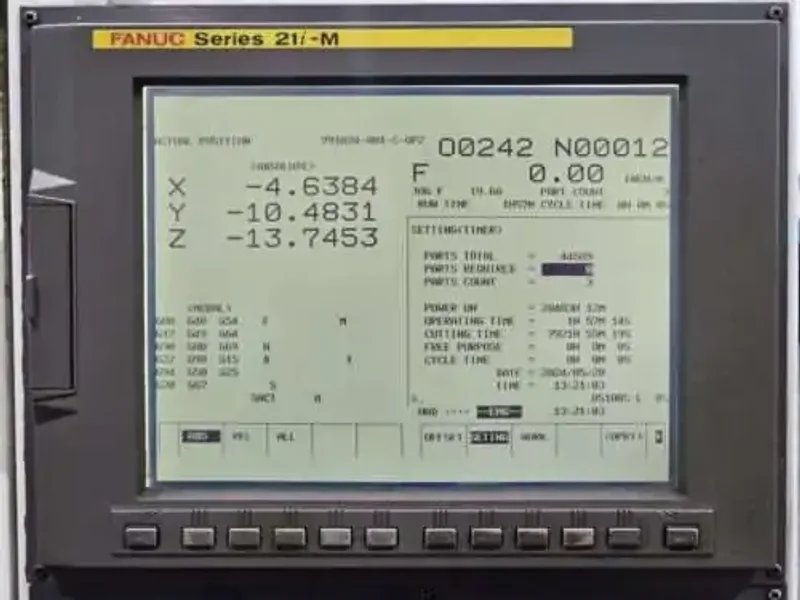

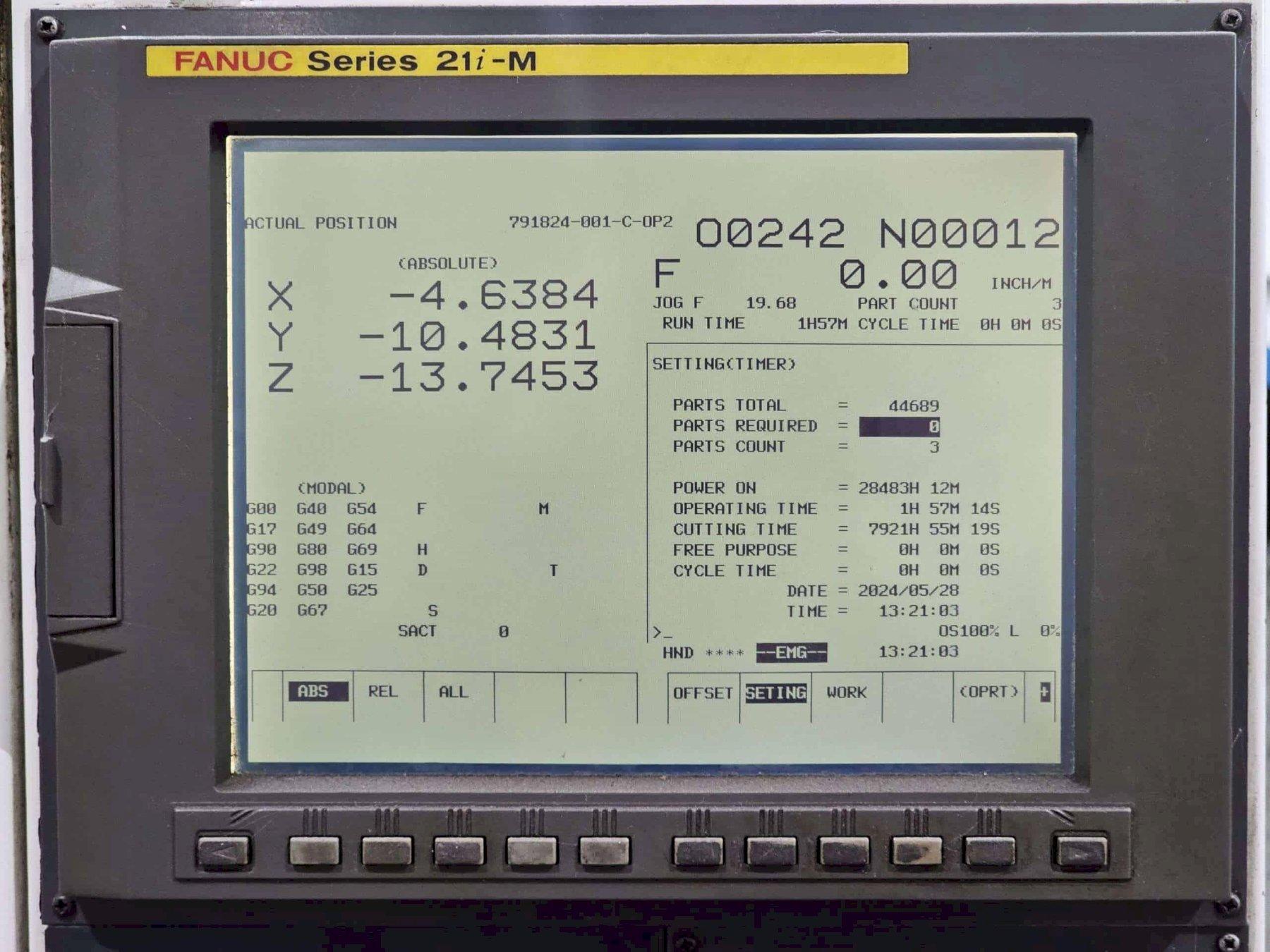

Cutting Time:	7921 Hours

Features:

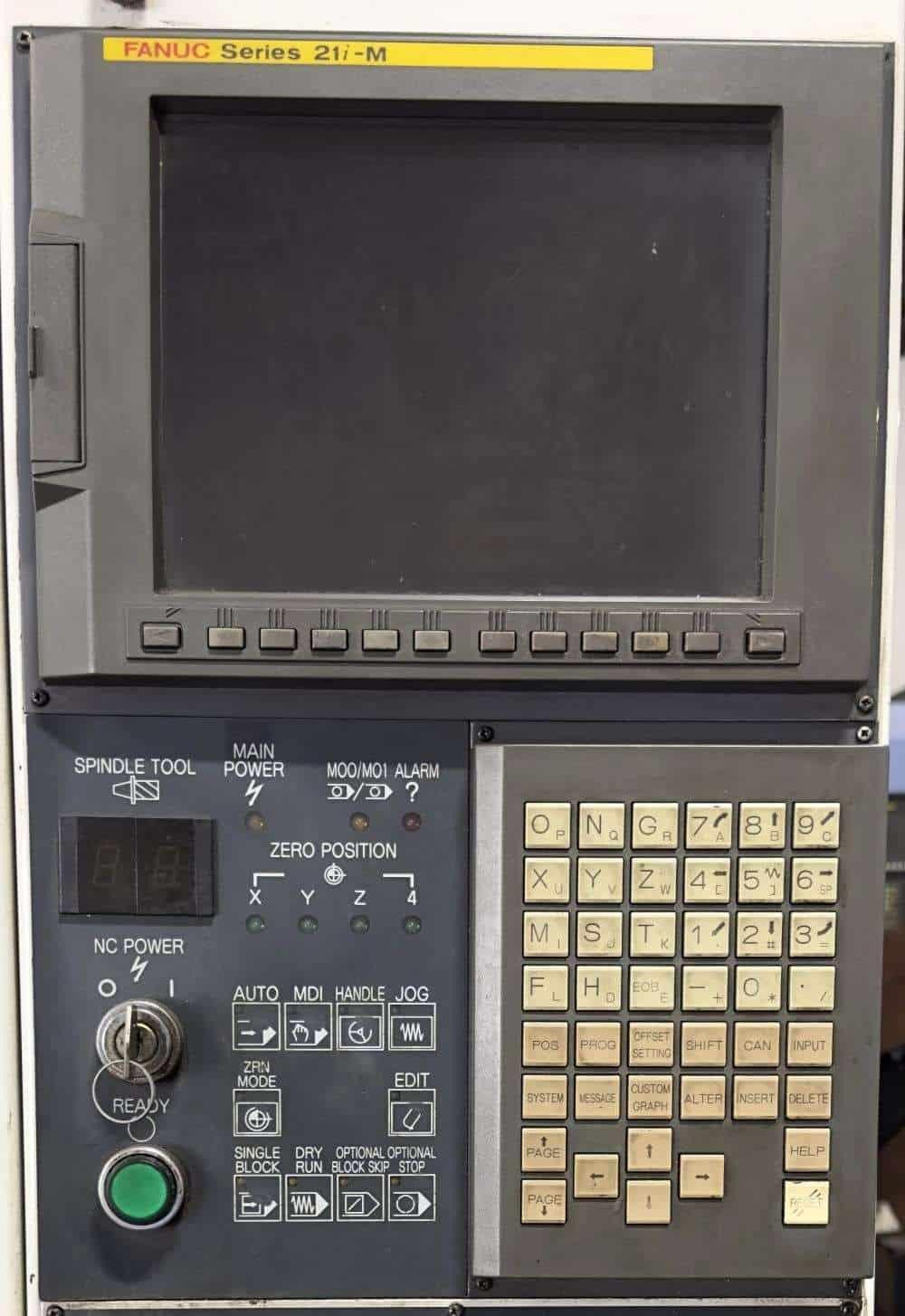

Fanuc 21i-M CNC Control
8,000 RPM Precision Spindle
20 Station Automatic tool changer
PCMCIA Card Slot
MPG Control
Rigid Tapping
Spindle Orientation
Telescopic way covers

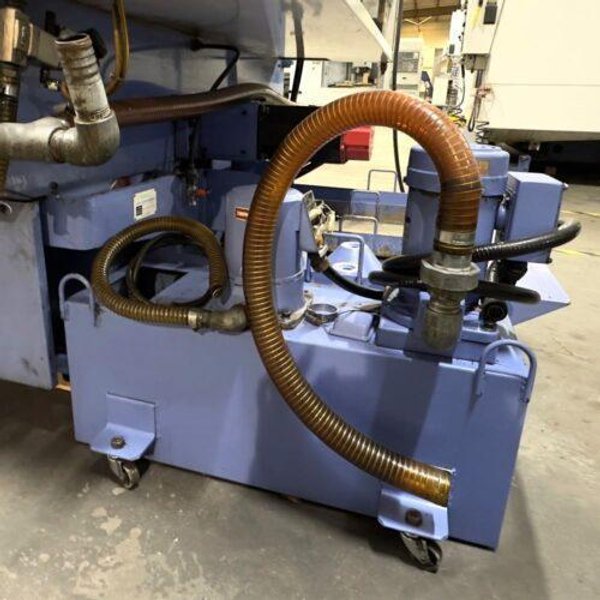

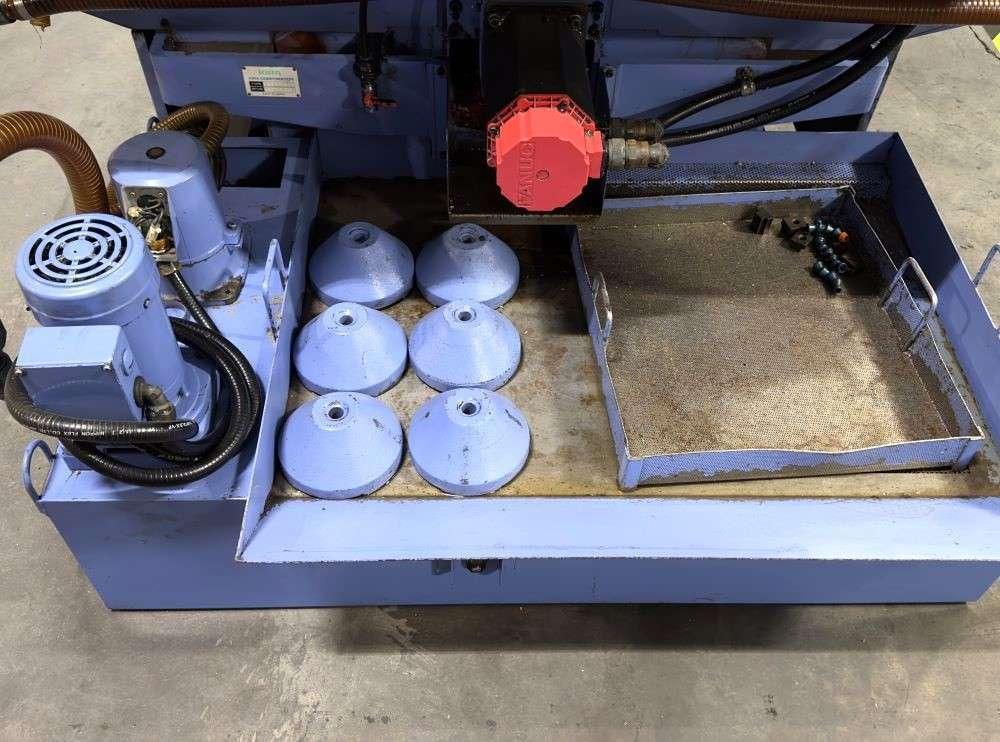

Coolant Tank
Levelling Pads

Travels:
X-Axis: 23.62″
Y-Axis: 15.75″
Z-Axis: 15.75″
Rapid Traverse Rates X, Y Axis: 1890 Inch Per Minute
Rapid Traverse Rates Z Axis: 1417 Inch Per Minute
Cutting Feed Rates: 945 Inch Per Minute
Spindle Nose to Table (Min.- Max.): ″ – ″

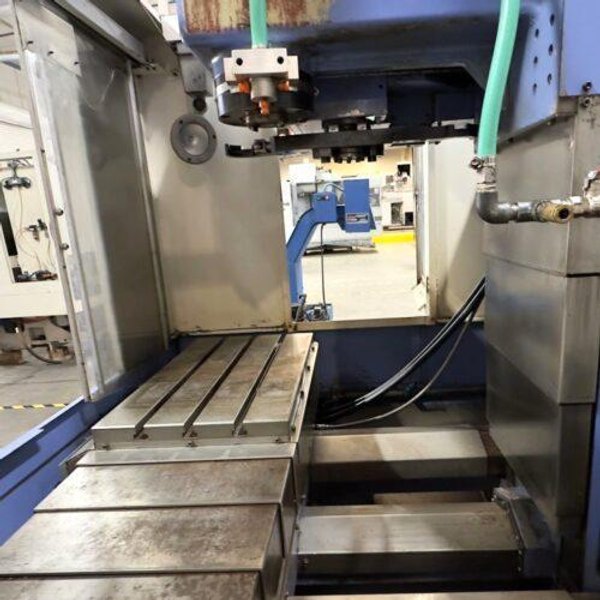

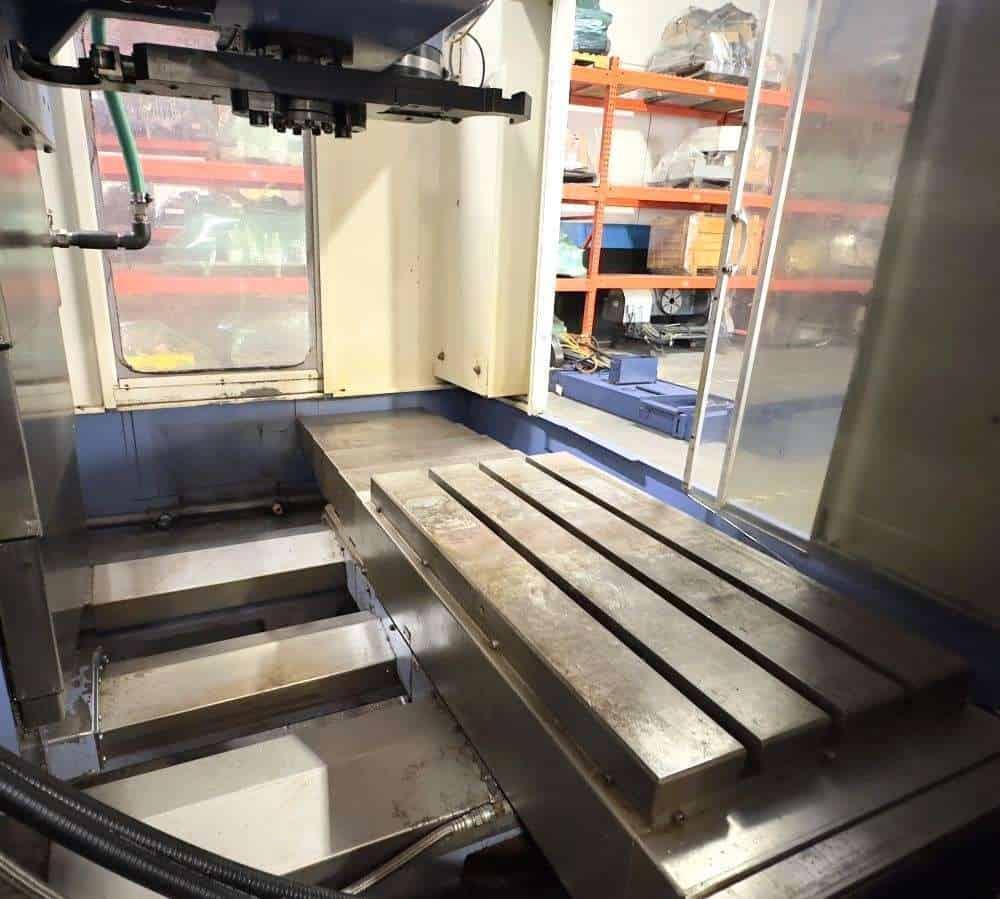

Table:
Length: 27.55″
Width: 15.75″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 441 Ibs

Spindle:
Spindle: Taper Size: CAT-40
Speed Range: 8,000 RPM
Spindle Power: 10 HP

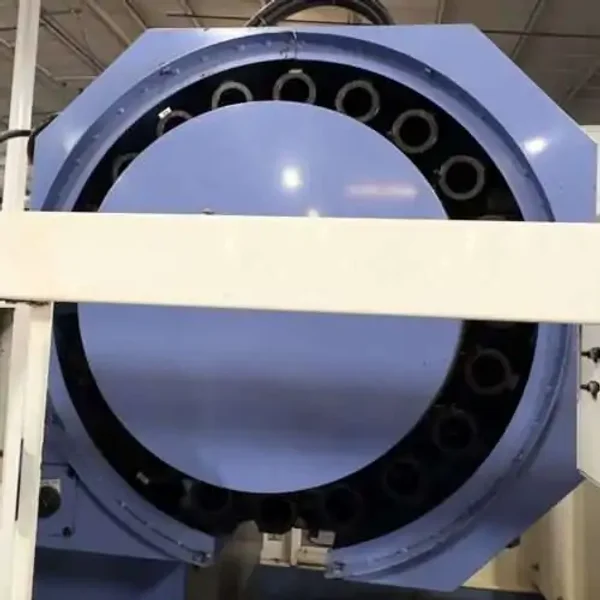

Automatic Tool Changer:
Capacity: 20
Tool Weight: 15.4 lbs
Max Tool Dia: 3.54″
Max Tool Length: 11.8″
Tool Changing Time: 1.2 Seconds

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 11 kva / 3-Phase
Overall Dimensions: 63″ x 93″ x 104″ High
Weight: 6,614 lbs

“No Charges for loading at list Price”
