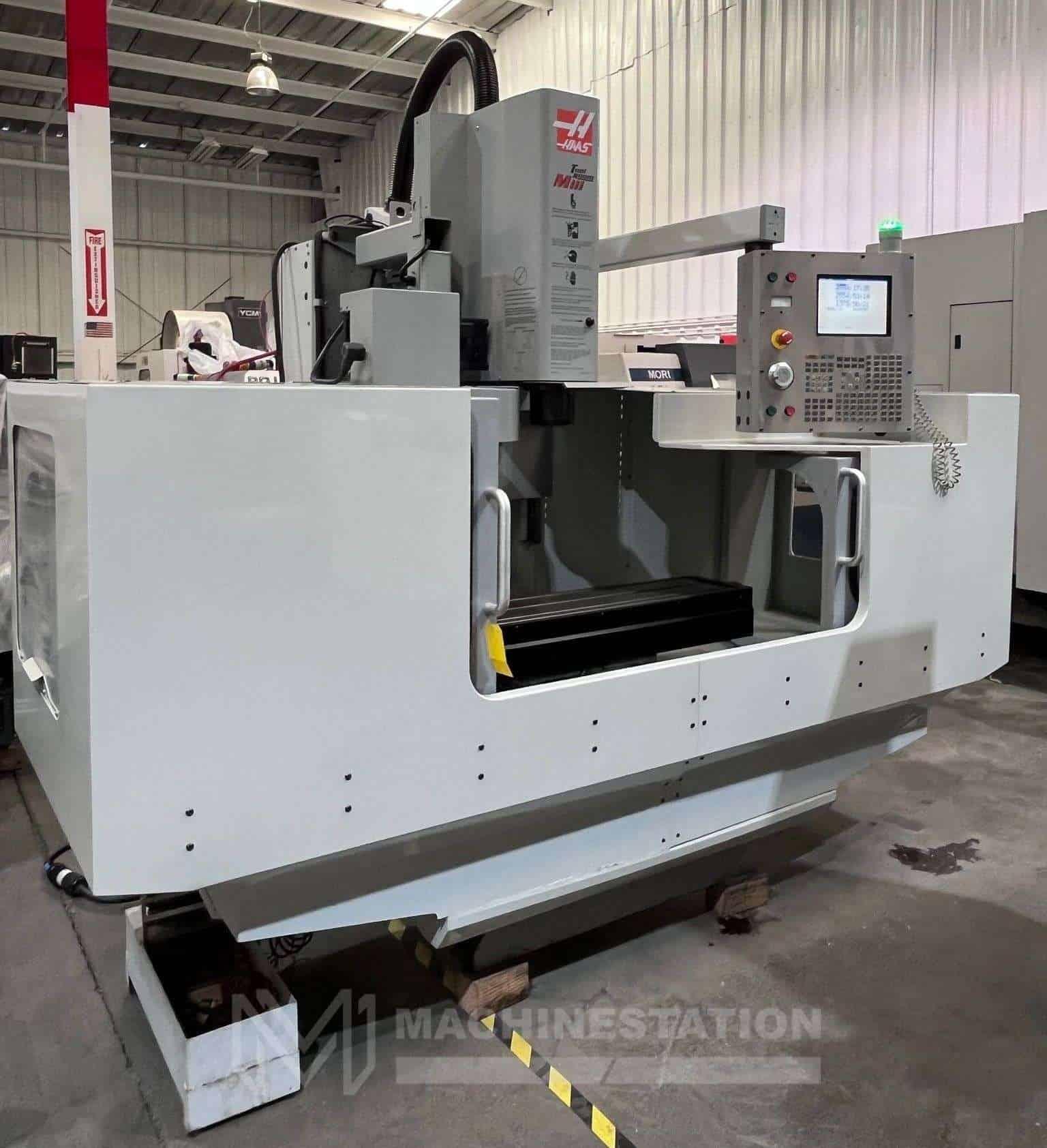

Haas TM-1 Tool Room CNC Mill

Brand
HAAS
Category
Machining Centers
Type
Machining Centers, Vertical
Model
SKU:112399Make:HaasModel No.:TM-1
Stock #
Not specified
Year
2006
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:112399
Make:Haas
Model No.:TM-1
Year of Manufacture:2006



Equipped With:
Haas CNC Control
4000 RPM Spindle
7.5 HP High Torque Spindle
10 Station Automatic Tool Changer
Rigid Tapping
USB Port
Coolant System
Levelling Pads



Travel:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 16″
Rapid Traverse Rates: 200 Inch Per Minute
Cutting Feed Rates: 200 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 20″



Table:
Length: 47.8″
Width: 10.5″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 350 lbs



Spindle:
Taper Size: CAT-40
Speed Range: 4000 RPM
Spindle Power: 7.5 HP



Automatic Tool Changer:
Capacity: 10 Station Umbrella Type
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
Max Tool Length: 11″
Tool Changing Time: 4.2 Seconds



General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 112″ x 80″ x 100″ High
Weight: 4400 lbs
