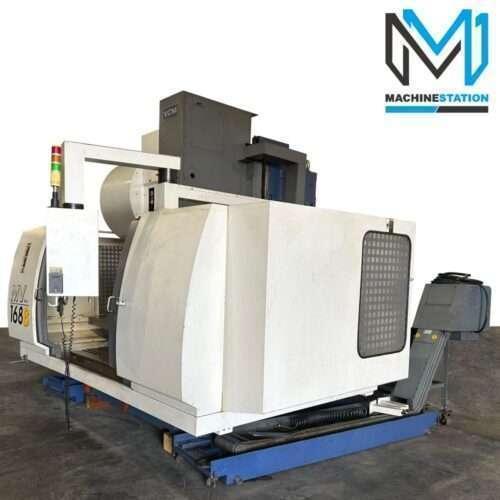

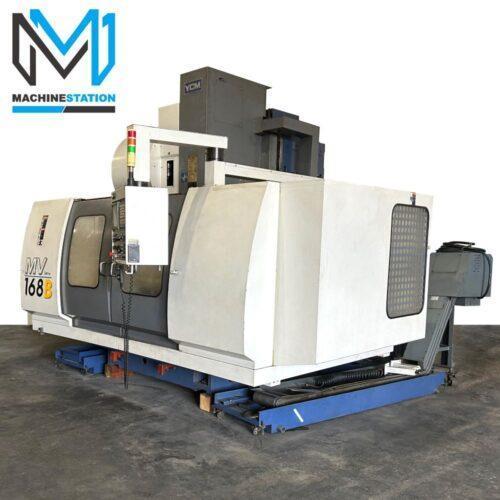

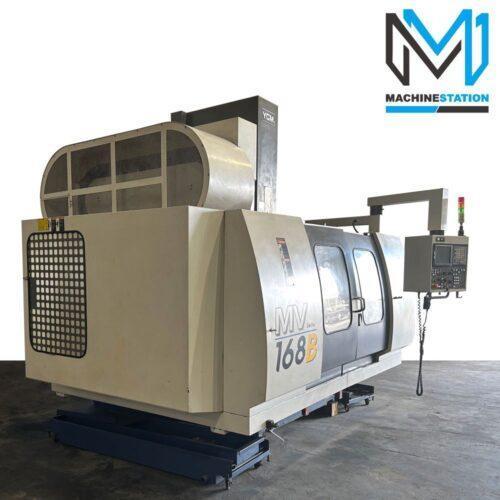

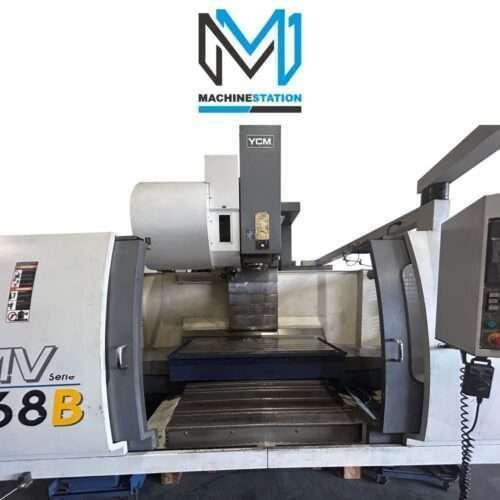

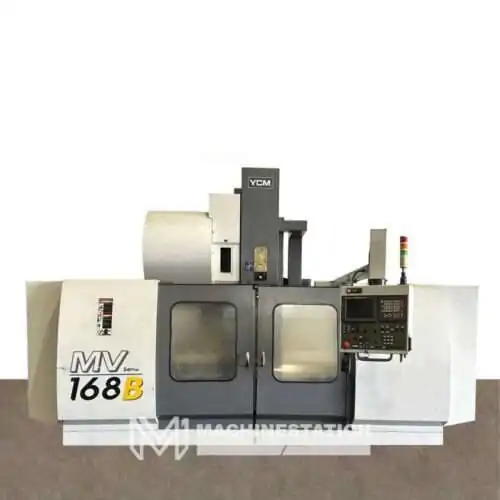

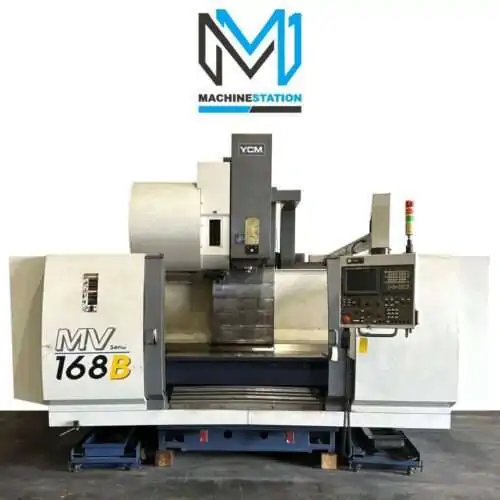

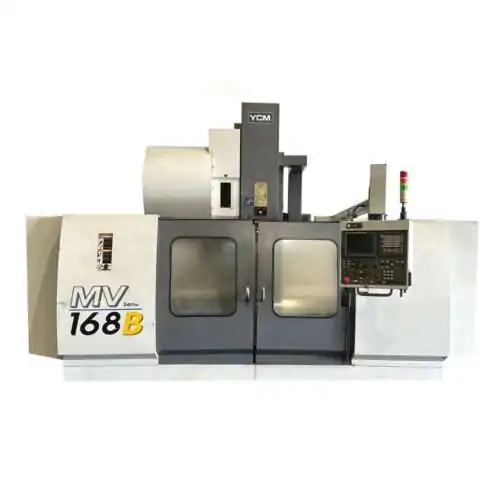

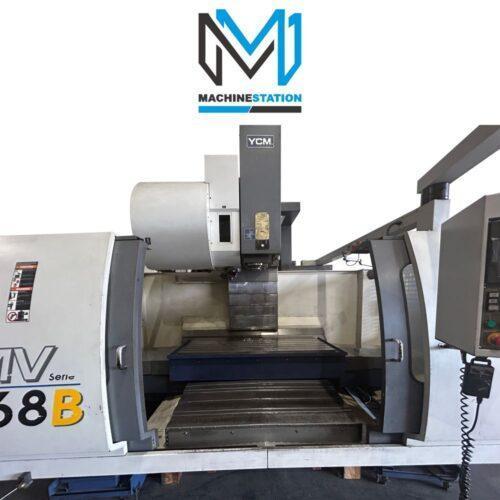

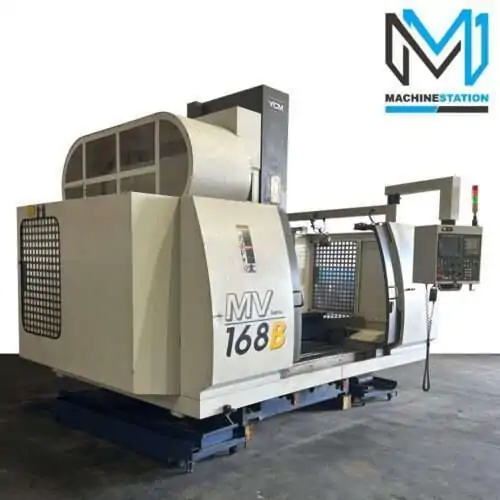

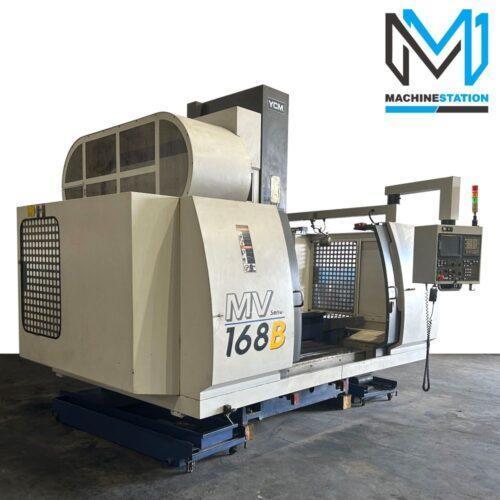

YCM MV-168B CNC Vertical Machining Center

Brand
YCM
Category
Machining Centers
Type
Machining Centers, Vertical
Model
Make:YCMModel:MV-168B
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:YCM
Model:MV-168B
Year:2009
Cutting Time:Only



Equipped With:

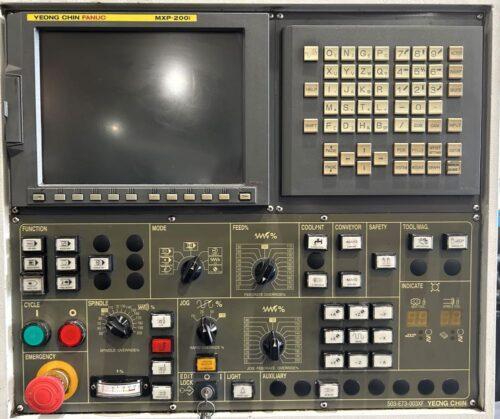

Fanuc MXP-200i series CNC Control
Box Way construction
32 Automatic tool changer
50 Taper Spindle
6,000 RPM High Torque Spindle
PCMCIA Card Slot
MPG Control
Rigid Tapping
Telescopic Way Covers
Coolant System

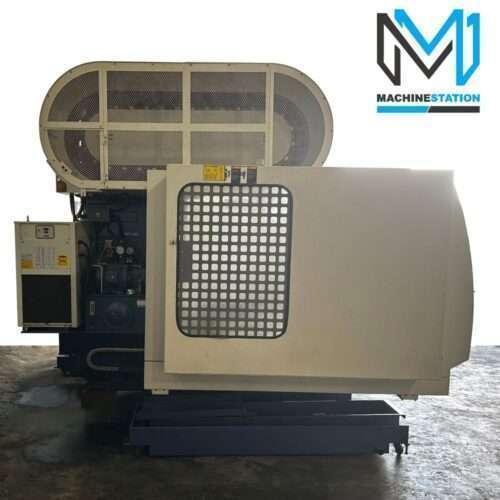

Chip Conveyor



Travels:
X-Axis: 64.96″
Y-Axis: 29.92″
Z-Axis: 27.56″
X, Y Axis Rapid Traverse rates: 591IPM
Z Axis Rapid Traverse rates: 472 IPM
Cutting Feedrate: 197 IPM
Spindle Nose to Table (Min.- Max.): 7.87″ – 35.43″

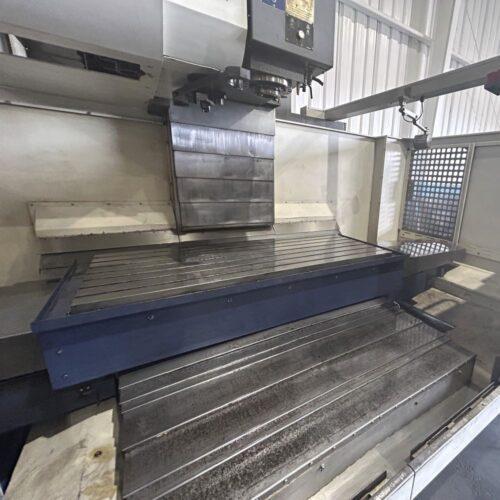

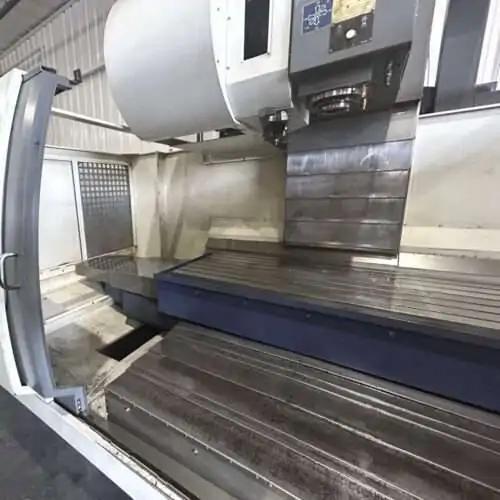

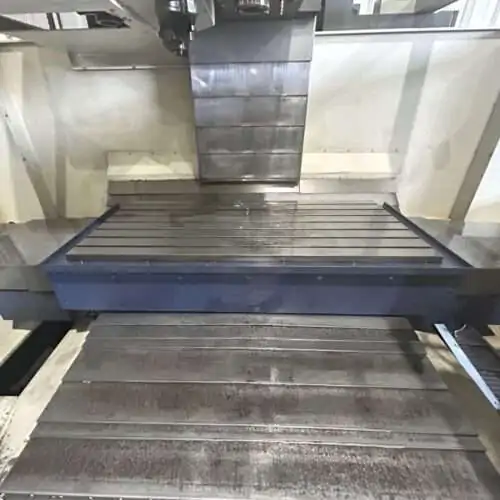

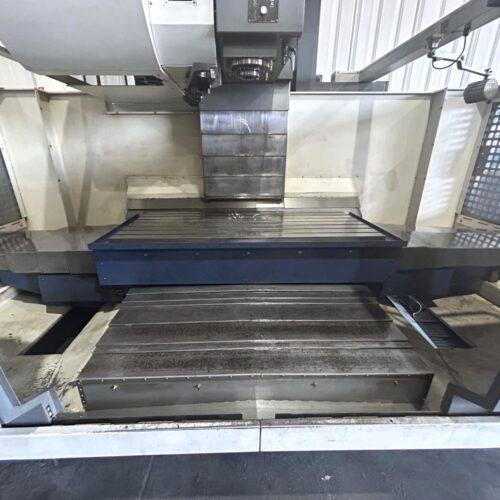

Table:
Length: 66.93″
Width: 29.92″
T-Slot no. & Width: 7 X 0.71″
Max Weight on Table: 4409 lbs

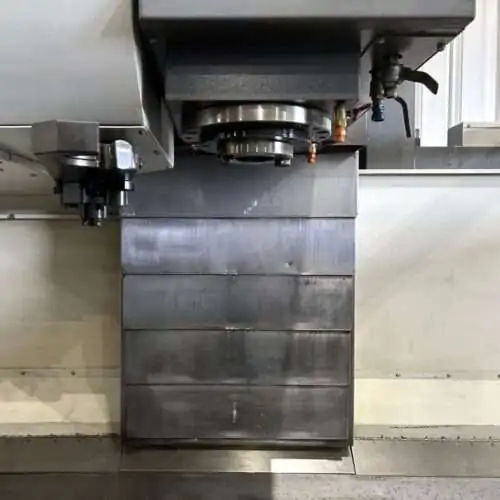

Spindle:
Taper Size: 50
Speed Range: 6,000 RPM
Spindle Power: 20 HP



Automatic Tool Changer:
Capacity: 32 Station Side Mounted
Max Tool Weight: 33 lbs
Max Tool Length: 11.8″
Max Tool Diameter : 4.72″



General:
Air Required: 90 psi, 4 scfm
Power: 205-220v / 40kva / 3-Phase
Overall Dimensions: 185″ x 128″ x 122″ High
Weight: 34171 lbs
