72" x .375" x 50,000# CAUFFIEL/MCKAY CUT TO LENGTH LINE

72” x .375” x 50,000# CAUFFIEL/MCKAY CUT TO LENGTH LINE

GENERAL SPECIFICATIONS:

MANUFACTURER – CAUFFIEL/MCKAY

LINE DIRECTION – LEFT TO RIGHT

MATERIALS – PLAIN CARBON STEEL, COLD ROLLED, HOT ROLLED (PICKLED OR BLACK)

THICKNESS – .375” MAX. UP TO 60” WIDE, .312” MAX. UP TO 72” WIDE, .063 MIN.

COIL WIDTH – 72” MAX.

COIL WEIGHT – 50,000# MAX.

COIL OUTSIDE DIAMETER – 84” MAX.

COIL INSIDE DIAMETER – 24” TO 34”

SHEET LENGTH – 240” MAX. (720” W/ SPECIAL HANDLING) 36” MIN.

SHEET WIDTH – 72” MAX., 34” MIN.

STATUS – INSTALLED AND OPERATING

LINE COMPONENTS:

COIL STORAGE AND LOADING RAMP

STATIONARY COIL LIFT

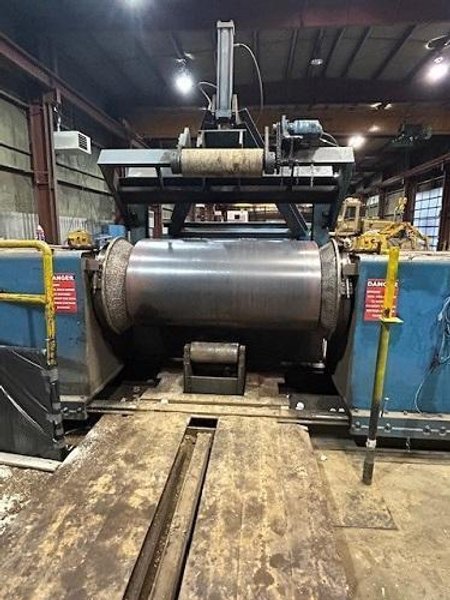

DUAL CONE UNCOILER

FLOOR MOUNTED HOLD DOWN ROLL

PEELER BLADE

PINCH ROLLS

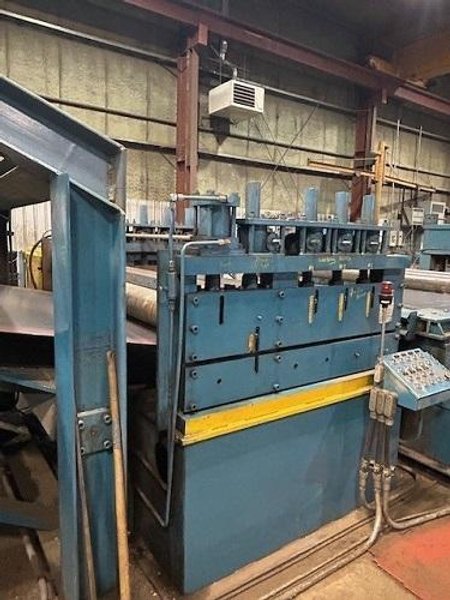

7 ROLL, 8” DIAMETER STRAIGHTENER / FLATTENER

ROLLER TYPE SIDE GUIDES

SIDE TRIMMER

SCRAP WINDERS – NOT INCLUDED

STRIP INSPECTION TABLE w/ CONVEYOR ROLL SUPPORT

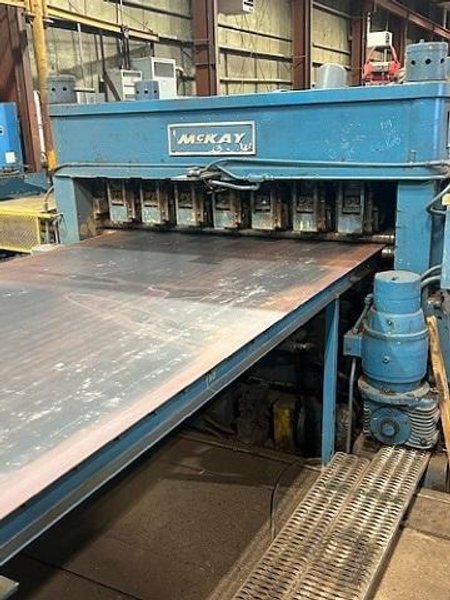

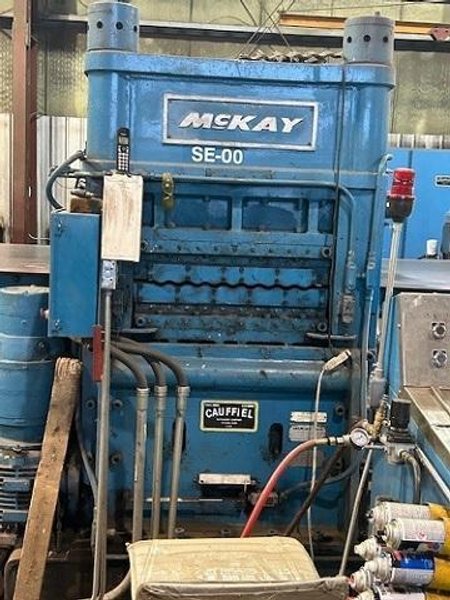

MCKAY 19 ROLL, 2.500” DIAMETER LEVELER

STRIP INSPECTION TABLE w/ CONVEYOR ROLL SUPPORT

PINCH ROLLS

STRIP MEASURING WHEEL

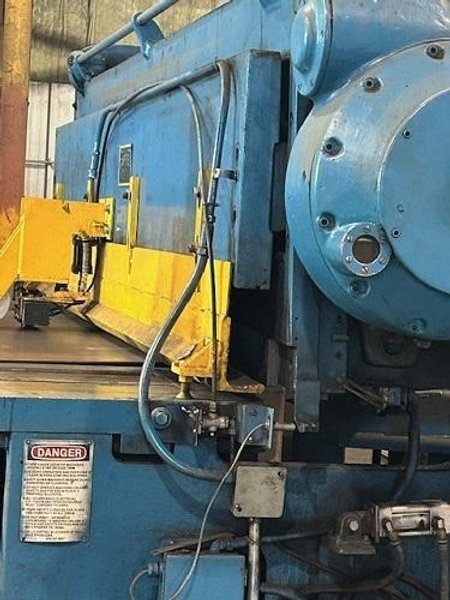

DOWNCUT MECHANICAL CUT OFF SHEAR

22’ FOOT SHEET STACKER w/ ROLLER TYPE STRIP SUPPORTS AND SIDE TAMPING

46’ FOOT PACK RUNOUT CONVEYOR w/ END DISCHARGE CHAINS

OPERATOR CONTROL STATIONS

AC CONTROLS

DRIVE CONTROLS

CLOSED LOOP HYDRAULIC SYSTEM
