1700mm Aluminum 4-Hi Cold Breakdown Rolling Mill STOCK#3886

For Sale: Used 1700mm Aluminum 4-Hi Cold Breakdown Mill / with AGC / Filtration and Coolant Systems not included / installed under power.

Manufacture

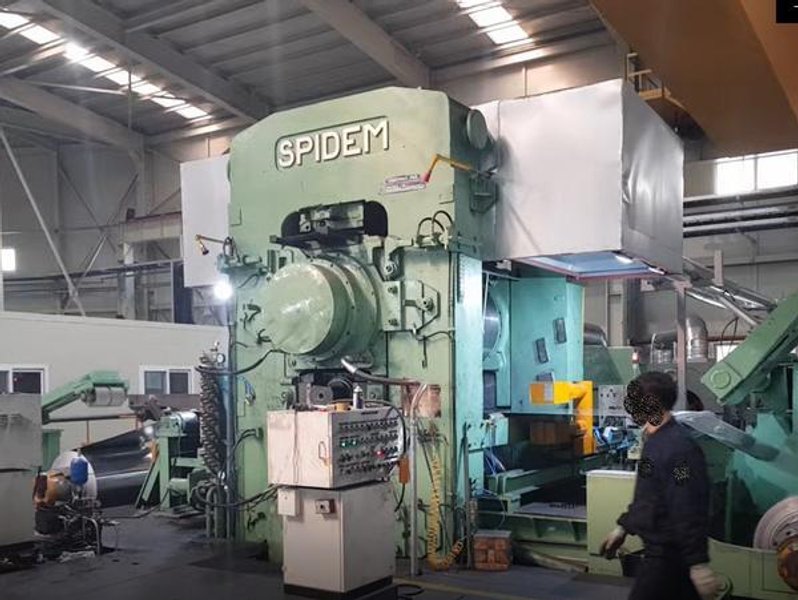

- Spidem, new 1964 with continuous maintenance and minor upgrades
- Type: 4-Hi non-reversing Aluminum Cold Rolling Mill

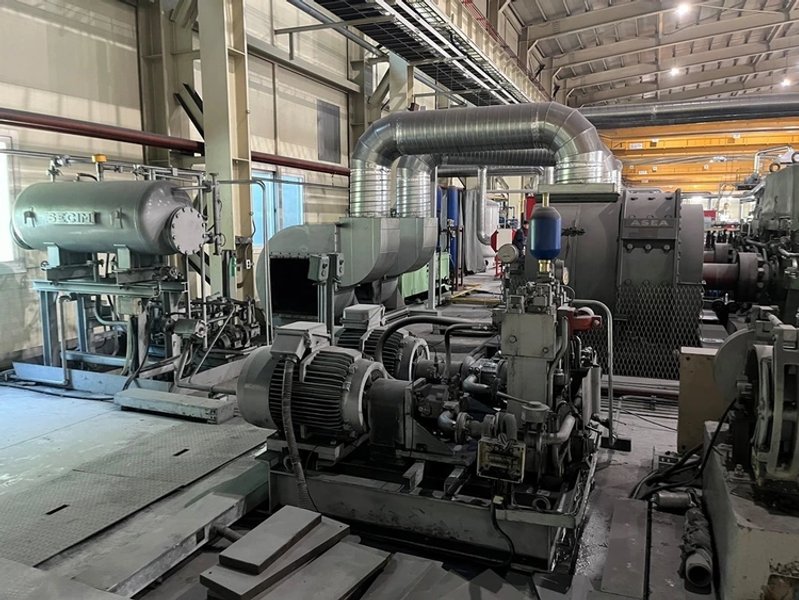

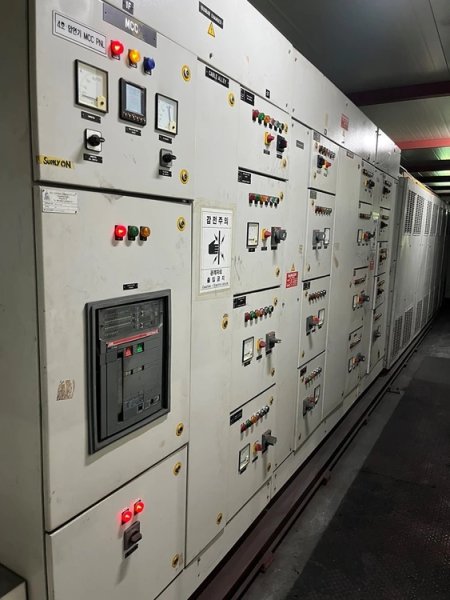

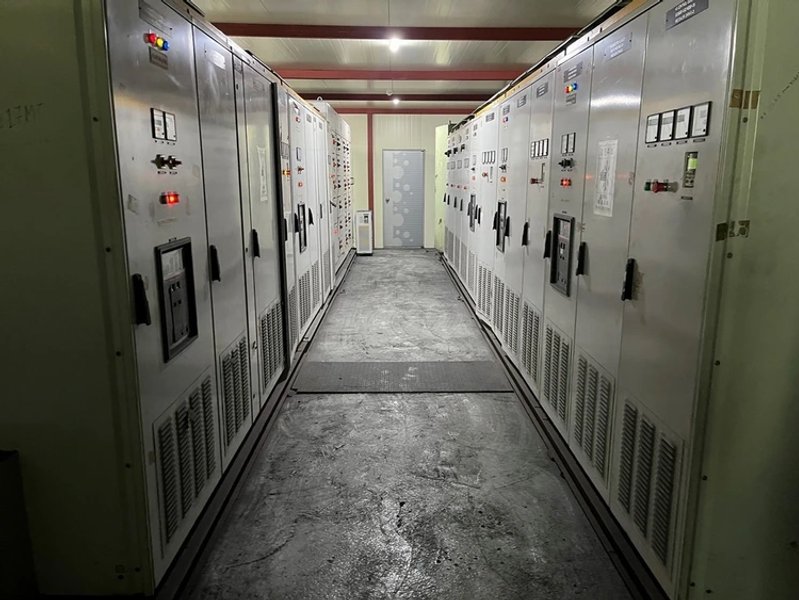

- New 2013 upgrades = hydraulic system, ABB electrics, AGC, and automation

Strip Width
- 1700mm max (67")

Strip Thickness
- Max Entry = 11.0mm (.433")
- Min Exit = 0.20mm (.008")

Line Speed
- 450 mpm max (1476 fpm)
- 320 mpm with edge trimming (1050 fpm)

Equipment:

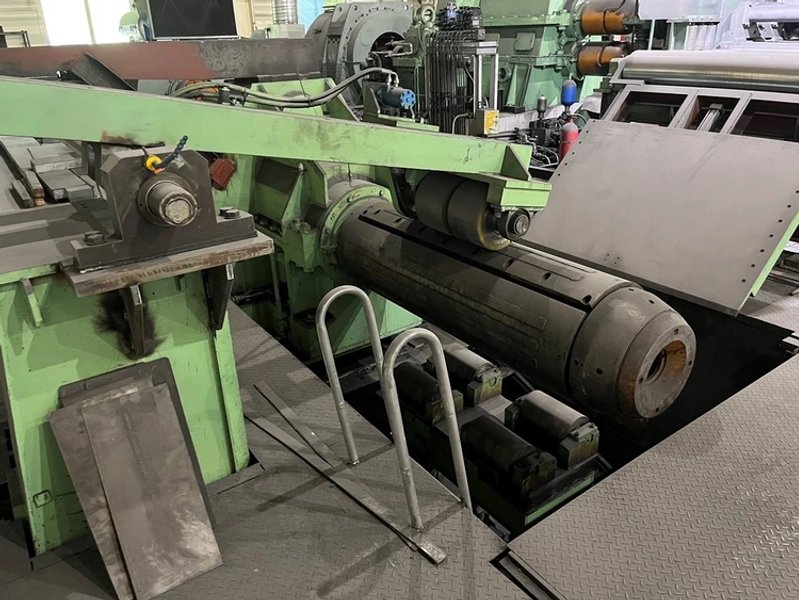

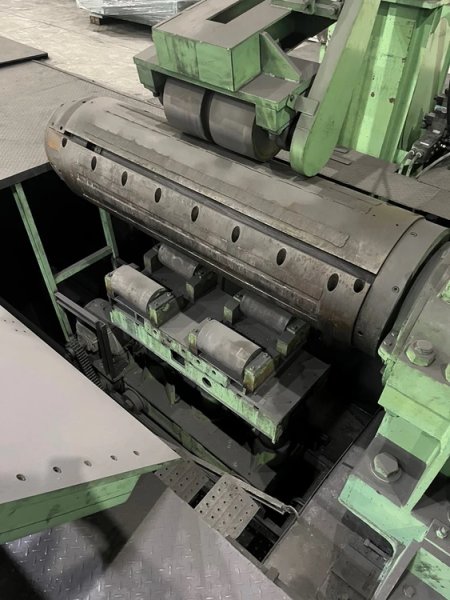

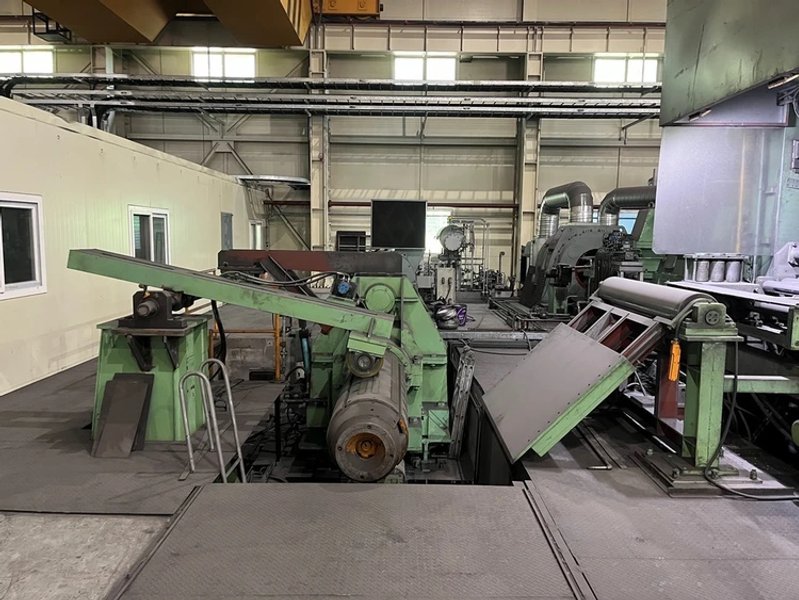

Uncoiler

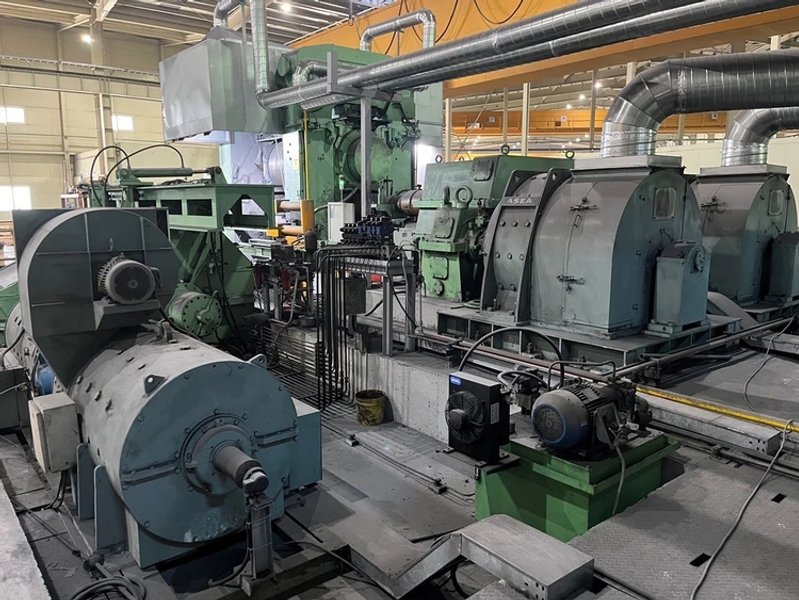

- 1 x 294 kW motor

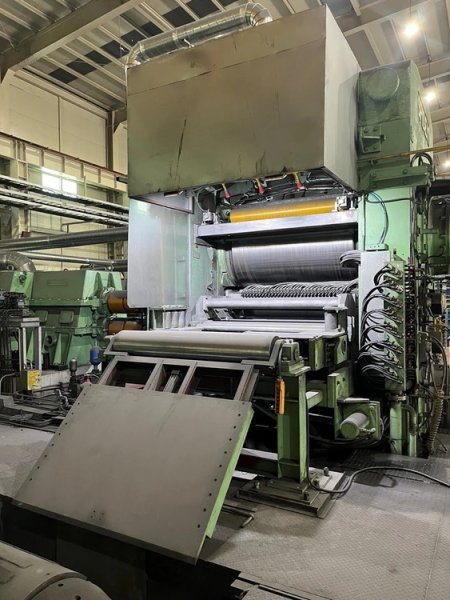

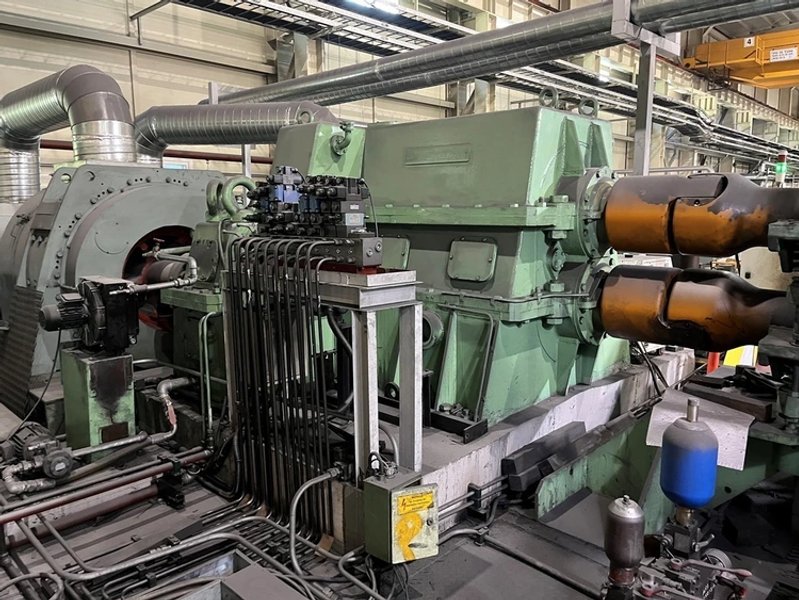

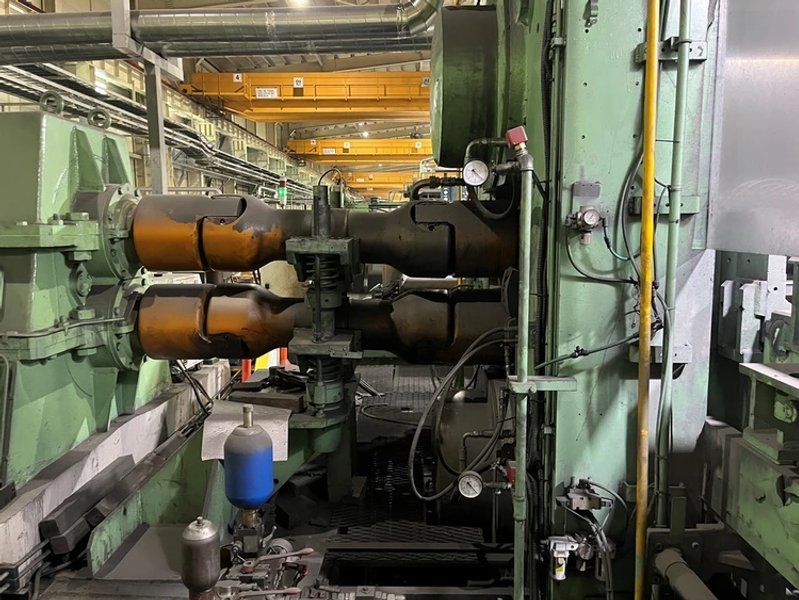

Mill
- Work Rolls = 500-465mm diam x 1830mm face (19.68-18.31" diam x 72" face)

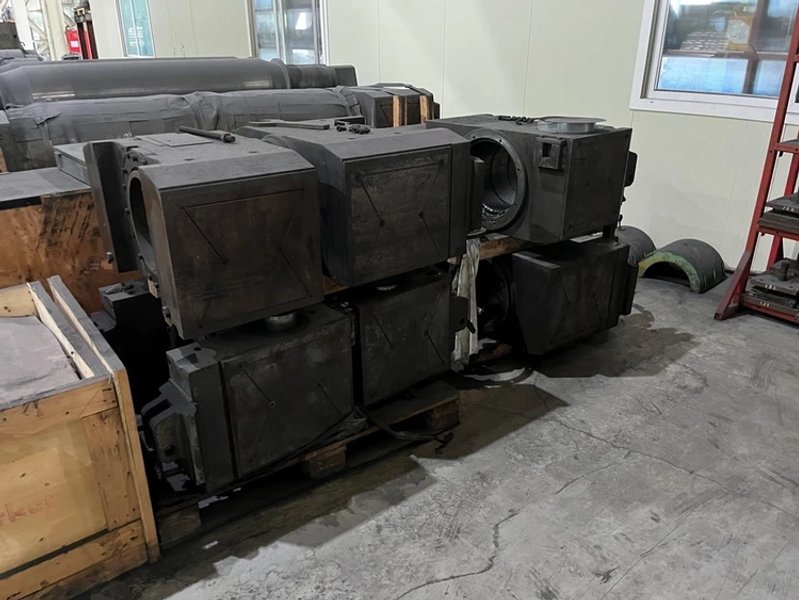

- Work Roll Count = 3 sets / 6 rolls, Chocks = 1 set / 4 chocks
- Backup Rolls = 1200-1100mm diam x 1830mm face (47.24-43.31mm diam x 72" face)
- Backup Roll Count = 1 set / 2 rolls, Chocks = 1 set, 4 chocks
- Mill Force = 1500 mtons
- Dimensions = 2300mm between inside of feet / 2850mm between support bed centers

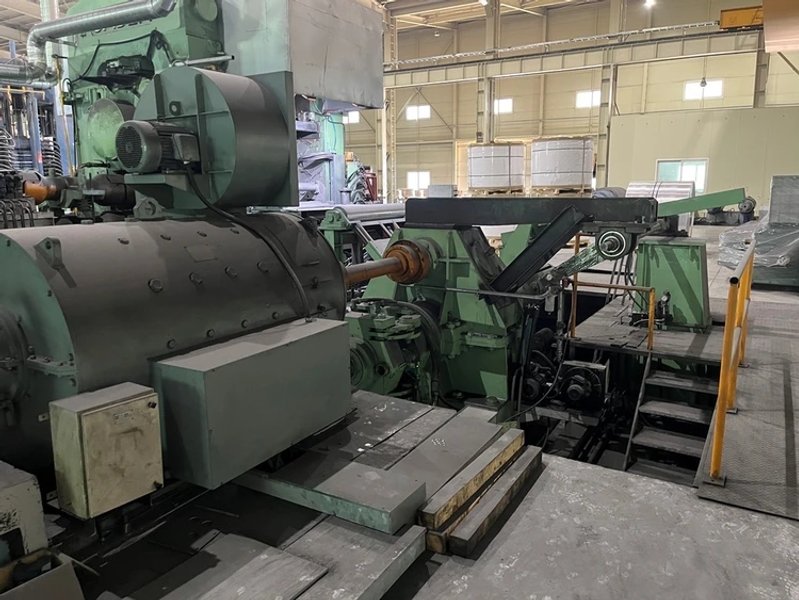

Recoiler
- 2 x 294 kW motors

Not Included
- Filtration System + Coolant System + Coolant Tanks
- These systems are shared with other mills in this plant and cannot be sold.
