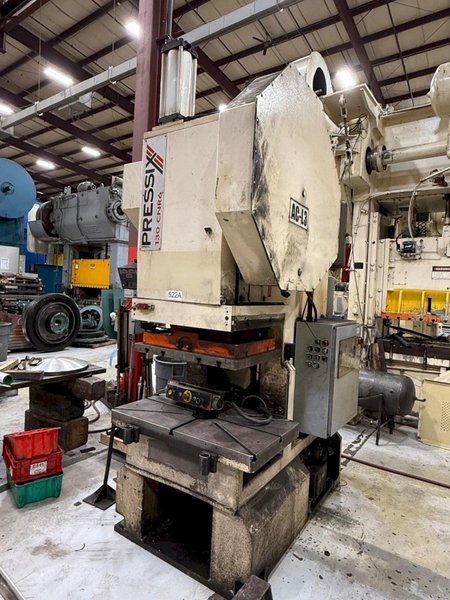

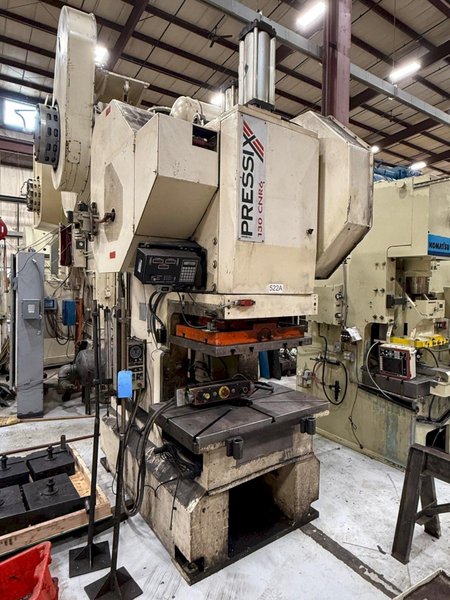

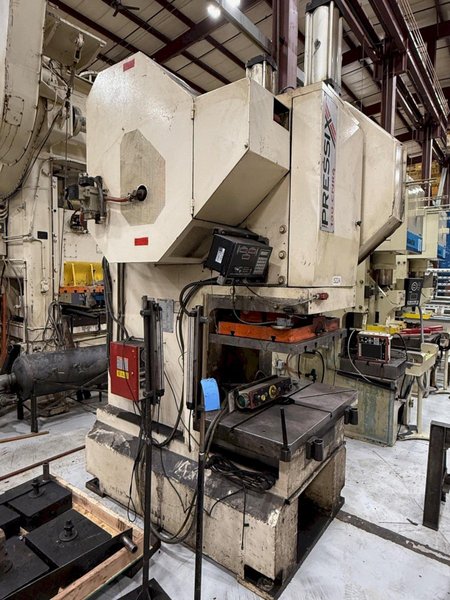

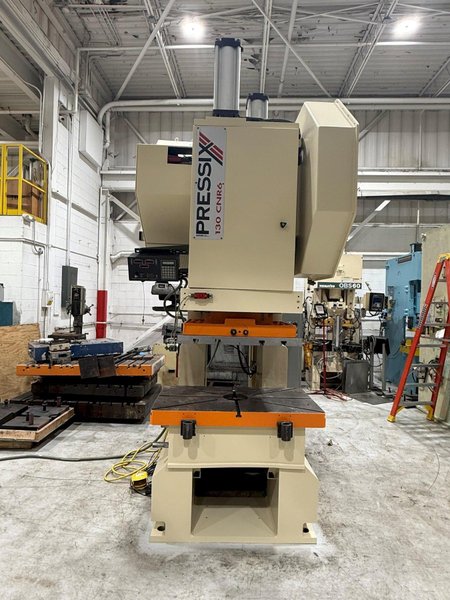

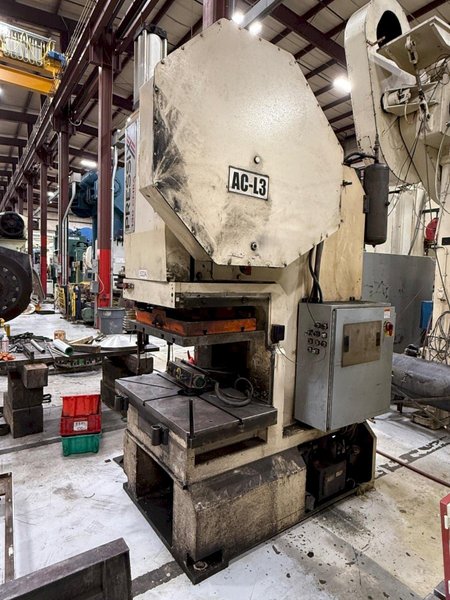

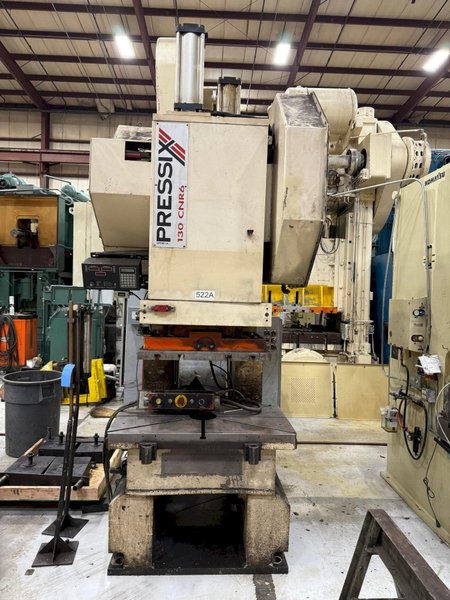

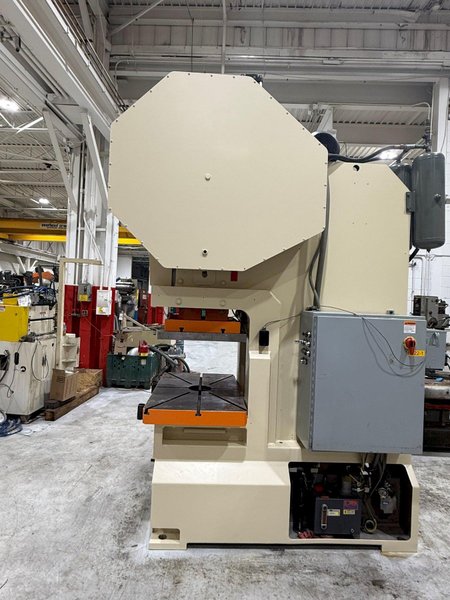

130 ton Pressix Adjustable Stroke Metal Stamping Gap Frame Back Geared Press, Year 2006

Name: Used PRESSIX 130 CNR 6 For Sale 2920
Brand: PRESSIX
SKU: 2920
Price: 29500.00 USD
Availability: InStock

Brand

PRESSIX

Michigan

$29,500.00

Tonnage	130
Stroke	6.3 inches
Shut Height	16.9 inches
Adjustment	4.3 inches
Bed Size	47 x 30
Ram Area	31.5 x 21.6
SPM	27-80
More Specifications to Follow: New to Inventory 130 ton Capacity (Metric) Variable Stroke Length: .5" to 6.2" Motorized Adjustment: 4.3" Die Height 16.9" on Bolster Plate FORCE kN 1.300 NOMINAL SPEED Spm 48 FIXED SPEED Spm 60 VARIABLE SPEED Spm 27 - 80 STROKE LENGTH mm 13 - 160 SLIDE ADJUSTMENT mm 110 SHUT HEIGHT mm 430 BOLSTER AREA mm 765 x 1.200 BOLSTER HOLE mm 165 SLIDE AREA mm 550 x 800 SLIDE HOLE mm 60 THROAT DEPTH mm 405 POWER kW 15 APPROXIMATE WEIGHT kg 13.000 OVERALL DIMENSIONS (LxPxH) mm 1.780 - 2.540 - 3.460 Features: Air Clutch and Brake Air Counterbalances Lubrication System T-Slotted Plate on Ram Easily Adjustable Stroke Length Wintriss WPC 2000 Press Control Vibro Dynamic Floor Pads This used Pressix Single Point Gap Frame Press can be seen underpower in the S&G Press Livonia Warehouse. Click this link for more Single Point Gap Press Options
