SPECIFICATIONS:

Welding Processes .................. Pulsed TIG, Stick, TIG

Aluminum ........................... Material Thickness0.015" - 1/2"

Input Voltage ...................... 230/460/575 VAC

Welder Min. Output ................. 3 Amps

Rated Output ....................... 300A @ 32V/350A @ 34V

Welder Input ....................... 60 Hz

Material Thickness ................. 0.012" - 5/8"

Welder Input ....................... Single Phase

Welder Max Output .................. 400 Amp

Duty Cycle ......................... 40%

Polarity ........................... AC/DC

Welded Material .................... Mild Steel, Stainless Steel, Aluminum

Input (Amps)........................ 128/65/50

Overall Height ..................... 36-1/4"

Overall Depth ...................... 25"

Power Source Weight ................ 496 Lbs.

EQUIPPED WITH:

Miller Coolmate 3 Chiller

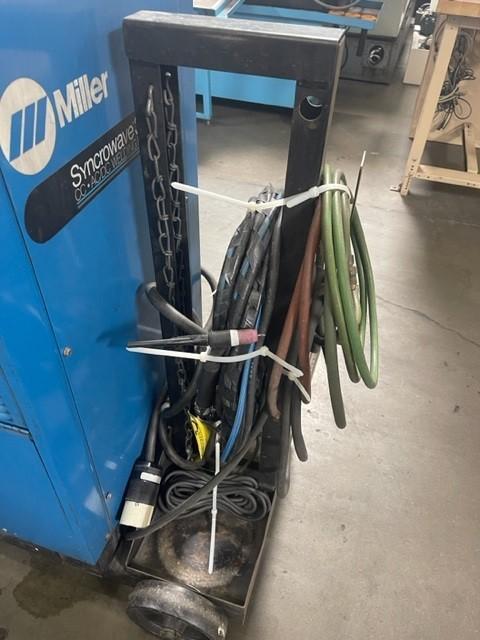

TIG Torch

Miller Foot Switch

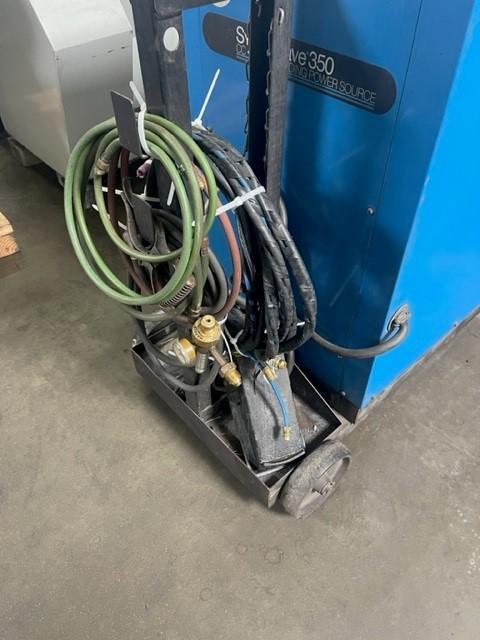

Gas Lines
