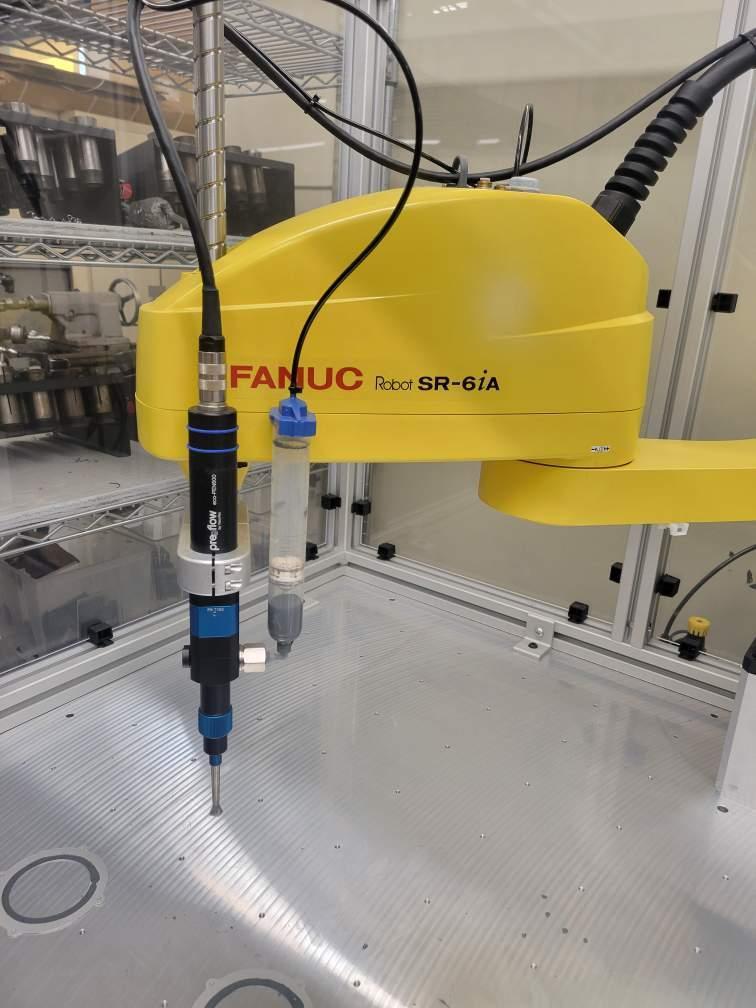

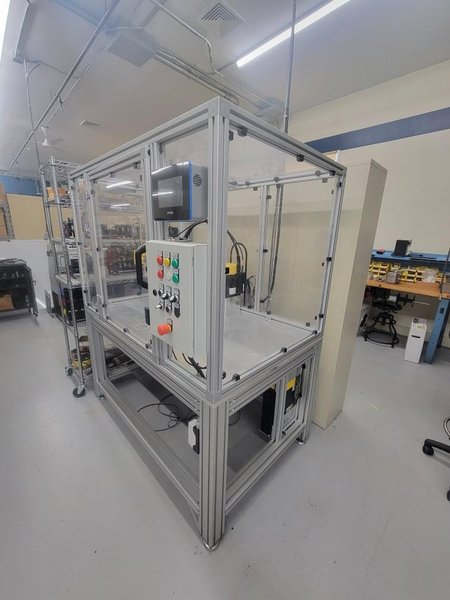

Visco Tech PreeFlow Painting Eco Pen 600 Painting System, 2018 – Fanuc Seara SR-6ia, Full Enclosure

Dimensions: 10.78″ X 1.34″ X 1.34″, 1.57″ Diameter Weight: 1.65 Lbs Thread: 1/4″ Cylindrical Whitworth Pipe Thread Din/Iso 228, Luer Lock With O-Ring (Patented) Operating Pressure: 0 To 87 Psi (Self-Levelling Fluid), 232 To 290 Psi (Non-Self-Levelling Fluid) Max. Dosing Pressure: Approx. 29 Psi (Reference Medium Approx. 10Mpas At 20°C) Materials: Hd-Pom / Stainless Steel Housing, High-Molecular Pe, Vischem Viton O-Ring (Medium), Nbr (Dust) Seals Power Supply: 18 – 24 V Dc Encoder: Incremental Encoder, Planetary Gears Temperature: 50°F To 104°F (Operating), 50°F To 104°F (Storage, Dry & Dust-Free), 14°F To 104°F (Storage) Dosing Performance: 0.005 Fluid Ounces Per Revolution, ± 1% Accuracy, > 99% Repeat Accuracy, 0.0005 Fluid Ounces Min. Dosing Quantity, 0.05 To 0.55 Fluid Ounces Per Minute Volume Flow

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
