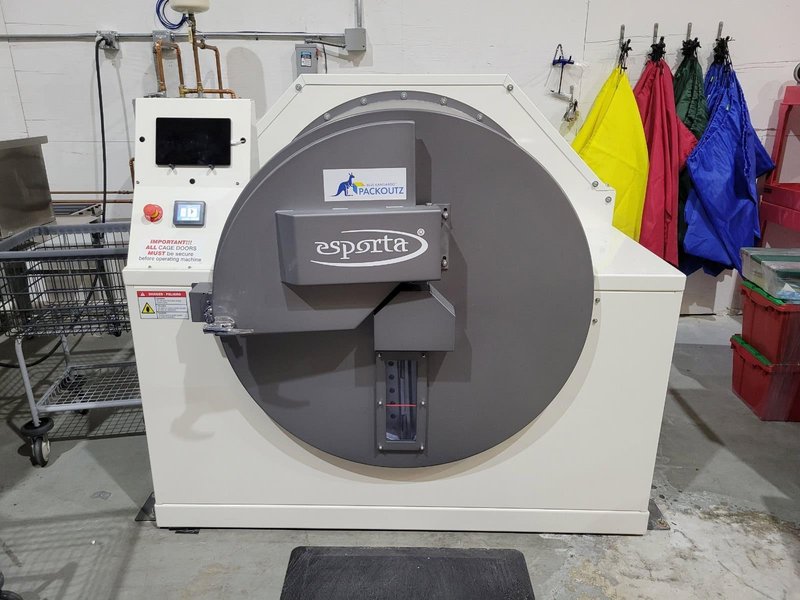

2023 Esporta IS-4200 Soft Contents Washing System – 100lb Capacity w/ Verified Install & Chemical Feed

Equipment Overview

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The Esporta IS-4200 is a next-generation soft contents restoration system for decontaminating PPE, gear, textiles, and other high-value items impacted by fire, mold, sewage, or biohazards. It features Esporta’s patented hydraulic wash technology and is fully automated with a programmable PLC interface. This unit shows verified installation and includes a full 5-line chemical feed setup, indicating it was actively in use.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drum Capacity: 100 lbs / 45.4 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wash System: -Hydraulic-driven restoration process (not traditional tumbling) -Capable of cleaning ~85% of total soft content categories

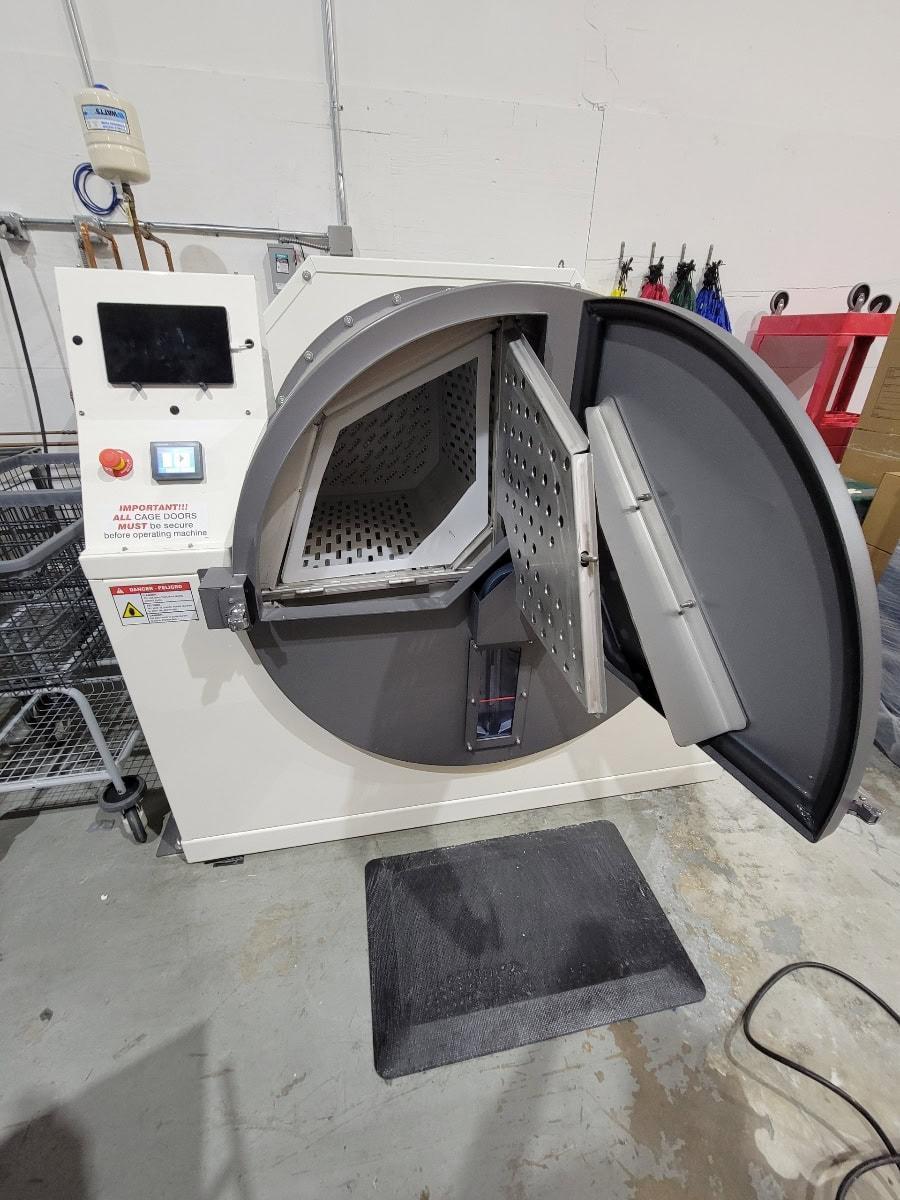

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drum Configuration: -Stainless steel cage system -Safety interlocks and cage sensors

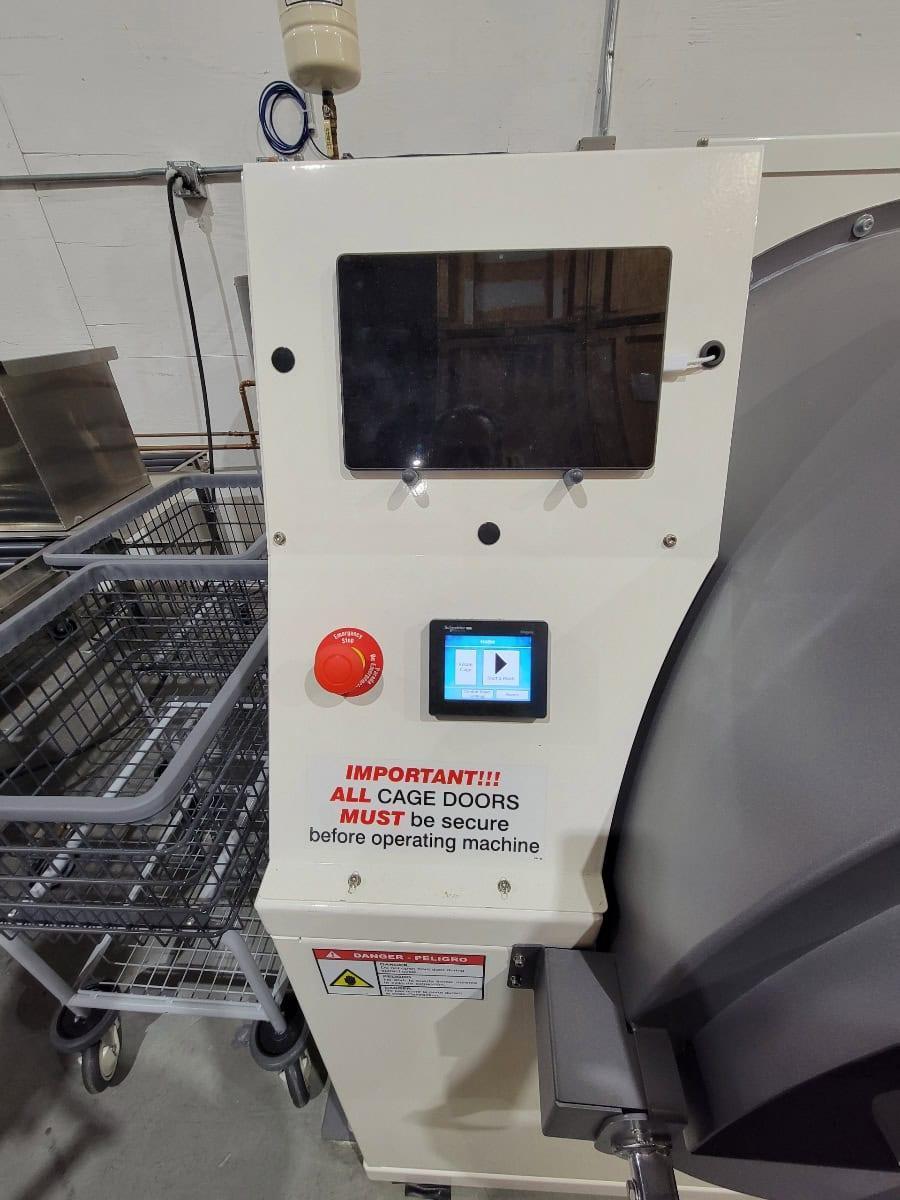

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Touchscreen Control: -Schneider Electric interface -Pre-set cycles for category-specific decon (fire, sewage, mold) -System lockout if cage doors are unsecured

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Chemical Feed System: -Multi-line injection -Detergent and disinfectant compliant

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Plumbing: Hot/Cold water inlets with separate ports

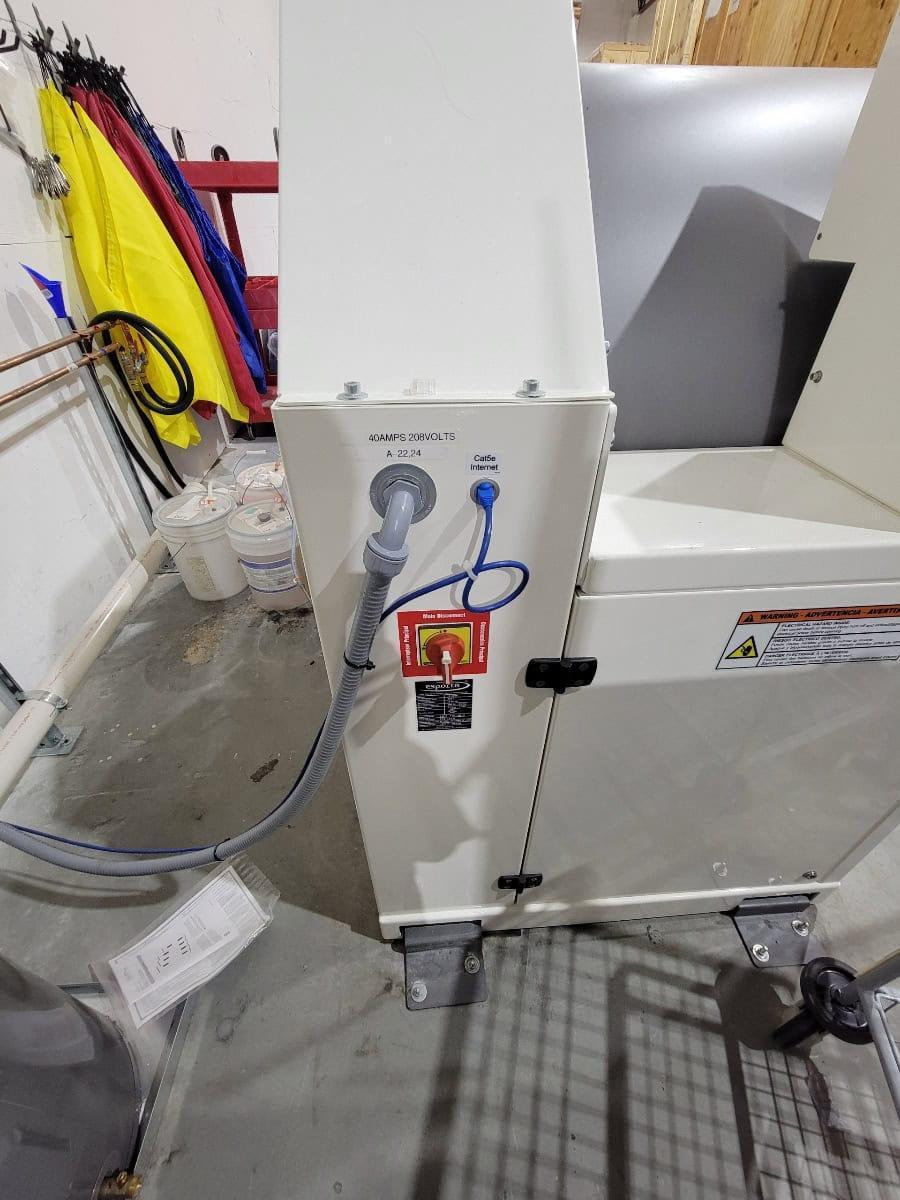

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Requirements: -240V | 1 Phase | 60 Hz -8 HP / 6 kW total draw -40 AMP disconnect (visible in images)

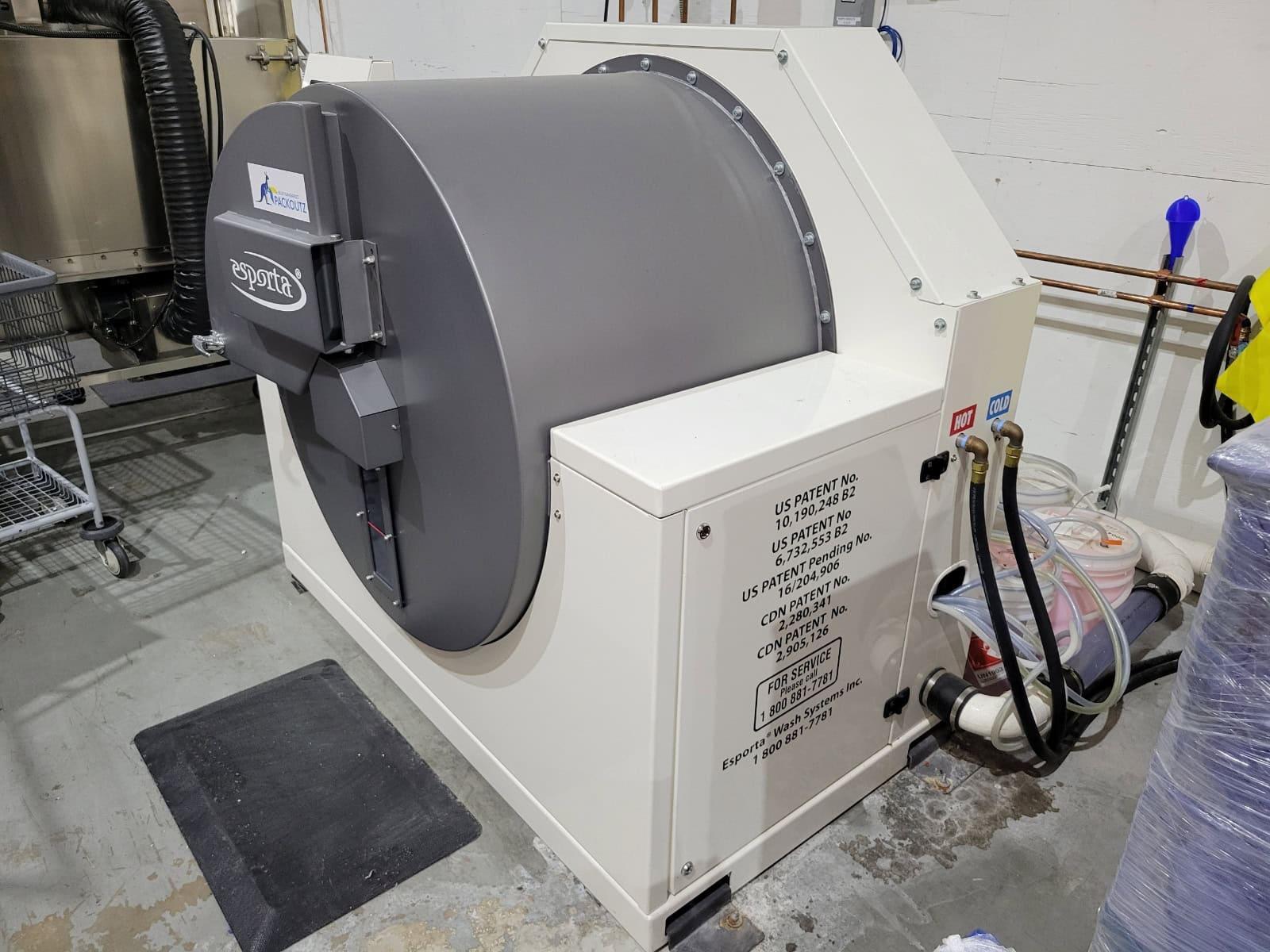

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Certifications: CSA Listed, US Patent Nos. 10,190,248 B2 & 6,732,553 B2

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Footprint: -Dimensions: 52”W x 80”L x 70”H -Weight: 1,945 lbs (885 kg)
